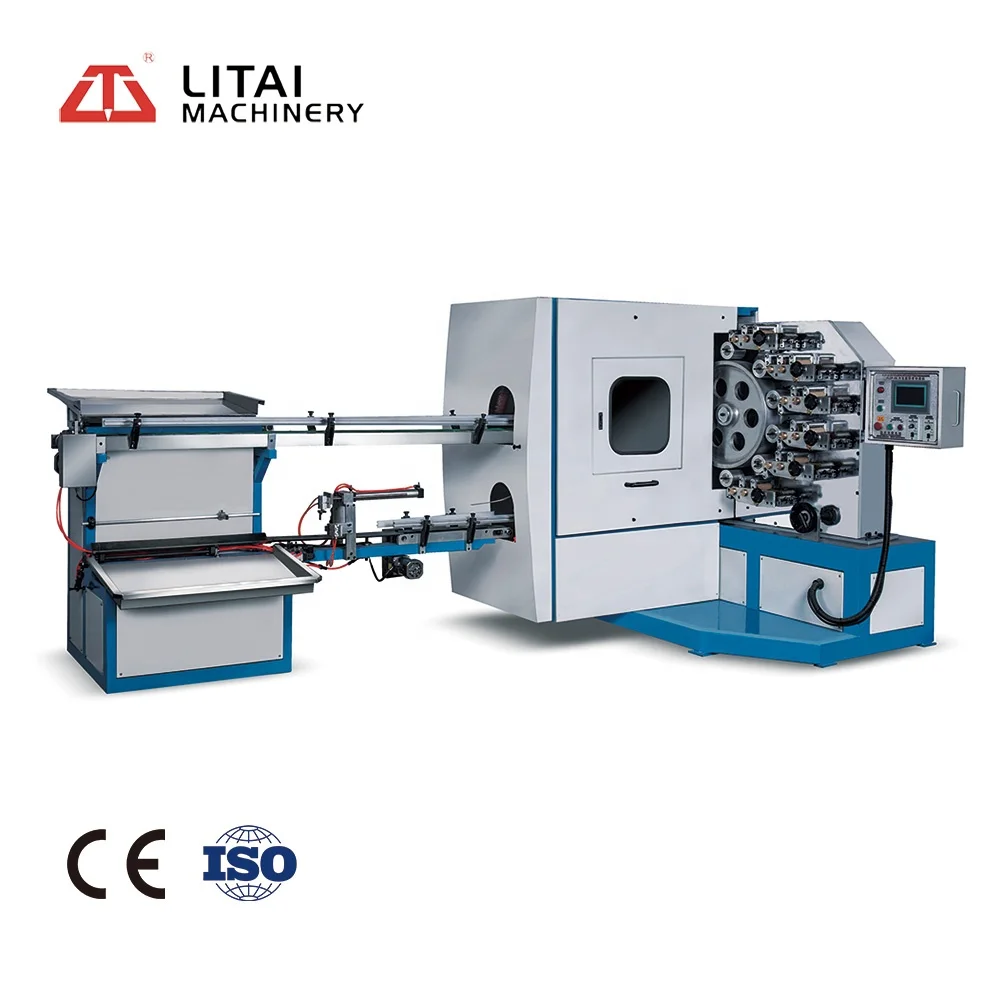

Автоматическая высокоскоростная Высококачественная машина для печати пластиковых стаканчиков на

Автоматическая высокоскоростная Высококачественная машина для печати пластиковых стаканчиков на

Категория: Офсетные принтеры >>>
Поставщик: Pingyang,Litai,Machinery,Co.,Ltd.

Цена:56 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	66640.64 $*	69972.39 $*
Aug-19-2025	66080.23 $*	69384.50 $*
Jul-19-2025	55440.30 $*	58212.56 $*
Jun-19-2025	64960.84 $*	68208.41 $*
May-19-2025	56560.26 $*	59388.93 $*
Apr-19-2025	63840.29 $*	67032.67 $*
Mar-19-2025	63280.13 $*	66444.43 $*
Feb-19-2025	62720.20 $*	65856.29 $*
Jan-19-2025	62160.90 $*	65268.36 $*

Характеристики

Product parameters

Model	TJYT-6A（standard）
Printing color	6 colors
Suitable printing material	PP, PS, PET, HDPE , etc
Printing speed (depending on different cup)	150—200 pcs/min
Printing length	400mm
Printing area height	20-95mm
Printing area diameter	65-150mm
Printing cup diameter	60-160mm
Printing mould roller diameter	150mm
Printing plate diameter	600mm
Printing angel	3°--13°
Max. form on printing plate	2-4pcs
Cup mould roller	8pcs
Air pressure	6-8 Bar
Max. air consumption	48 m³/h
Rated power	15.8 kw
UV lamp power	6 kw x1
Aureole power	1 kw
Dimension	L5500W2500H2200 mm
Weight	About 4.70T

Products Description

APPLICATION AREA

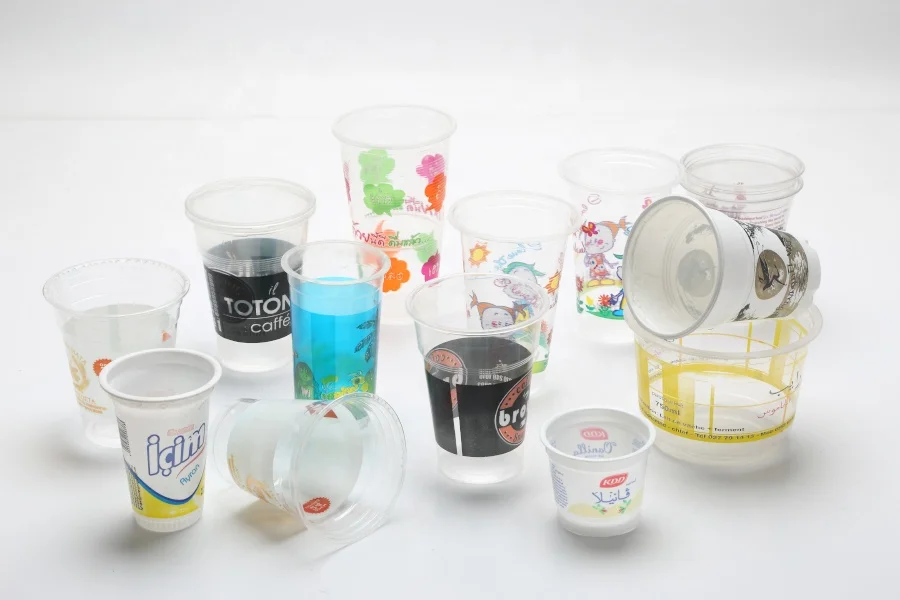

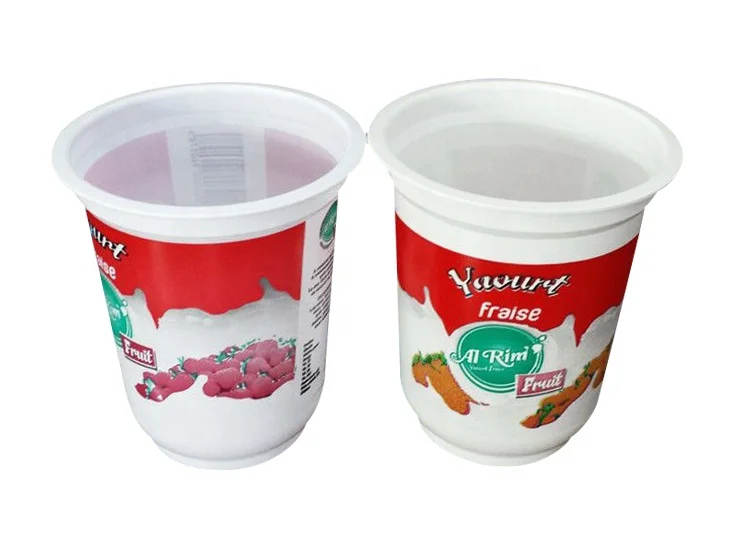

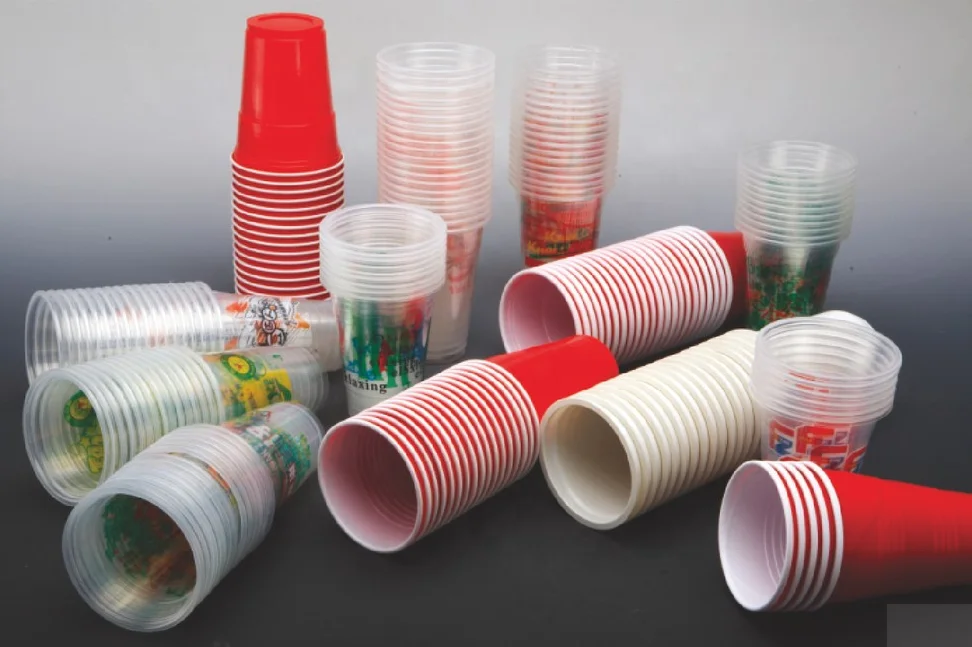

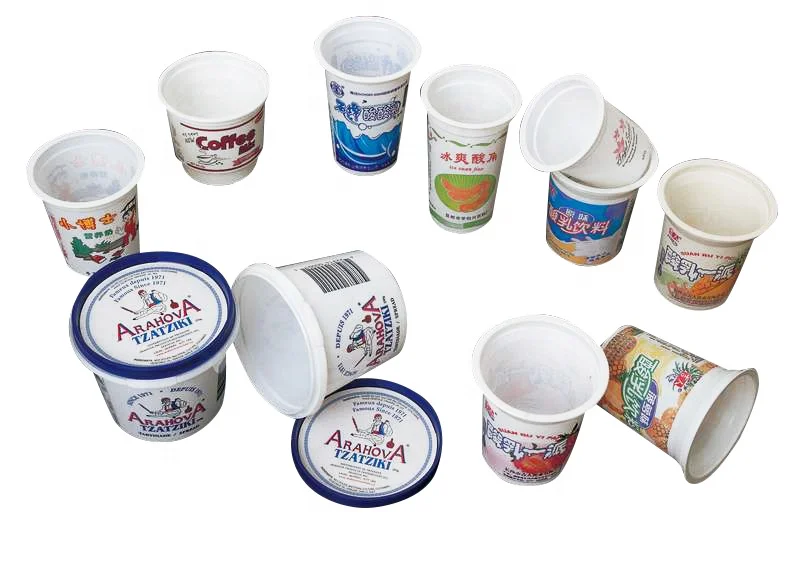

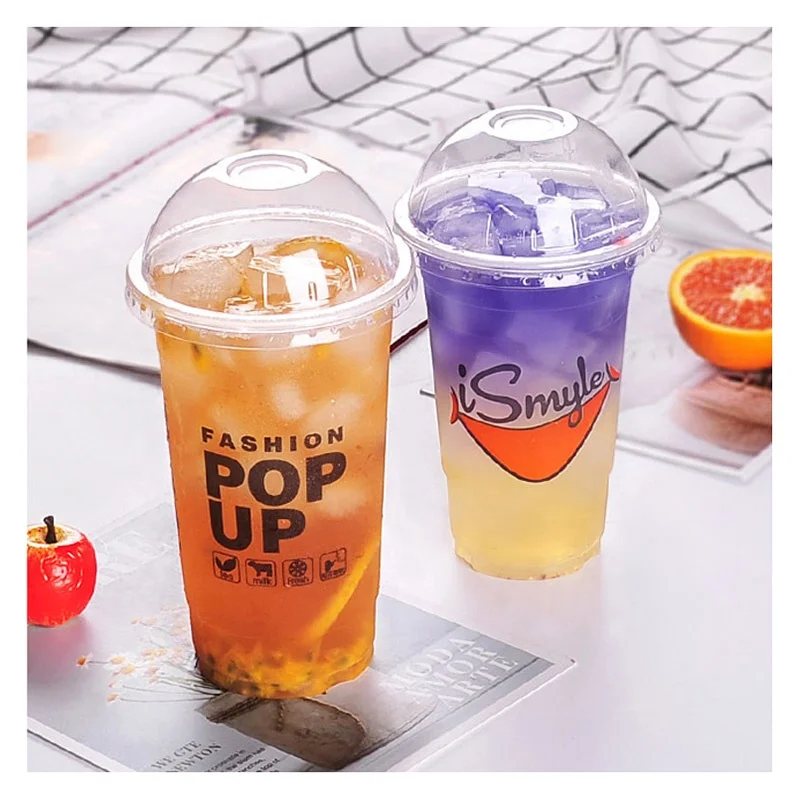

The equipment adopts relief printing two-side color words and patterns in plastic products surface with letterset method,and it can print six colors pattern in one time. It is widely used for printing yoghurt cup, ice-cream cup, fast-food bowl, and other cylindrical form or conical plastic product.

Cup inside by conveyor

Then go inside of cup mould

Ink area

About US

Certificate

Exhibition

Packaging shipping

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory, and we export our machines to more than 80 countries since 2001.

Q2: How long is the warranty period?

A2: We have a professional QC department in charge of products' quality.

Q3: How long is the warranty period?

A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.

Q4: How to install the machine?

A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
