Машины для производства влажных салфеток

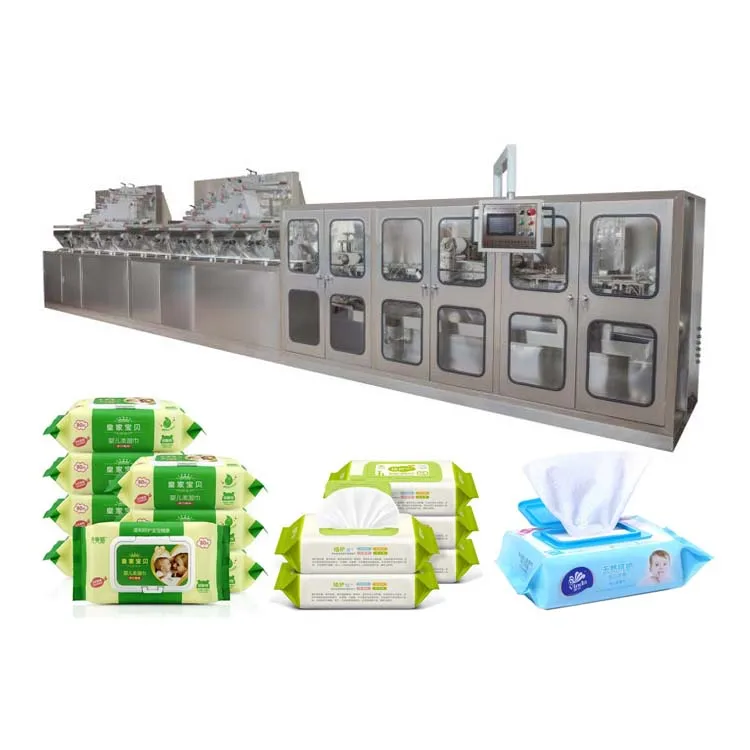

Автоматическое изготовление влажных салфеток производственная линия машина для производства

Автоматическое изготовление влажных салфеток производственная линия машина для производства

Категория: Машины для производства влажных салфеток >>>
Поставщик: Zhejiang,Leadtop,Pharmaceutical,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.41 $*	0.67 $*
Aug-19-2025	0.59 $*	0.7 $*
Jul-19-2025	0.29 $*	0.16 $*
Jun-19-2025	0.18 $*	0.5 $*
May-19-2025	0.32 $*	0.95 $*
Apr-19-2025	0.3 $*	0.83 $*
Mar-19-2025	0.84 $*	0.82 $*
Feb-19-2025	0.17 $*	0.96 $*
Jan-19-2025	0.82 $*	0.42 $*

Характеристики

1.Wet Wipes Folding Machine

Main technical parameter
Product type	wet wipes
Product speed	250-380 cuts/min (3000-4500 pcs/min )
Suitable raw material	air laid paper, spunlace/hot-rolling nonwoven fabric
Weight of raw material	40-80g/㎡
Folding way	“Z” shape （pop up and non-pop up）
Cutting unite	1.double paper shelves
		2.10 lanes or 12 lanes,2 rolls
		3. raw material roll width :900~1000mm
Length of wet tissue	140-220mm (setting via touchscreen)
Size of raw material	(1000-1250)×Ø1000mm
Wet tissue unfolded size	(140-220)×(150-250)mm
Wet tissue folded size	(140-220)×(90-110)mm
Material supply system	Servo motor
Cutting system	Converter motor
Piling system	Servo Motor
Power supply	380V 50HZ
Power	10KW
Size of machine	10200×3300×2000mm
Weight of machine	5000 kg
Water Tank	400L 2pcs

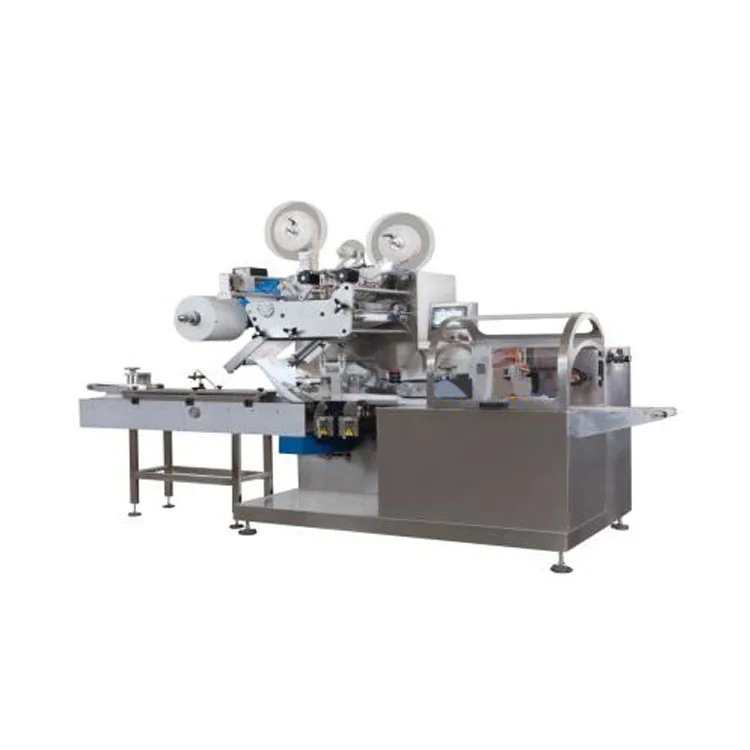

2.Full-auto Wet Wipes Packing Machine

Production process :

connect to folding machine → feeding wipe automatic →conveying to packing machine → setting packing film → setting window hole label → Central sealing →End sealing and reciprocating cut → Output finished products.

Standard equipment：

Date printing unit、Punching unit、Labelling unit、Inserting corner unit、Electrical eye tracking automatically

Servo Drive

Film supply system, Horizontal system, Feeding system, Labeling system, Punching system

MainTechnical parameter
Suitable to pack	40-120pcs/bag
Product speed	30-60bag/min
Diameter of raw film roll	≤380mm
Width of raw film roll	≤420mm
Wrapping material	PP,OPP,PET,PE, and all suitable films
Shapes of packing	pillow type packaging
Packing length	100-300mm（touch screen setable）
Packing Width	80~150mm（adjustable）
Height of packing	10-100mm （adjustable）
Horizontal sealing pattern	reciprocation heat sealing
Drive motor pattern	all servo drive
Control pattern	Yaskawa MOTION control system
Operation interface	7 inch LCD
Horizontal protection	Torque overload protection
Air requirements	0.5-0.8Mpa 0.01m3/min
Electric power requirements	380VAC 50/60HZ
General power	7.6KW
Dimension of Machine	5410×1150×1900mm

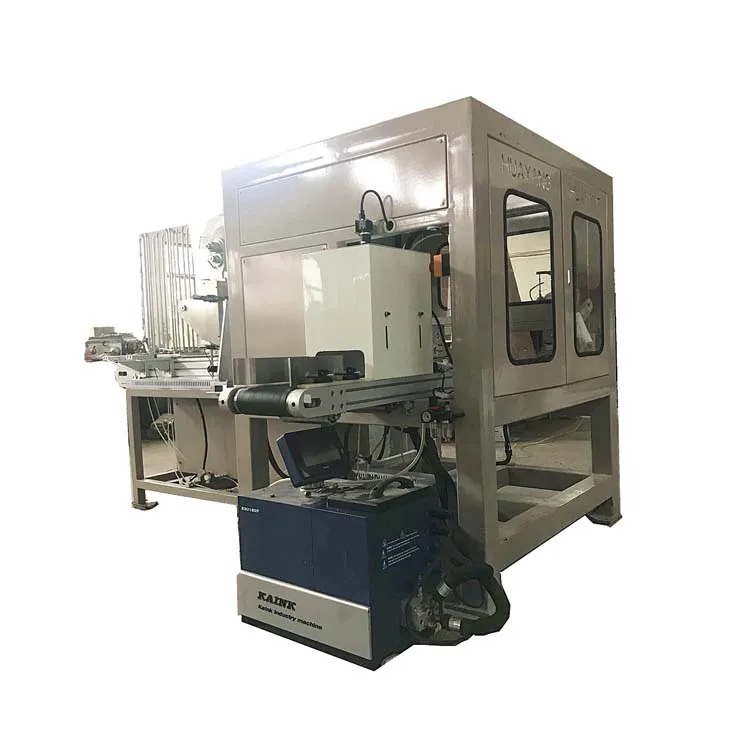

3.Full-auto Lid Applicator

MainTechnical parameter：
Speed	45-60 pcs/min（eg. Film length at 250mm）
Maxi. Packing film length	300 mm (the film length will affect the actual production speed)
Wet wipes package Dimension	(300)(45-120)(10-80)mm
Accuarcy	±1.2 mm
Voltage require	3 phases, AC380V 50/60 Hz
Power	7.5 KW
Air Pressure	0.4 - 0.6MPa, 1.0 m³/hr
Dimension	L 2000 * W 2650 * H 1650 mm
Weight	1200 Kg

Related Products

Company Introduction

Our Company

-Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.

-LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
-We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.

Our Machinery Workshop

Our Certificates

ISO, CE, SGS, BV Certified Company.

Our Sales Team

Our Customers

Packing & Shipping

All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.

FAQ

Attention:

1 -- LTPM CHINA not only make machines, we can also provide you with packaging line design. We professional team provide different solutions for different products. Every one of your products will have its optional solution.
2 --- Different models of machines have different prices, and different customized solutions have different prices. if you want to know the exact information, please click "Contact Supplier" or "Send Inquiry" to send mail to us.
3 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.

Q1: What is the warranty period for your machine?

A: 5 years free warranty.

Q2: Do you have manual or operation video for us to know more about the machine?

A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our
local market.

Q3: How can I trust you for the first time business ?

A: if you don't trust us, then we can use Alibaba trade
assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q4: Is engineer available to serve oversea?

A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q5: How can we make sure about the machine quality after we put the order?

A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will
send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
