Ультразвуковой измеритель толщины ZX-5 brand DAKOTA с высокой производительностью и защитой

DAKOTA Ultrasonic Thickness Detector

Product description:

The ZX series is the latest in a series of ultrasound thickness gauges by the American company DAKOTA ULTRASONICS.It has the features of simple use, powerful function, small size and high reliability.Extruded aluminum case, strong and durable.

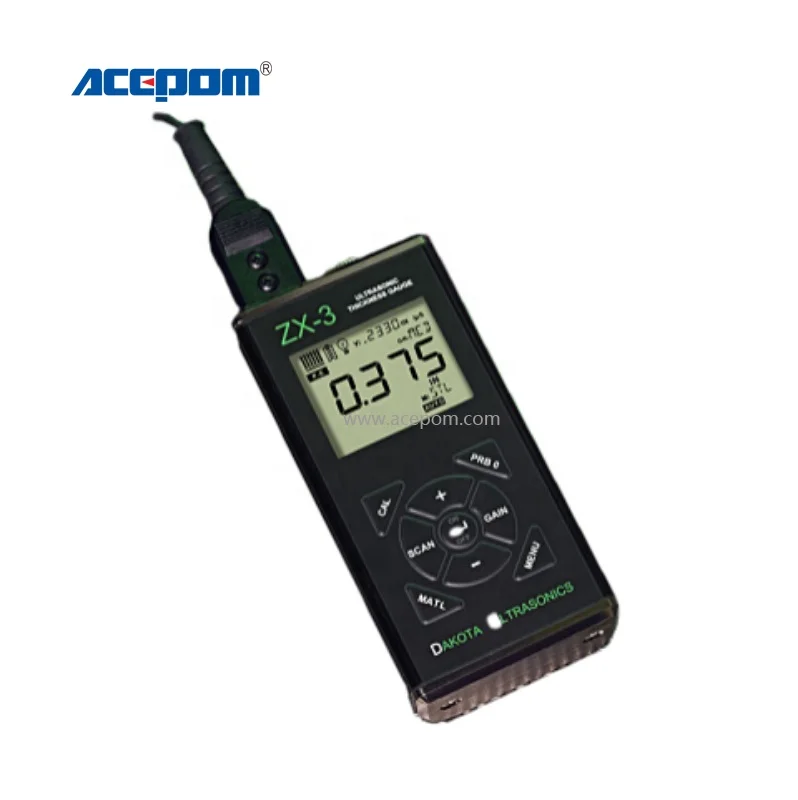

ZX-3, basic model

1. 150V square wave generator.

2. Adjustable gain (40 to 52 db), step value 3db, (5 lever to shift)

3. Zero calibration of probe by manual or automatic.

4. LED display under low temperature (-30℃)

5. IP grade : IP63

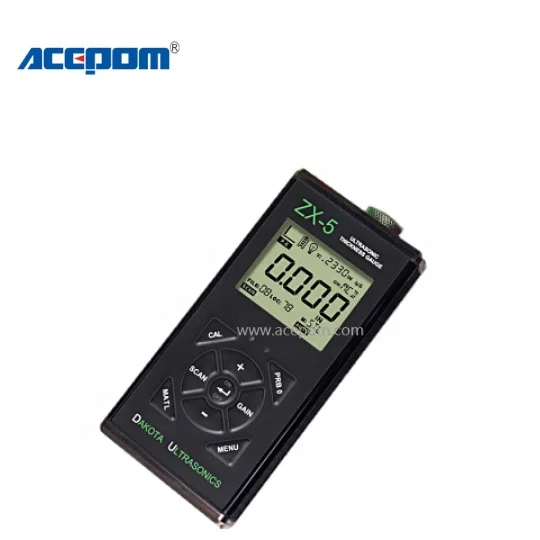

ZX-5, medium level upgraded version of ZX-3 with additional features:

1. Sound velocity measurement mode, also applied for ultrasound velocity detector.(Spheroidization rate meter)

2. Delta mode

3. Upper and lower alarm mode

4. USB type-C data transmitter

ZX-5DL , Advanced level upgraded revision of ZX-5 with additional features:

1.32M flash internal data storage.

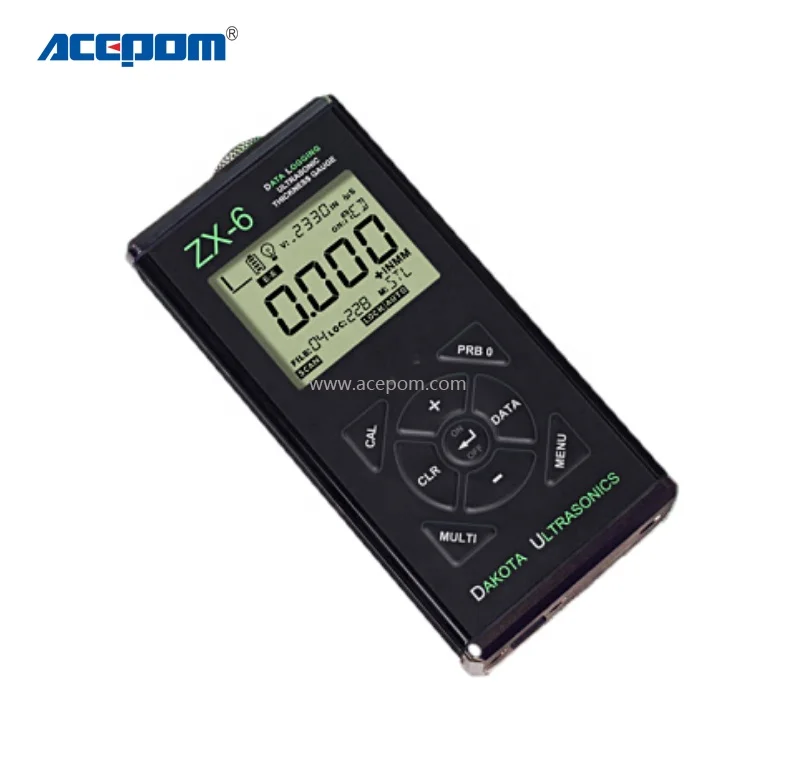

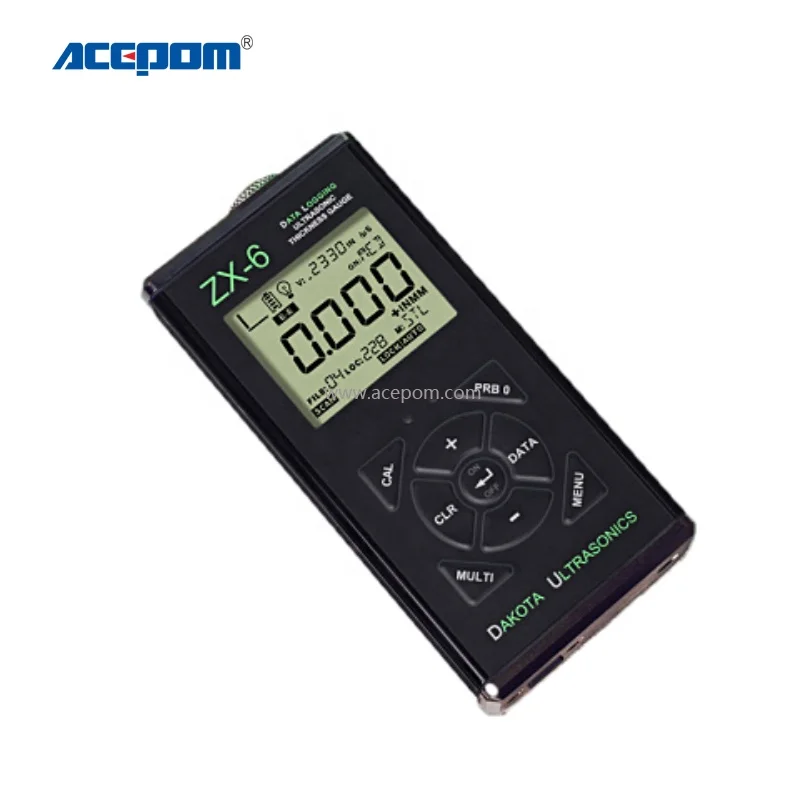

ZX-6 , ZX-6DL are configurated with echo-echo mode to measure through the paint on the surface of parts to be measured. We can do the measurement without remove the paint and get the thickness of material. ZX-6 and ZX-6DL are with following features:

1. 150V square wave generator.

2. Pulse-echo mode and echo-echo (through coating ) mode .

3. Adjustable gain (40 to 52 db), step value 3db, (5 lever to shift)

4. Time related gain (TDG)

5. Zero calibration of probe by manual or automatic.

6. LED display under low temperature (-30℃)

7. USB type-C data transmitter

8. 32M flash internal data storage.(ZX-6DL)

9. IP grade : IP65

Technical parameters

Measurement:

 (ZX-3, ZX-5,ZX-5DL)

Range : 0.63~914.4mm (iron) ,depends on the material and probe type

Unit : metric and inch

Resolution : 0.01mm

Range of sound velocity : 305 to 18542 m/s

Pulse wave frequency : 200 Hz

Display refresh rate : 10 Hz

Gain : 40 to 52 db , step value 3db

 (ZX-6,ZX-6DL)

Pulse-echo mode : 0.63~914.4mm (iron)

Echo-echo mode : 2.54 to 152mm

Coating thickness range : 0.0254 to 1.905 mm, depends on the material and frequency and diameter of probe.

Unit :  metric and inch

Resolution : 0.01mm

Range of sound velocity : 305 to 18542 m/s

Pulse wave frequency : 200 Hz

Display refresh rate : 10 Hz

Gain : 40 to 52 db , step value 3db

Time related gain (TDG): according to the probe and frequency , can be applied to pulse-echo or echo-echo model.

Display

Multi-function 7-segment 4-bit semi-digital LCD

Height of figures : 12.7mm

Two section 3.2mm14 display areas and one section 7 display area are used to display information and values

Additional ICONS represent functions and patterns

Backlight can be on/off/automatic, brightness (low, medium and high) options bar reading stability/repeatability indicator

Features:

Zero calibration of probe:  by manual or automatic.

Diameter of probe : Optional to ensure linear

High rate scanning mode : show the min value during scanning , scanning frequency 100Hz

Delta mode : Show the difference between the measured value and the input value.(ZX-5,ZX-5DL,ZX-6, ZX-6DL)

Alarm mode: Light and sound alarm for upper and lower value.

Sound velocity measurement mode : Spheroidization rate measurement.

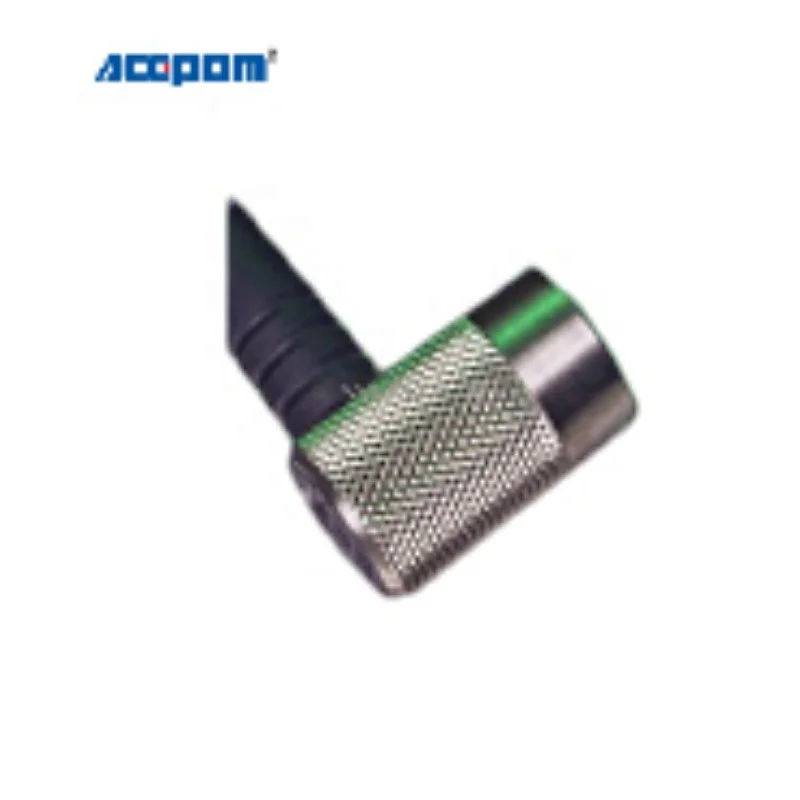

Probe :

Frequency:1~10MHz

Double crystal probe

LEMO connector, 1.2m probe line.

Probe for specialized application customizable.

Data storage:

40 sets of data for storage, 250 data in each set, 10000 in total.(ZX-5DL.ZX-6DL)

Accessory:

Keyboard: Waterproof and oil-proof seal key film, nine tactile feedback keys

Power: It is standard with two no.5 alkaline batteries, nickel cadmium battery or lithium battery.Low battery indication.Automatic shutdown after five minutes without operation.Type-c power supply (zx-5 , zx-5dl, ZX-6, ZX-6DL)

Weight: 312g (including the battery)

Size:  131.3*63.5*31.5mm

Operation temperature: -30 to 75 ℃

Casing: Extruded aluminum shell, the bottom cover is nickel-plated aluminum, environmental protection package

Package: ABS industry plastic

Probes:

(ZX-3,ZX-5,ZX-5DL)

High temperature couplings are required for testing high temperature surfaces.
