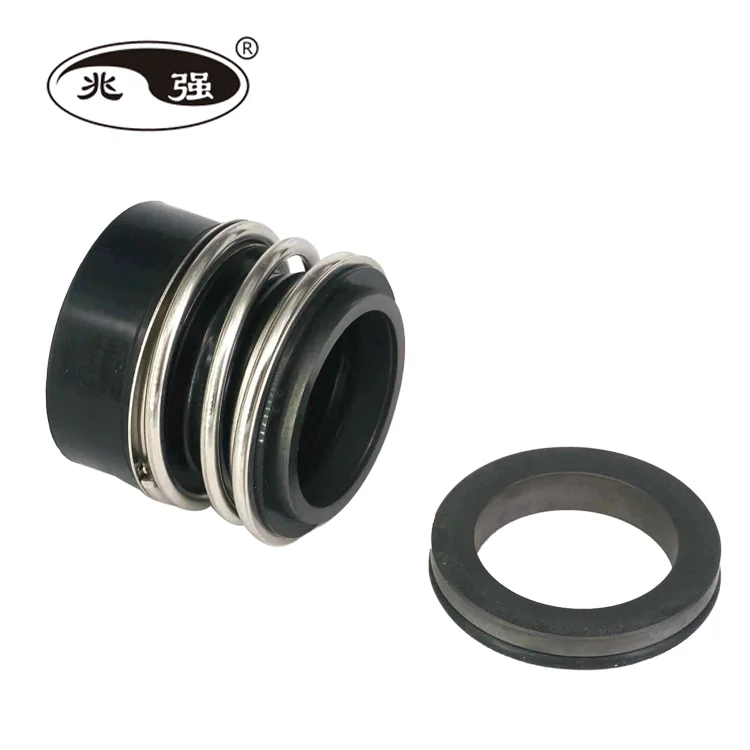

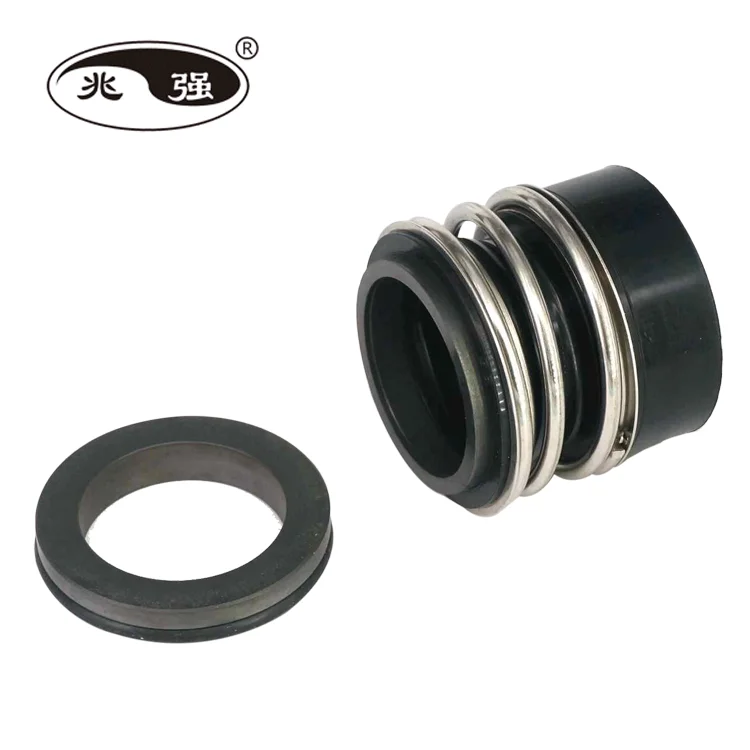

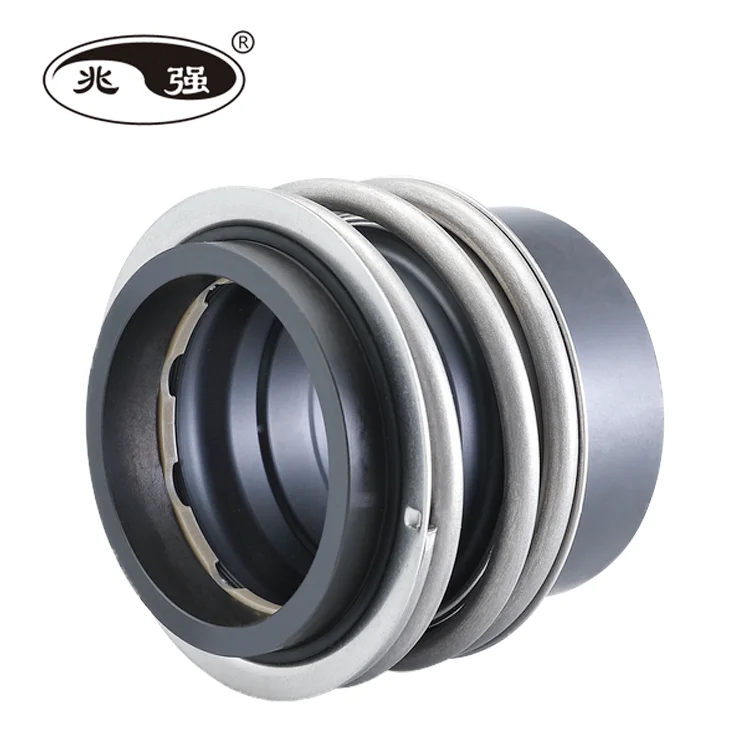

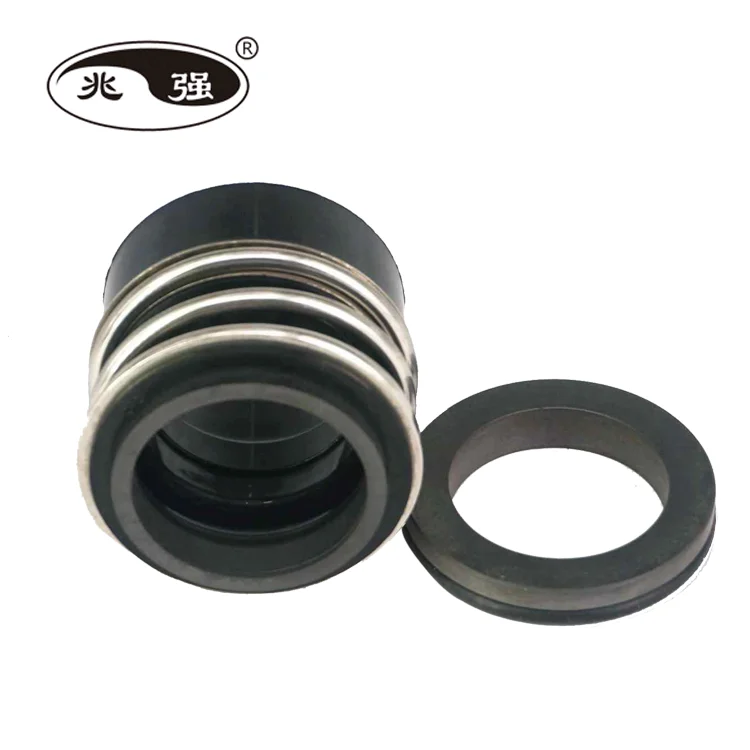

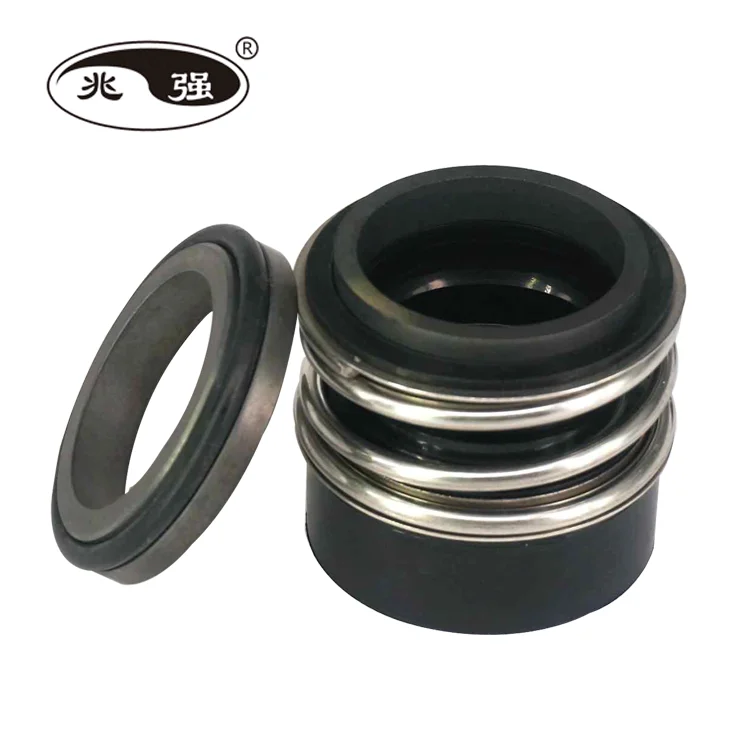

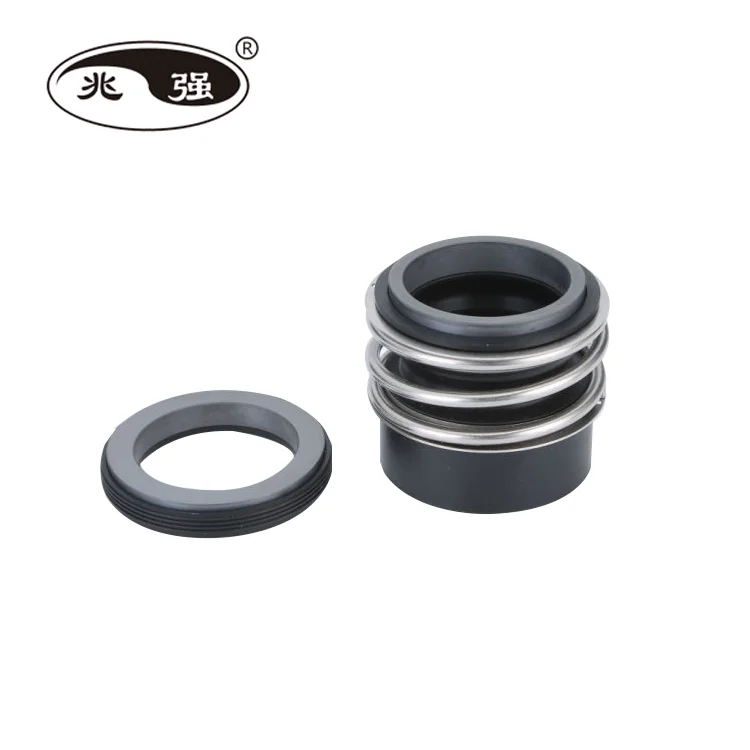

Mechanical seals of the MG series are amongst the most commonly used. The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing element and drive collar. The seal face is driven through the spring and “L“-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications
Mechanical Seal Operating Limits
Pressure: ≤1.5Mpa
linear velocity: ≤15m/s
Temperature: -30~200℃
Mechanical Seal Material
•Stationary Ring(Ceramic/SiC/TC) •Rotary Ring(Carbon/SiC/TC) •Secondary Seal(NBR/EPDM/VITON) •Spring & Other Parts(SUS304/SUS316)
Application equipment : Pipeline pumps, centrifugal pumps, submersible pumps, fresh water pumps, sewage pumps, chemical pumps. etc.
Application industry: petroleum,metallurgy industry,papermaking,oil refining industry,energy material industry,pharmaceuticals industry and water treatmentsystem etc.
Company Information
Certifications
FAQ
FAQ
Q1
Are you a factory or a trading company?
A
We are a professional factory with 20 years of experience in designing and manufacturing mechanical seals and wear-resistant materials.
Q2
Can I get an sample to check the quality of products?
A
Yes. We can send you samples to check the quality within 3-5days.
Q3
Do you provide free samples?
A
We can provide free samples, but you need to pay for the freight to your destination.
Q4
What payment terms do you accept?
A
We accept T/T, Western Union, Paypal and Escrow, L/C, etc.
Q5
I can not find our products in your catalog. Can you make customized products for us?
A
Yes. Customized products are available according to your drawings or working conditions.
Q6
Could you design it if I don’t have drawings or pictures for custom products?
A
Yes,we can make the best suitable design in accordance with your application and working conditions.
