Ручная машина для изготовления сотовых брикетов
US $60.00-$300.00
Вращающаяся горелка для печи угля с порошковым покрытием
- Категория: >>>
- Поставщик: Zhengzhou,Bona,Heat,Energy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 28560.29 $* | 29988.29 $* |
| Aug-19-2025 | 28320.8 $* | 29736.64 $* |
| Jul-19-2025 | 23760.56 $* | 24948.11 $* |
| Jun-19-2025 | 27840.79 $* | 29232.53 $* |
| May-19-2025 | 24240.71 $* | 25452.57 $* |
| Apr-19-2025 | 27360.40 $* | 28728.67 $* |
| Mar-19-2025 | 27120.61 $* | 28476.17 $* |
| Feb-19-2025 | 26880.5 $* | 28224.78 $* |
| Jan-19-2025 | 26640.54 $* | 27972.58 $* |
Характеристики
Product Overview

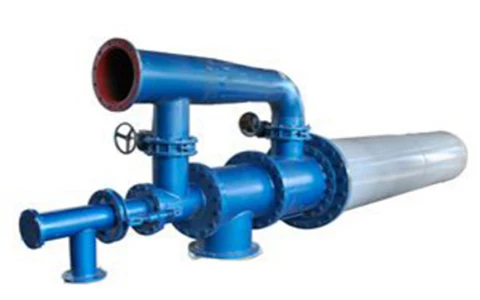

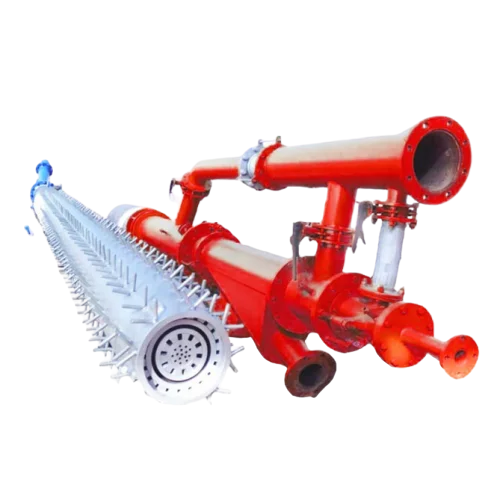

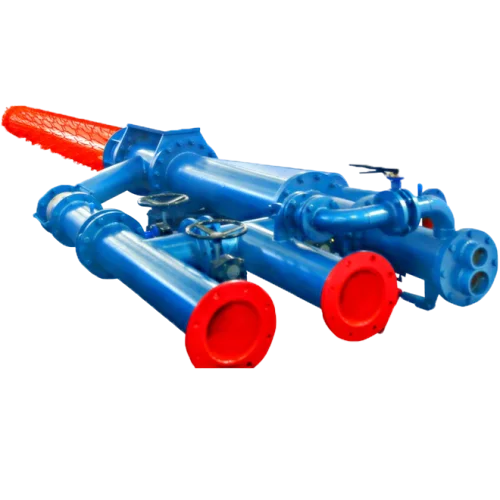

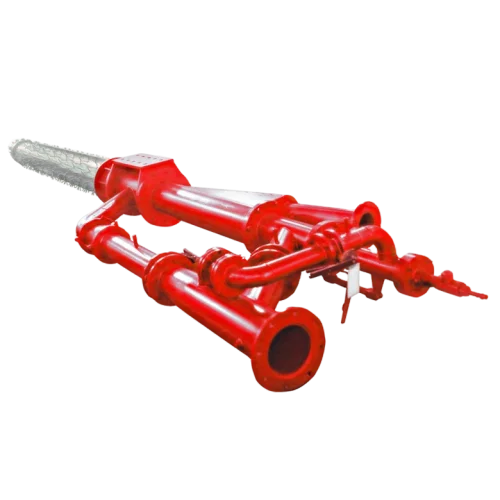

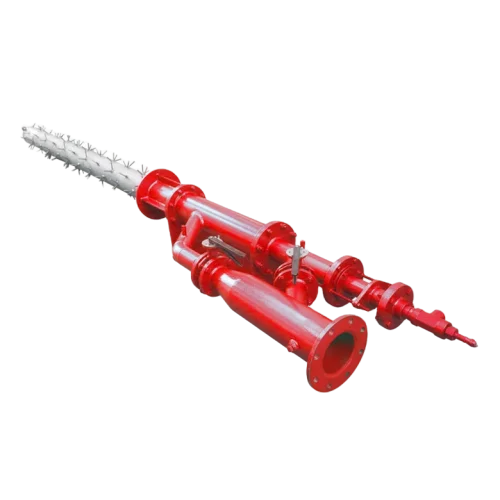

Rotary kiln burner
Most of the burners of rotary kiln extend into the kiln head shell through the kiln head cover. The materials are heated to the required temperature by flame and radiation. There are many kinds of burners, such as coal injection pipe, oil spray gun, gas nozzle and so on. When the reaction temperature is low, a combustion chamber is set up beside the kiln hood to supply heat by passing hot flue gas into the kiln.
Power range: 200 ~ 20000KW
Single burner: 500 ~ 10000t / D production line
Applicable fuel:
Pulverized coal, blue charcoal
natural gas. Liquefied gas, gas, light hydrocarbon gas, etc
. light oil, heavy oil, residual oil and mixed oil
It is mainly used in:
Cement kilns, pelletizing kilns, lime kilns, lithium kilns, magnesia kilns, alumina kilns, chromite kilns, beneficiation kilns
and other kilns in building materials, metallurgy, chemical industry, electric power and other industries.
According to the process requirements, it can be designed as two duct, three duct, four duct and five duct burner.
Single burner: 500 ~ 10000t / D production line
Applicable fuel:
Pulverized coal, blue charcoal
natural gas. Liquefied gas, gas, light hydrocarbon gas, etc
. light oil, heavy oil, residual oil and mixed oil
It is mainly used in:
Cement kilns, pelletizing kilns, lime kilns, lithium kilns, magnesia kilns, alumina kilns, chromite kilns, beneficiation kilns
and other kilns in building materials, metallurgy, chemical industry, electric power and other industries.
According to the process requirements, it can be designed as two duct, three duct, four duct and five duct burner.
Right elevation
Left elevation
Front elevation
PRODUCT CONFIGURATION
Rotary Kiln Burners
Rotary Kiln Burners
Rotary Kiln Burners
PRODUCT SPECIFICATIONS
No | Burner type | Kiln type | t/h | m/s | m/s | m/s | m/s | Regulation ratio |
20010 | BNRK 1200 | 1200T/D | 3-5 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
20011 | BNRK 2000 | 2000T/D | 4-6 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
20012 | BNRK 2500 | 2500T/D | 5-8 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
20013 | BNRK 3000 | 3000T/D | 6-9 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
20014 | BNRK 3200 | 3200T/D | 6-9 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
20015 | BNRK 4000 | 4000T/D | 8-12 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
20016 | BNRK 4500 | 4500T/D | 9-15 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
20017 | BNRK 5000 | 5000T/D | 10-18 | 25-30 | 350-460 | 220-280 | 140-180 | 1;8 |
BNTET PLONT
Successful Project
Project in Thailand
Project in India
Project in Russia
