MLD-918B оптическое оборудование, буровая машина для объектива
US $36.00-$55.00
Лазерные типы общей станции DADI DTM152 Коллиматор
- Категория: Other Optics Instruments >>>
- Поставщик: Shanghai,Newdi,Navigation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1269.60 $* | 1294.30 $* |
| Jul-16-2025 | 1029.73 $* | 1050.46 $* |
| Jun-16-2025 | 1249.64 $* | 1274.61 $* |
| May-16-2025 | 1239.26 $* | 1264.66 $* |
| Apr-16-2025 | 989.99 $* | 1009.52 $* |
| Mar-16-2025 | 1219.69 $* | 1243.67 $* |
| Feb-16-2025 | 1209.66 $* | 1233.6 $* |
| Jan-16-2025 | 1199.78 $* | 1223.6 $* |
Характеристики
Key features
1. Non-prism: 600m.
2. Strong software to help to achieve the measurment.
3. RS232 or USB ports for option.
4. Good laserto protect the eyes of the surveyor.
5. Large LED display.
2. Strong software to help to achieve the measurment.
3. RS232 or USB ports for option.
4. Good laserto protect the eyes of the surveyor.
5. Large LED display.
Product Description
Model | DTM626R | |||
Distance Measurement Section | ||||
Range | Non-prism | 600m | ||
Prism | Single prism:3000m,Three prism:5000m | |||
Accuracy | Non-prism | ±(3mm+2ppm.D) | ||
Prism | ±(2mm+2ppm.D) | |||
Unit | m/foot | |||
Disply | Maximum | 99999999.999m | ||
Minimum | 0.1mm | |||
Measuring time | Precise model:1s,Track model:0.8s | |||
Number of time Set | 1-99 | |||
Meteorologic correction | Input the value and correct automatic | |||
Prism constant | Input the value and correct automatic | |||
Angle Measurement Section | ||||
Method | Absolute coding | |||
Grating diameter | 79mm | |||
Minimum reading | 1" | |||
Detection | Horizontal | Diametrical detection | ||
Vertical | Diametrical detection | |||
Accuracy | 2" | |||
Telescope Section | ||||
Imaging | Positive | |||
Length | 170mm | |||
Effective aperture | 48mm | |||
Magnification | 30x | |||
Angle of version | ‘1.5° | |||
Distinguish ability | 3.5" | |||
Minimum focus distance | 1.5m | |||
Compensor | ||||
System | Double axis photoelectric tilt sensor | |||
Working range | ±3′ | |||
Distinguish ability | 1" | |||
Display Section | ||||
Type | Double sides,240*160 LCD Display | |||
Data Transmission | ||||
Port | USB,RS-232C | |||
Capacity | 40,000data at least | |||
Others | ||||
Plummet | Optical or Laser plummet | |||
Power | DC7.4V,4000mAh | |||
Continuous working time | 8 hours at least | |||
Size | 174*207*383mm | |||
Weight | 6.8KG | |||
Working temperature | -20°C-50°C | |||

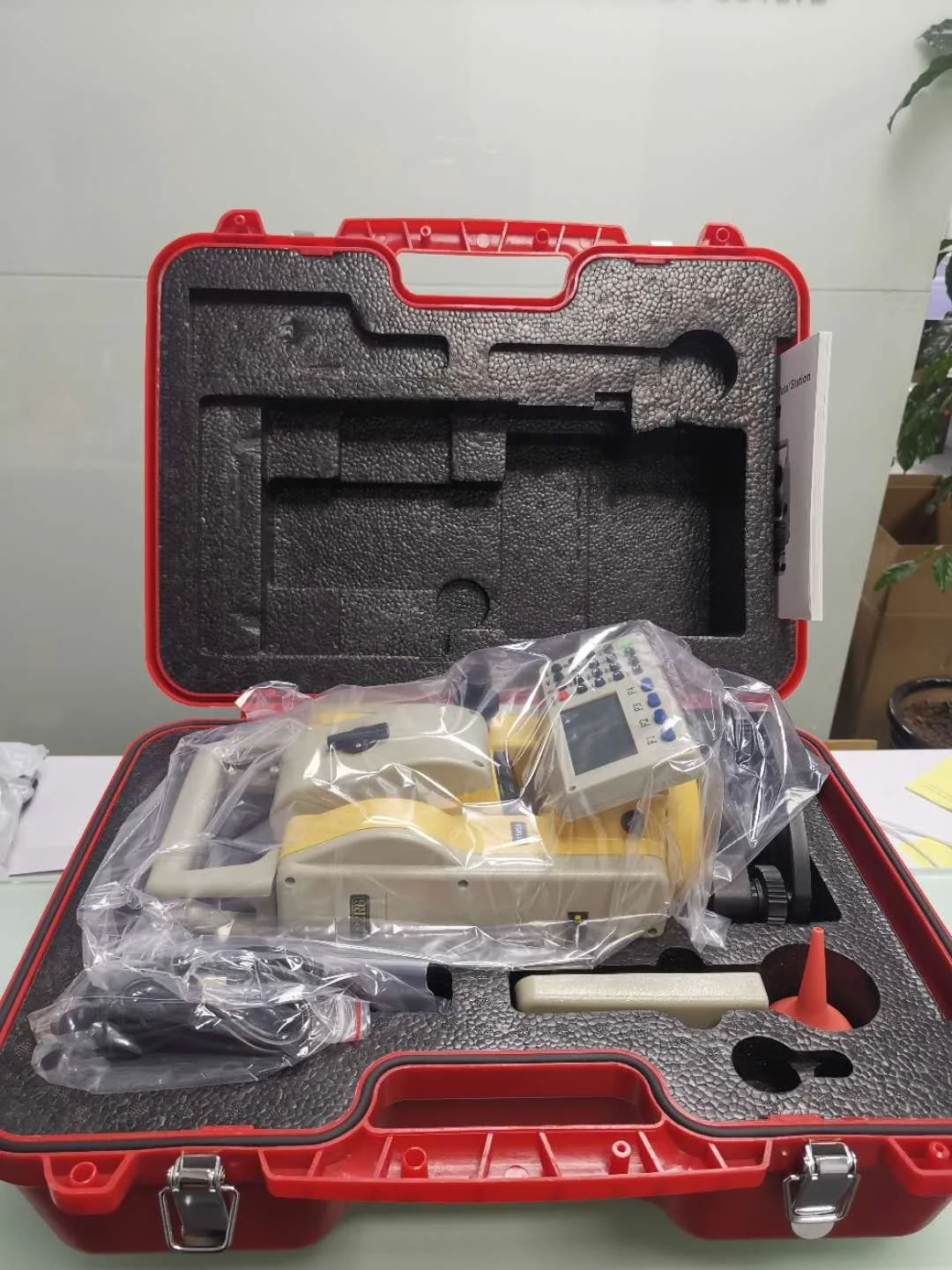

Product packaging
Our Service
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be bored by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us.
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be bored by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us.
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
FAQ
1. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal.
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY.
2. How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
3. What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt.
4. Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries.
5. Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal.
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY.
2. How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
3. What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt.
4. Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries.
5. Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
Contact Information
Allen Niu
Mobile/Whatsapp/Wechat: 86 18817572096
Tel: 86 18817572096 Fax: 86 021 67892609
Website: www.nctnav.com
http://www.nctrade.en.alibaba.com
Address: Floor 14, Bldg. 1, No. 339, Jiuxin Road, Jiuting Town, Songjiang District, Shanghai, China
Mobile/Whatsapp/Wechat: 86 18817572096
Tel: 86 18817572096 Fax: 86 021 67892609
Website: www.nctnav.com
http://www.nctrade.en.alibaba.com
Address: Floor 14, Bldg. 1, No. 339, Jiuxin Road, Jiuting Town, Songjiang District, Shanghai, China
