Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00
Натуральный маленький компактный биметаллический термостат регулятор
- Категория: Термоизмерительные приборы >>>
- Поставщик: Wenzhou,Natural,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.79 $* | 2.31 $* |
| Aug-16-2025 | 2.24 $* | 2.0 $* |
| Jul-16-2025 | 2.20 $* | 2.44 $* |
| Jun-16-2025 | 2.42 $* | 2.6 $* |
| May-16-2025 | 2.10 $* | 2.37 $* |
| Apr-16-2025 | 2.69 $* | 2.78 $* |
| Mar-16-2025 | 2.34 $* | 2.61 $* |
| Feb-16-2025 | 2.56 $* | 2.90 $* |
| Jan-16-2025 | 2.68 $* | 2.59 $* |
Характеристики
Products Description
• Large setting range
• Small size
• Simple to mount
• High switching performance

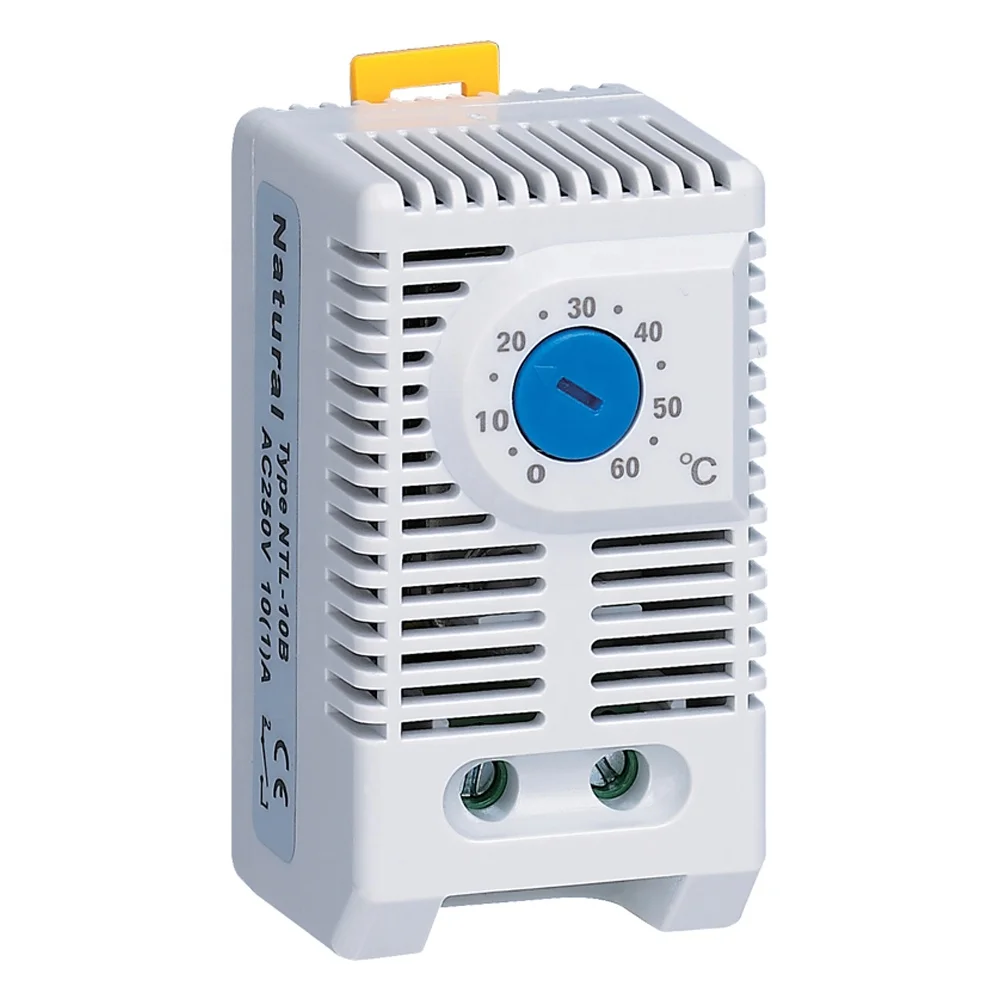

NTL 10A-F / NTL 10A-M: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.
NTL 10B-F / NTL 10B-M: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
• Small size
• Simple to mount
• High switching performance
NTL 10A-F / NTL 10A-M: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.
NTL 10B-F / NTL 10B-M: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
NTL 10B-F | ||
Switch temperature difference | +/-5°C | |
Sensor element | thermostatic bimetal | |
Contact type | snap-action contact | |
Service life | >100,000 cycles | |
Max. switching capacity | 250VAC, 10 (2) A / 120VAC, 15 (2) A DC 30W at 24VDC to 72VDC | |
Max. inrush current | AC 16A for 10 sec. | |
Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14) stranded wire¹ 1.5mm² (AWG 16) | |
Mounting | clip for 35mm DIN rail, EN 60715 | |
Casing | plastic according to UL94 V-0, light grey | |
Dimensions | 60 x 33 x 43mm | |
Weight | approx. 40g | |
Fitting position | variable | |
Operating/Storage temperature | -45 to +80°C (-49 to +176°F) | |
Operating/Storage humidity | max. 90% RH (non-condensing) | |
Protection type | IP20 | |
¹ When connecting with wires, wire end ferrules must be used.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact
resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact
resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
Hot Products
About Us
Production Process

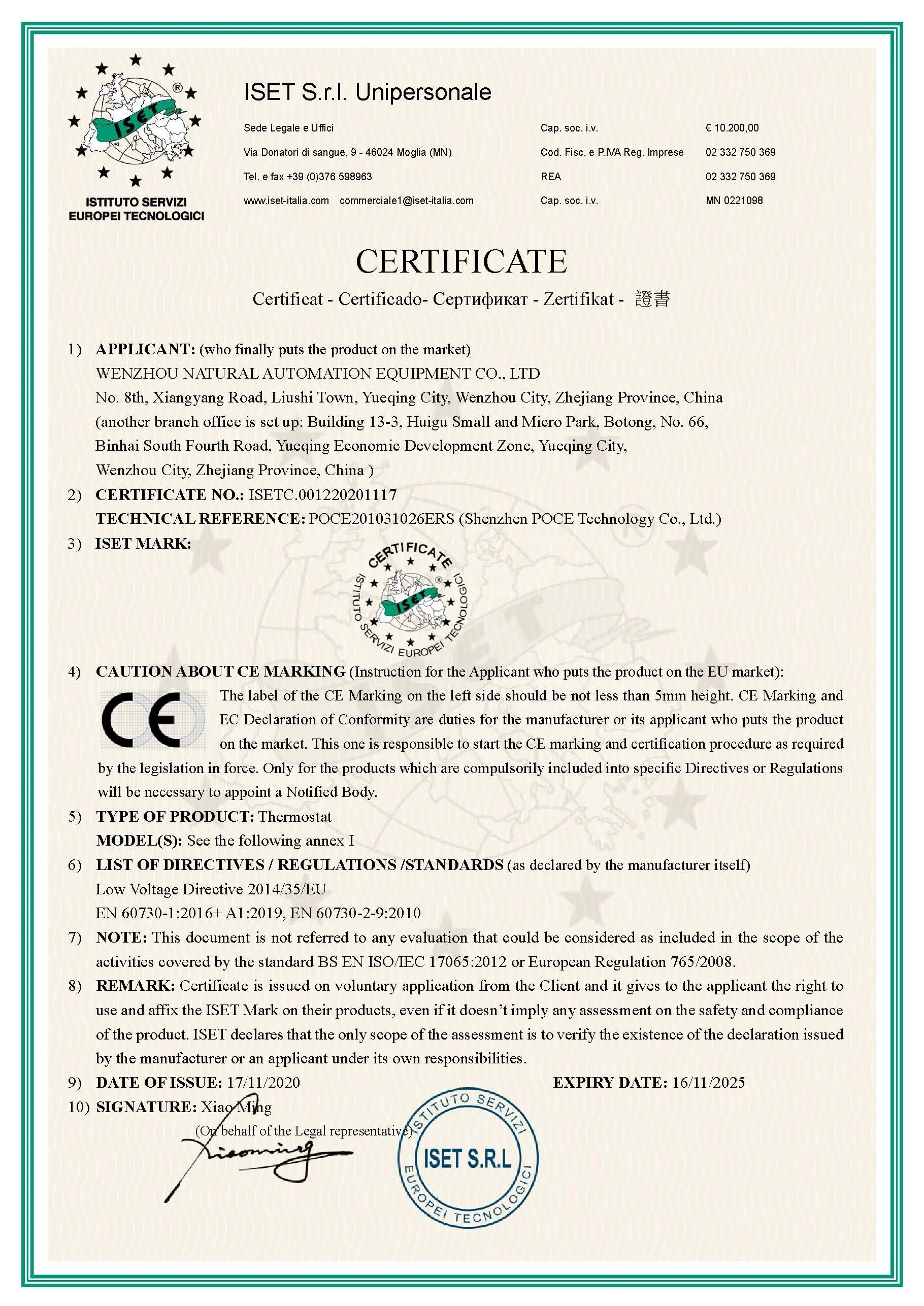

THE EXHIBION And CERTIFICATE
