Безопасный автономный lidar dron z Южное построение карты беспилотника 2d 3d сканер датчик для
- Категория: "
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 951.81 $* | 970.68 $* |
| Jul-20-2025 | 771.25 $* | 786.11 $* |
| Jun-20-2025 | 936.57 $* | 955.18 $* |
| May-20-2025 | 929.99 $* | 948.25 $* |
| Apr-20-2025 | 742.74 $* | 757.97 $* |
| Mar-20-2025 | 914.15 $* | 932.7 $* |
| Feb-20-2025 | 906.84 $* | 924.41 $* |
| Jan-20-2025 | 899.24 $* | 917.4 $* |
Характеристики
Product Description
Specification
Product basic information | ||
Working environment | Indoor / outdoor | |
Light source | Infrared laser (905nm) | |
Laser safety Class | Class 1 (GB 7247.1-2012, human eye safety) | |

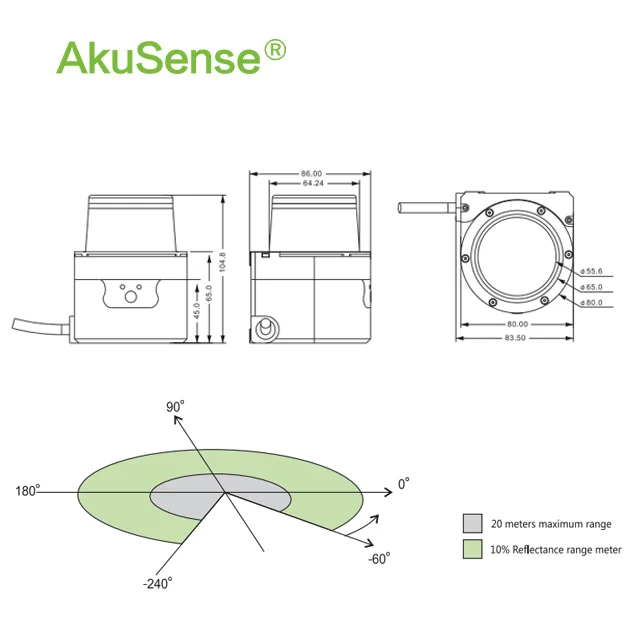

Scan angle range | 300° (-60°~+240°) | |
Scanning frequency | 25Hz | |
Scan angle resolution | 0.5° | |
Measuring range | 0.1m~20m | |
10% reflectance range | 15m | |
Built-in application | Regional monitoring | |
Operating Voltage | 9V~28V DC | |
Power consumption | 5W | |
Shell Protection Class | IP65 (GB 4208-2008) | |
Weight | 0.6Kg | |
Dimension(L x W xH) | 83.5x85x04.88(mm) | |
Working temperature range | -25℃~+50℃ | |
Storage temperature range | -30℃~+70℃ | |
Ambient illumination range | ≤70,000lux | |
Standard Distance Type (TR series)
● Classical cylindrical appearance, high stability
● Adaptive to different occasions, top-notch quality, low price
● Customizable cables & connectors as requested
