Laser welding is an efficient and precise welding method which uses high energy density laser beam as heat source.
Laser welding is one of the important aspects of laser material processing technology. The welding process belongs to the heat conduction type, the laser radiation heats the workpiece surface, and the heat on the surface diffuses through the heat transfer guide. By controlling the width, energy, peak power and repetition frequency of laser pulse, the workpiece is melted to form a specific molten pool.
Laser welding is a new type of welding method. Laser welding mainly aims at the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding, stack welding, seal welding, etc.,
With the following characteristics:
1. It has high aspect ratio, small weld width, small heat affected zone, small deformation and fast welding speed;
2. The weld is flat and beautiful, and there is no need to deal with or only simple process after welding;
3. The weld has high quality and no porosity, which can reduce and optimize the impurities in the base metal.
the microstructure can be refined after welding. The strength and toughness of the weld are at least equivalent to exceed the base metal;
4. It can be precisely controlled, the focus light point is small, it can be positioned with high precision, and it is easy to realize automation;
5. Welding between some different materials is possible;

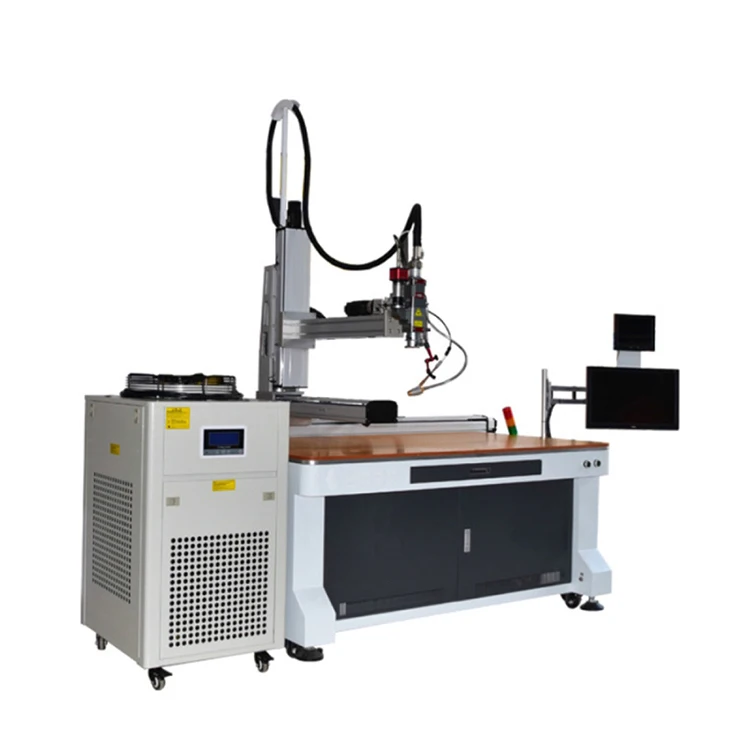

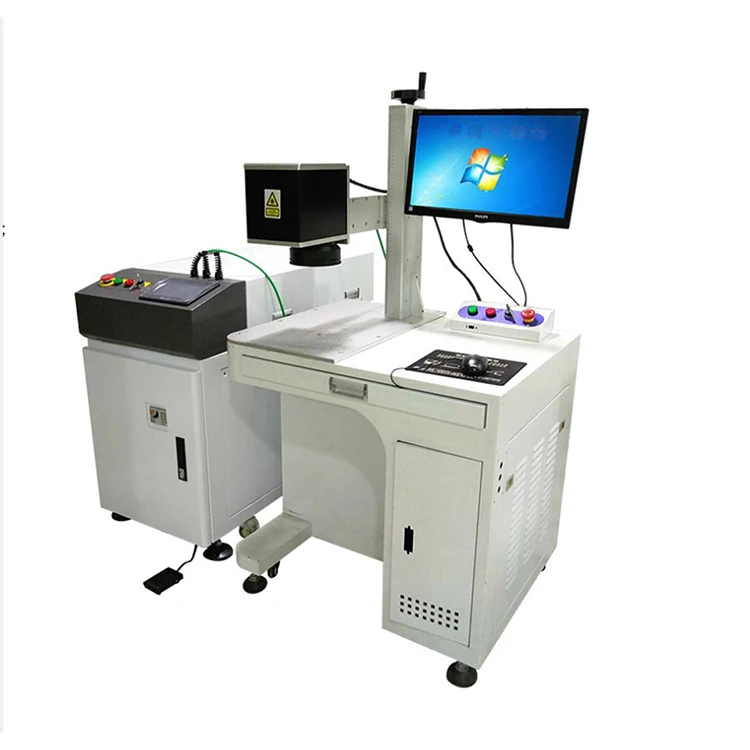

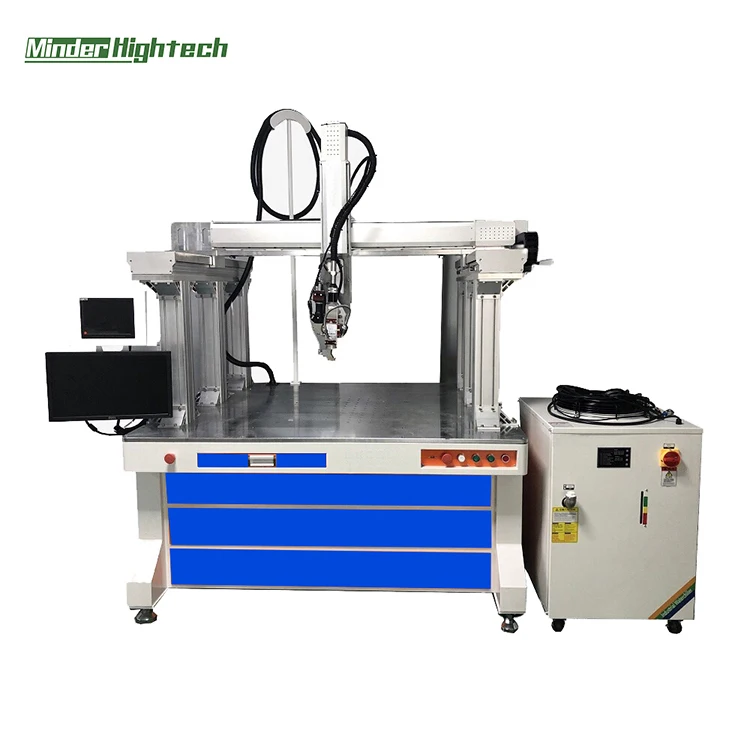

SPECIFICATIONS FOR BATTERY LASER WELDING MACHINE
Model
XW-BW1000W
XW-BW1500W
XW-BW2000W
XW-BW3000W
Laser Power
1000W
1500W
2000W
3000W
Control Method
Control card and computer
XY Travel
Customizable, Max 700*500mm
Z Travel
Customizable, Max 400mm
R Axis
Optional, 360° rotation
Position Accuracy
±0.02mm
Repeatability Accuracy
±0.01mm
Motion Source
Step motor or Servo motor
Max Speed
500mm/s
Welding Penetration
0.1~3.0mm
Y: 400mm; Z: 250mm
Cooling Method
Water cooling
0.5s/spot, 3200pcs/h
Electricity Demand
Single phase 220V/50Hz 3-phase 380V/50Hz
Laser Wavelength
1080nm
Observation Syatem
Red light and CCD system
Gas Protection
Optional, Argon, Nitrogen
Environmental Requirements
No vibration, interference and ventilation
Consumables
Protection lens, purified water, protection gas
Machine Size
1200L*1100W*1750Hmm
900L*900W*1930Hmm
Machine Weight
400kg
300kg
Features:
1. Using the British imported ceramic condenser, high corrosion resistance, high temperature resistance, for 8-10 years life.
2. HD CCD monitoring system, the welding condition is clearly visible to avoid outflow of defective products.
3. The energy distribution of welding spot is uniform, with the best spot needed for welding characteristics.
4. Servo drive workbench speed is 2-3 times of 0.02mm, escort for precision machining.
5. Laser welding can be used for spot welding, butt welding, overlay welding and sealing welding of thin-walled materials and precision parts.

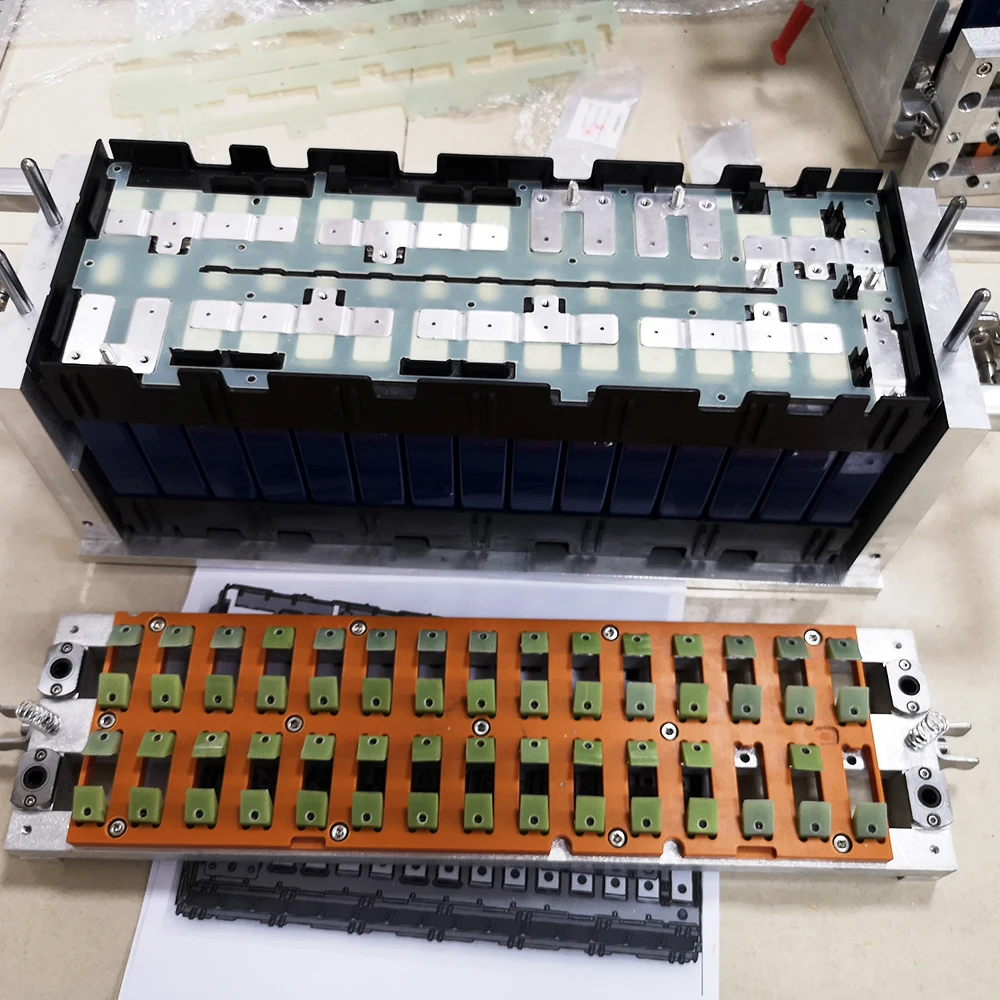

6. It can customize special automatic chemical fixture to realize mass production of products.
Application Area:

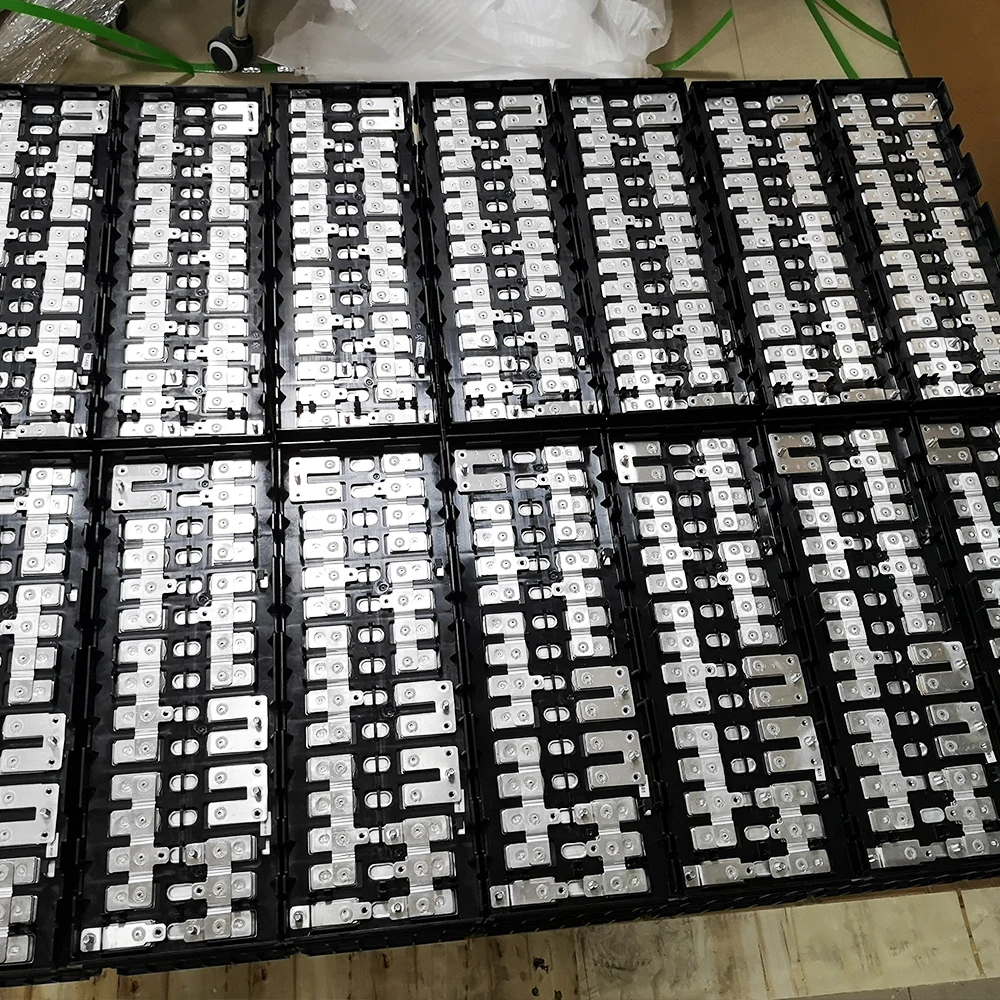

Suitable for welding connecting pieces of new energy lithium battery packs.
Can weld aluminum-aluminum, aluminum-copper, copper-copper and other materials.

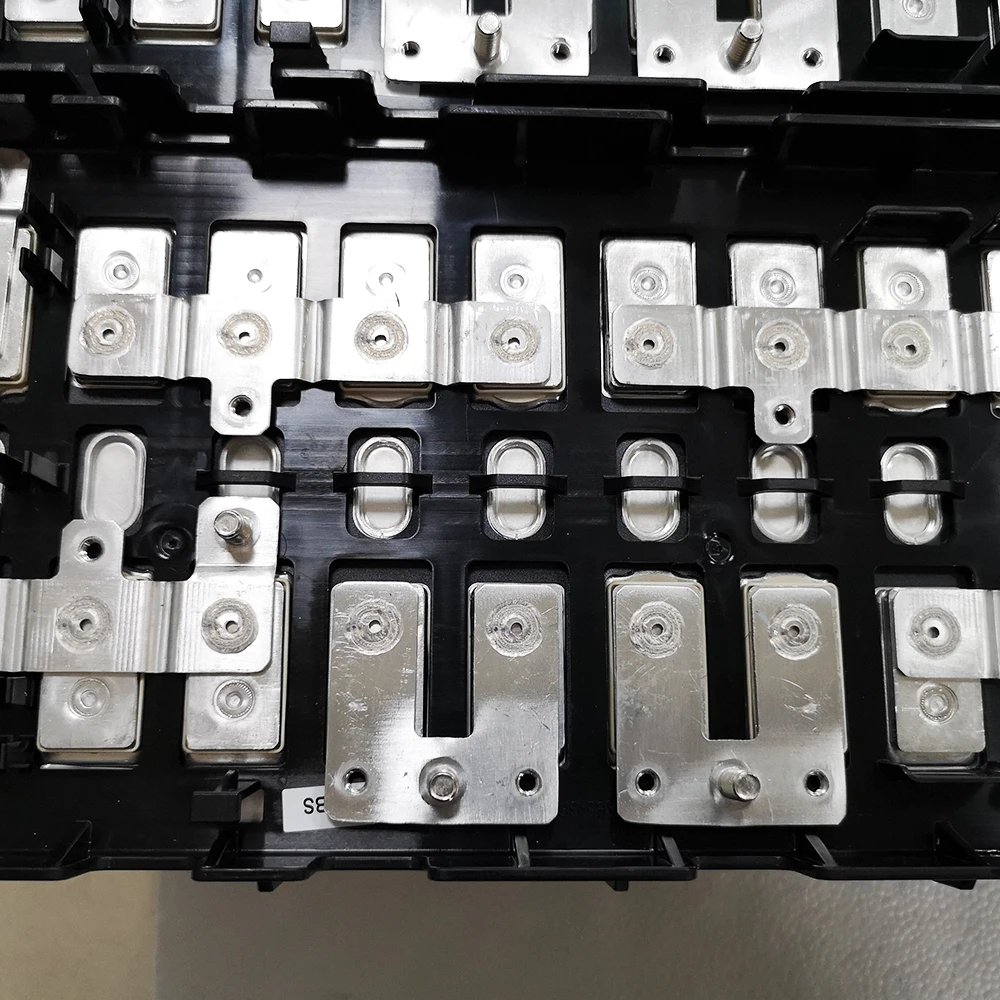

Suitable for welding connecting pieces, tabs, poles, explosion-proof valves, bus bars, etc.
