Шариковая ручка Powerjet для автоматического литья под

Описание и отзывы

Трекер стоимости

Характеристики

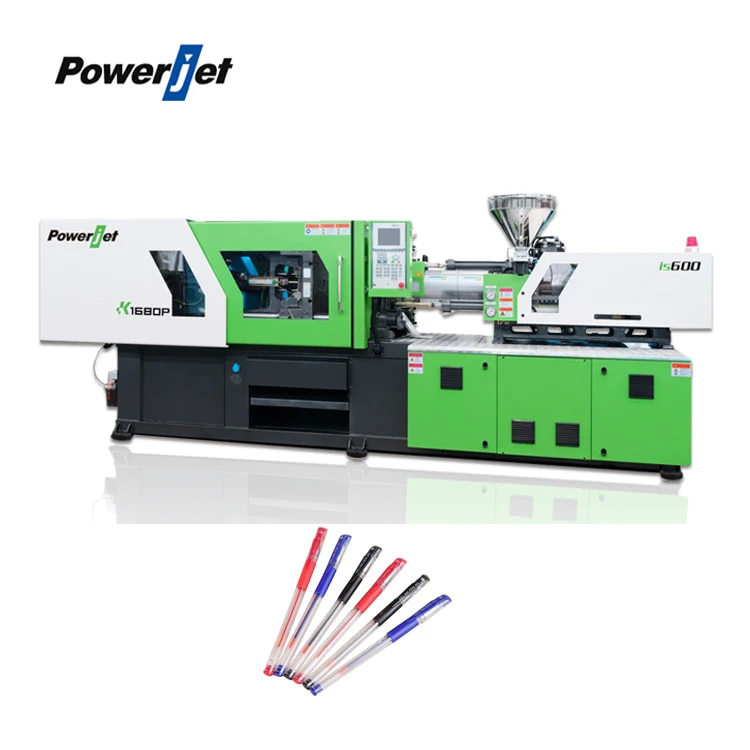

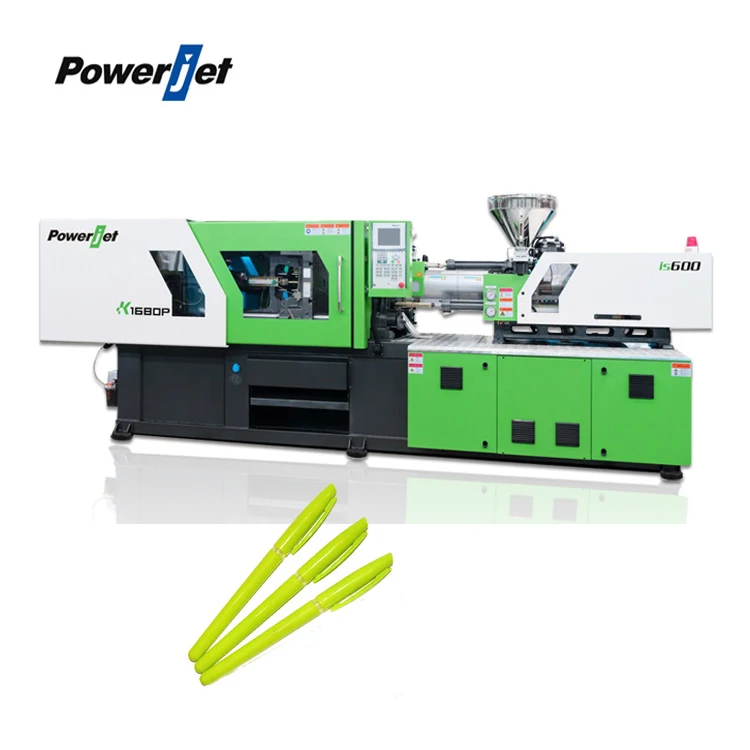

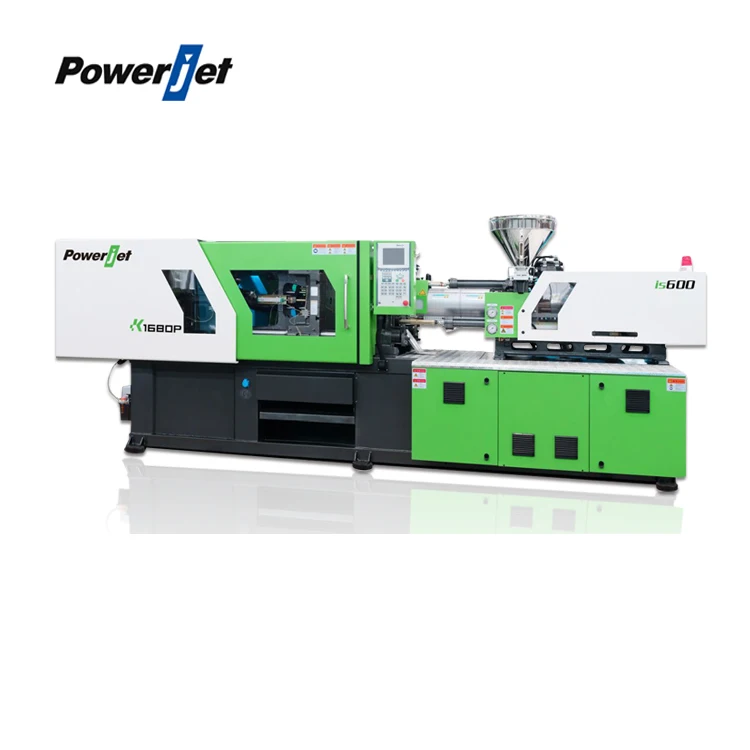

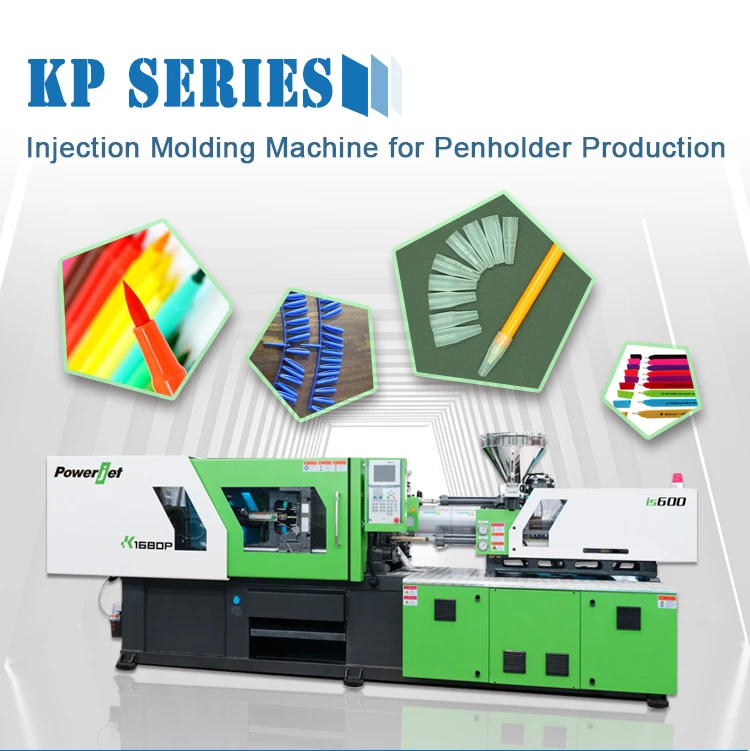

Powerjet KP series special injection molding machine for pen making

1: Designed for thin-walled, conventional penholders and other products with high straightness;

2: The product has stable dimensions, high aesthetics, and high yield;

3: The machine production cycle is fast, and the production capacity of dozens of industry brands has increased by more than 20%.



LAMPING UNIT	Clamping force	KN	1680
	Opening stroke	mm	440
	Max.datlight	mm	960
	Platen size	mm	715*715
	Space between bars	mm	470*470
	Max.mold height	mm	520
	Min.mold height	mm	160
	Ejector stroke	mm	140
	Ejector force	KN	49
INJECTION UNIT	Screw diameter	mm	52
	Screw L/D Ratio	L/D	19.5
	Injection Pressure	MPa	139
	Shot volume	cm3	499
	Shot weight (ps)	g	444
		oz	15.7
	Injection rate	g/s	290
	Screw stroke	mm	235
	Screw speed	rpm	320
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	30.8
	Heater power	KW	11
GENERAL	Oil tank capacity	L	225
	Machine weight	T	5.1
	Machine dimensions (L*W*H)	m	4.95*1.52*1.71

Please feel free to consult us to know more information.

Thanks~
