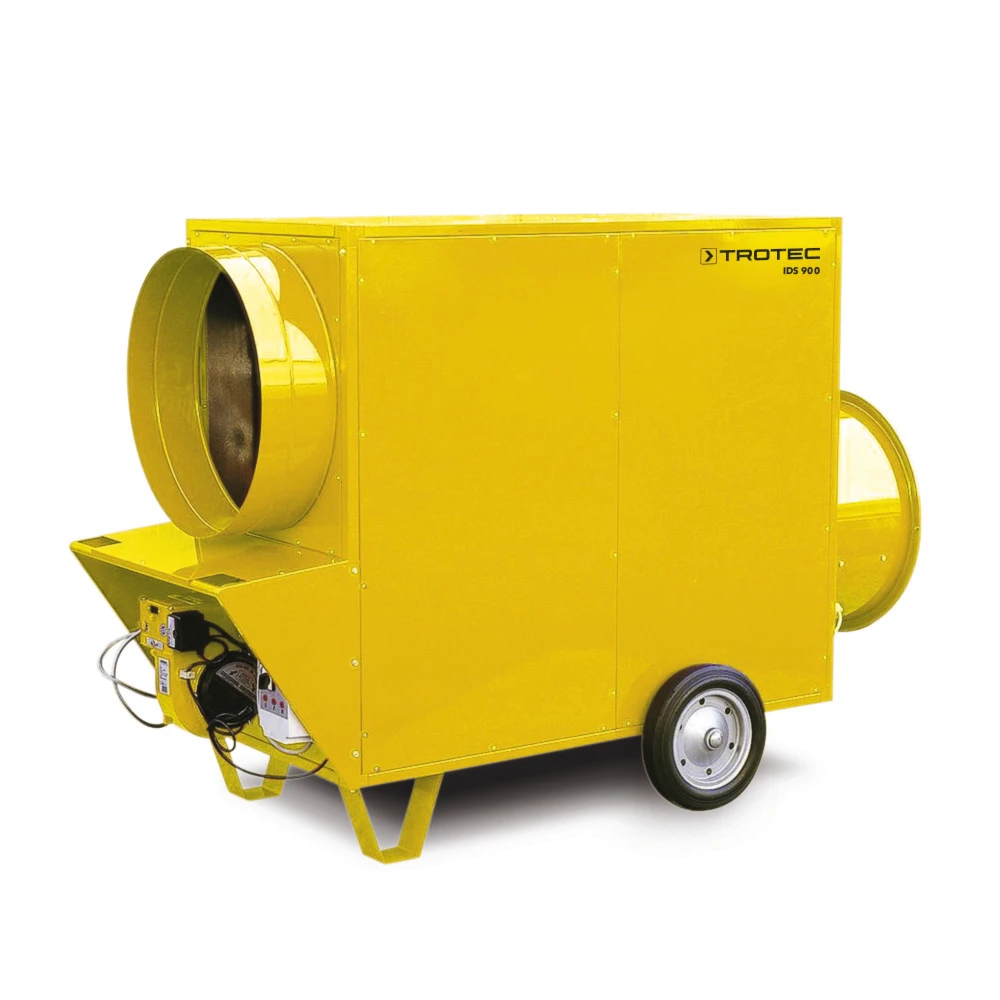

IDS 900 High Output Indirect Heater

The most powerful indirect oil heating units in the IDS Series are designed especially to heat halls or different numbers of rooms. The units are all equipped with a streaming-optimised stainless steel furnace chamber for a higher level of efficiency.

The sturdy indirect oil heating units in the IDS Series have everything they need to provide you with a super-fast and economic heating.

Because the oil heating units come with an integrated fuel tank you won't need any cumbersome or bulky external fuel tanks, giving you even more freedom and mobility when it comes to choosing the right place for installation.

The light yet sturdy undercarriage with extra-large wheels allows you to transport and install the units quickly and easily and because the units are so mobile they can be quickly and easily moved around building sites and over rough and bumpy terrain, even single-handedly if need be.

The units' solid and strikingly simple construction guarentees a reassuringly high level of reliability and a blissfully low level of maintenance.

Needles to say safety is always first and foremost with the oil heating units in the IDS Series:

The units are standard-equipped with an electronic flame safeguard, safety thermostat for overheat protection and fully automatic aftercooling. The double-walled, paint protected housing does much to ensure an effective reduction in noise while at the same time significantly reducing a real risk of injury in the workplace, because the outer casing has a much lower surface temperature.

Here some benefits in practice:

• Electronic flame protection
• Overheating thermostat
• Stainless steel combustion chamber
• Heat exchanger
• Fully automatic aftercooling
• Double-walled housing for optimum sound and heat insulation
• Suitable for fully automatic use with external thermostat or timer
• Oil preheating (optional)
• Connection for air transport hose

More technical data of the IDS 900:

• Heating performance: 211 kW
• Nominal heat load: 235 kW
• Temperature increase ΔT: 47 °C
• Air pressure max.: 98 Pa
• Air flow: 12500 m³/h
• Sound level (1m distance): 81.3 dB(A)
• Mains voltage: 230 V / 50 Hz
• Power: 12 A
• Power socket: CEE 230
• Fuel consumption max.: 21.67 l/h
• Air transport hose adaptor ø: 1 x 700 mm, 2 x 500 mm, 4 x 300 mm
• Chimney connection ø: 200 mm
• Length x width x height: 2270 x 795 x 1440 mm
• Weight: 360 kg

Available accessories:

• Connecting kit for external oil tank (available on request)
• Oil preheating (available on request)
• Hose connection points
• Two-way hose distributor connecting piece (available on request)
• Four-way hose distributor connecting piece (available on request)
• Oil tank for underneath (available on request)
• External thermostat for fully automatic operation
• Tank level indicator (available on request)
• Oil filter filler neck (available on request)
