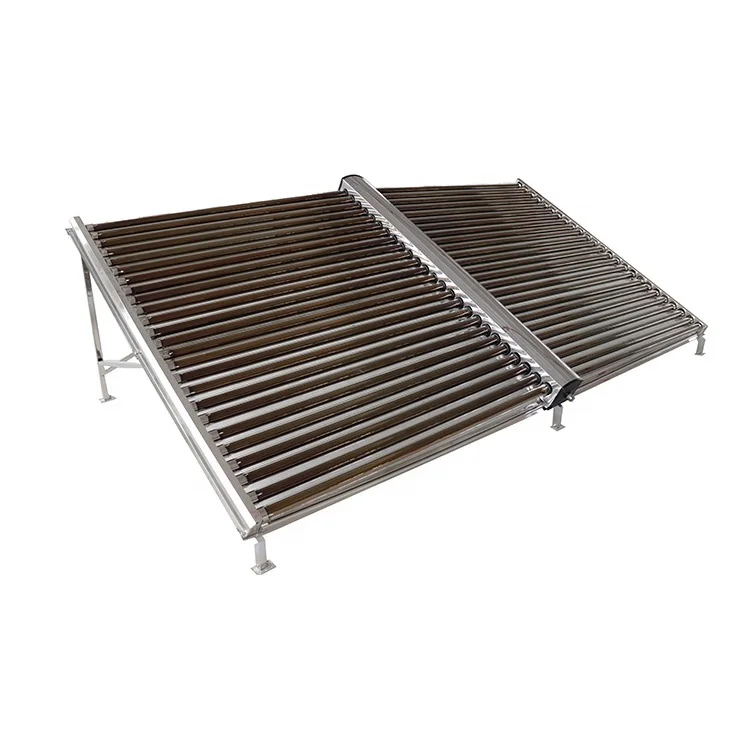

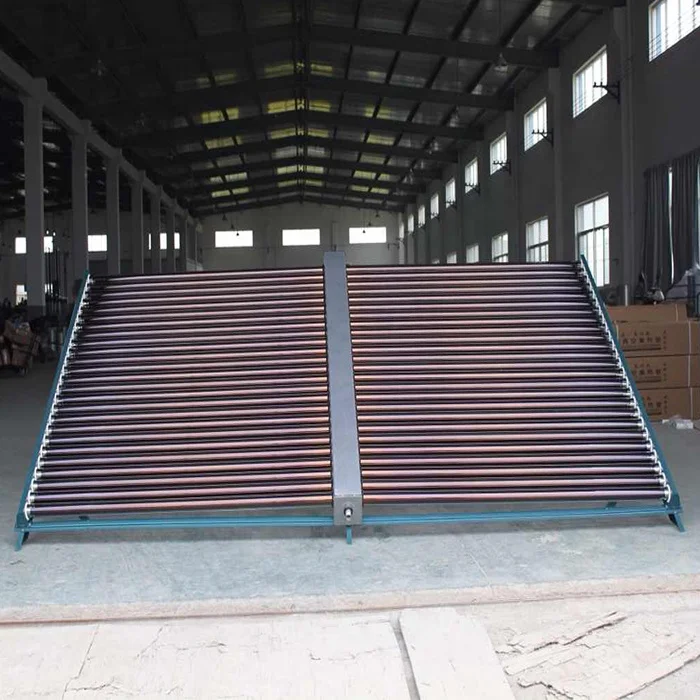

solar collectors water heater solar collector tubes solar water heater 500 liter

(Orientation horizontal Type)





solar collectors water heater/ solar collector tubes/ solar water heater 500 liter Salient Characteristic:

1.According to the required configuration, Evacuated tube solar collector can be divided into two types, one is vertical and the other is horizontal.

2.The product successfully carries out the installation of separation and is harmoniously blended with architecture.

3. Supply for such large scale solar water heating solution as hotel, school, resorts, hospitals, swimming pool and hostels etc

4. Economical and practical, Environmental conservation and energy saving.



solar collectors water heater /solar collector tubes/ solar water heater 500 liter  Tech Data:

Model No	SD-ENC-A04
Tube Orientation	horizontal

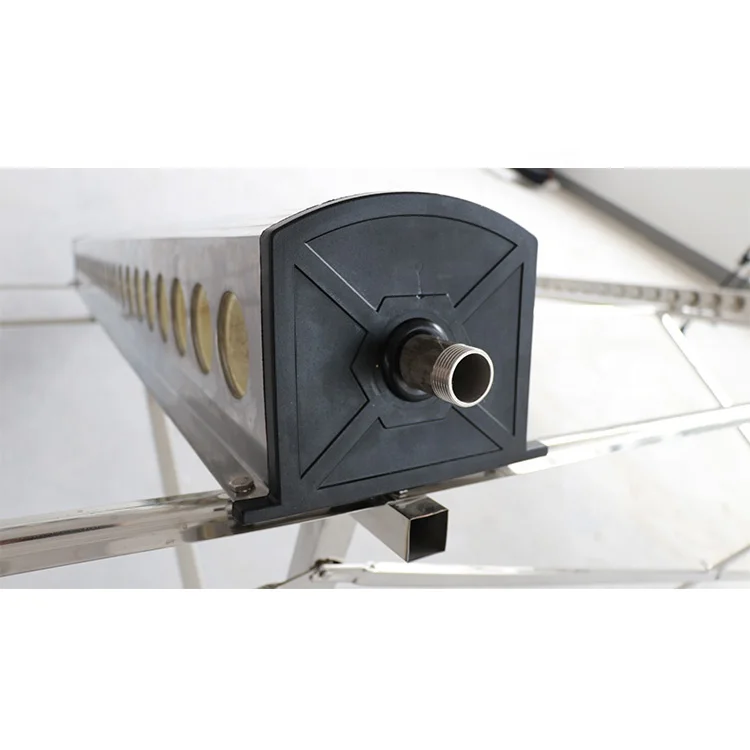

Material of manifold Outer	Color coated steel (0.30mm-0.40mm)
Material of manifold inner	Stainless steel SUS304 Food grade (0.30mm-0.40mm)

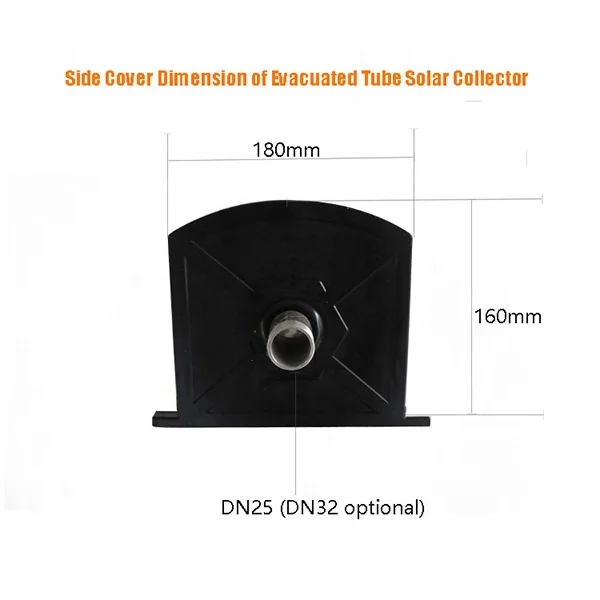

Side Cover dimension (WxH)	150mm x160mm
Insulation	45kg/m³ High-density polyurethane foamed
Evacuated Tube	58*1800mm Three target coating

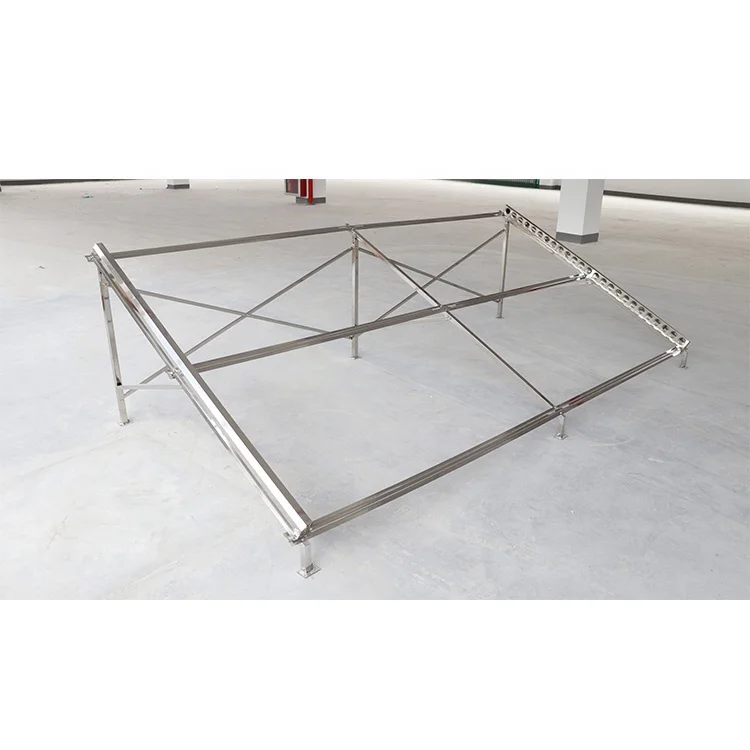

Bracket	Galvanized steel (1.50mm)
Specification	58*1800*40 Tubes or 58*1800*50 Tubes



Project Application:





HAINING SHANGDA NEW ENERGY CO., LTD

Add: 10#, Puqiao Industrial Park, No 58 Beitang Road, Yuanhua

Town, Haining, Zhejiang, China

Contact: Mr. Patrik

Mobile/Whatsapp/We chat/Zalo: +86-15968308630



Web: www.sdnewenergy.com
