Wood Working Double Row Multi boring Wood drilling machine

Product Description

The power is equipped with a high-speed motor to improve the working efficiency and further improve the quality of the punching. The drilling head has high precision, small amplitude and long service life. The high-speed speed boring tool can adjust the drilling rate for different hardness plates, so that the equipment runs stably and the working efficiency is improved. The air pressure adjustment button is upgraded to directly adjust the air pressure and change the past air pressure adjustment.

▬▬Technical parameter

Overall Size	200013001700mm
Package size	150011001800mm
Machine weight	450kg
Maximum drilling diameter	35mm
Maximum drilling depth	60mm
Drill spindle number	21
Motor power	1.5kw*2
Rotational speed	2800r/min
Working pressure	0.6-0.8 Mpa

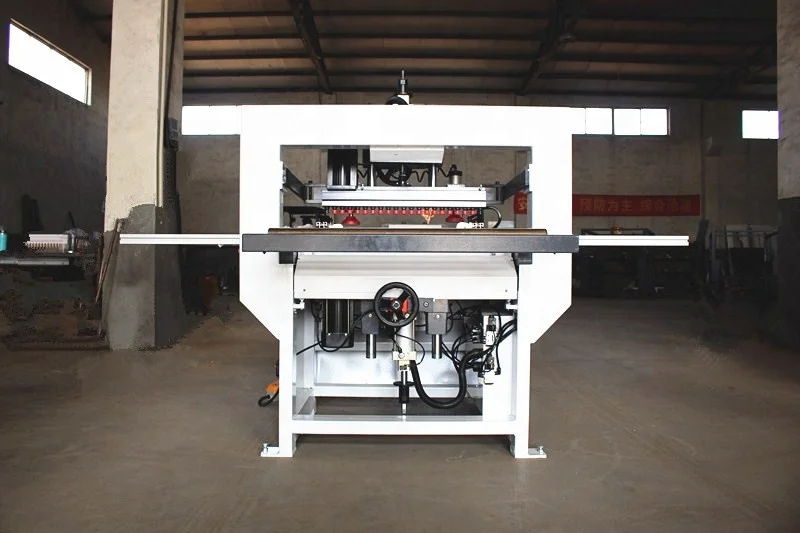

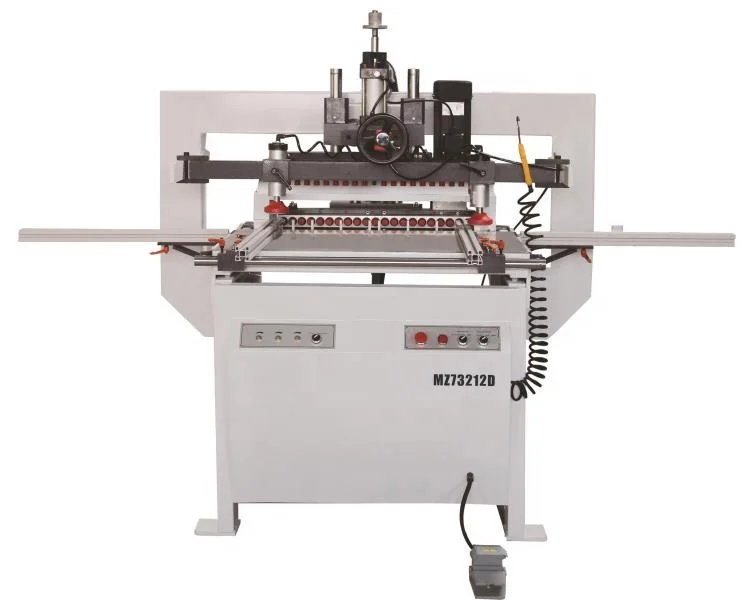

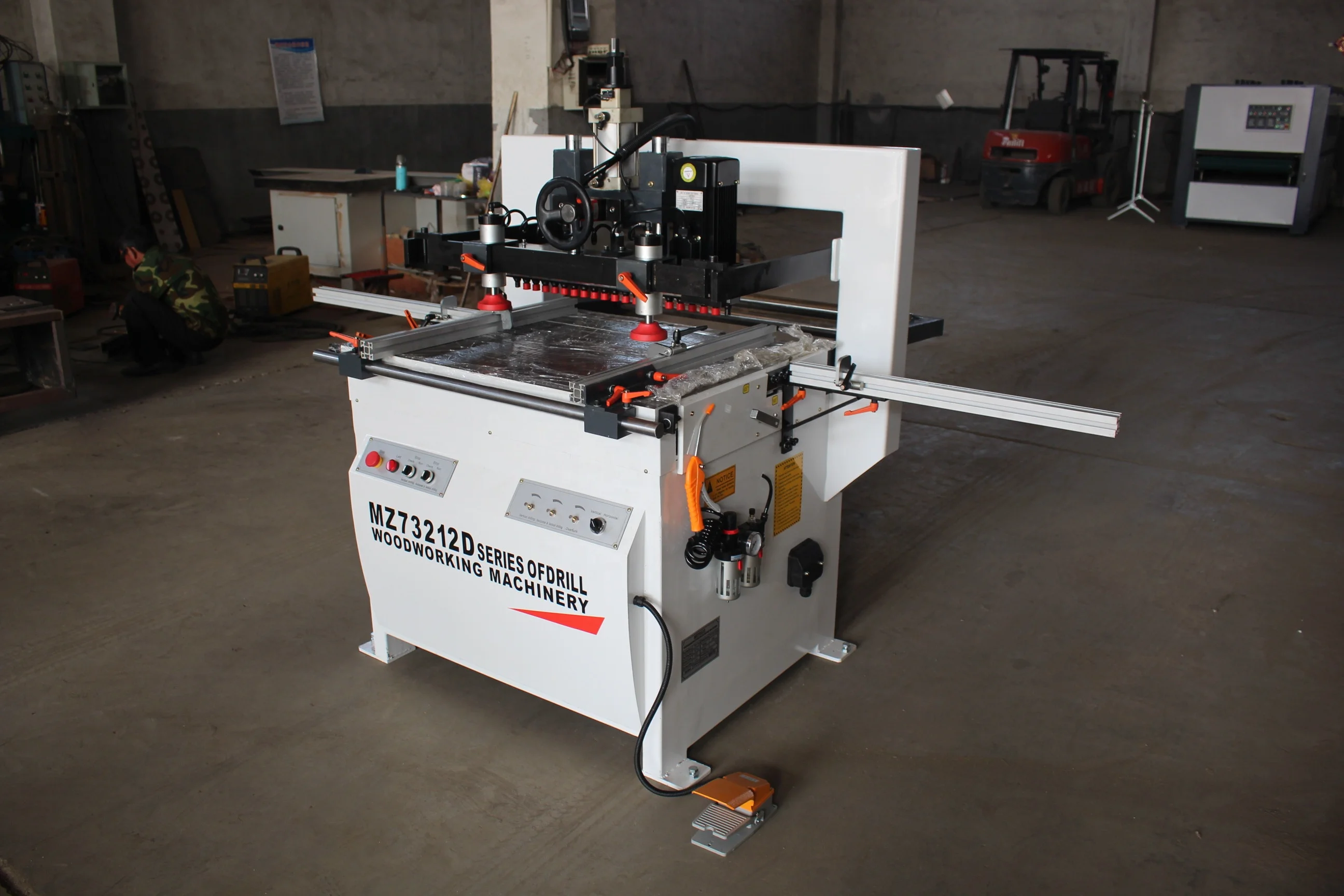

▬▬Machine Show

▬▬Details show

Hinge drill package
Adopt imported drill bag design, less noise, durable, it can be changed according to the need of different types of drill bit.

Location baffle
Accurate scale, it can be adjusted according to the needs of the work.

Oil-water separator
It can prevent moisture into the cylinder, it will be more stable when the machine is in operation. Furthermore, extending the
service life of the machine.

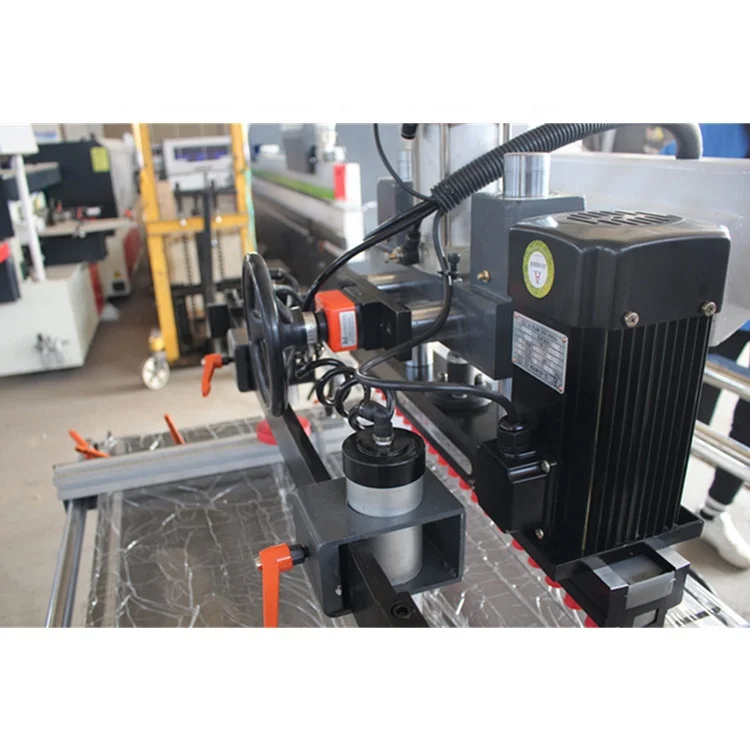

Pure copper motor
The machine uses the high-power motor, the use safety, the service life is long.

Control panel
Easy to operate.Humanized design.

Control panel
Easy to operate.Humanized design. Adjust 45 and 90 degrees.

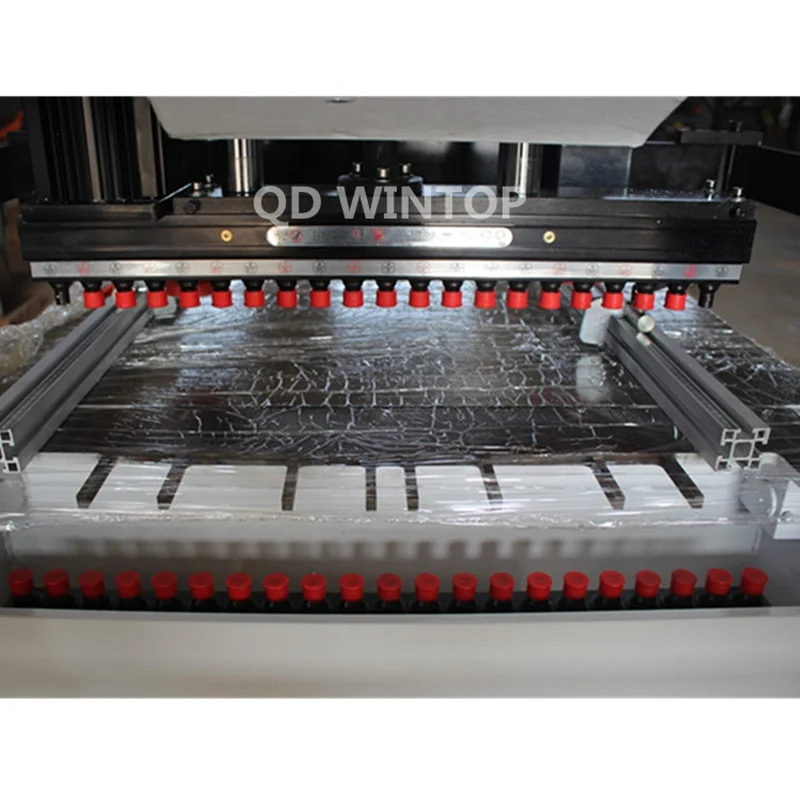

Double drilling row

Double drilling row, can work at the same time, high efficiency.The drilling head has high precision, small amplitude and long service life.

Pneumatic pressing device
The machine adopts pneumatic pressing cylinder in the pressing device, which is used for pressing the plate to prevent the plate
from running off during the working process. Meanwhile, the cylinder pressure can also be adjusted.

Electric parts
The internal part of the machine is the integrated part of electrical circuit components, including the main power value, external socket, power failure protection, etc., all of which are made of optimized materials, durable, clear wiring, and easy to repair.

Metal Foot-switch

Aluminum alloy material, strong and durable, safe and labor-saving.

Equipped with numerical display, adjustable drilling depth

Equipped with calibration value, adjustable drilling depth

Packing & Delivery

Professional Packing And Shipping

packing with plastic films and plywood box, or as you requirement
