Литий-ионный аккумулятор power wall 10kwh 48v 100ah lifepo4

Описание и отзывы

Трекер стоимости

Характеристики

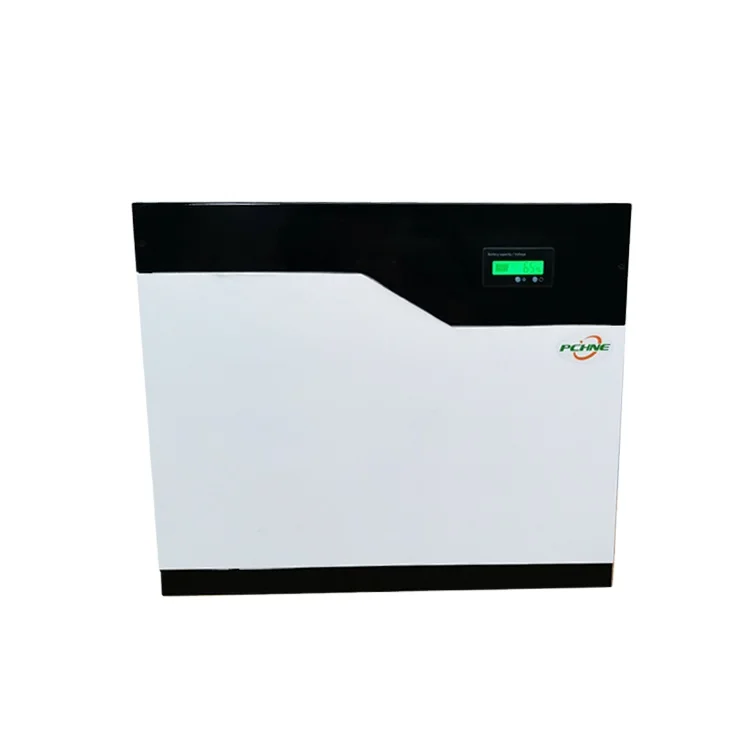

Lithium ion phosphate pack 200ah lifepo4 power wall battery 10kw 48v 100ah



1.Long cycle life and high safety performance: Using A product lithium iron phosphate battery cell, more cycles, higher safety
2.Intelligent lithium battery management system: Can be customzied with 485 communication, you can monitor the battery status at any time and set protection parameters such as charge and discharge according to customers' requirements
3.Balancing: Automatic collection of battery single series voltage, pressure difference up to 30mV (can be set), automatic start equalization function
4.Warning function: Warning functions such as overcharge, overdischarge, overcurrent, high temperature and low temperature can greatly reduce the potential safety hazard



Energy Storage LiFePO4 Battery
Model	PC-LS2-2500WH
Voltage and Capacity
Cell Type	LiFePO4
Nominal Voltage	51.2V
Nominal Capacity	50Ah
Nominal Energy	2.5 kwh
Discharge
Max Continuous Discharge Current	50A
End-off Discharge Voltage	42.0V
Charge
Max Charge Voltage	58.4V
Max Continuous Charge Current	50A
Charge Method	CC-CV
Cycle Life
100% DOD	2000 cycles
80% DOD	4000 cycles
50% DOD	6000 cycles
Operating Condition
Charge Temperature	0℃~45℃
Discharge Temperature	-20℃~65℃
Storage Temperature	-20℃~45℃
Others
Mode of Communication	RS485
Alarm & Protection Function	Overcharge, Over-discharge, Over-current,  High Temperature, Low Temperature, Short-ciruit
Shell	Metal case
Dimension	626*116*403mm
Weight	30KG
Warranty	3 years
