Product Description
Wireless Dynamometer automatically measure the oil pumping well's dynamometer (the curve of load and displacement)

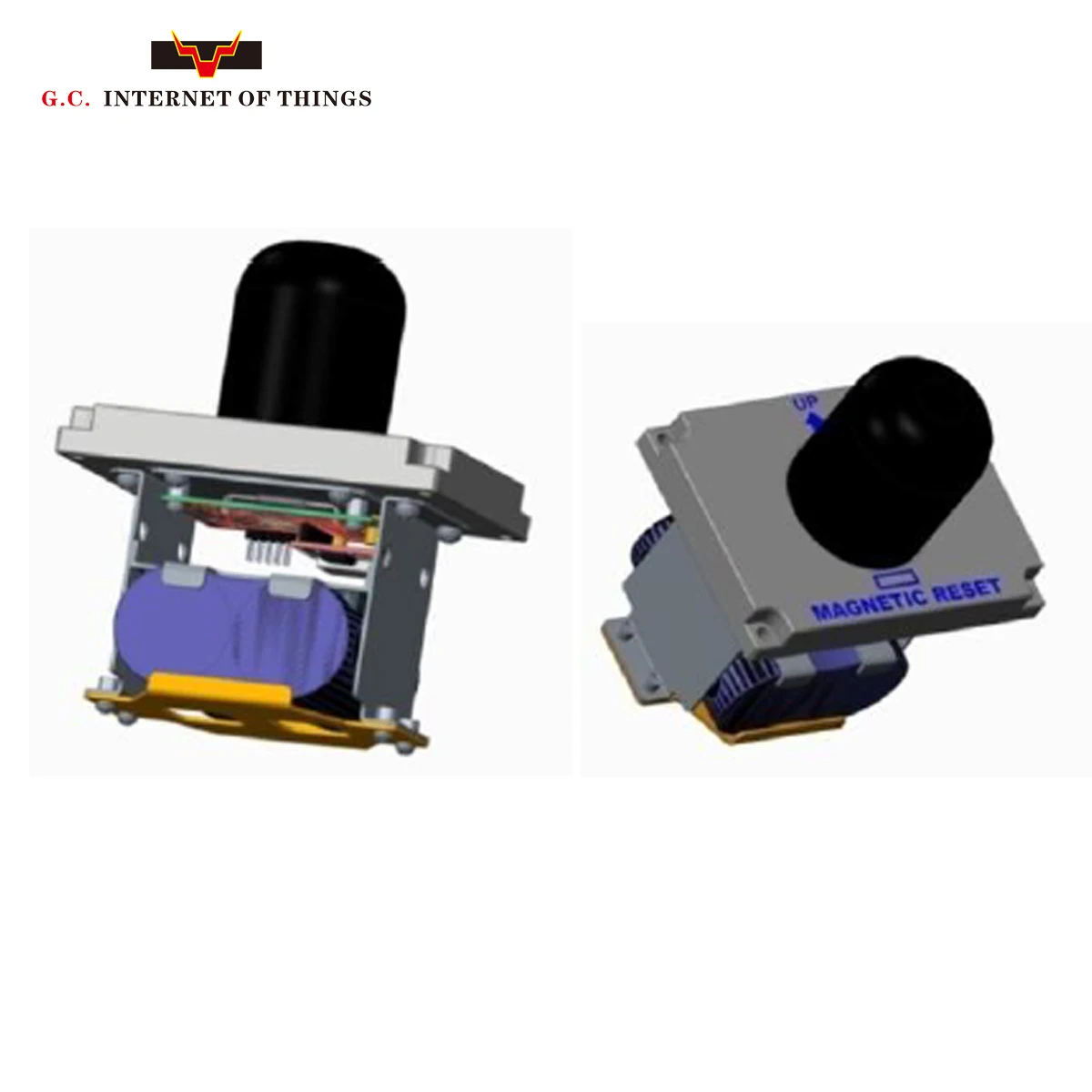

Wireless Dynamometer can measure the tensile force and displacement of the polished rod of pumping units continuously within a cycle,thus forming a sealed graph ultimately. Through this graph, the state of oil wells can be reflected. It is installed on the polished rod, and the measured indicator data can be uploaded to the wireless network via Lora protocol. Wireless indicator is generally composed by a load sensor, acceleration sensor, data acquisition unit and chamber.
Specification
Model Number | GW0401 |
Product code | A102W2101111IB65 |
Wireless transmission | Lora |
Measurement Range | 0-80KN |
Accuracy | 1.0%FS |
Range Of Stroke | 1～8 meter |
Power supply | Built-in 3.6V lithium battery |
Housing Protection Grade | IP65 （Dustproof, sandproof, waterproof, etc.） |
Operating Temperature | －40℃~+85℃ |
Dimensions | 218 mm*110 mm*85.5 mm |
Output signal | Zigbee、Lora、WIA-PA (Selectable) |

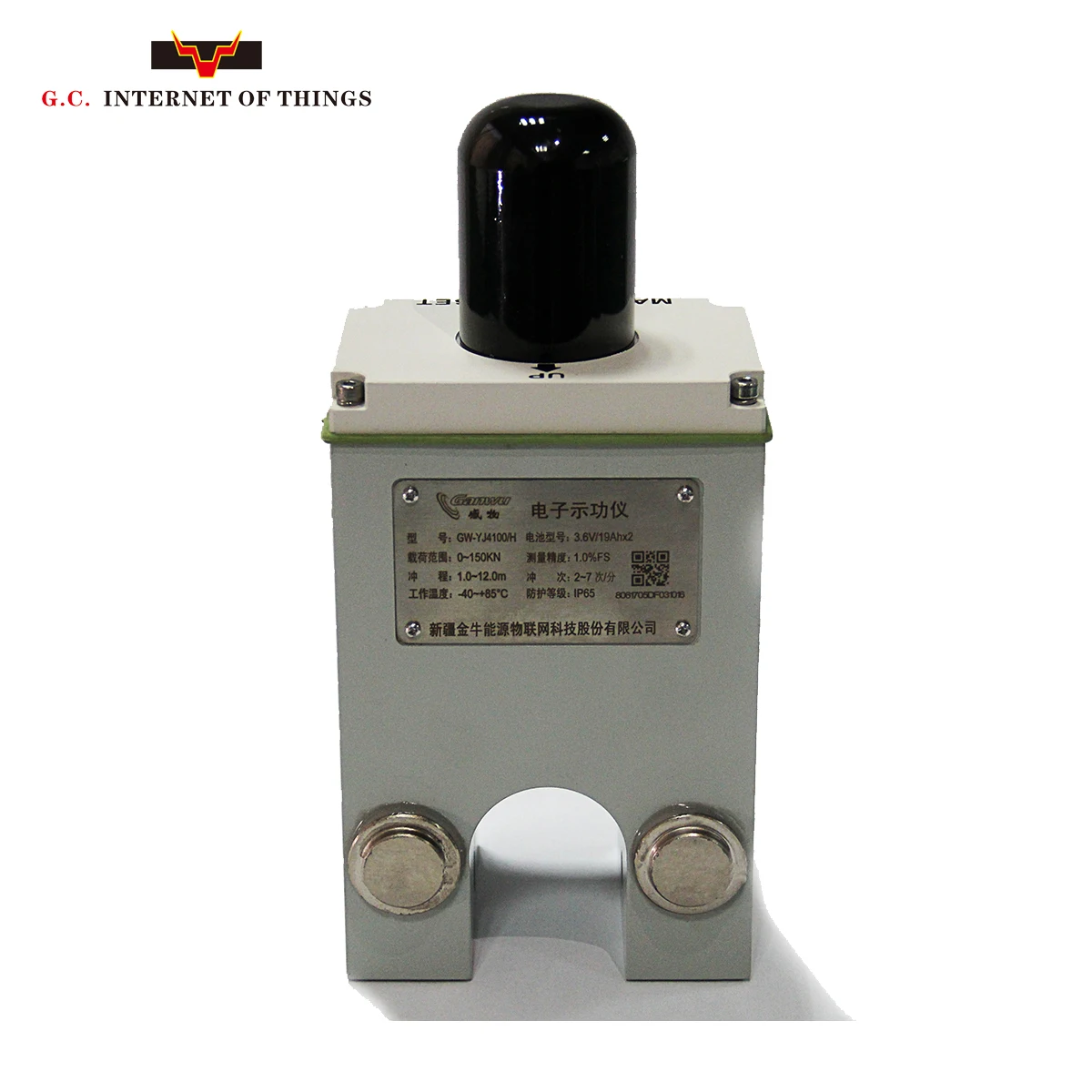

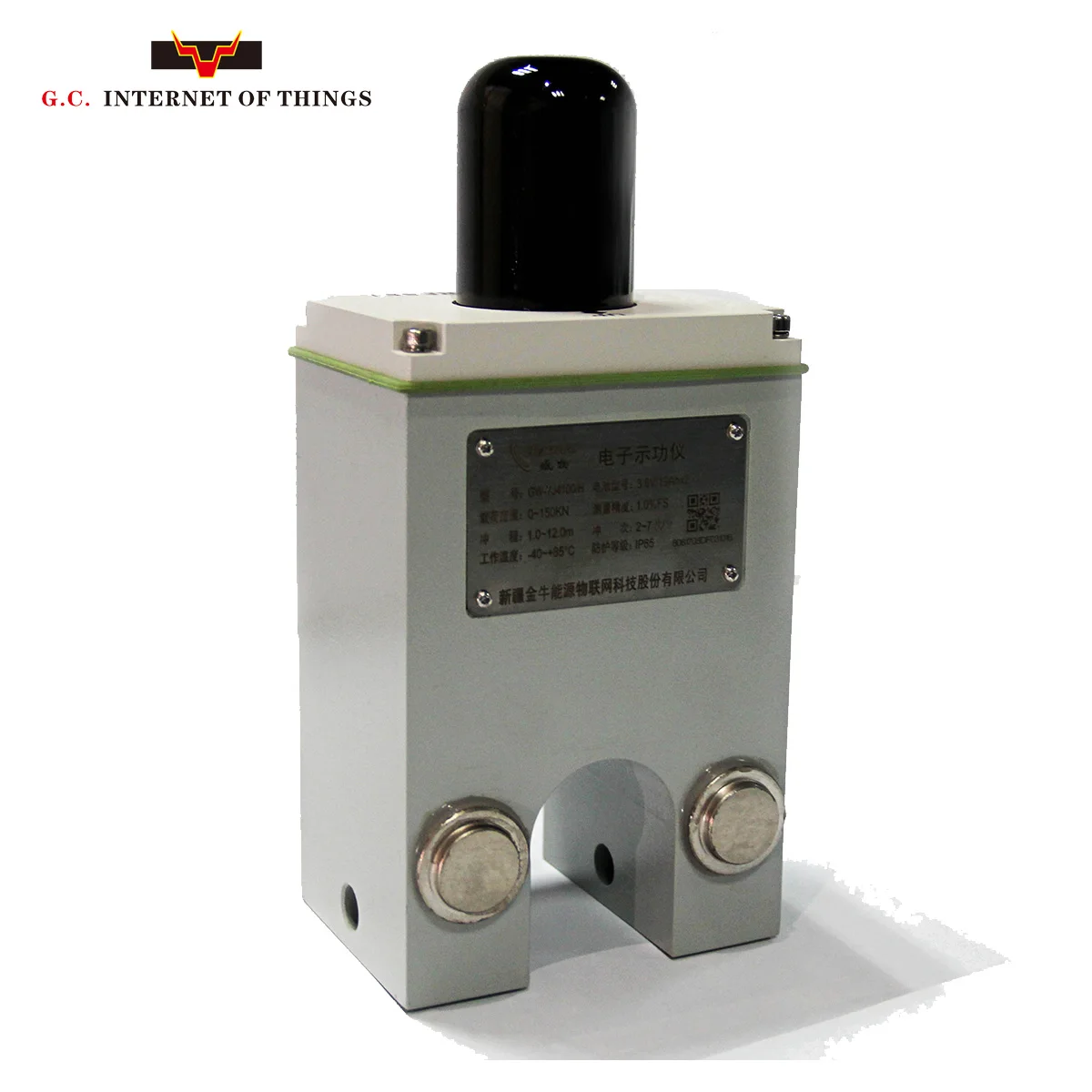

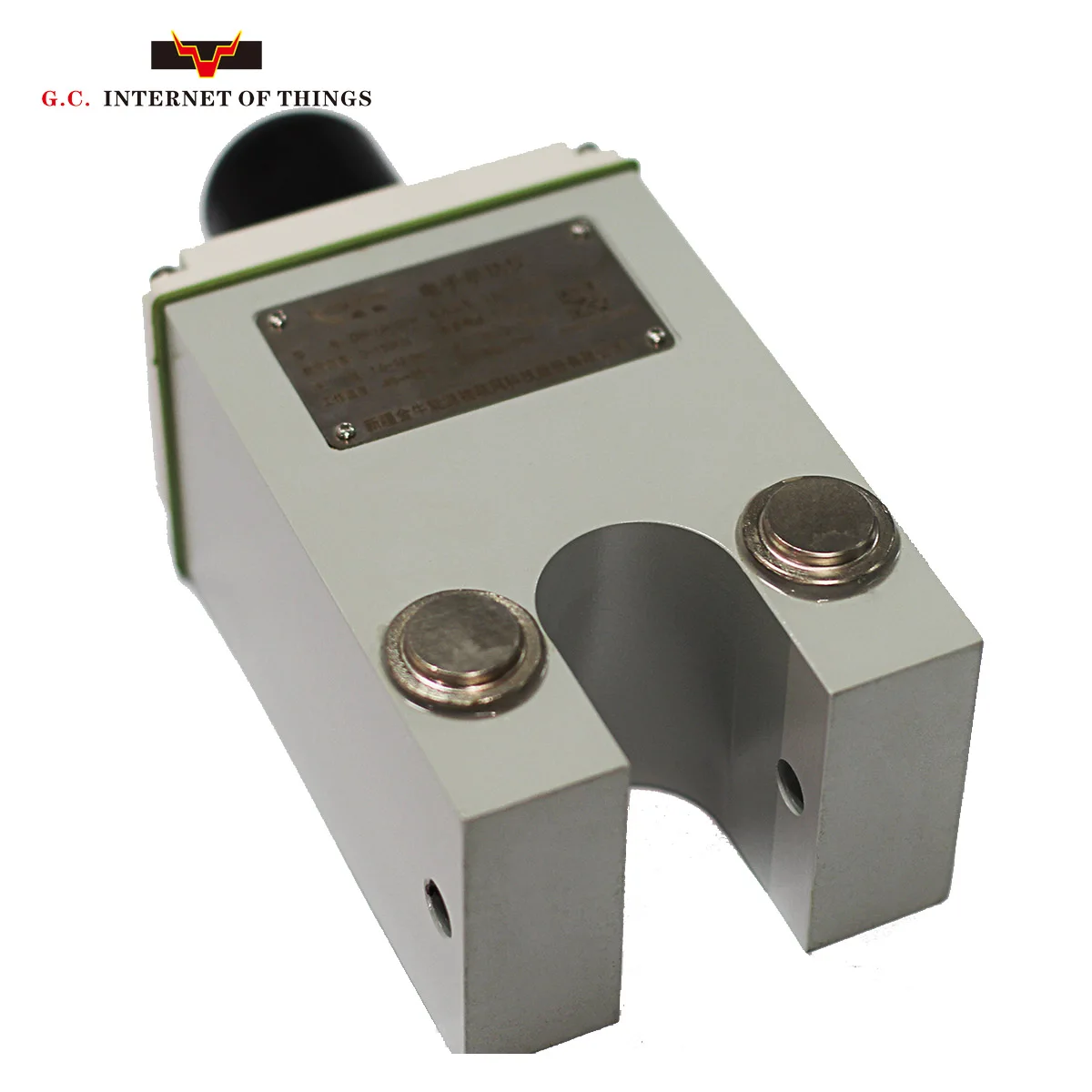

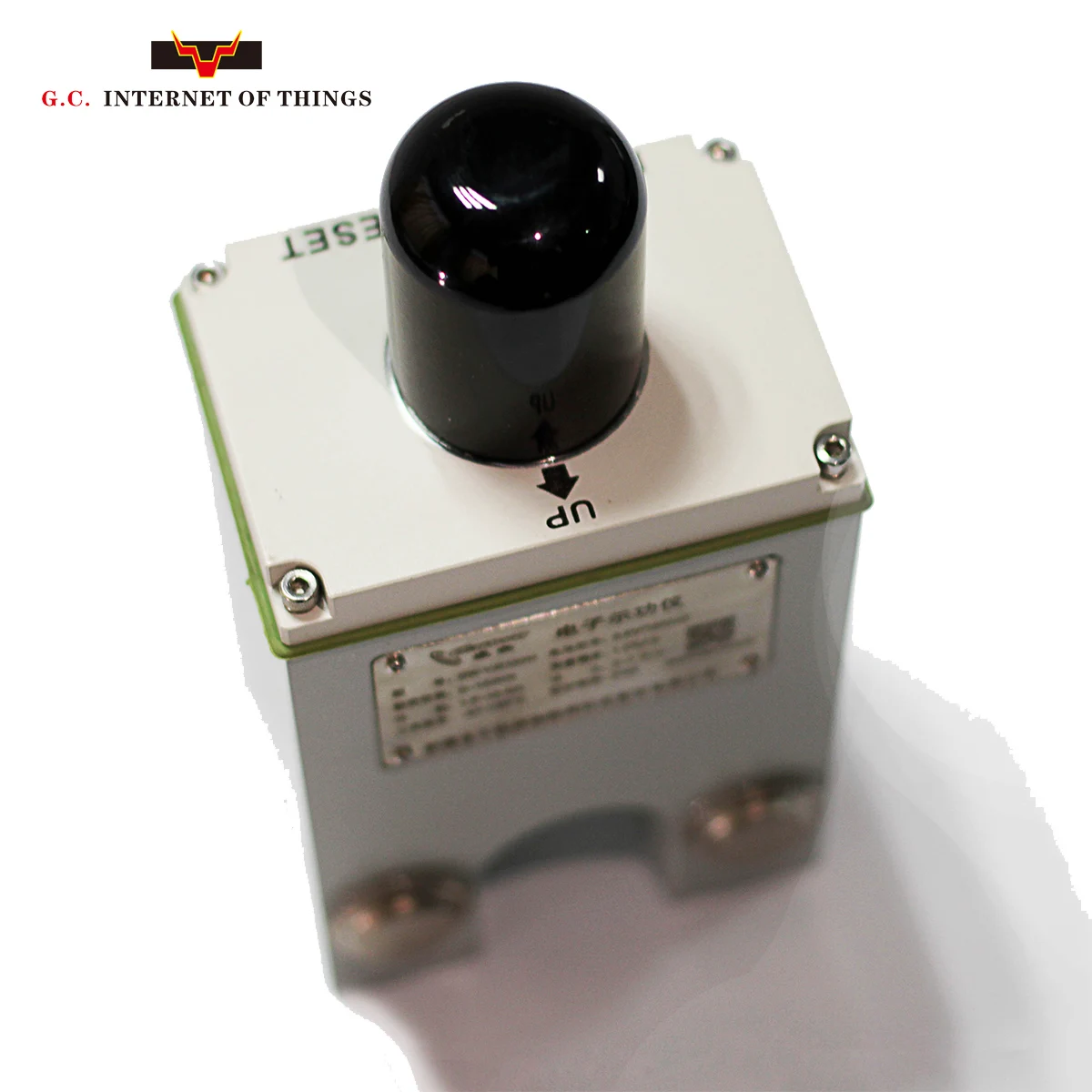

G.C.Internet Wireless Dynamometer.
It is a new digitized sensing product designed for the indicator acquisition of pumping units. Integrated with the load measurement, displacement measurement, and radio frequency, it can automatically collect the load and stroke of pumping units in accordance with parameters configured by users, calculate the indicator data independently, and realize remote indicator monitoring by working with the on-site RTU. Thus, it has characteristics like high precision, flexible configuration, simple installation and high reliability.
Company Profile
Company is a professional engaged in oil field iot product research and development, production, sales of high-tech enterprises,with two modern production workshop 5500 square meters, the main products are: RTU remote controller, gateway, pressure transmitter, temperature transmitter, integrated indicator diagrams, power transmitter, flowmeter, level gauge, dynamic liquid level tester and other Internet perception layer equipment. The self-developed "intelligent identification management system of oil and water well Internet of things" is an intelligent control system of oil well based on Internet of things technology. It has been put into the market and won the national key new product certificate, the gold award of national invention exhibition, the European Union CE, the FCC certification of North America, the white alkali beach area "excellent new product of science and technology" and other honorary titles. It has obtained more than 30 national patents, software Copyrights and registered trademarks, and passed CE certification and FCC certification.
