Новый дизайн CT-40x выдерживающие 40-градусный Мороз; Маленький прямым охлаждением для ванной комнаты из нержавеющая стали холодная
- Категория: >>>
- Поставщик: Zhengzhou,Greatwall,Scientific,Industrial,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2489.89 $* | 2613.49 $* |
| Aug-16-2025 | 2469.7 $* | 2592.76 $* |
| Jul-16-2025 | 2071.84 $* | 2175.65 $* |
| Jun-16-2025 | 2427.43 $* | 2548.43 $* |
| May-16-2025 | 2113.71 $* | 2219.22 $* |
| Apr-16-2025 | 2385.83 $* | 2504.61 $* |
| Mar-16-2025 | 2364.36 $* | 2482.27 $* |
| Feb-16-2025 | 2343.98 $* | 2460.58 $* |
| Jan-16-2025 | 2322.53 $* | 2438.70 $* |
Характеристики
Product Description

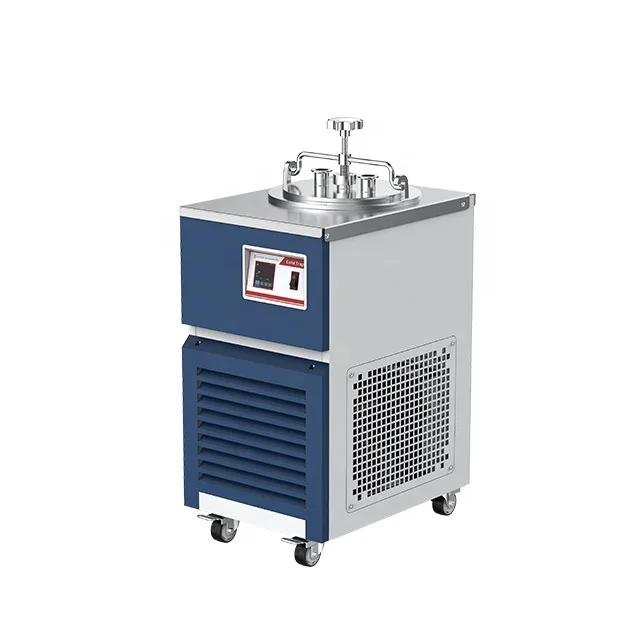

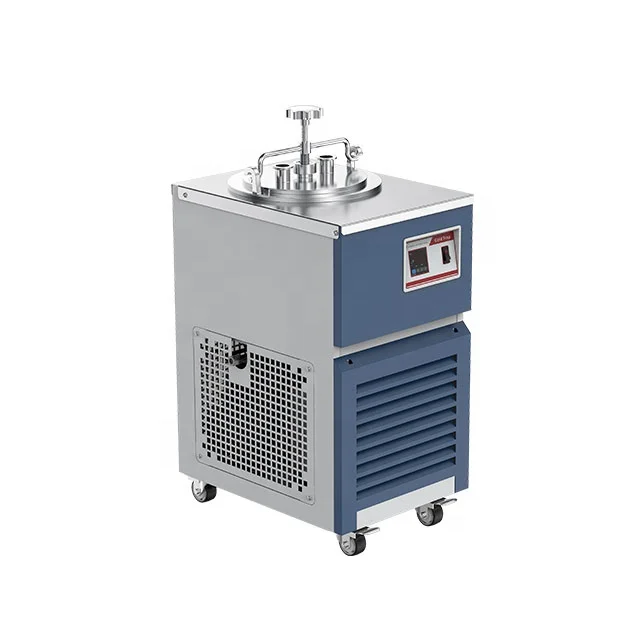

New Designed CT-40x -40 Degree Small Direct Cooling Stainless Steel Bath Cold Trap
Cold trap is used to capture water vapor and harmful gases emission from vacuum drying oven and pressure reduced concentration
device, improving efficiency of vacuum system, extending life-span of vacuum pump.
* It can be used in drying system for capacitor, battery pole and battery cell.
* It also can be used as pre-freezing bath and low temperature bath.
* Digital display for batter control of the bath temperature, which makes it easier to start the vacuum pump at right time.
* Stainless steel 304 liquid bath can be used to do water or ethanol cooling experiments. If equipped with glass condenser, it
also can be used to deal with acid or organic solvents.
* Designed with drain valve for easy discharge of collected liquid.
* It also can be used as pre-freezing bath and low temperature bath.
* Digital display for batter control of the bath temperature, which makes it easier to start the vacuum pump at right time.
* Stainless steel 304 liquid bath can be used to do water or ethanol cooling experiments. If equipped with glass condenser, it
also can be used to deal with acid or organic solvents.
* Designed with drain valve for easy discharge of collected liquid.
Specifications of Zhengzhou Greatwall New Designed -40℃ Cold Trap CT-40x | ||
Model | CT-40x (Direct cooling) | |
Power Supply | 220V-240V/50Hz, 220V/60Hz | |
Compressor | Brand: Embraco Refrigerant: R404A Cooling capacity: 300W@-10℃, 250W@@-20℃, 150W@-30℃, 50W@@-40℃ | |
Bath Fluid Tank | Volume: 5 Liters Diameter: 15.8cm Depth: 24.1cm | |
Temperature | -40℃ Display: digital Sensor: PT100 | |
Finish material | Exterior: powder coated steel Interior: polished type 3stainless steel | |
Trap | Material: Stainless steel | |
Bath tank diameter | Φ160*250mm | |
Vacuum connection | 3/8'' hose barb | |
Recommended coolant | 50% Ethylene glycol + 50% purified water | |
Unit weight | 45KG | |
Unit dimensions | 388W*454D*781H mm | |
In vacuum applications, a cold trap is a device that condenses all vapors except the permanent gases into a liquid or solid. The most common objective is to prevent vapors being evacuated from an experiment from entering a vacuum pump where they would condense and contaminate it. Particularly large cold traps are necessary when removing large amounts of liquid as in freeze drying.
Pumps that use oil either as their working fluid (diffusion pumps), or as their lubricant (mechanical rotary pumps), are often the sources of contamination in vacuum systems. Placing a cold trap at the mouth of such a pump greatly lowers the risk that oil vapors will back stream into the cavity.
Care should be taken when using a cold trap not to condense liquid oxygen (a light blue liquid) into the cold trap. Liquid oxygen is potentially explosive, and this is especially true if the trap has been used to trap solvent. Liquid oxygen can be condensed into a cold trap if a pump has sucked air through the trap when the trap is very cold.

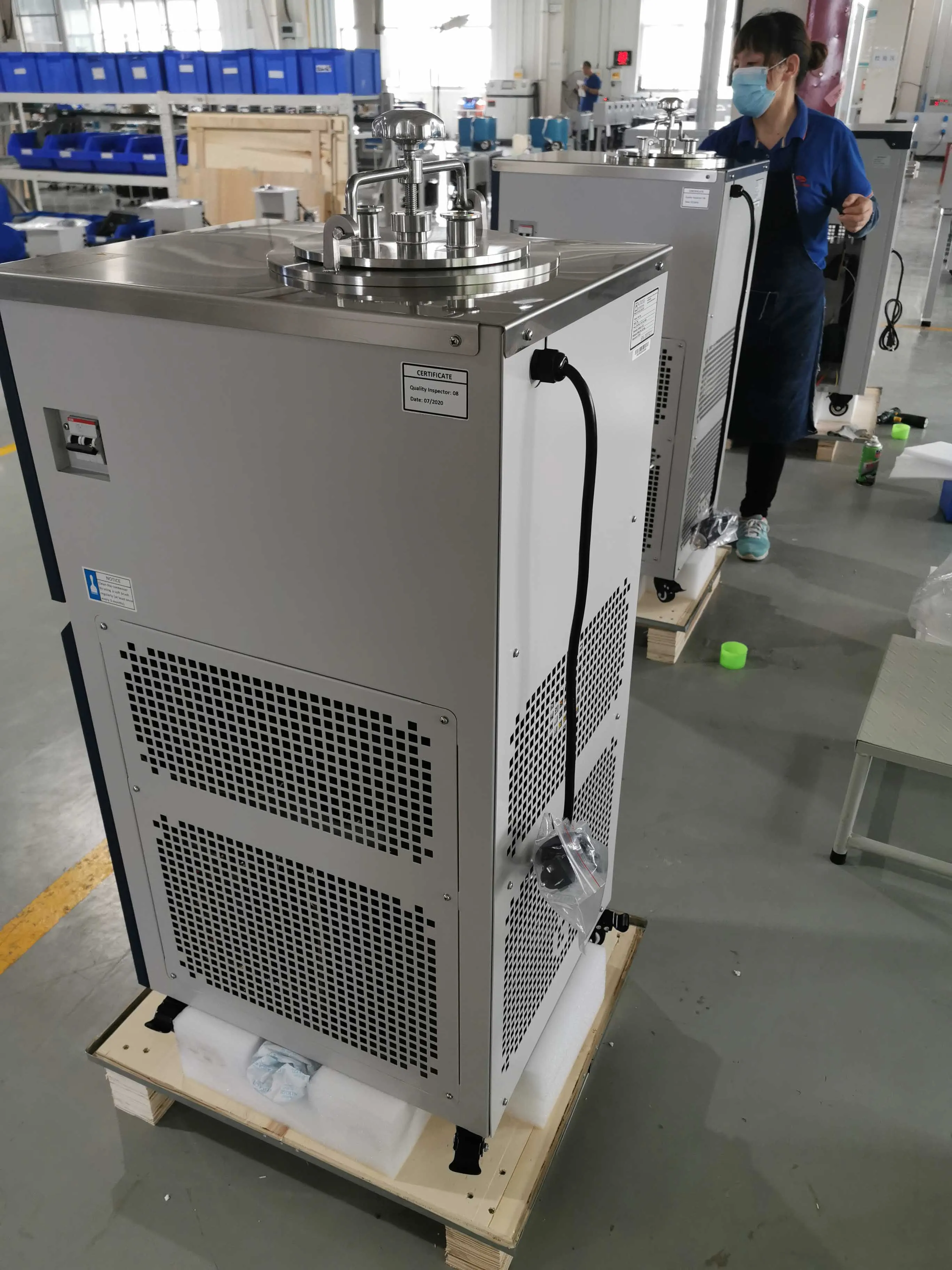

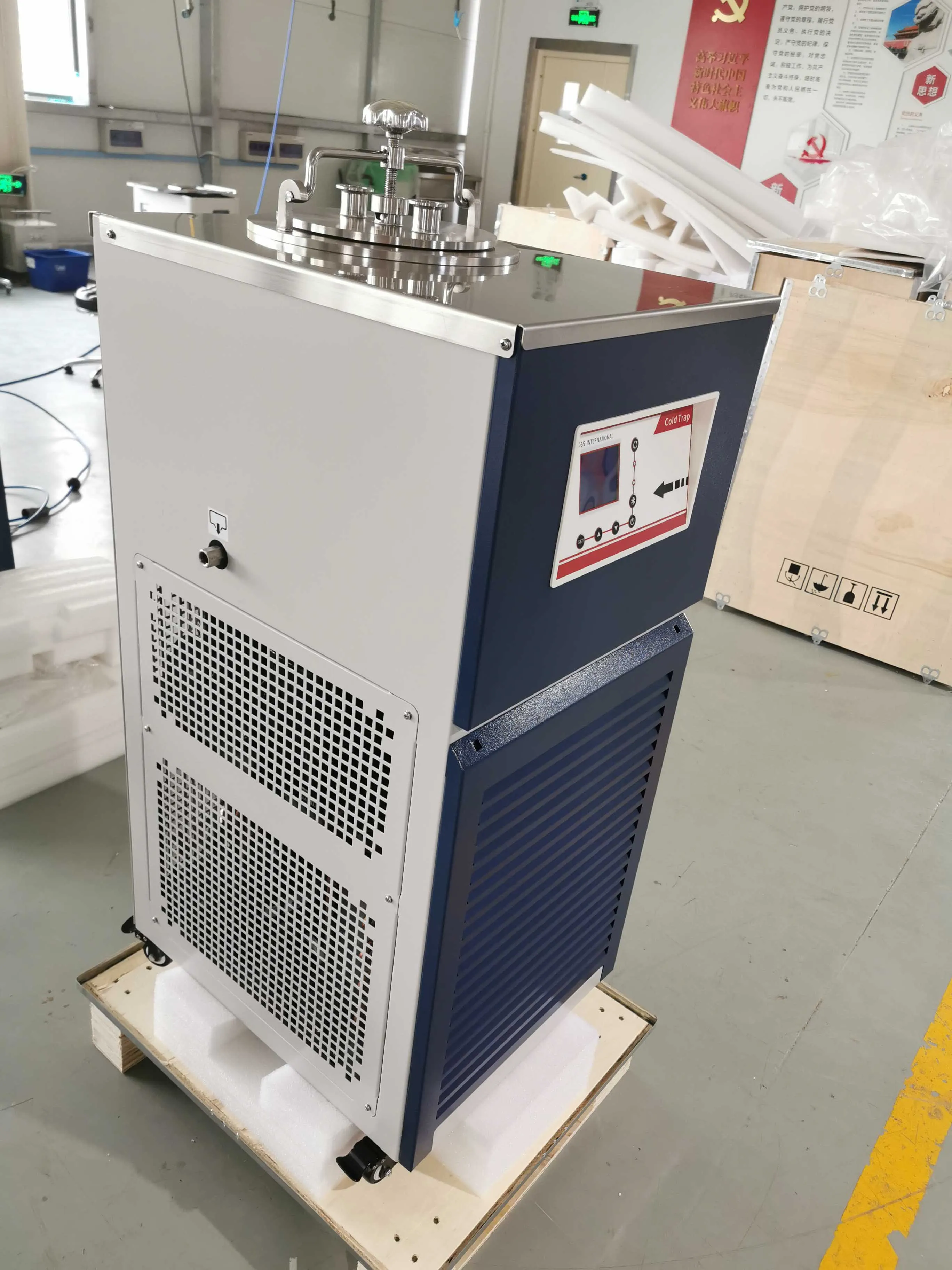

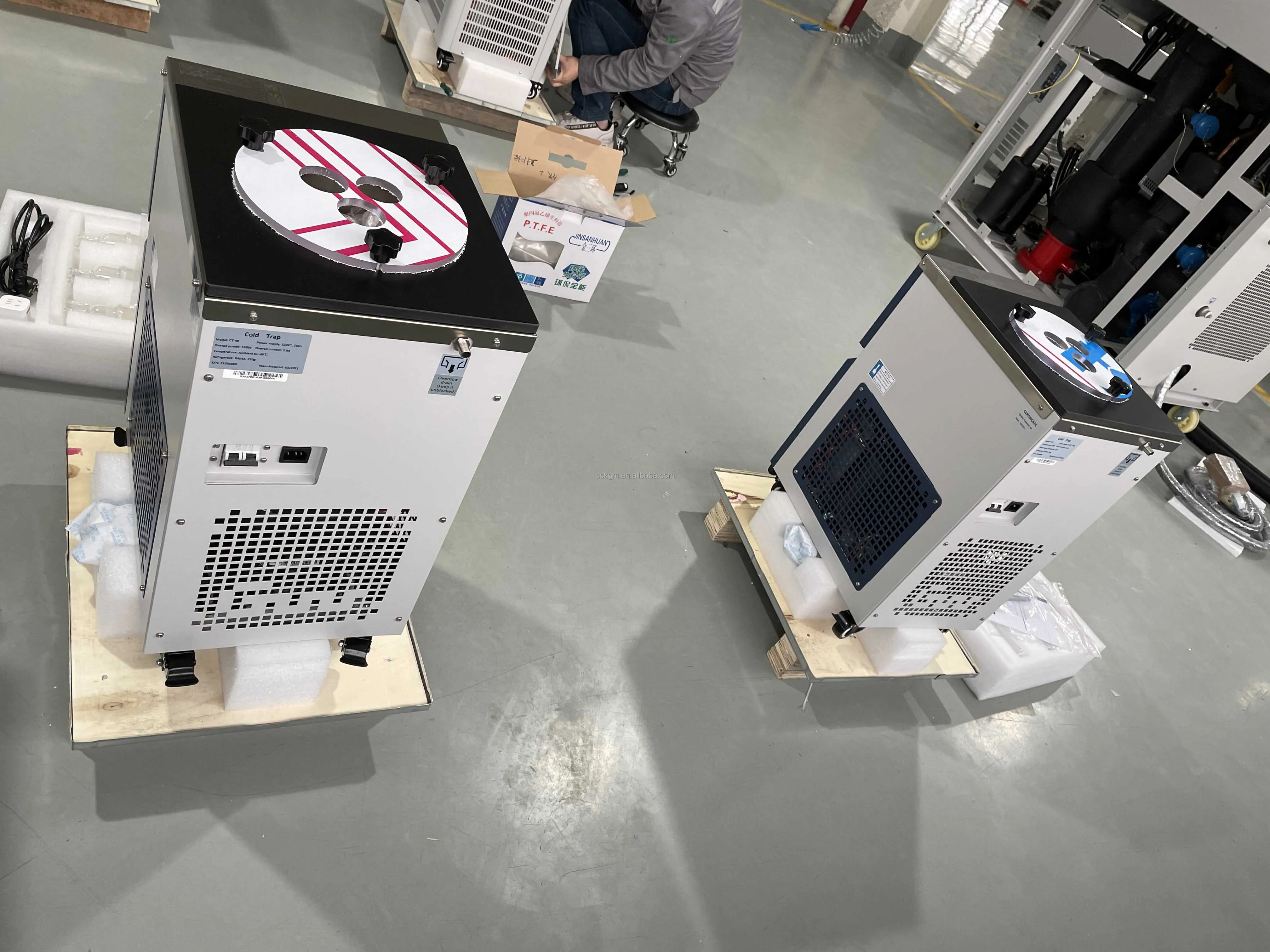

Packing & Delivery
Safety packing
Glass packing
Loading and delivery
Company Profile
Founded in 1988, Zhengzhou Greatwall Scientific Industrial and Trade Co., Ltd. has grown to be a technological innovative enterprise integrated with researching, developing, manufacturing and modern management.
Three main series of products: temperature control system, vacuum system, distillation and reaction system, including Rotary Evaporator, Glass Reactor, Water Circulating Vacuum Pump, Diaphragm Vacuum Pump, Dynamic Temperature System, Recirculating Chiller, Stirring Reaction Bath, High Temperature Circulator, Thermostatic Magnetic Stirring Bath, etc.
Chiller Workshop
Glass Reactor Workshop
Rotary Evaporator Workshop
Vacuum Pump Workshop
API Hangzhou 2019
Italy Customer Visit
Exhibition
CPHI Shanghai 2018
Certifications
FAQ
1. Who are we?
We are based in Henan, China, start from 2001,sell to Domestic Market(72.00%),North America(20.00%),Eastern Asia(8.00%). There are
total over 220 people in our factory.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Teaching and Research Special Instruments (Water Circulating Multi-purpose Vacuum Pump,Low-temperature Cooling Liquid Circulating
Pump,Double-layer Glass Reaction Kettle with Variable Frequency Speed Control,Rotary Evaporator,Integrated Thermostatic Magnetic
Blenders
4. Why should you buy from us not from other suppliers?
We have more than 25 years experiences in designing, researching and manufacturing laboratory instruments. And we have passed
ISO9001:2015 certificate & got CE certificate for most of our products.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2001,sell to Domestic Market(72.00%),North America(20.00%),Eastern Asia(8.00%). There are
total over 220 people in our factory.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Teaching and Research Special Instruments (Water Circulating Multi-purpose Vacuum Pump,Low-temperature Cooling Liquid Circulating
Pump,Double-layer Glass Reaction Kettle with Variable Frequency Speed Control,Rotary Evaporator,Integrated Thermostatic Magnetic
Blenders
4. Why should you buy from us not from other suppliers?
We have more than 25 years experiences in designing, researching and manufacturing laboratory instruments. And we have passed
ISO9001:2015 certificate & got CE certificate for most of our products.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
