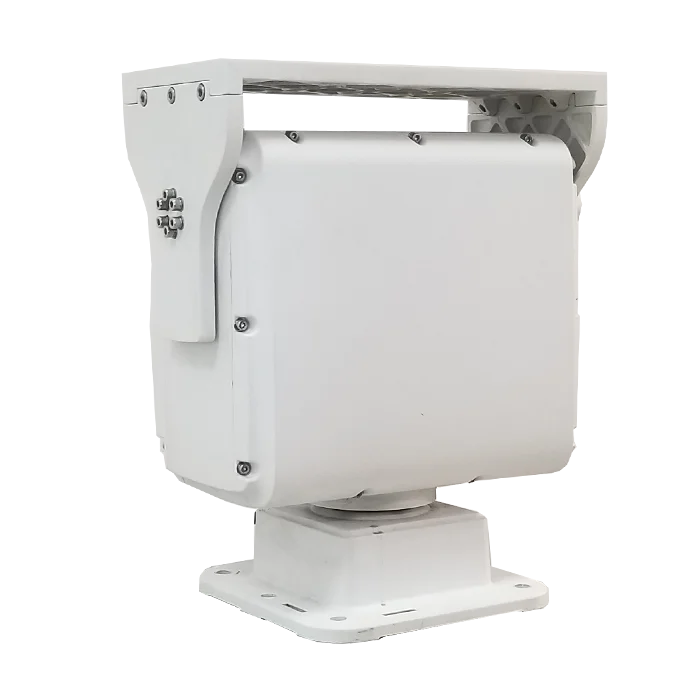

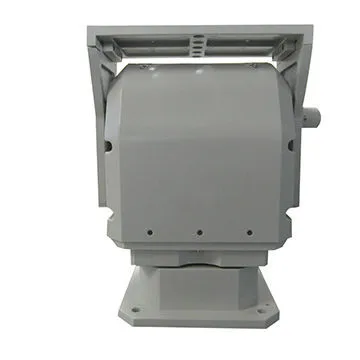

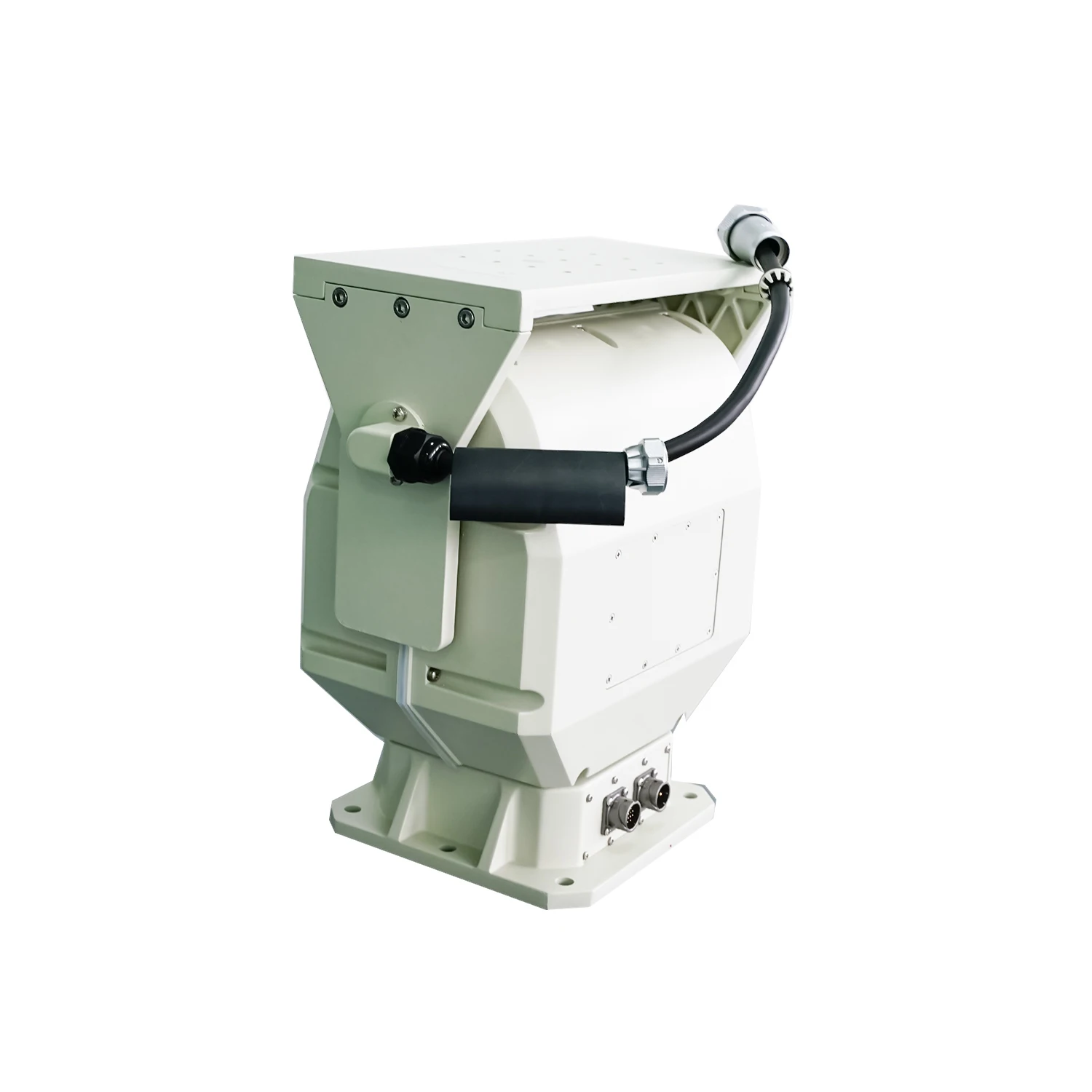

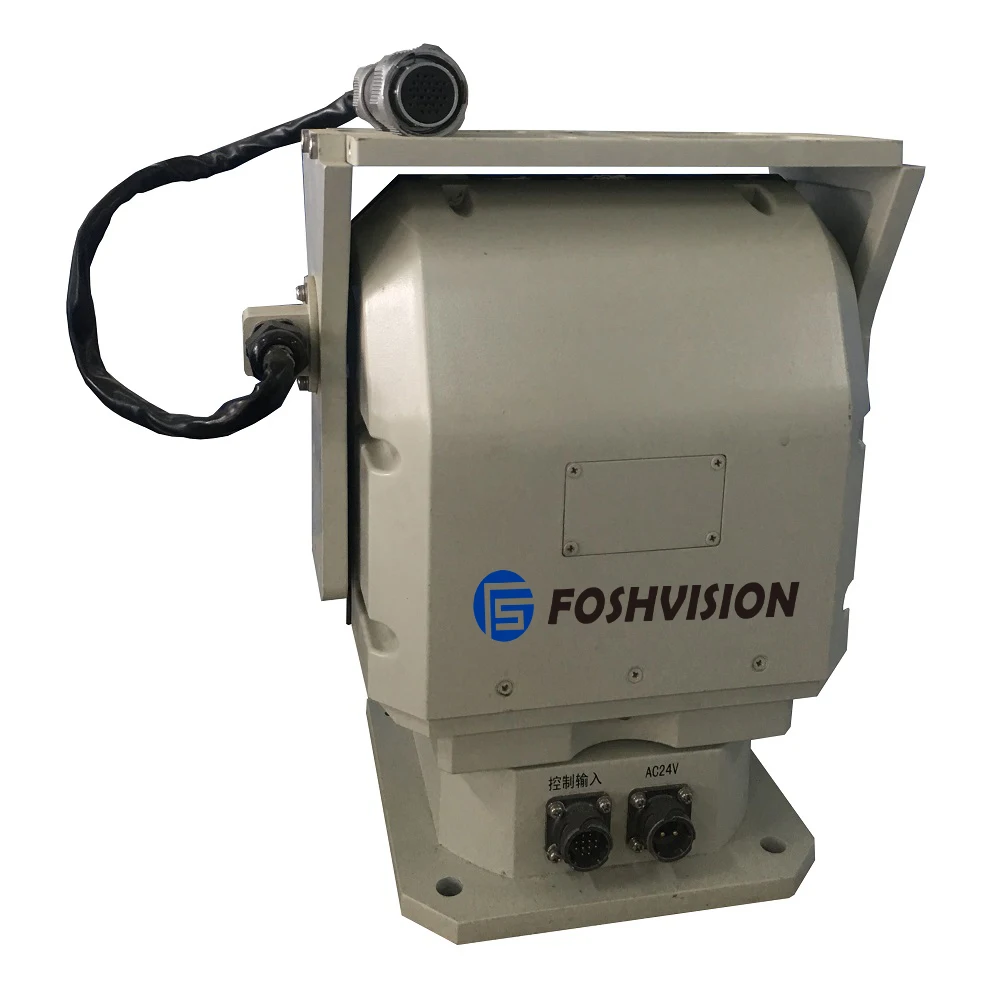

Pan tilt platform with Max 20kg payload

1.Its size likes a small football type,which can support top or side mount type,to support all kinds of cameras,antennas or other devices.

2.It adopts stainless steel worm-gear which is with long time running accuracy without any steps loss.

3.All shells are paint coating with anti-moisture,anti-mould,anti-salt fog.

4.Self-weight is only 12kg,easy to install.

5.Wires on pan/tilt can be customized according to clients request.

6.Roration speed Pan:0.01º~20º/s,Tilt:0.01º~10º/s

Product Description

Specification

Product Name	Heavy duty Pan Tilt Motor Unit
Model	FY-SP2520
Rotating Speed	Pan:0.01º~20º/s,Tilt:0.01º~10º/s
Rotation Angle	Pan:0º~360º continuous, Tilt: +20º~ -60º(can customize angle range according to client requests)
Number of Presets	200
Preset Positioning Accuracy	±0.1º
Optional function	Pan/tilt position display on the screen,position dispay in time
Auxiliary Switch	2 groups
Lens Preset	Support,with self-adaptive function
Auto Cruising	8 tracks(each with 10 presets)
Homing time	It can be set up within the scope of 1~60 min
Auto Scan	1 path
Protocol	Pelco-D/P
Baud Rate	2400/4800/9600/19200bps
Interface	RS485(RS422/RS232/IP optional)
Input Voltage	DC/AC24V~28V
Power Consumption	≤70W
Operation Temperature	temp:-25℃~+65℃ ,humidity:90%±3% RH; without condensation(-40℃~+65℃)
Storage Temperature	-40℃~+70℃
Max Load	20kg
Load Mode	top or side mount
Driven way	Stainless steel Worm-gear
Protection Class	IP66
Weight	12kg
Dimensions	265mm180mm315mm(LWH)
