Noyafa NF-8601S TDR Многофункциональный ЖК-дисплей сетевой кабель тестер трекер для RJ45 RJ11 BNC металлический кабельный барабан
- Категория: Testing Equipment >>>
- Поставщик: Shenzhen,Kolsol,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.61 $* | 0.66 $* |
| Aug-19-2025 | 0.5 $* | 0.83 $* |
| Jul-19-2025 | 0.18 $* | 0.69 $* |
| Jun-19-2025 | 0.41 $* | 0.14 $* |
| May-19-2025 | 0.62 $* | 0.5 $* |
| Apr-19-2025 | 0.75 $* | 0.11 $* |
| Mar-19-2025 | 0.83 $* | 0.63 $* |
| Feb-19-2025 | 0.38 $* | 0.44 $* |
| Jan-19-2025 | 0.11 $* | 0.73 $* |
Характеристики

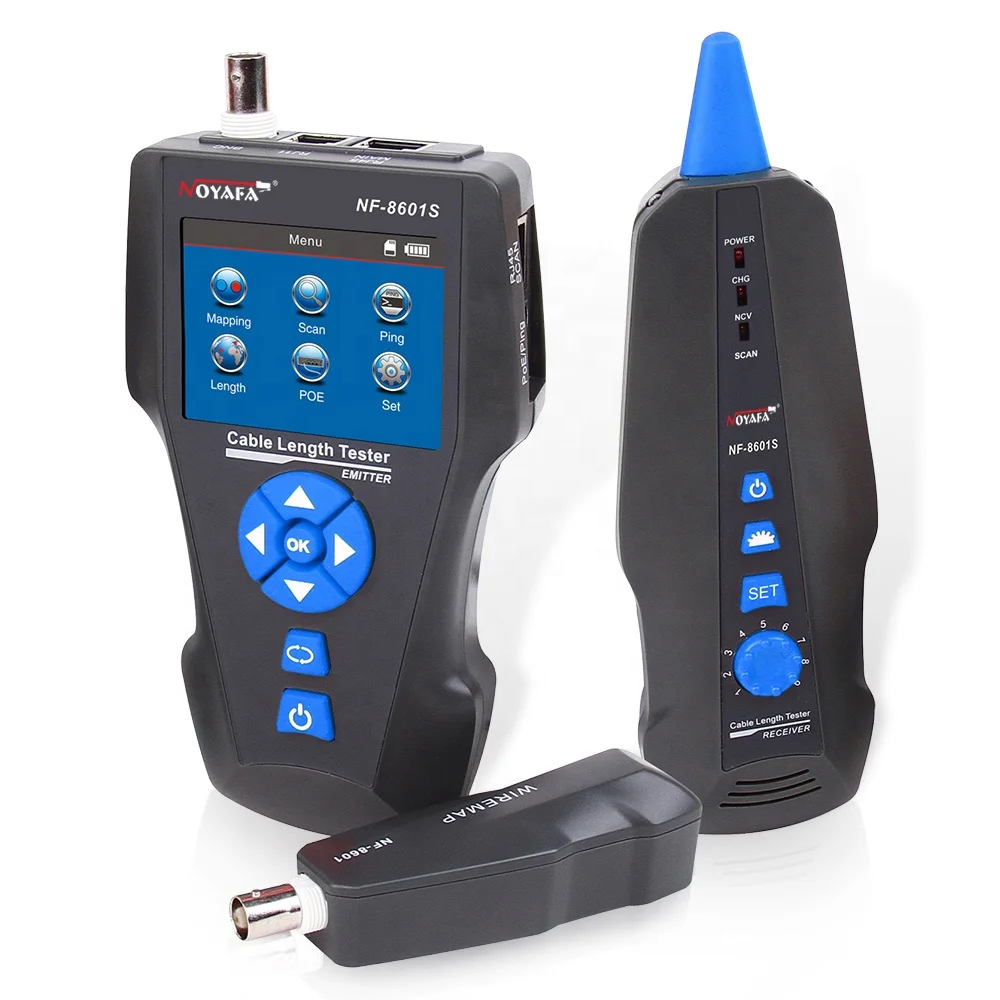

NF-8601S, a must tool for each network technician, provides full cable testing on different category network, coax, or telephone cable. displaying wire map and any faults.

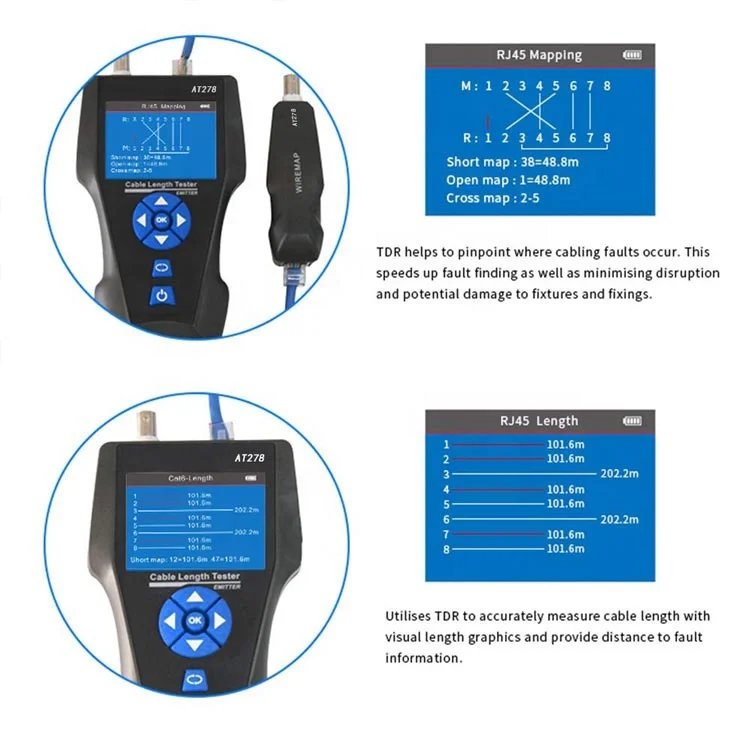

The intelligent wiremap' feature tests for length, shorts, split pairs, or opens and displays with an intuitive graphical
interface where a fault is located.(usingTDR techonology:Time Domain Reflectometry).
Besides, finding cables easier and tracing with AC fliter, or locating network port using hub blink feature. NF-8601S also tests the presence of PoE and PING functions.
Item Specifics:
Brand Name : Noyafa
Model Number : NF-8601S
Port : RJ45, RJ11, BNC
Test length : RJ11,RJ45 ,BNC
Tracking Type : RJ45, RJ11, BNC , and Metal Cable
Other Function : PING test， PoE detect
Power : Lithium battery
Functions
1. Measures cable length and display the distance to fault.
2. PoE Presence: identify which pins are providing power and detect how much voltage .
3. PING function to test network performance, data packet, min & max time.

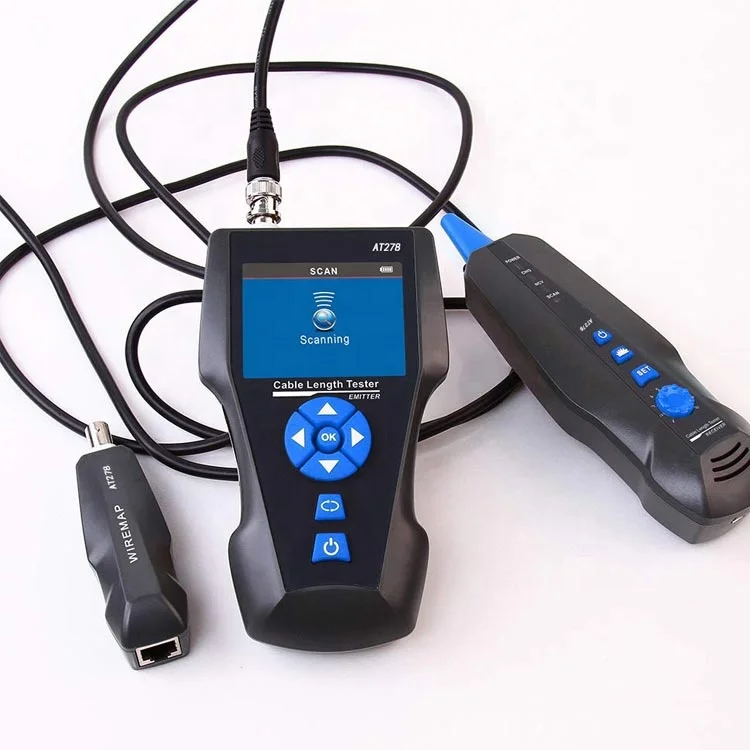

4.Tone trace cable with complete AC Interference Rejection, much easier than other tracers on markets.
5. Hub blink for locating network port by the flashing port light on a server/switch/hub/router port
6. Core troubleshooting features; length, distance to fault, graphical wire mapping, opens, shorts

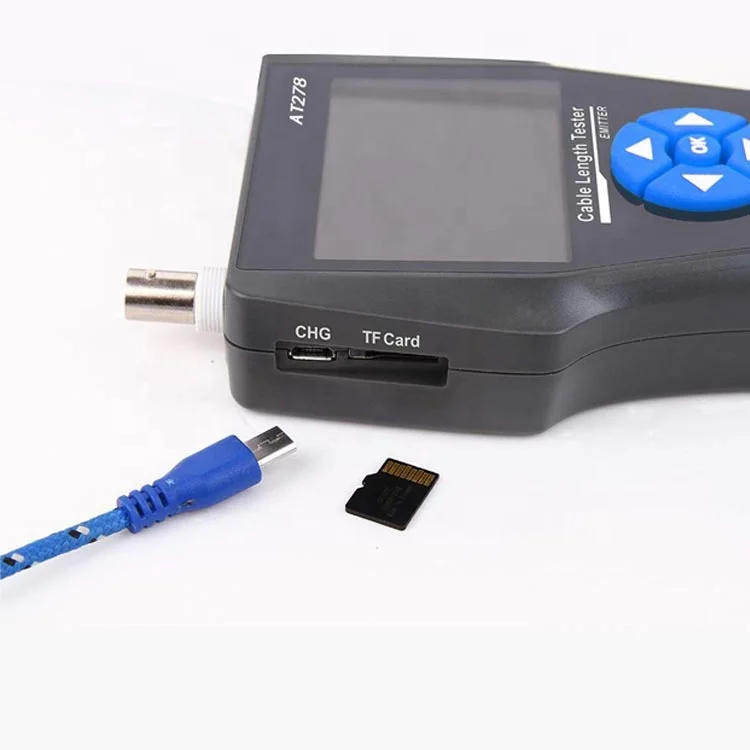

7. TF card included to import and export data from comupter (50 sets, txt format).
8. Roughly locate breakage or short position by tone.
9. Voltage detector: included in receiver (90-1000V)
Benefits
1. Two tone tracing modes: common switch & PoE Switch.
2. Big LCD color screen 320*240 and lighting lamp in darkness.
3. Function of storage and memory
4. Low voltge alarm function and automatic delay power on-off
5. Rechargeable Lithium battery for more efficient work
Specification:
NF-8601S Transmitter specifications
LCD screen:60 x 45mm
Tone frequency:130KHz
The range of testing cable:＜2000m
Trace cable coonected to switch:AC Fliter
Tone mode:2 Tones, adjustable
Compatible with connectors:RJ11,RJ45,BNC, PING/PoE
Battery type:Lithium battery
Dimensions (LxWxD):185 x 80 x 32mm
NF-8601S Receiver specifications
Frequency:130kHz
The Max. working current:Less than 70mA
Earphone jack:1
LED illumination:2 LEDs
Battery type:Lithium battery
Dimensions (LxWxD):218 x 46 x 29mm
NF-8601S Remote unit specifications

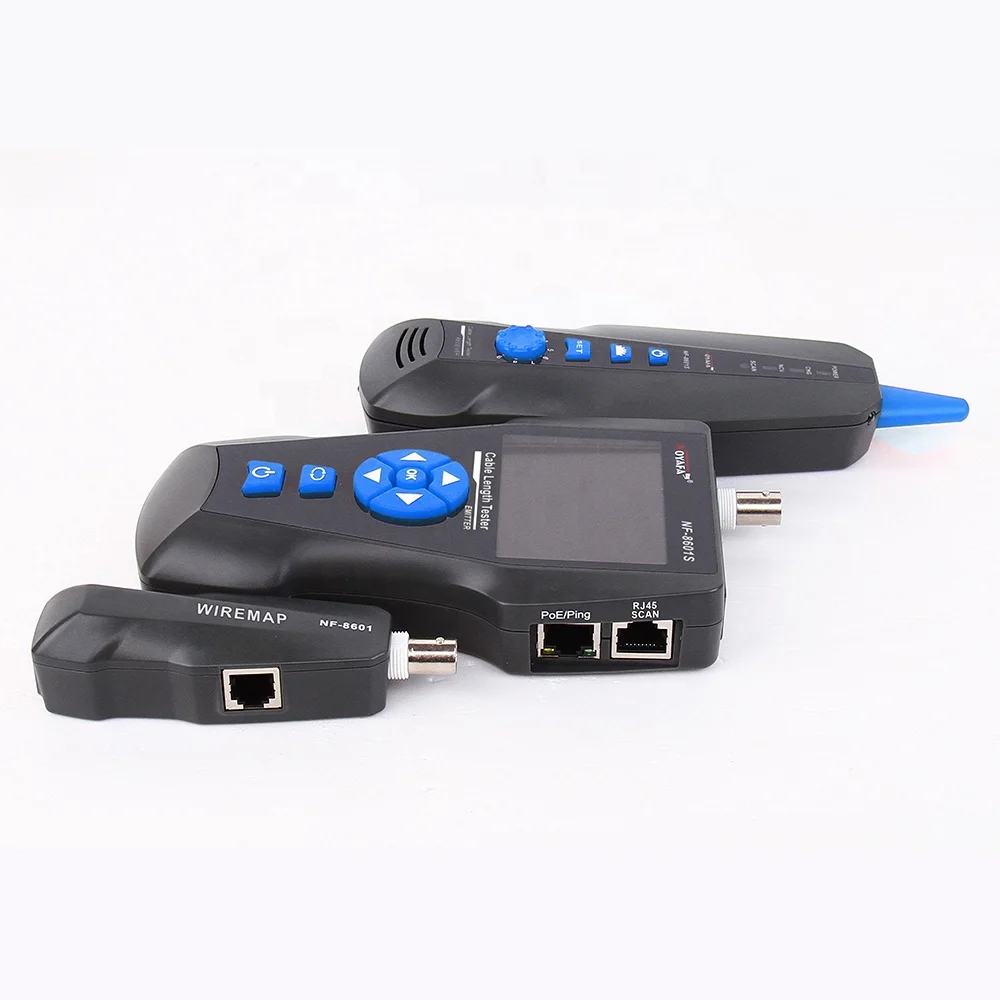

Compatible with connectors:RJ11,RJ45,BNC
Dimensions (LxWxD):107 x 30 x 24mm
The intelligent wiremap' feature tests for length, shorts, split pairs, or opens and displays with an intuitive graphical
interface where a fault is located.(usingTDR techonology:Time Domain Reflectometry).
Besides, finding cables easier and tracing with AC fliter, or locating network port using hub blink feature. NF-8601S also tests the presence of PoE and PING functions.
Item Specifics:
Brand Name : Noyafa
Model Number : NF-8601S
Port : RJ45, RJ11, BNC
Test length : RJ11,RJ45 ,BNC
Tracking Type : RJ45, RJ11, BNC , and Metal Cable
Other Function : PING test， PoE detect
Power : Lithium battery
Functions
1. Measures cable length and display the distance to fault.
2. PoE Presence: identify which pins are providing power and detect how much voltage .
3. PING function to test network performance, data packet, min & max time.
4.Tone trace cable with complete AC Interference Rejection, much easier than other tracers on markets.
5. Hub blink for locating network port by the flashing port light on a server/switch/hub/router port
6. Core troubleshooting features; length, distance to fault, graphical wire mapping, opens, shorts
7. TF card included to import and export data from comupter (50 sets, txt format).
8. Roughly locate breakage or short position by tone.
9. Voltage detector: included in receiver (90-1000V)
Benefits
1. Two tone tracing modes: common switch & PoE Switch.
2. Big LCD color screen 320*240 and lighting lamp in darkness.
3. Function of storage and memory
4. Low voltge alarm function and automatic delay power on-off
5. Rechargeable Lithium battery for more efficient work
Specification:
NF-8601S Transmitter specifications
LCD screen:60 x 45mm
Tone frequency:130KHz
The range of testing cable:＜2000m
Trace cable coonected to switch:AC Fliter
Tone mode:2 Tones, adjustable
Compatible with connectors:RJ11,RJ45,BNC, PING/PoE
Battery type:Lithium battery
Dimensions (LxWxD):185 x 80 x 32mm
NF-8601S Receiver specifications
Frequency:130kHz
The Max. working current:Less than 70mA
Earphone jack:1
LED illumination:2 LEDs
Battery type:Lithium battery
Dimensions (LxWxD):218 x 46 x 29mm
NF-8601S Remote unit specifications
Compatible with connectors:RJ11,RJ45,BNC
Dimensions (LxWxD):107 x 30 x 24mm
Item Weight | Package Dimensions | Color | Material | Battery Cell Type |
1.7 pounds | 9 x 8.5 x 3.5 inches | 8601S | Plastic | Lithium Ion |

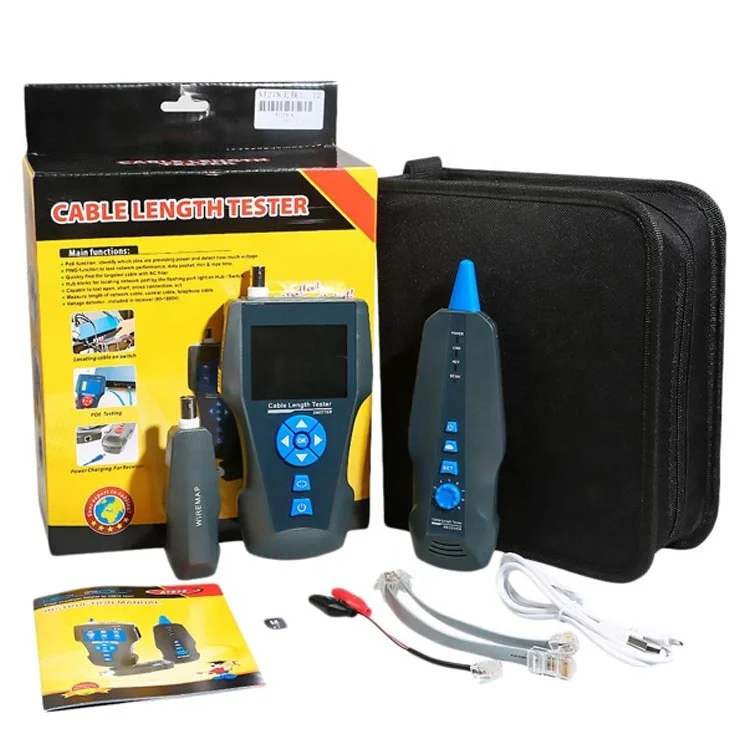

Accessories Included:
Built-in Lithium battery x 2pcs
Carry case x 1pc
Gift box x 1pc
Charging adaptor x 1 pc
telephone line adapter x 1 pc
network cable adapter x 1 pc
Cable clips x 1 pc
TF memory card x 1 pc
Built-in Lithium battery x 2pcs
Carry case x 1pc
Gift box x 1pc
Charging adaptor x 1 pc
telephone line adapter x 1 pc
network cable adapter x 1 pc
Cable clips x 1 pc
TF memory card x 1 pc
