industrial water filter large flow sand media

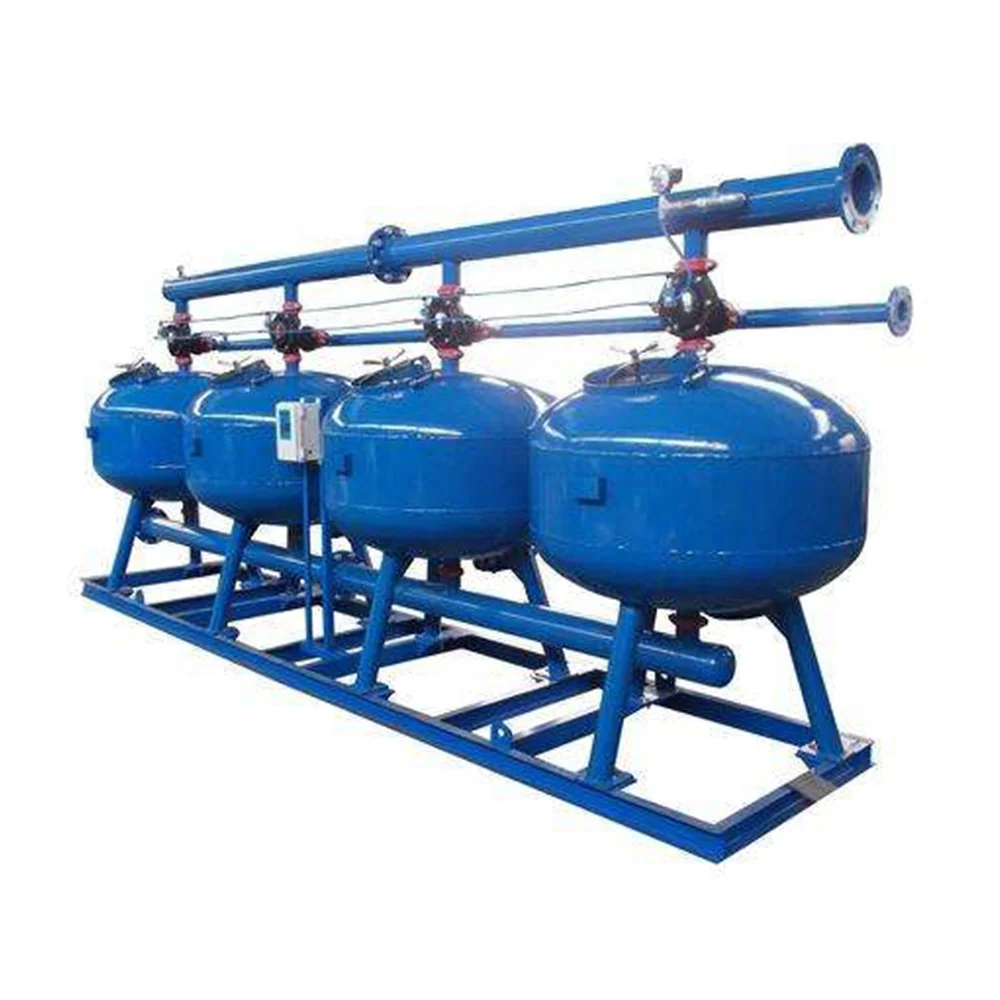

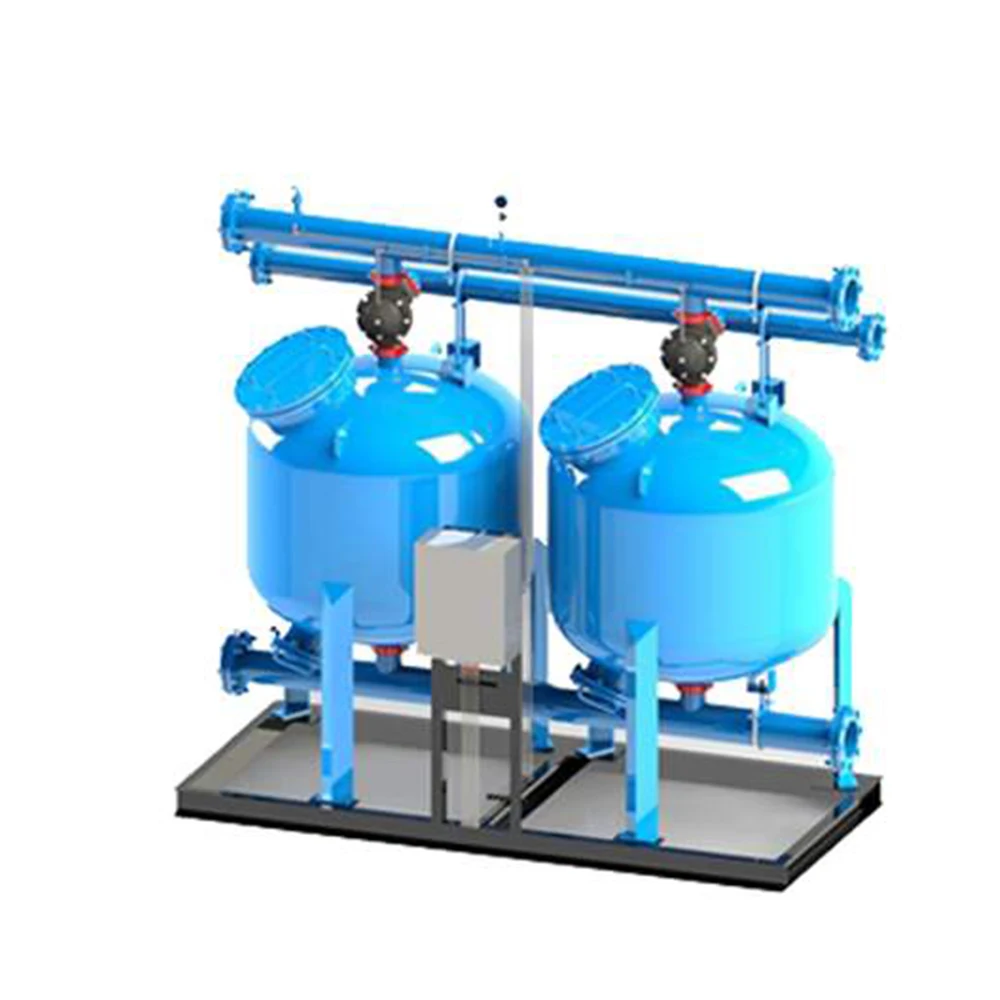

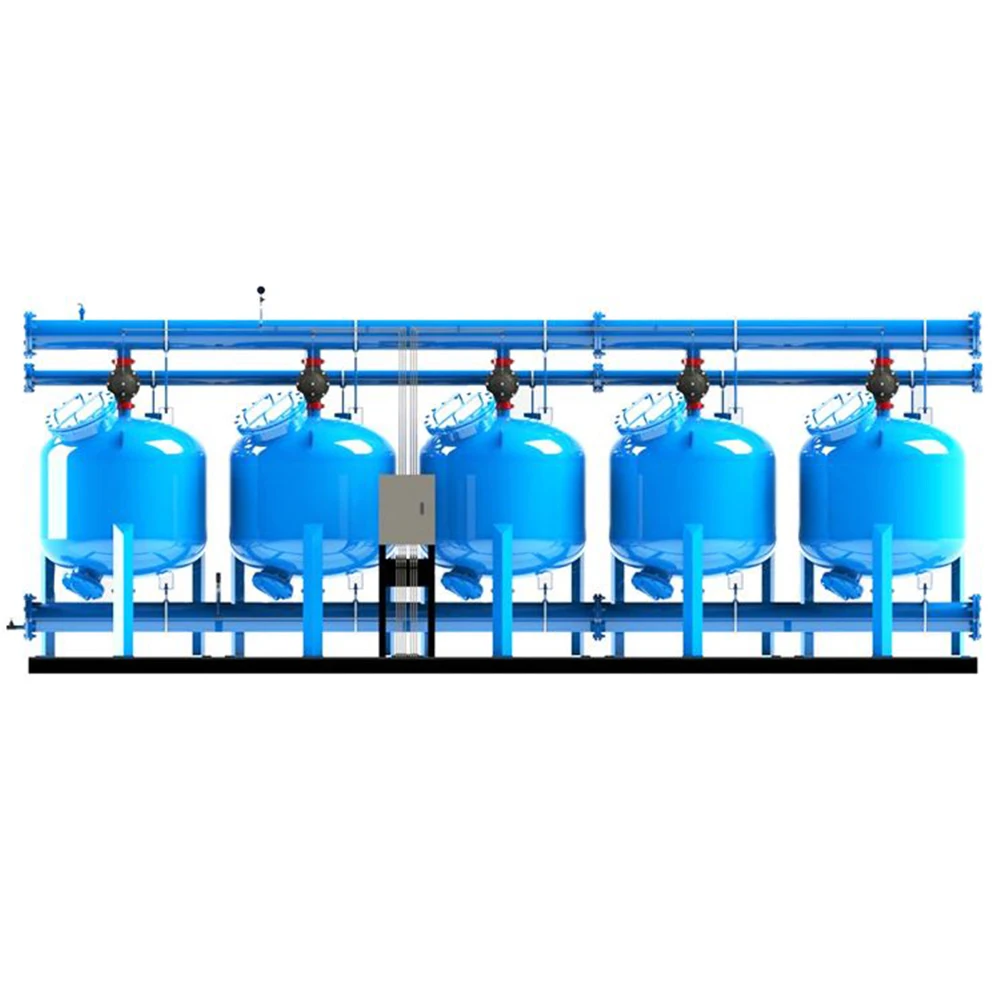

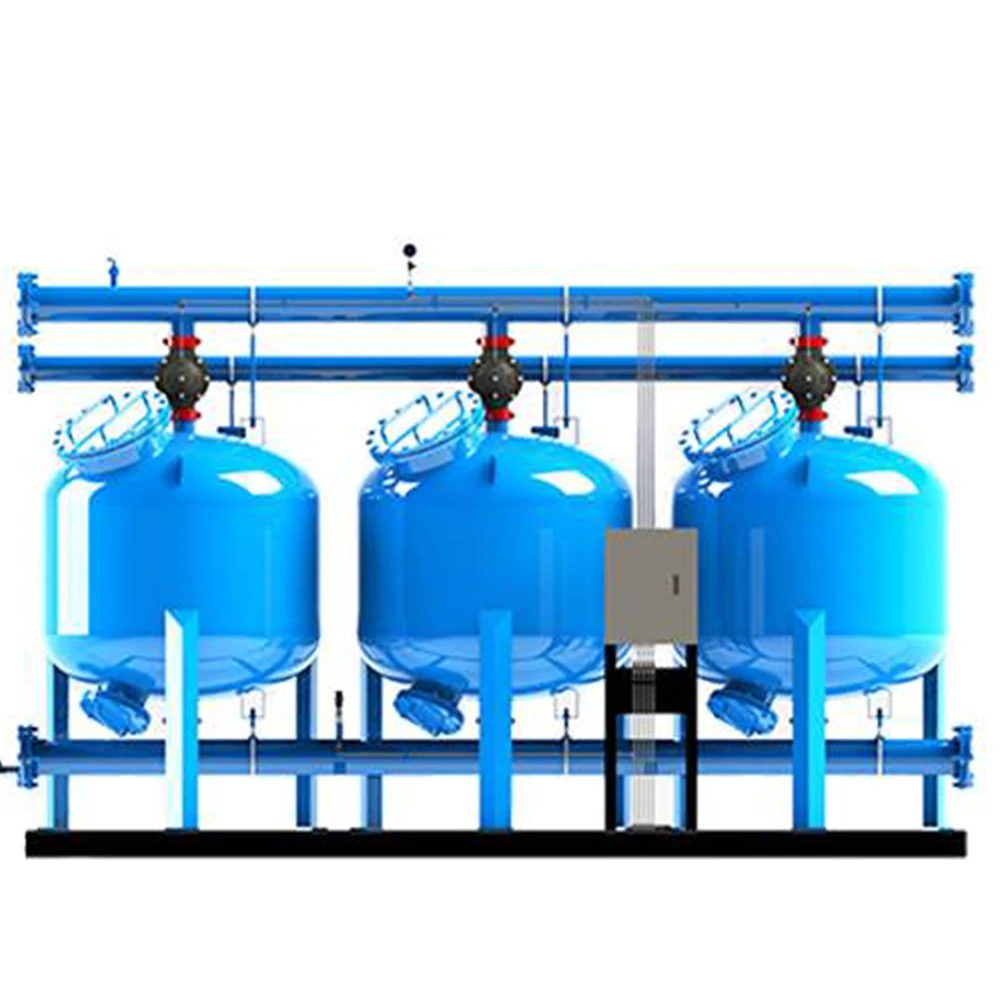

The multi-media filtration system is composed of one or more standard high-speed filtration units. The water flows through the internal water distributor and water collector, using different media, which can effectively remove particles and reduce turbidity. If it is equipped with a specific filter material, such as activated carbon, anthracite, etc., it can also adsorb and remove the corresponding organic matter, ions, etc.

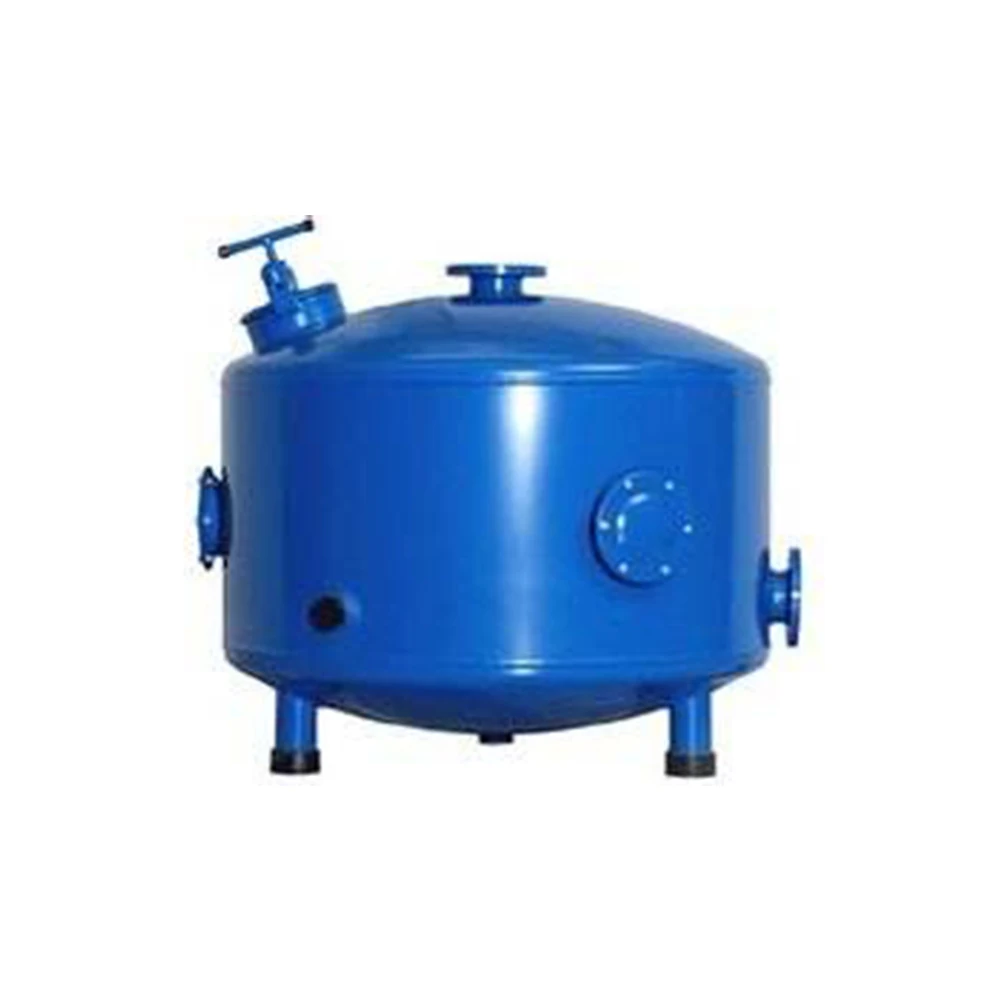

The filter unit has a variety of specifications from 16 inches (400mm) to 96 inches (2400mm) and can be installed in different ways. The filter can be used as an independent filter system, using the water supply pump in the existing process, if it is used as a side filter, it can also be equipped with its own pump separately. The filter can also be installed on the public pipeline with multiple processing units, so that the unlimited filtering capacity of the system can be realized.

The backwashing of the filtration system has three modes: manual, semi-automatic and fully automatic, which can be activated by manual button, PLC, pressure difference or management system respectively. The backwash cycle and the length of the backwash time are adjustable, and are set to 3 minutes at the factory. This control is realized by the DLFCS automatic filter control system. Users can also choose PLC control system, which can realize high-demand control such as centralized or remote communication.

Features:

1, the core member using imported (BERMAD, BACCARA, SIEMEN, MITSUBISHI).
2. The filter unit adopts a single cavity design, which has better backwashing effect and lower sand running rate.
3. The water collector can be made of stainless steel/ABS, which has a longer life.
4. The outlet pipe is set at the bottom of the unit, the water resistance is smaller, and the maintenance is more convenient

Model Selection Guide:

Application
