Высокое качество 5 портов 4 Pin Header 10/100 Мбит/с Ethernet сетевой коммутатор gigabit Pcb програмная панель Pcba модуль
- Категория: Сетевые коммутаторы >>>
- Поставщик: Shenzhen,HTF,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 12.63 $* | 13.41 $* |
| Aug-17-2025 | 12.33 $* | 13.88 $* |
| Jul-17-2025 | 10.65 $* | 11.16 $* |
| Jun-17-2025 | 12.40 $* | 13.39 $* |
| May-17-2025 | 10.66 $* | 11.17 $* |
| Apr-17-2025 | 11.96 $* | 12.5 $* |
| Mar-17-2025 | 11.9 $* | 12.4 $* |
| Feb-17-2025 | 11.49 $* | 12.59 $* |
| Jan-17-2025 | 11.65 $* | 12.85 $* |
Характеристики

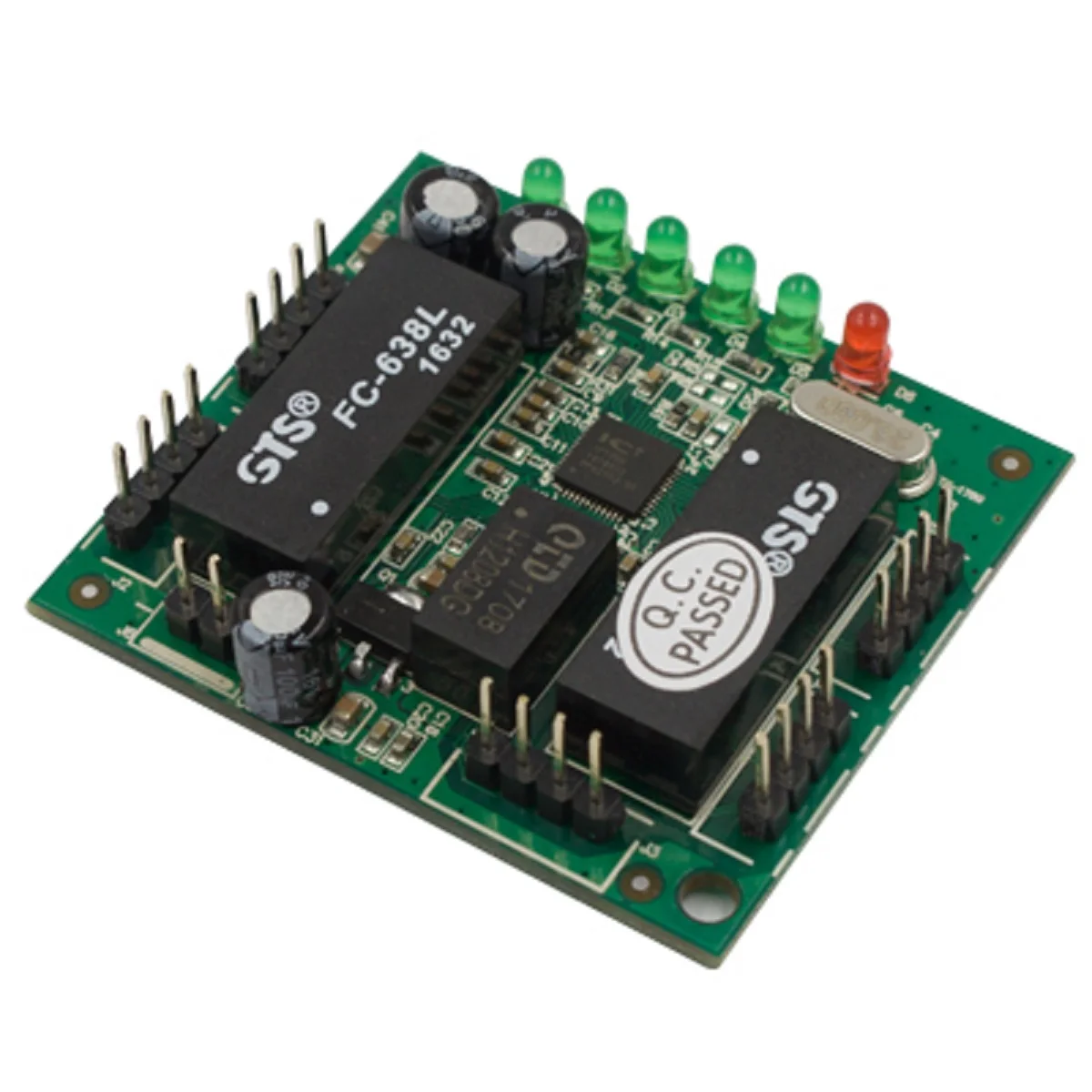

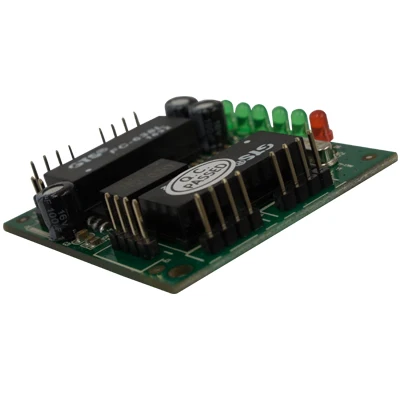

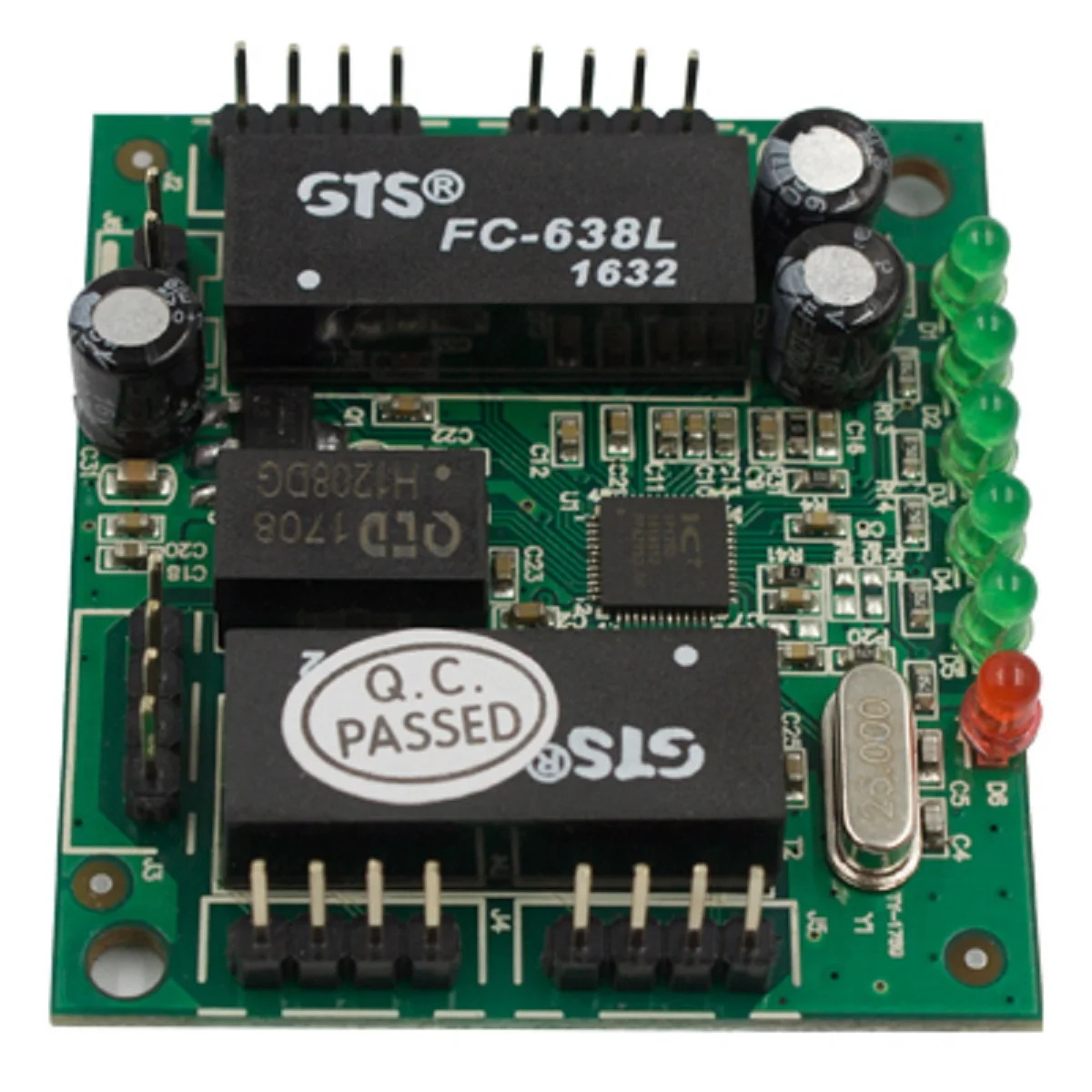

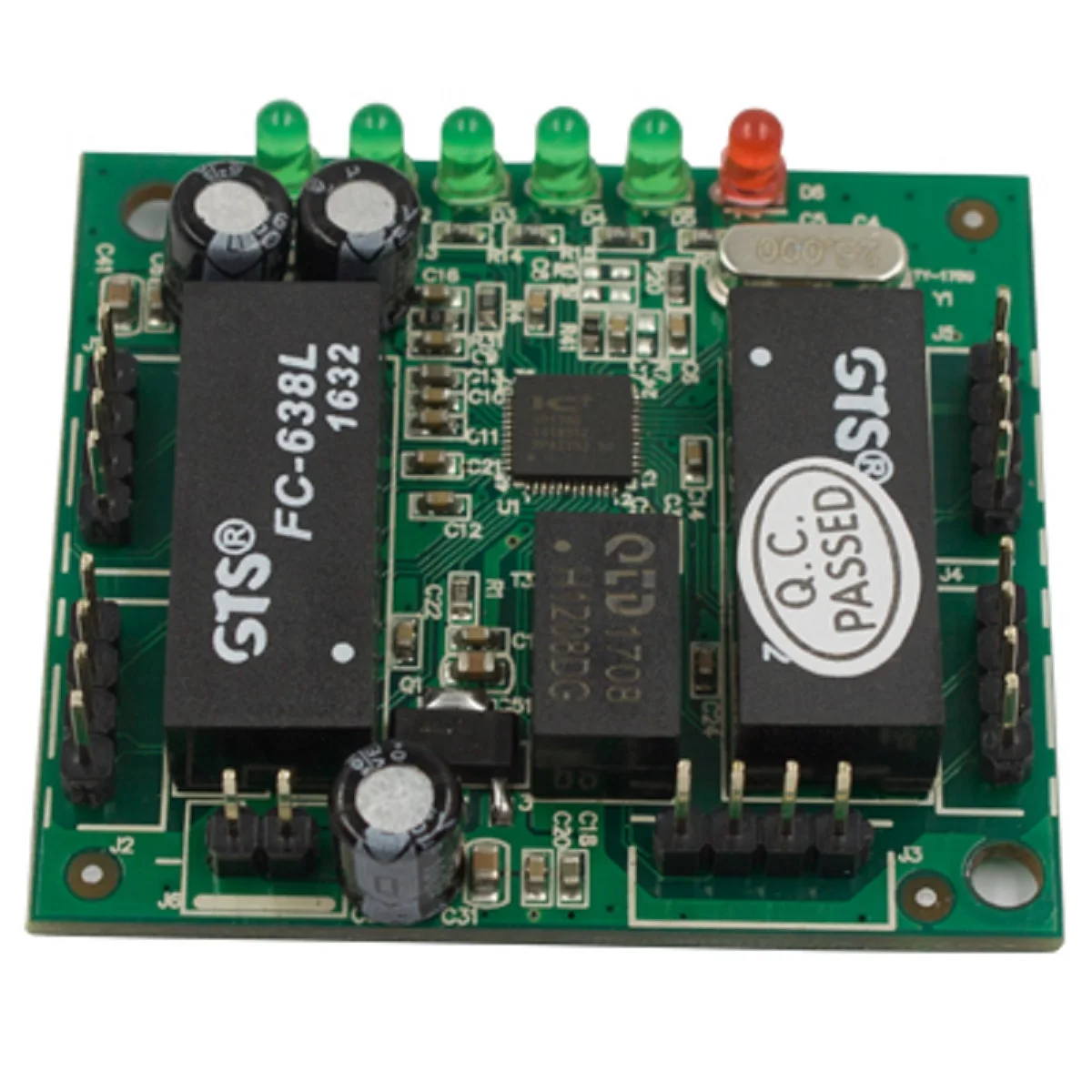

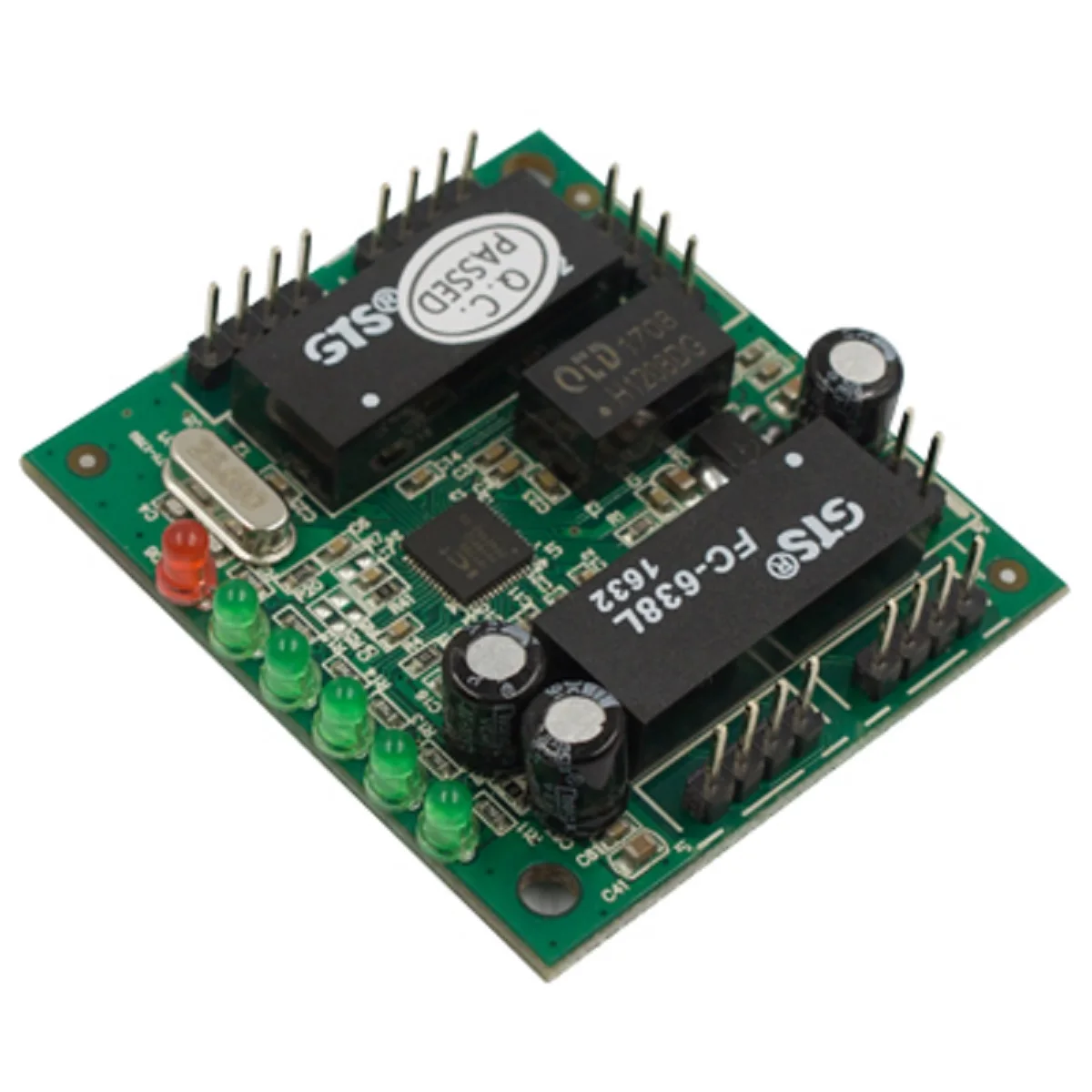

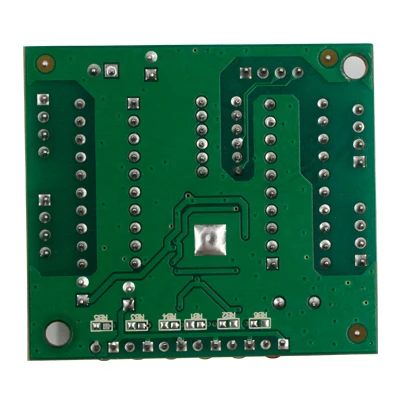

High Quality 5 Ports 4 Pin Header 10/100Mbps Ethernet Network Switch Pcb Circuit Board Pcba Module Card
Feature
- Complies with IEEE802.3, IEEE802.3u standards
- 5 10/100Mbps auto-negotiation pin header supporting auto-MDI/MDIX
- Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
- Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging - LED indicators for monitoring power, link/activity
- Mini cabling size design
- Welcome to OEM
Product Description
Standards | IEEE802.3 10Base-T Ethernet |
protocol | CSMA/CD |
Transmission Rate | Ethernet 10Mbps (half duplex),20Mbps (full duplex); |
Network Medium | 10Base-T:Cat 3 or above Cat.3 UTP(≤100m) |
Number of Ports | 5port 10/100M pin header(180 degree) ports |
UPLINK | Any port (support Auto-MDI/MDIX function) |
Transmits Method | Store-and-Forward |
Temperature | Operating Temperature -20 C~60 C (-4 F~140 F) |
Humidity | Operating Humidity 10%~90% non-condensing |
Switch capacity | 1G |
LED Indications | 1*power LED(Power:Red or green) |
Dimension(W x H x D) | 50*45*17mm |
Weight | 35g |
Power Supply | 5V/1A |
Case Material | no |
Company Information
Established in 2011, Shenzhen HTF Electronic Co. Ltd (HTF for short) is located in the electronic center of China-Shenzhen City, with the space totaled up to 1,000 square meters and 100 staff members. We have 10 experienced software and hardware R&D engineers with a well-equipped laboratory. With several years' efforts, we have developed a networking and digital department, and cooperated with more than hundreds of distributors and 20 agents across the IT field.
Factory Shows:
Trade Shows
2018 HONG KONG Exhibition
2019 HONG KONG Exhibition
Certifications
Packaging & Shipping
Our Services
Reply your inquiry in 24 working hours;
Customization is available, OEM/ODM is warm welcome;
Delievery goods to our partners all over the world with high speed and great precision;
Offer our customers the most competitive with good quality wireless networking equipment.
FAQ
How to Start Business With US?
1. Send us inquiry from Alibaba or contact us directly via trade manager
2. Place sample order online or provide details to us for issuing an invoice
3. Payment via Alibaba online order or PayPal, Western Union, T/T etc.
What Certificates available?
CE, RoHS and Patent Certification
How is Quality Control and Warranty?
1. All products have been 100% strictly Quality Checked in-house before packing.
2. All products have been well packed before shipping.
3. 24 Months warranty is provided
