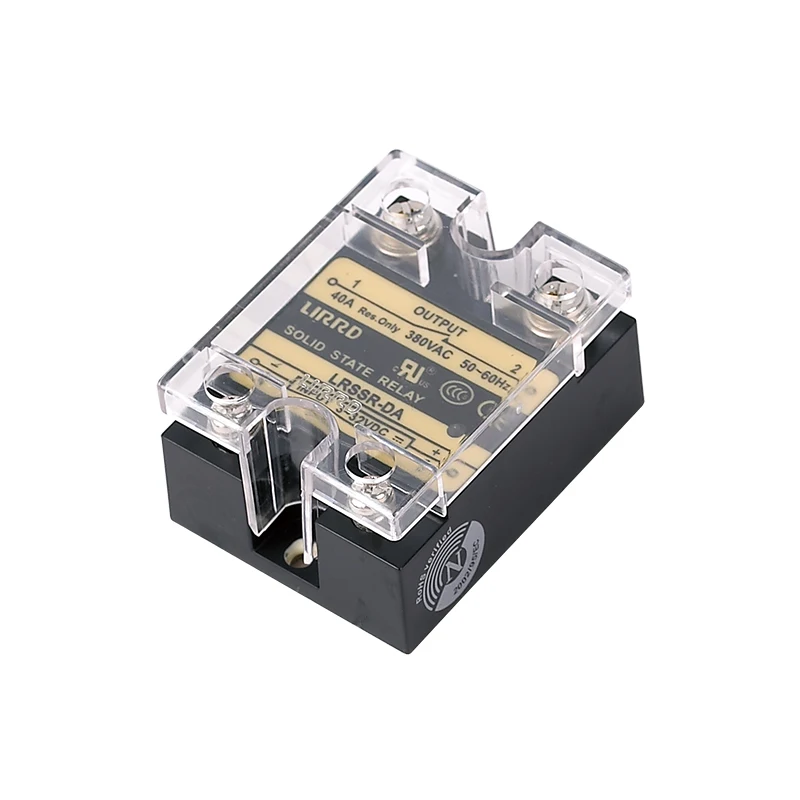

Одобренное UL промышленное твердотельное реле постоянного тока в переменный ток 40 А 380
- Категория: Relays >>>
- Поставщик: Yueqing,Cleanlysis,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5.60 $* | 5.24 $* |
| Aug-20-2025 | 5.46 $* | 5.93 $* |
| Jul-20-2025 | 4.44 $* | 4.68 $* |
| Jun-20-2025 | 5.83 $* | 5.52 $* |
| May-20-2025 | 4.38 $* | 4.81 $* |
| Apr-20-2025 | 5.71 $* | 5.20 $* |
| Mar-20-2025 | 5.99 $* | 5.29 $* |
| Feb-20-2025 | 4.53 $* | 4.65 $* |
| Jan-20-2025 | 4.24 $* | 4.83 $* |
Характеристики
Application
Specifications
| Classification | AC Solid State Series | DC Solid State Series | LRSSVR | |||
| Model | LRSSR-AA | LRSSR-DA | LRSSR-DD | LRSSRVR | ||
| Load Voltage(V) | 28~285, 36~530 | 28~285, 36~530, 48~660 | 50, 100, 300, 400 | 50, 600 | 700, 800, 900 | 40~250, 80~380 |
| Load Current(A) | 5, 10, 20, 30, 40, 50, 60, 80, 100 | 5, 10, 20, 30, 40, 50, 60, 80, 100 | 5, 10, 20, 30, 40 | 5, 10, 20 | 5, 10, 20, 30, 40 | |
| Dielectric Strength(Vac) | 2500 | |||||
| Insulation Resistance(MΩ) | 100 | |||||
| Control Voltage(Vdc) | 90-265 | 3-32 | 3-32 | |||
| Control Current(mA) | ≤10 | 3-35 | 5-20 | |||
| On Voltage Drop(V) | ≤10 | ≤1.5 | ≤2.5 | |||
| Off Leakage Current(mA) | ≤4 | ≤2 | ≤1 | |||
| Frequency Range(Hz) | 47~63 | |||||
| on-off Time(ms) | ≤10 | ≤0.8 | ||||
| Action State Indication | LED | |||||
| Ambient Temperature | -30℃~+75℃ | |||||
| Mounting Method | Bolt Fixation | |||||
| Same Reference | SSR, G3NA-420B, LSAP3810A, LSAP2210A | SSR, JGX-1572F, JGX-1554F, JGX-1598F, JG53FA, JGX-54FA | ||||
| Directions | Load Current Resistance above DC 5A Must Be Set Radiator | |||||
Approved Standards
| Agency | Standard | File No. |
| CE | EN 60947-1: 2004 | T2M20511-0737 |
| UL | ANSI/UL 508 | E256962 |
| CCC(CQC) | GB 14048.5-2008 | 2011010303498303 |
Connection Diagram
Dimension
Equipped Radiator
Symbol Of Power Relay
Company
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
