DINSTAR новое оборудование 32 порта GSM 4G LTE VoIP шлюз
- Категория: VoIP Products >>>
- Поставщик: Shenzhen,Dinstar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1666.31 $* | 1749.52 $* |
| Aug-19-2025 | 1652.86 $* | 1735.25 $* |
| Jul-19-2025 | 1386.96 $* | 1455.56 $* |
| Jun-19-2025 | 1624.63 $* | 1705.16 $* |
| May-19-2025 | 1414.57 $* | 1485.15 $* |
| Apr-19-2025 | 1596.23 $* | 1676.98 $* |
| Mar-19-2025 | 1582.22 $* | 1661.75 $* |
| Feb-19-2025 | 1568.93 $* | 1646.13 $* |
| Jan-19-2025 | 1554.32 $* | 1632.5 $* |
Характеристики
Products Description
VoIP Product : VOIP GSM / LTE 4G Gateway
DINSTAR UC2000-VG series GSM/LTE VoIP Gateway is a 32 channels wireless gateway based on DINSTAR new hardware platform and
powerful embedded CPU, leveraging state-of-art and latest VoIP / SIP technology, which enables the smooth transit between 4G/3G/2G
mobile network and VoIP networks. Adding LCD display on DINSTAR old classic design, makes this model easier to manage for users.
Moreover, with open API, it allows users to build their own application software to send SMS/USSD messages or bulk SMS messages,
or push their text messages from email, HTTP etc.
or push their text messages from email, HTTP etc.
Moreover, with open API, it allows users to build their own application software to send SMS/USSD messages or bulk SMS It is suitable for enterprises, multi-site organizations, call centers and areas with limited landline like rural area to cut down
telephony costs and enable easy & efficient communications.
telephony costs and enable easy & efficient communications.

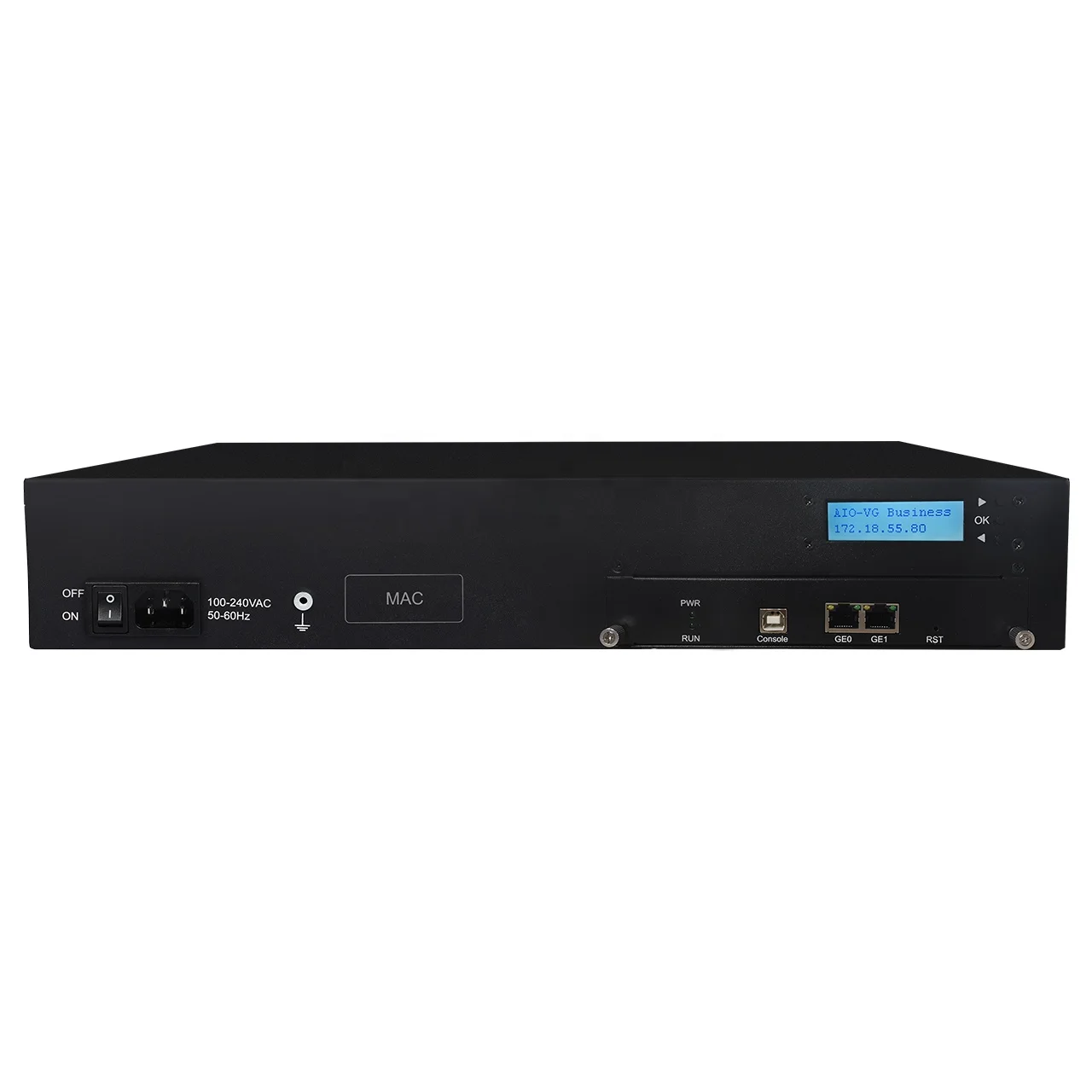

Front

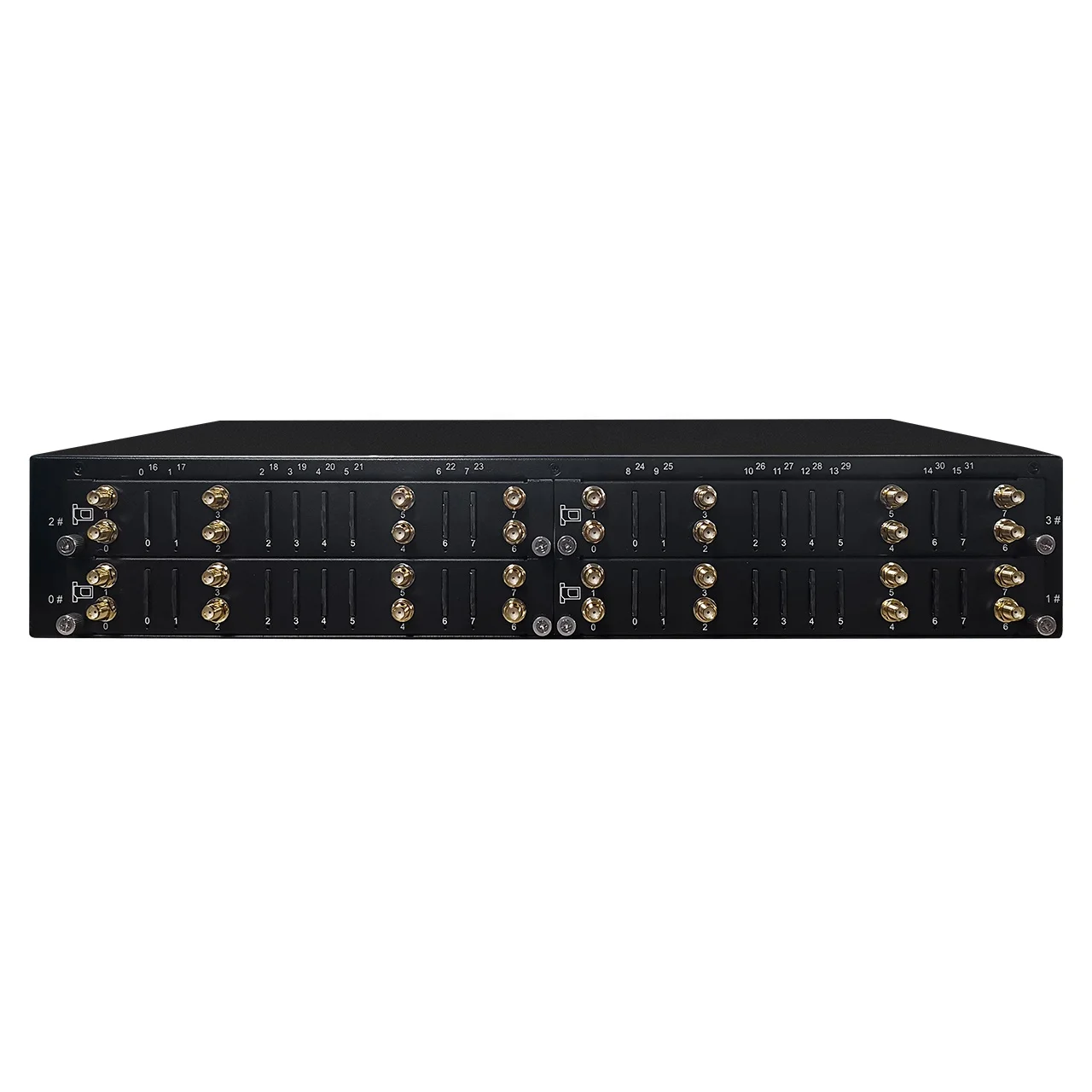

Back
\t\t\t\t\t\t\t\t\tkey features \t\t\t\t\t\t\t
* Up to 32 Channels GSM or LTE
* 2.3 inch Graphic LCD Display
* Powerful Embedded CPU
* Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
* Compatible with Mainstream VoIP Platform
* Hot Swappable SIM Cards
* Voice over LTE (VoLTE)
* HTTP API for SMS Application Integration
* SMS to Email & Email to SMS
* Flexible Dial Rules & Manipulation Rules
* Auto CLIP
* Remote SIMs Management (optional)
* HTTP API for SMS Application Integration
* SMS to Email & Email to SMS
* Flexible Dial Rules & Manipulation Rules
* Auto CLIP
* Remote SIMs Management (optional)
Model Options | Items |
UC2000-VG-32G UC2000-VG-32T | 32 GSM 32 LTE |
Hardware Interfaces
Mobile: 32 Channels
SIM Card slots: 32
Antennas Connectors: SMA
2.3” LCD graphic display
Ethernet Interfaces: 2*10/100/1000 Base-T, RJ45
LED Indicators: Power, RUN, Channel indicator
Console: 1* RS232 (USB-B connector)
RST/PWR Button
SIM Card slots: 32
Antennas Connectors: SMA
2.3” LCD graphic display
Ethernet Interfaces: 2*10/100/1000 Base-T, RJ45
LED Indicators: Power, RUN, Channel indicator
Console: 1* RS232 (USB-B connector)
RST/PWR Button
Physical Features
Power Supply: 100-240V,50-60Hz
Power Consumption: 68w
Temperature(Operation): 0 ℃ ~ 40 ℃
(Storage): -20 ℃ ~80 ℃
Operation Humidity: 10%-90% Dimension(W/D/H): 440×270×75mm
Unit Weight: 5.5kg
Power Consumption: 68w
Temperature(Operation): 0 ℃ ~ 40 ℃
(Storage): -20 ℃ ~80 ℃
Operation Humidity: 10%-90% Dimension(W/D/H): 440×270×75mm
Unit Weight: 5.5kg
LTE Frequency Bands
UC2000-VG-32G: GSM Gateway: 850/900/1800/1900MHz
UC2000-VG-32T VoLTE gateways with several options:Type A:
FDD: B2/B4/B12 WCDMA: B2/B4/B5
Type E:
FDD:B1/B3/B5/B7/B8/B20
TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM:900/1800MHz
Type V: FDD:B4/B13
Type J:
FDD:B1/B3/B8/B18/B19/B26
TDD:B41 WCDMA:B1/B6/B8/B19
Type AU:
FDD:B1/B2/B3/B4/B5/B7/B8/B28
TDD:B40 WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900
VoIP & Media
Protocol: SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs:G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF: RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT: STUN, Dynamic NAT, Static NAT
SIP UDP/TCP/TLS
RTP/SRTP
Codecs:G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF: RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT: STUN, Dynamic NAT, Static NAT
Software Features
Mobile to VoIP, VoIP to Mobile
SIP Trunk and Trunk Group
Caller/Called Number Manipulation Rules
SIP Codes Mapping
White/Black List
PSTN Hotline
VoIP Hotline
Abnormal Call Monitor
Minutes Limitation for Ports/Single Call
Balance Check
Low Balance Alarm
Auto Update SIM Number
Random Call Interval
Auto CLIP Routing
Signaling & RTP Encryption(DBO)
Auto SIP Account
PPTP/L2TP/OpenVPN
SIP Trunk and Trunk Group
Caller/Called Number Manipulation Rules
SIP Codes Mapping
White/Black List
PSTN Hotline
VoIP Hotline
Abnormal Call Monitor
Minutes Limitation for Ports/Single Call
Balance Check
Low Balance Alarm
Auto Update SIM Number
Random Call Interval
Auto CLIP Routing
Signaling & RTP Encryption(DBO)
Auto SIP Account
PPTP/L2TP/OpenVPN
Mobile Features
SMS/USSD/PIN
Encoding: Unicode/ASCII
HTTP API for SMS
SMPP for SMS
Polarity Reversal
CID/CLIR
SMS Send and Receive
SMS to Email
Email to SMS
Auto SMS/Call Generation
Call Waiting/Call Back
Call Forward
Call Conference
GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
Encoding: Unicode/ASCII
HTTP API for SMS
SMPP for SMS
Polarity Reversal
CID/CLIR
SMS Send and Receive
SMS to Email
Email to SMS
Auto SMS/Call Generation
Call Waiting/Call Back
Call Forward
Call Conference
GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
Maintenance
Web/Telnet Configuration
Configure Backup/Restore
Firmware Upgrade by HTTP
Factory Reset
CDR (10000 CDRs Storage Locally)
Syslog/Filelog
Ping and Tracert
Traffic statistics: TCP,UDP,RTP
VoIP Call Statistics
PSTN Call statistics: ASR,ACD,PDD
Voice Diagnose with Loopback
GSM Network Test
IVR Customization
SIP/RTP/PCM Capture
SIMCloud Management
Centralized Management(DMS)
Configure Backup/Restore
Firmware Upgrade by HTTP
Factory Reset
CDR (10000 CDRs Storage Locally)
Syslog/Filelog
Ping and Tracert
Traffic statistics: TCP,UDP,RTP
VoIP Call Statistics
PSTN Call statistics: ASR,ACD,PDD
Voice Diagnose with Loopback
GSM Network Test
IVR Customization
SIP/RTP/PCM Capture
SIMCloud Management
Centralized Management(DMS)
Package & Shipment
1 pc / 1 carton
Carton size: 64*37.5*17
G.W.: 8kg
Per your instructions: By DHL / FedEx / UPS / TNT / ARAMEX / Air
Delivery time: We promise to ship out within 1-3 working days!
Superior Customer Service
- 1-year Warranty ( 2/3 years is optional)
- Free firmware upgrade for life
- 24 hours Technical support through phone calls, emails, skype, and remote assistance
- Various training, including sales and technical training
- Customizable products with OEM/ODM service
- Distribution, project consulting
- Free firmware upgrade for life
- 24 hours Technical support through phone calls, emails, skype, and remote assistance
- Various training, including sales and technical training
- Customizable products with OEM/ODM service
- Distribution, project consulting
Company Profile
About DINSTAR
Founded in 2011, Shenzhen DINSTAR Co., Ltd. is a leading global provider of IP Unified Communication products. We have been delivering more agile, efficient and affordable communication solutions to our customers through our reliable, innovative and future-proof products. Now we have more than 180 specialists, most of them coming from top-rank global telecommunication providers, who have dedicated themselves to VoIP, unified communication and wireless mobile network technology for more than 15 years.
DINSTAR offers the complete IP unified communication products including VoIP gateways, IP PBXs, SBCs, IP phones and SIP intercoms. Through our increasing innovation ability, excellent user experience, high performance-price ratio and tailored OEM/ODM service, Dinstar products and services have been widely deployed and recognized by telecom operators, system integrators, enterprises, SMBs and OEM partners in over 100 countries for our rich features, high quality and broad interoperability.
DINSTAR constantly innovate to create unparalleled communication experiences to our customers, enabling them to communicate,
connect and collaborate effortlessly, efficiently and securely.
DINSTAR offers the complete IP unified communication products including VoIP gateways, IP PBXs, SBCs, IP phones and SIP intercoms. Through our increasing innovation ability, excellent user experience, high performance-price ratio and tailored OEM/ODM service, Dinstar products and services have been widely deployed and recognized by telecom operators, system integrators, enterprises, SMBs and OEM partners in over 100 countries for our rich features, high quality and broad interoperability.
DINSTAR constantly innovate to create unparalleled communication experiences to our customers, enabling them to communicate,
connect and collaborate effortlessly, efficiently and securely.
