Привод переменного тока VFD преобразователь частоты M500 общего назначения с

Привод переменного тока VFD преобразователь частоты M500 общего назначения с

Категория: Other Electrical Equipment >>>
Поставщик: Quanzhou,Machtric,Automation,Equipment,Co.,Ltd.

Цена:78,00 $ - 79,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	93.18 $*	98.13 $*
Aug-19-2025	92.79 $*	97.86 $*
Jul-19-2025	77.8 $*	81.88 $*
Jun-19-2025	90.70 $*	95.64 $*
May-19-2025	79.9 $*	83.69 $*
Apr-19-2025	89.55 $*	93.31 $*
Mar-19-2025	88.62 $*	92.4 $*
Feb-19-2025	87.28 $*	91.39 $*
Jan-19-2025	87.31 $*	91.54 $*

Характеристики

Product Overview

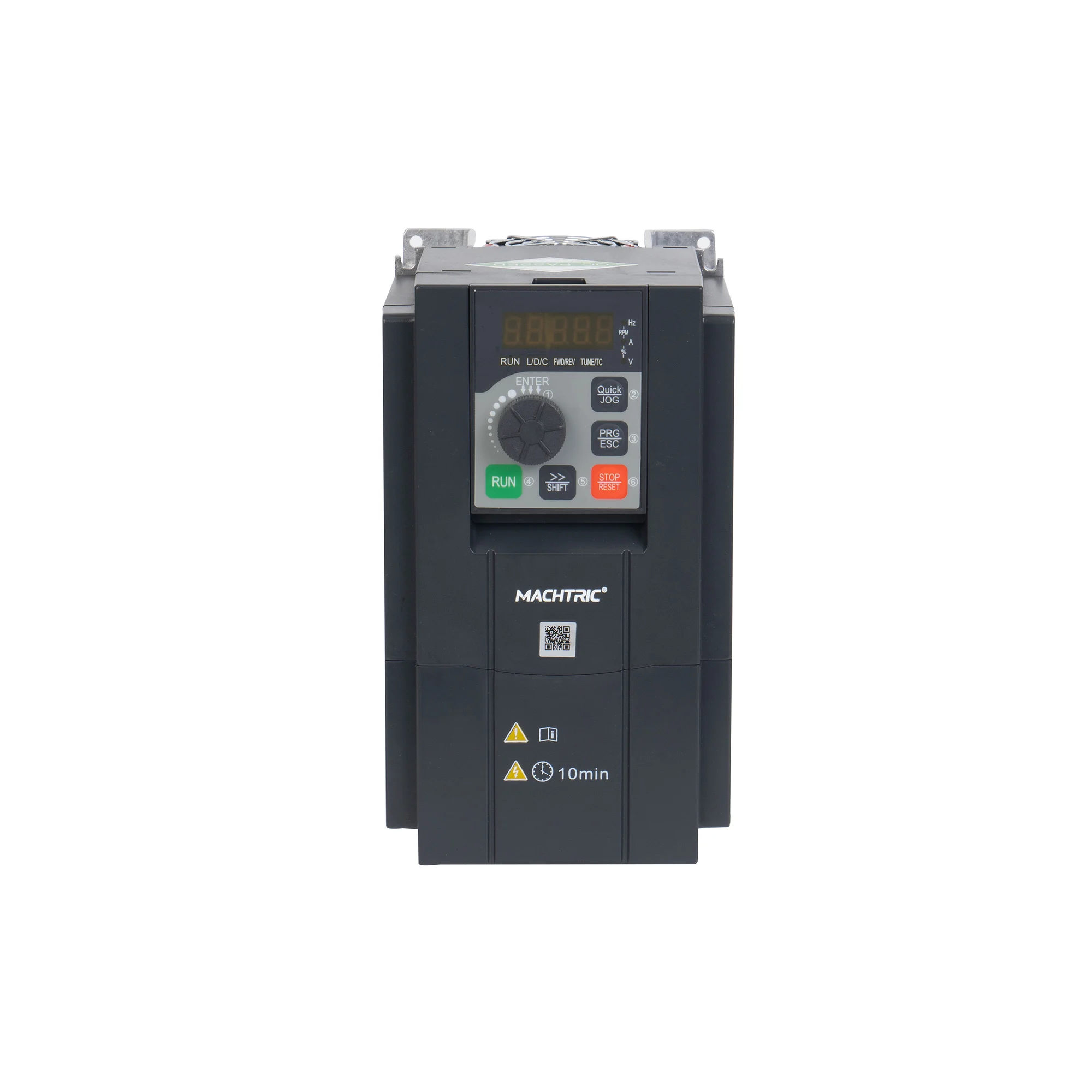

M500 Frequency Inverter

Technical features:
● Power range:
Single-phase 220V: 0.4KW~7.5KW;
Three-phase 220V: 0.4KW~220KW;
Three-phase 380V: 0.75KW~630KW;
● Excellent performance:
Three control modes: V/F, open loop vector and open loop torque;
Open loop vector 0.3 Hz 150% starting torque, low speed and high torque output, small torque ripple;
High speed stabilization accuracy, wide speed range;
Fast speed tracking start that can identify the direction of the motor, realize the start of the motor without impact;
The superior magnetic flux braking and current limiting functions can realize the rapid start and stop of the motor and greatly improve the production efficiency;
External interference is small.

● High ease of use:

Dedicated constant pressure water supply, hoist brake logic and master-slave control function parameter group, realize one machine multi-industry application;
One-key setting of parameters, one-key setting of parameters according to customer or industry development, greatly improving work efficiency and ease of use;
Instantaneous stop and non-stop function and its stop mode are optional;
V/F complete separation or semi-separation can realize voltage regulation control of torque motor;
Standard 485 communication function;
Support and provide user background monitoring software;
Supports automatic recognition of LED and LCD keyboards, and LCD can switch between Chinese, English and Chinese;
High precision and linearity analog input and output, the accuracy can reach 0.1%.
● High reliability:

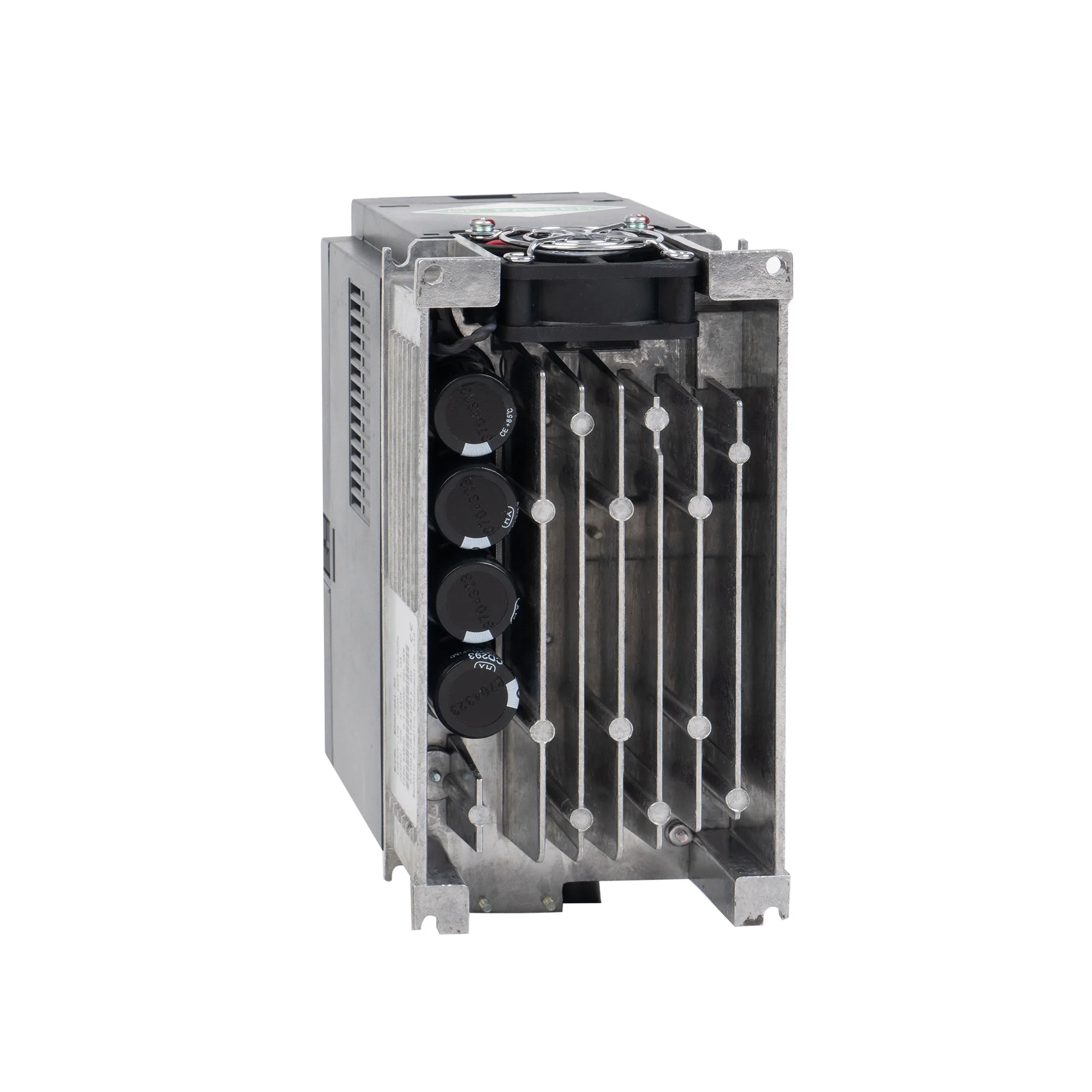

The whole series adopts DC fans and sealed DC contactors, which are more reliable and stable, and can be directly used in EPS, DC inverter and other industries.
●Other:

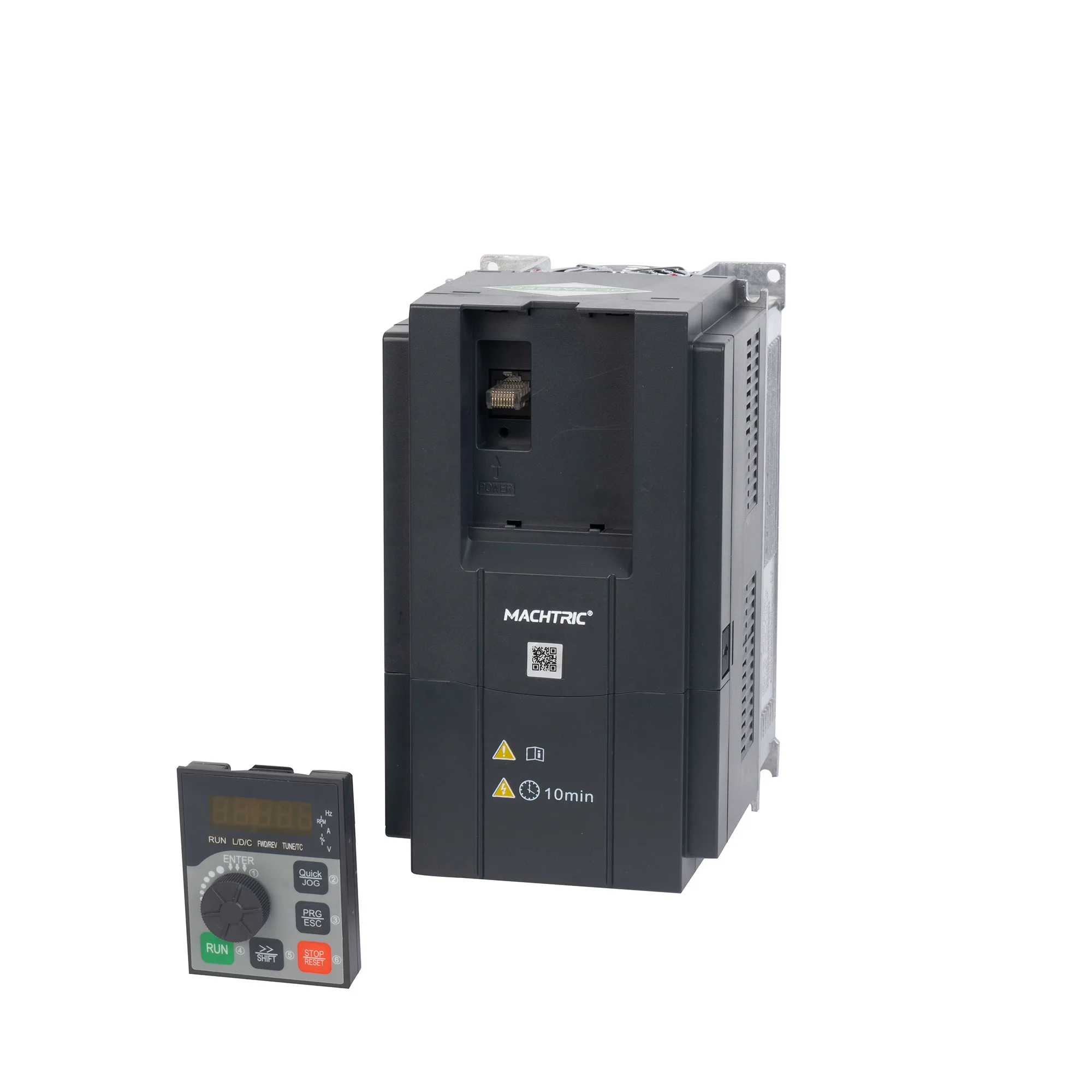

The local keyboard can be used for external control, the keyboard gusset is optional, and the non-keyboard running status monitoring lamp is added;
Support through-wall installation mode;
Compact structure, compared with the previous generation product, the volume of the whole machine is reduced by 20-50%;
The standard configuration of the brake unit is extended from the original 15KW to 22KW, and the optional range is extended from 18-30KW to 30-93KW.
Application industry:
Mainly used in such industries as fans, water pumps, petrochemicals, air compressors, extruders, CNC machine tools, hoisting machinery, textile machinery, plastic machinery, woodworking machinery, ceramic machinery, stone machinery and other industries.

PRODUCT SPECIFICATIONS

Model	Voltage	Current(A)	KW	Phase
M500-2SR4G	220V(-15%～ 20%)	2.3	0.4	1 phase
M500-2SR75G	220V(-15%～ 20%)	4.0	0.75	1 phase
M500-2S1R5G	220V(-15%～ 20%)	7.0	1.5	1 phase

M500-2S2R2GB	220V(-15%～ 20%)	9.6	2.2	1 phase
M500-2S4R0GB	220V(-15%～ 20%)	17	4.0	1 phase
M500-2S5R5GB	220V(-15%～ 20%)	25	5.5	1 phase
M500-4TR75GB	380v(-15%～ 20%)	2.1	0.75	3 phase

M500-4T1R5GB/2R2PB	380v(-15%～ 20%)	3.8/5.1	1.5/2.2	3 phase
M500-4T2R2GB/4R0PB	380v(-15%～ 20%)	5.1/9.0	2.2/4.0	3 phase
M500-4T5R5GB/7R5PB	380v(-15%～ 20%)	13.0/17.0	5.5/7.5	3 phase
M500-4T7R5GB/011PB	380v(-15%～ 20%)	17.0/20.0	7.5/9.0	3 phase

M500-4T011GB/015PB	380v(-15%～ 20%)	25.0/32.0	11.0/15.0	3 phase
M500-4T015GB/018PB	380v(-15%～ 20%)	32.0/37.0	15.0/18.5	3 phase
M500-4T018GB/022PB	380v(-15%～ 20%)	37.0/45.0	18.5/22.0	3 phase
M500-4T022GB/030PB	380v(-15%～ 20%)	45.0/60.0	22.0/30.0	3 phase
