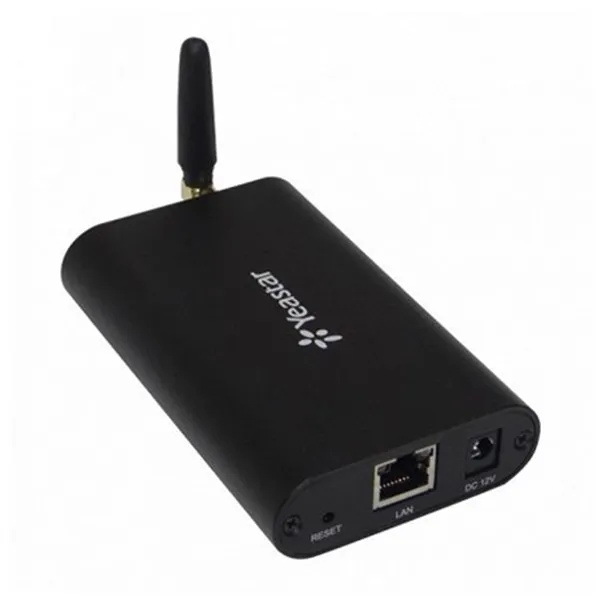

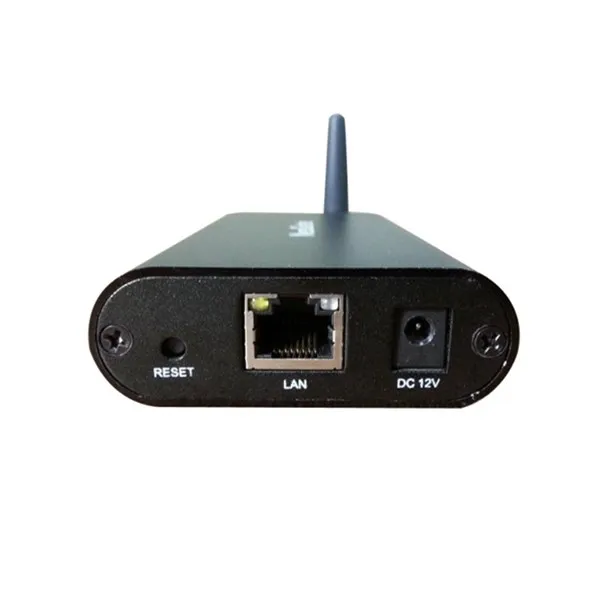

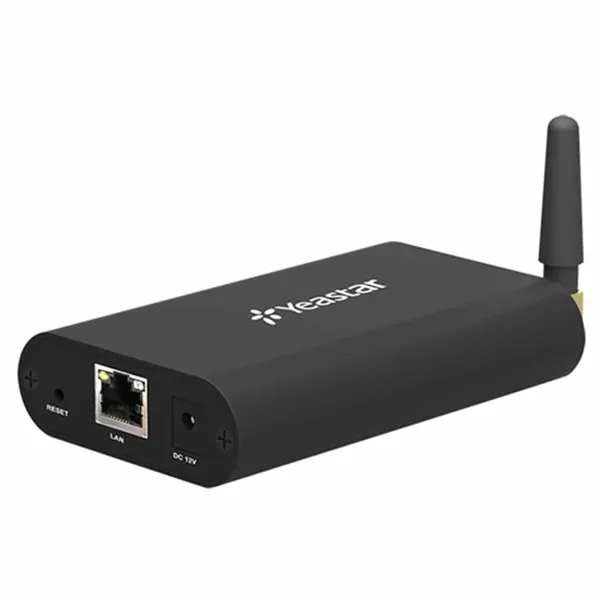

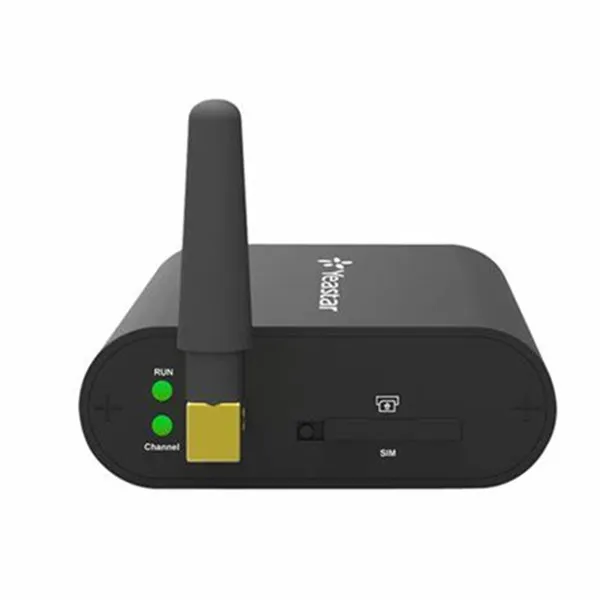

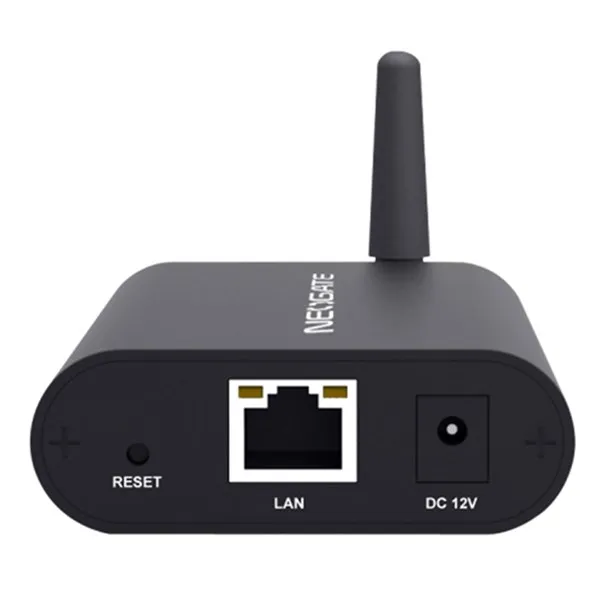

Yeastar TG100 NeoGate GSM шлюз VoIP телефон и

Категория: АТС >>>
Поставщик: Shenzhen,Helpyou,Information,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.98 $*	0.63 $*
Aug-16-2025	0.29 $*	0.8 $*
Jul-16-2025	0.27 $*	0.39 $*
Jun-16-2025	0.0 $*	0.3 $*
May-16-2025	0.90 $*	0.89 $*
Apr-16-2025	0.57 $*	0.16 $*
Mar-16-2025	0.42 $*	0.52 $*
Feb-16-2025	0.46 $*	0.11 $*
Jan-16-2025	0.28 $*	0.58 $*

Характеристики

Product Description

TG Series VoIP GSM Gateways

Yeastar TG Series VoIP GSM Gateways connect GSM or WCDMA or 4G LTE to VoIP networks to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. This allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and softswitches to a GSM or 3G WCDMA or 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.

Benefit

► GSM Voice Calls
► VoLTE for HD Calls
► Maximum Cost Reduction
► Top Quality and Reliability
► Mobile Connectivity for SMB

Views

Product Details

Models*	TG100	TG200	TG400	TG800	TG1600
Number of Ports	1	2	4	8	16
GSM Frequency**	850/900/1800/1900 MHz
WCDMA Frequency**	850/1900 MHz, 850/2100 MHz, 900/2100 MHz
4G Data	–
4G LTE Band**	Don’t support 4G LTE	Depending on the module type. Check the supported band and operators.					Don’t support 4G LTE
Protocol	SIP, IAX2
Antenna Splitter (4 in 1)	–			Support
Transport	UDP, TCP, TLS, SRTP
Voice Codec	G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
DTMF Mode	RFC2833, SIP Info, In-band
Echo Cancellation	ITU-T G.168 LEC
Calling Type	Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP)
Console Port	–					1
Network Protocol	FTP, TFTP, HTTP, SSH
LAN	1 10/100 Mbps Ethernet Interface					2 10/100 Mbps Ethernet Interfaces
NAT Traversal	Static NAT, STUN
Network	DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN
Operation Range	0°C to 40°C, 32°F to 104°F
Power Supply	DC 12V, 1A	AC 100-240V
Storage Range	-20°C to 65°C, -4°F to 149°F
Dimensions (L × W × H) (mm)	110 x 70 x 24	213 x 160 x 44			340 x 210 x 44	440 x 250 x 44
Humidity	10-90% non-condensing

Features

Features:

* 1 Stage/2 Stage Dial
* Call Back
* Call Duration Limitation
* Call Status Display
* Carrier Selection: Auto/Manual
* Firmware upgrade by HTTP/TFTP
* GSM/CDMA/UMTS Ports Group Manage
* Incoming /Outgoing Routing rules
* Network Attack Alert
* Open API for SMS and USSD
* PIN Modify
* Send Bulk SMS
* SIP Peer Mode: Support
* SIP server for IP phones: Support
* SMS Center
* System Logs
* VoIP Trunk Group
* Black List

* Balance Alarm
* Call Detail Record (CDR)
* Call Progress Tone Generation
* Call Transfer
* Caller ID/CLIR
* Configure backup/restore
* Gain Adjustment
* Hotline
* IP Blacklist
* NTP
* Packet Capture
* Real Open API Protocol (Based on Asterisk)
* Session Timer
* SIP Response Code Switch
* SIP Trunk: Support
* SMS Sending and Receiving
* USSD
* Web based configuration
