Китай завод высокая эффективность мини Towable Atv экскаватор-погрузчик 13.5hp 9hp 15hp двигатель мощность буксируемая экскаватор с

Китай завод высокая эффективность мини Towable Atv экскаватор-погрузчик 13.5hp 9hp 15hp двигатель мощность буксируемая экскаватор с

Категория: Towable Backhoe >>>
Поставщик: Weifang,FRD,Machinery,Co.,Ltd.

Цена:1 650,00 $ - 1 750,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	1964.3 $*	2062.11 $*
Aug-18-2025	1947.6 $*	2044.67 $*
Jul-18-2025	1634.34 $*	1716.37 $*
Jun-18-2025	1914.45 $*	2010.5 $*
May-18-2025	1667.27 $*	1750.86 $*
Apr-18-2025	1881.58 $*	1975.53 $*
Mar-18-2025	1865.17 $*	1958.19 $*
Feb-18-2025	1848.46 $*	1940.47 $*
Jan-18-2025	1832.85 $*	1924.33 $*

Характеристики

Ce Certificate China Manufacture Atv Towable Self Power 13hp Towable Backhoe Excavator Atv Towable Tractor Backhoe

Main Features

1.It own 9HP Jiangdong gasoline engine, 15hp as optional. It can be trailed with any vehicles.

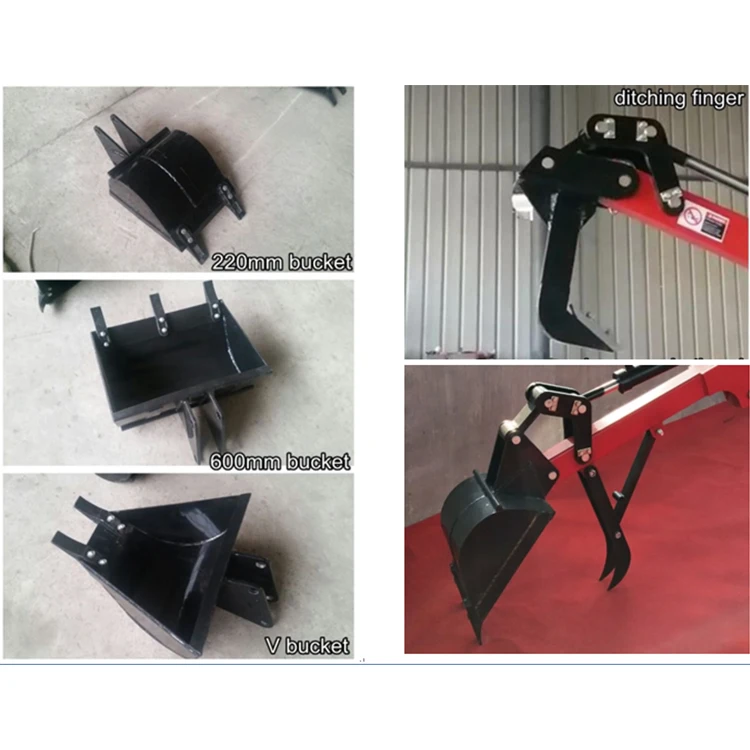

2.standard bucket width is 220mm, 300mm, 400mm, 500mm, 600mm width bucket as optional.
3. Use hydraulic transmission. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting

Application

1) Mini ATV towable backhoe excavator can match any vehicle;
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.

4) Available with multi-level function valve, so the machine can do more actions at the same time.
It can match post hole digger with 9 or 12 inch auger.

SPECIFICATIONS FOR MINI TOWABLE BACKHOE
Engine	Engine Power	9hp or 15hp or 13.5hp
		Stroke	4
		emission approval	EC or EPA
Main performance parameters	Max. Digging Depth	2400mm
		Max. Digging Radius	2800mm
		Max. Digging Height	2500mm
	Max. Unloading Height	1200mm
Bucket	Bucket Turning Angle	160 degree
		Bucket Capacity	0.036m³
		Bucket Width	220mm/300mm/400mm/500mm,600mm
Hydraulic	Pump	Double Speed Gear Pump
