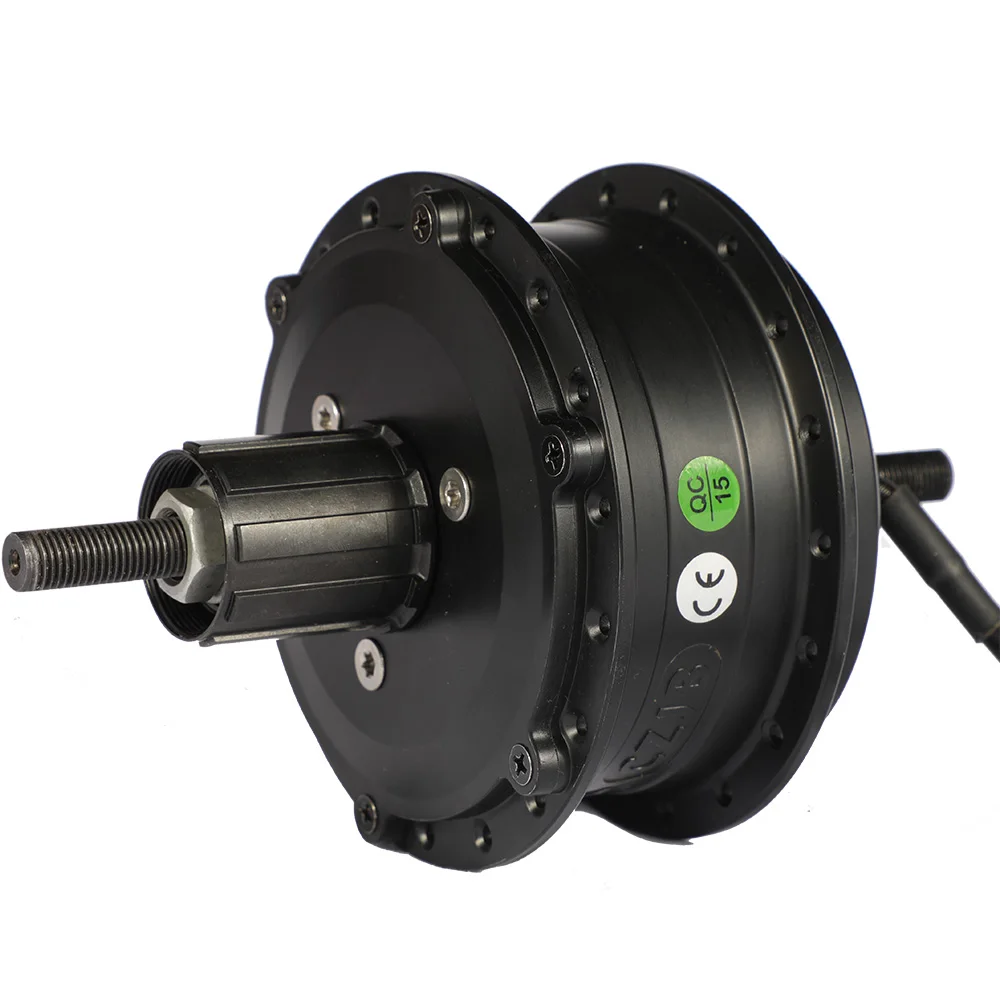

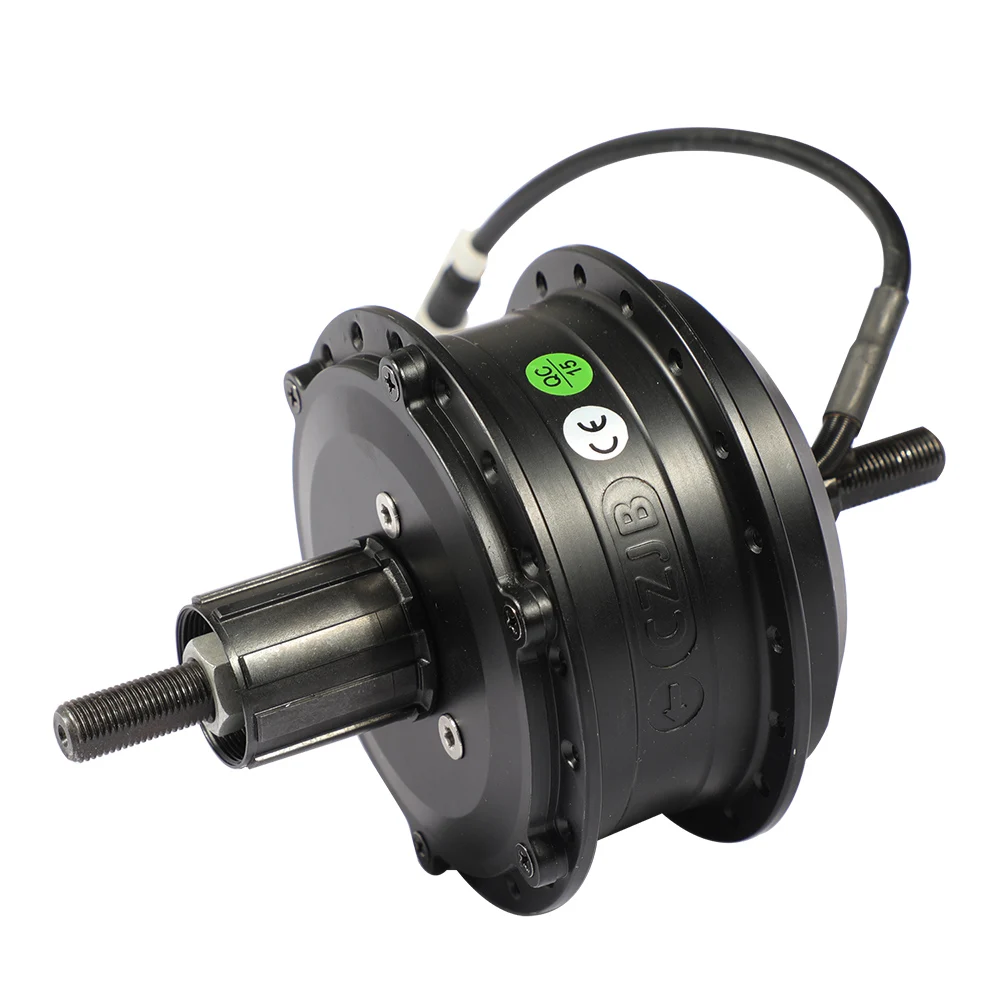

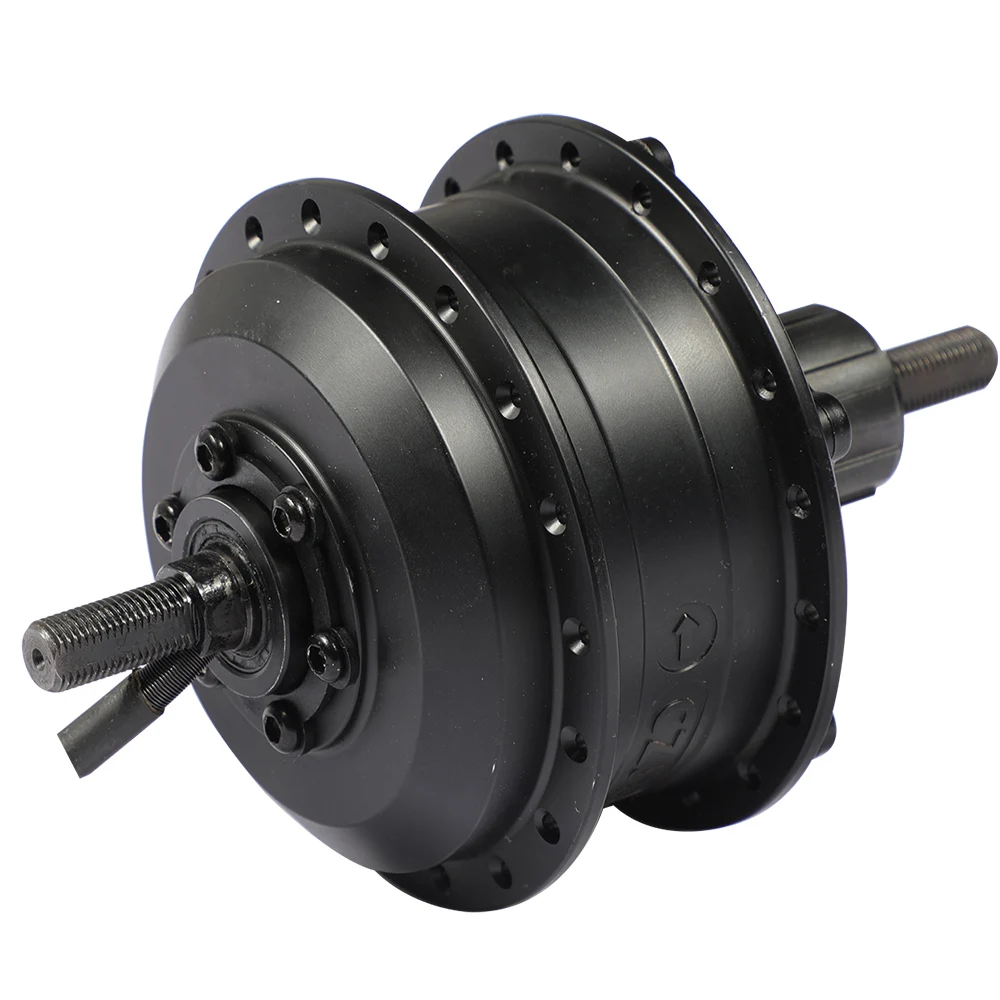

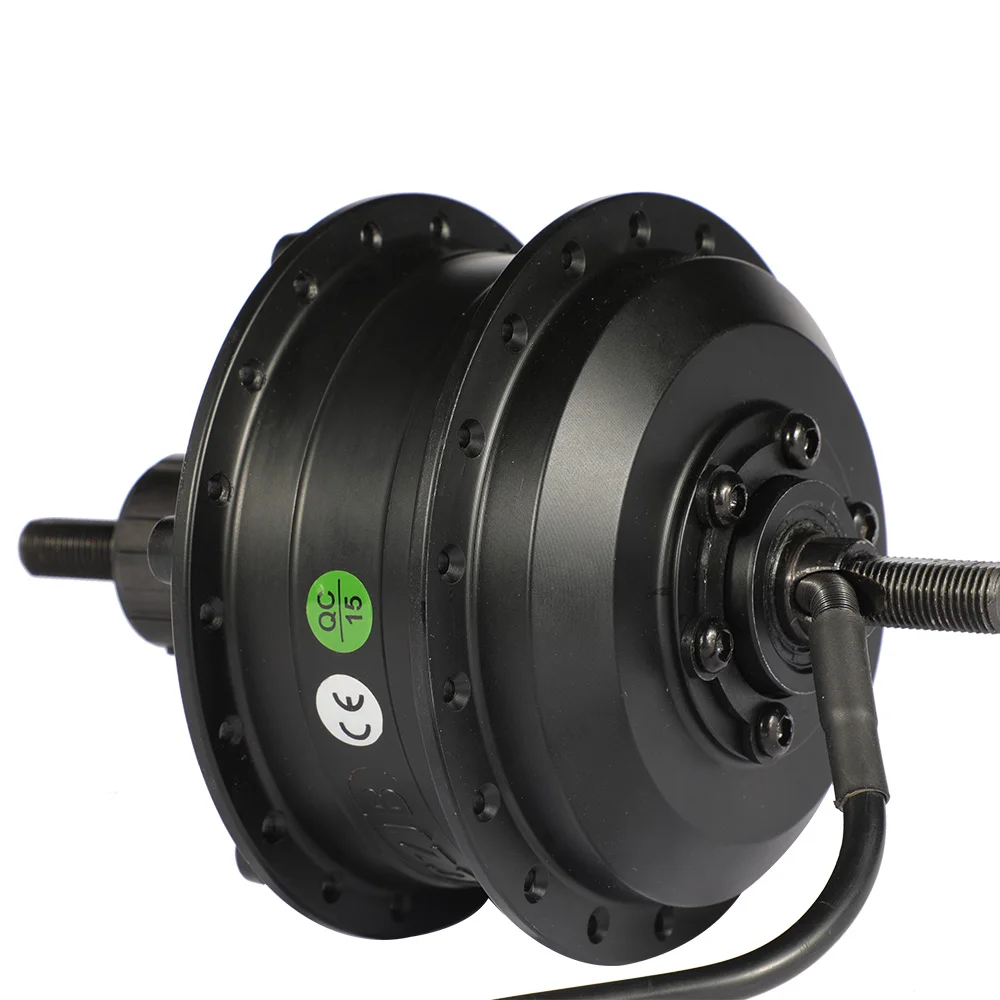

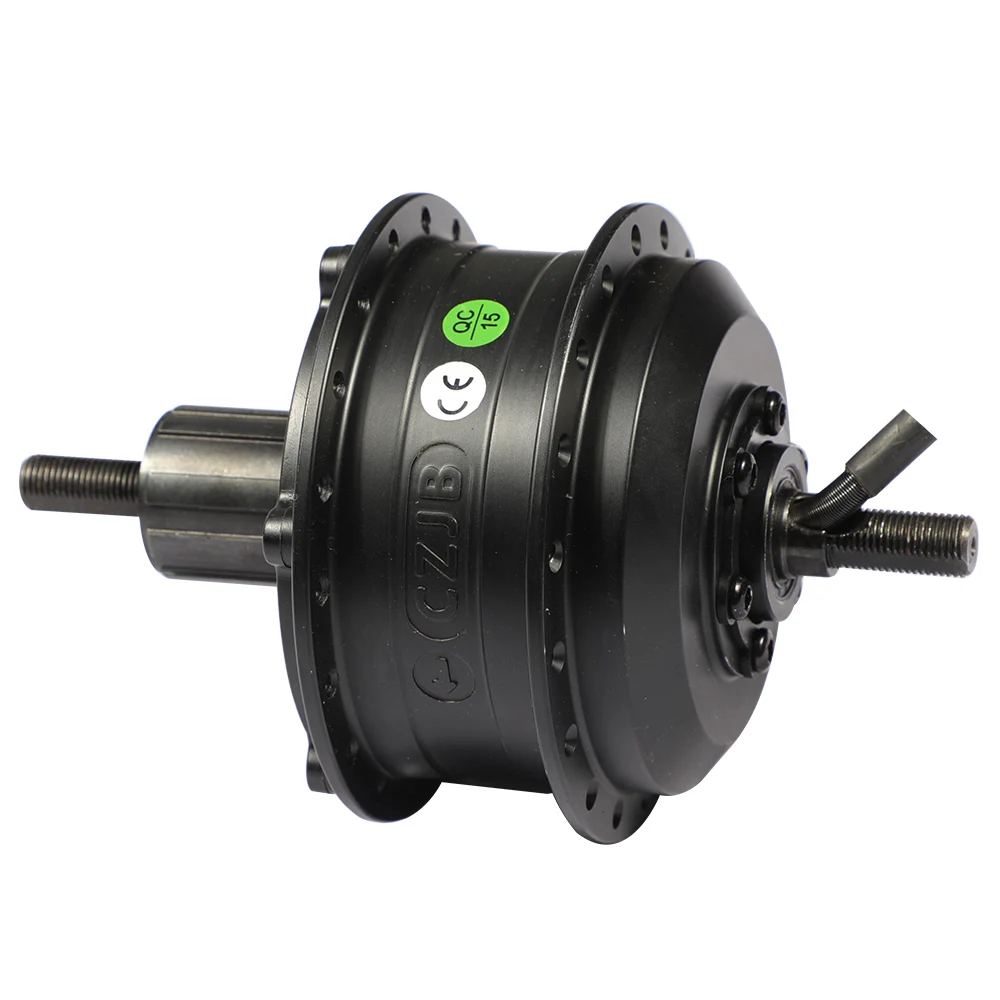

Czjb IH53H02 26 дюймов 250 Вт легкий вес концентратор кассета мотор для электрического
- Категория: Electric Bicycle Motor >>>
- Поставщик: Changzhou,Jiabo,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 55.17 $* | 58.9 $* |
| Aug-17-2025 | 54.94 $* | 57.38 $* |
| Jul-17-2025 | 46.96 $* | 48.54 $* |
| Jun-17-2025 | 53.0 $* | 56.27 $* |
| May-17-2025 | 46.1 $* | 48.80 $* |
| Apr-17-2025 | 52.40 $* | 55.17 $* |
| Mar-17-2025 | 52.68 $* | 55.71 $* |
| Feb-17-2025 | 52.66 $* | 55.77 $* |
| Jan-17-2025 | 51.77 $* | 54.76 $* |
Характеристики
Product Description
Rated Voltage(V) | 24v/36v/48v |
Rated Power(W) | 180-250w |
Wheel Size | 14''-28'' |
Rated Speed(km/h) | 25km/h |
Rated Efficiency (%) | >82% |
Reduction Ratio | 1:13 |
Weight (Kg) | 2.2kg |
Open Size(mm) | 135mm |
Drive and Freewheel | 1s/6/7s |
Cable Location | Shaft Side Left |
Spoke Specification | 36H*12g/13g |
Hall Sensor/speed sensor | has |
Surface | Black/Silver/Shining |
Brake Type | V brake/Disc |
Salt Fog Test(h) | 24/96 |
Noise(db) | <55db |
Waterproof Grade | IP65 |
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
Installation specifications:
Our Advantages

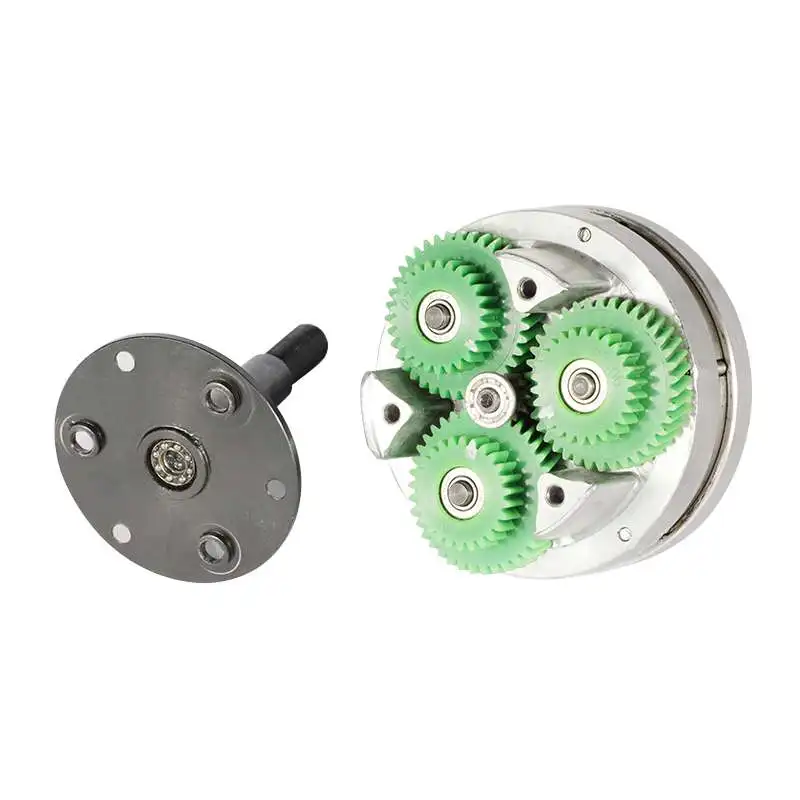

Why we use dbouble helical tooth instead of straight tooth ?
1.Use Helical tooth which can effective for reduce the gear friction
2.When we are climbing,riding motivation is better than useing straight tooth
