• 1x2 1x4 1x8 1x16 волоконно-оптический ПЛК сплиттер стальной трубчатый кабель 2-ходовой 4-ходовой 8 16-ходовой оптоволоконное
  • 1x2 1x4 1x8 1x16 волоконно-оптический ПЛК сплиттер стальной трубчатый кабель 2-ходовой 4-ходовой 8 16-ходовой оптоволоконное

    • Категория: "
    >>
  • Поставщик: Hunan,Feibo,Guangtong,Communication,Equipment,Co.,Ltd.

  • Поделиться:


    Цена:1,80 $ - 2,10 $*

    Количество:



    Описание и отзывы


    Трекер стоимости

    Месяц Минимальная цена Макс. стоимость
    Aug-19-2025 1.33 $* 1.3 $*
    Jul-19-2025 1.9 $* 1.8 $*
    Jun-19-2025 1.50 $* 1.31 $*
    May-19-2025 1.73 $* 1.4 $*
    Apr-19-2025 1.56 $* 1.25 $*
    Mar-19-2025 1.14 $* 1.35 $*
    Feb-19-2025 1.62 $* 1.9 $*
    Jan-19-2025 1.2 $* 1.56 $*

    Характеристики

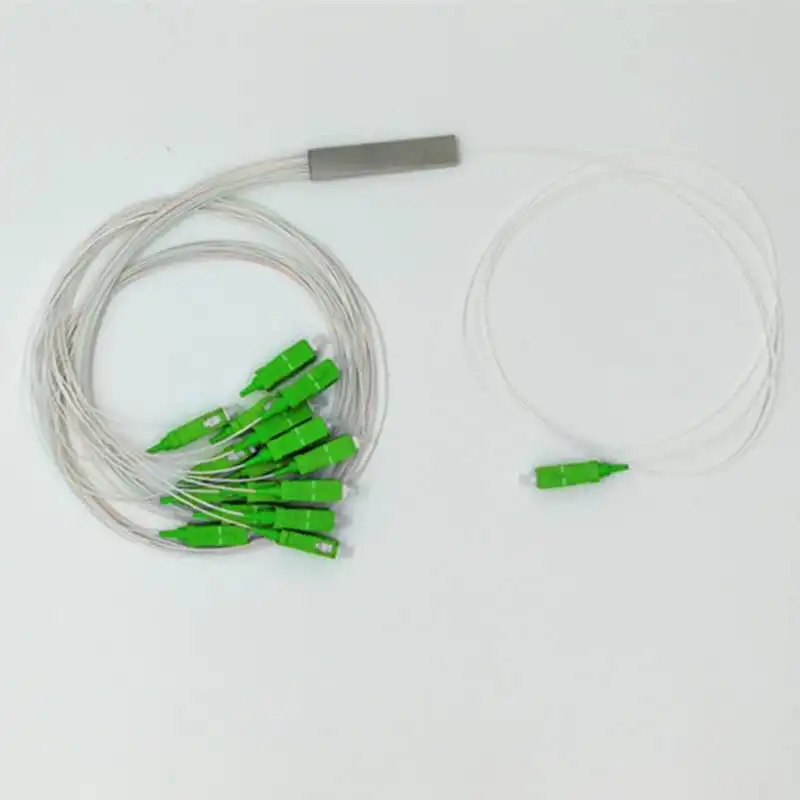

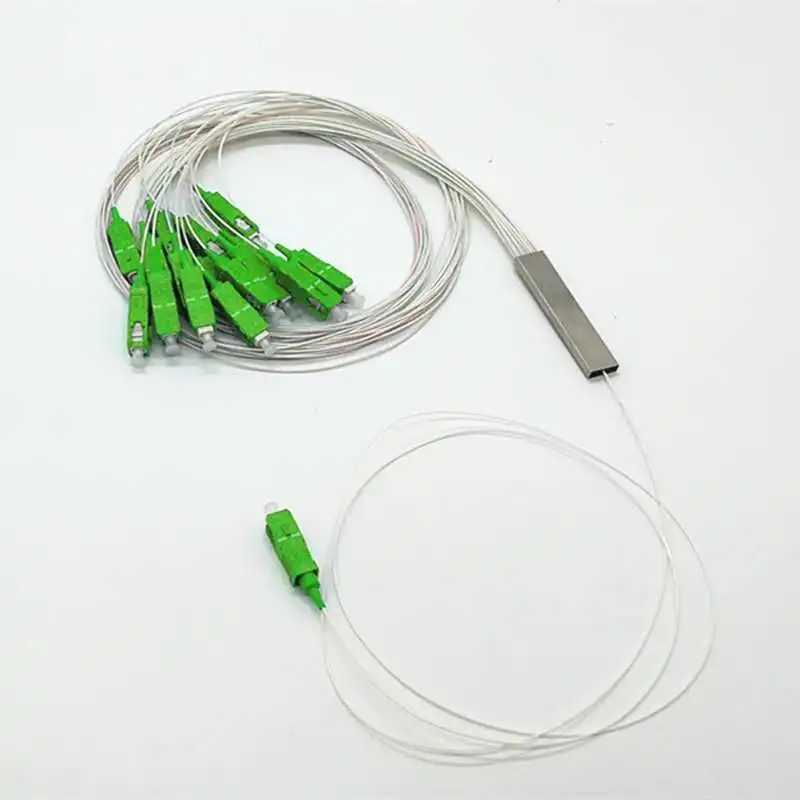

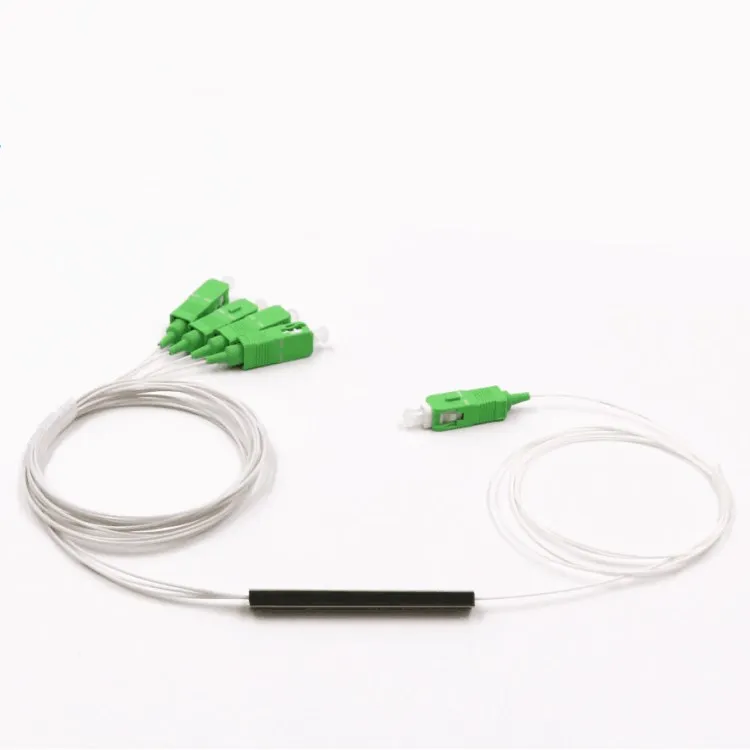

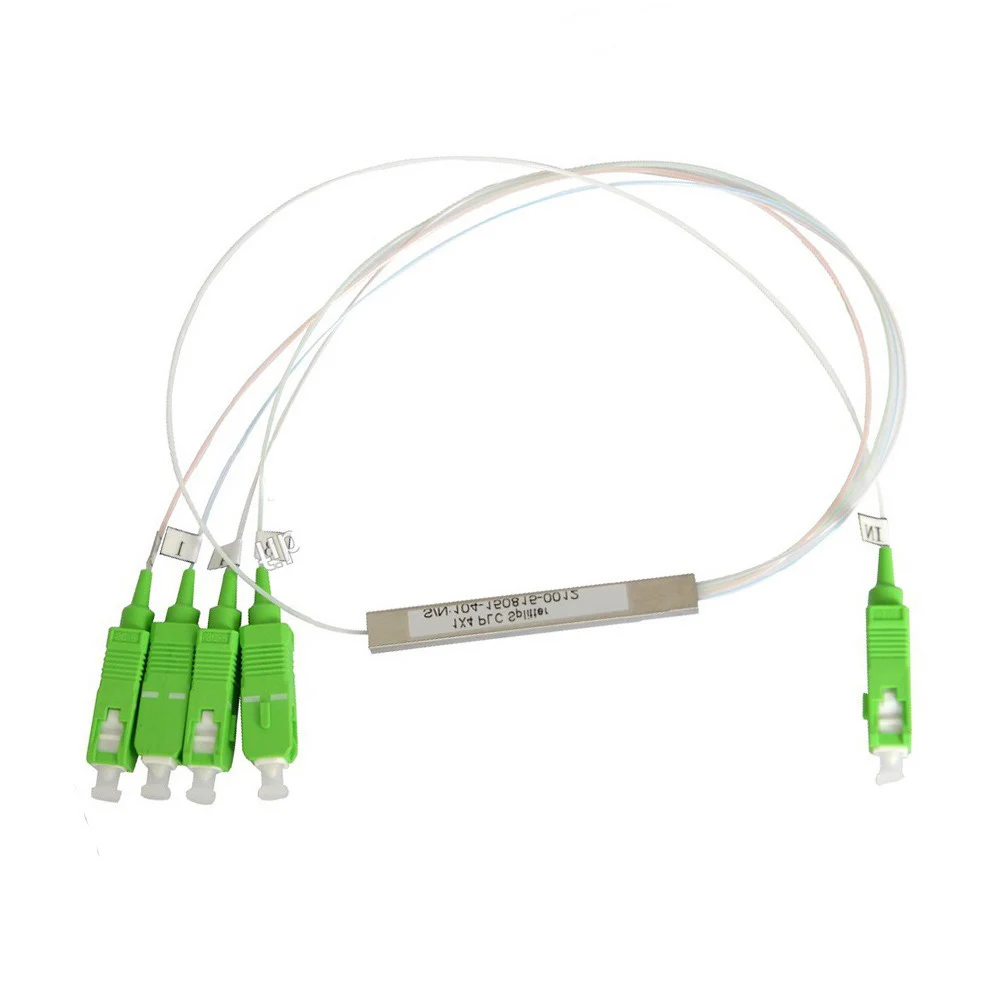

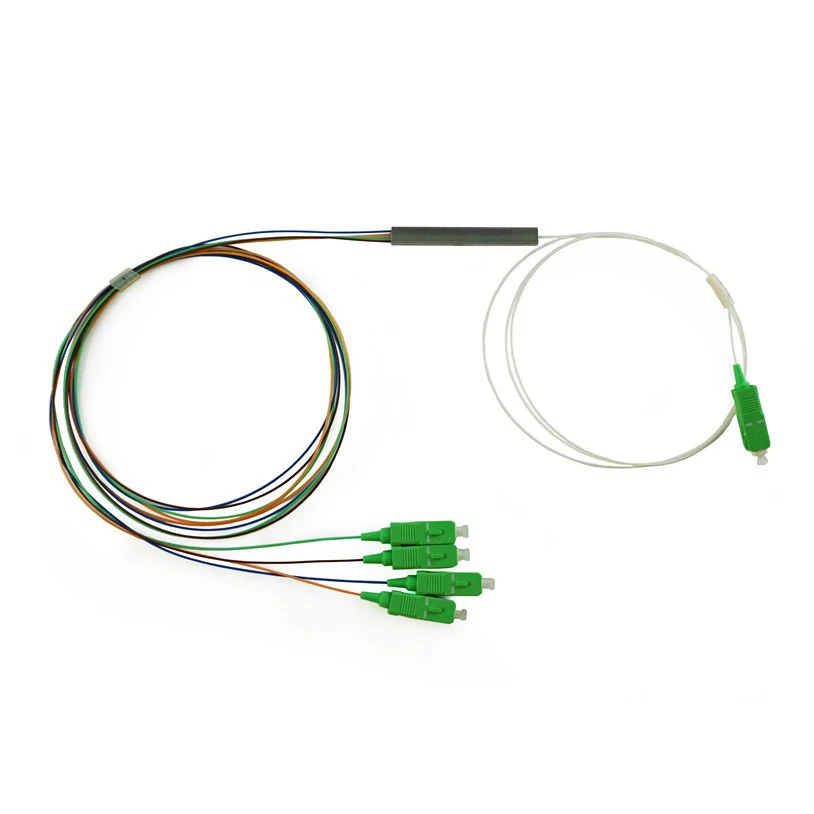

    1x2 1x4 1x8 1x16 fiber optic plc splitter steel tube cable 2 way 4way 8 way 16 way optical PLC splitter



    Product Description


































    Product Name


    Steel Tube PLC Splitter


    Configuration


    1*2


    Diameter


    0.9mm


    Fiber Length


    1.5m/can be customized


    Fiber Type


    SM


    Materia


    PVC/LSZH/0.9hytrel


    Connector Type


    SC/FC/LC UPC/A PC SM





    5.jpgFiber optic PLC splitter, also known as a beam splitter,is based on a quartz substrate of an integrated waveguide optical power distribution device, similar to a coaxial cable transmission system.The optical network system also needs to be an optical signal coupled to the branch distribution. The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the ODF and the terminal equipment and to achieve the branching of the optical signal.


    Planar Lightwave Circuit (PLC) is a more recent technology. PLC splitters offer a better solution for applications where larger split configurations are required. To achieve this, waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer very accurate and even splits with minimal loss in an efficient package.


    Structure Specification














    Optical Feature




     Product Usage


    Features

    Low Insertion Loss,Low PDL, High Retrun Loss;
    Uniform Power Splitter
    Compact Design
    Wide Operating Wavelength
    Wide Operating Temperature
    Qualified Under Telcordia GR-1221 and GR-1209


    Application

    Optical Fiber Communication
    CATV;
    Optical Transmission Backbone;
    Optical Fiber Test and Measurement Systems;
    Specification 1x2 1x4 1x8 1x16 1x32 1x64

                            2x2 2x4 2x8 2x16 2x32


    Packing

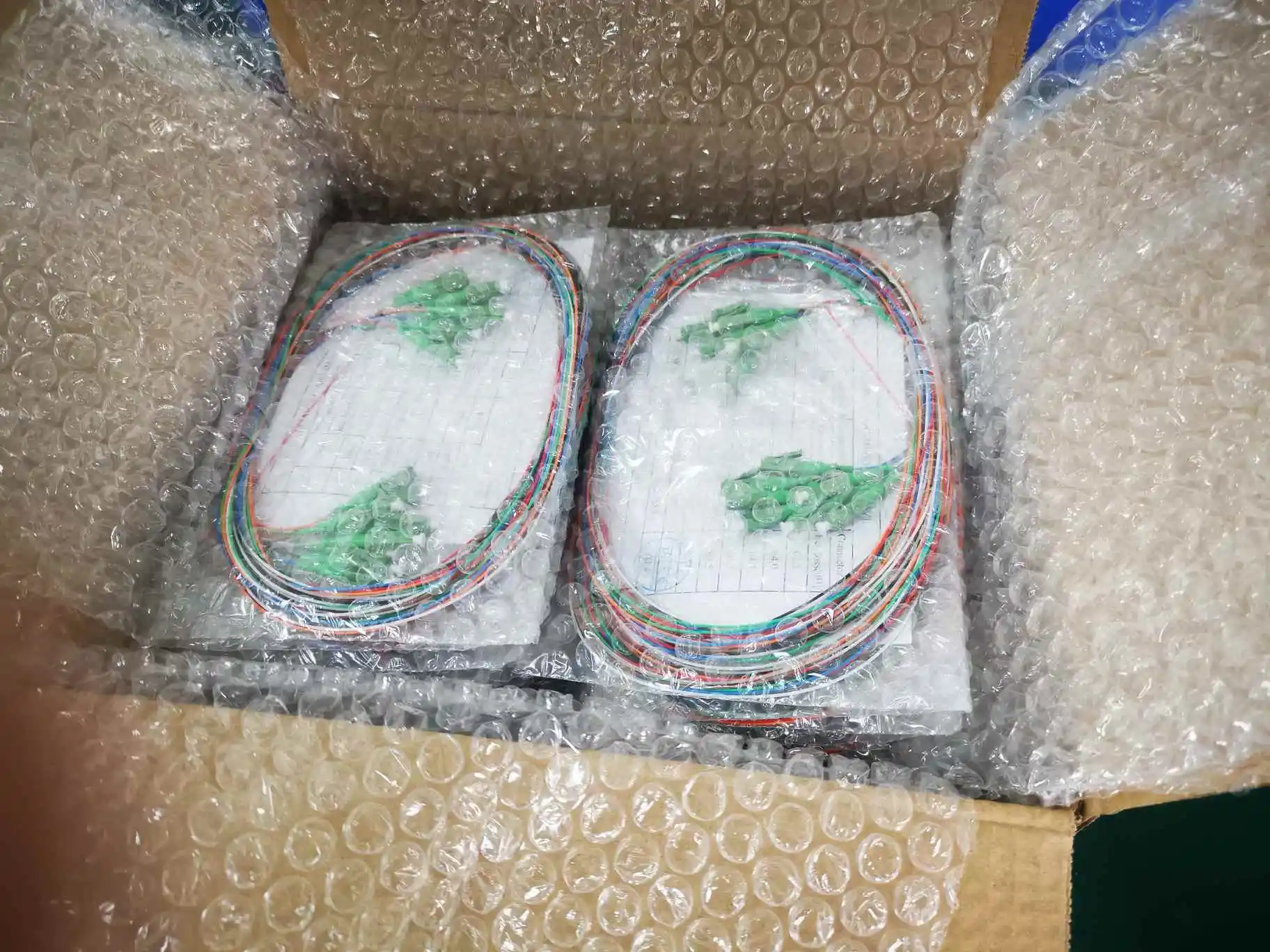

    Natural packaging (export carton with one piece) or according to your requirement.

















    _02_04_05_06_08
