1/4 дюймовый встраиваемый игольчатый клапан BSPP F x из нержавеющей
- Категория: Needle Valves >>>
- Поставщик: Hubei,Hi-Tek,Valve,And,Fitting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 19.78 $* | 20.54 $* |
| Aug-20-2025 | 19.60 $* | 20.87 $* |
| Jul-20-2025 | 16.1 $* | 17.79 $* |
| Jun-20-2025 | 19.77 $* | 20.67 $* |
| May-20-2025 | 16.48 $* | 17.42 $* |
| Apr-20-2025 | 18.79 $* | 19.63 $* |
| Mar-20-2025 | 18.58 $* | 19.81 $* |
| Feb-20-2025 | 18.84 $* | 19.53 $* |
| Jan-20-2025 | 18.69 $* | 19.79 $* |
Характеристики
Product Description

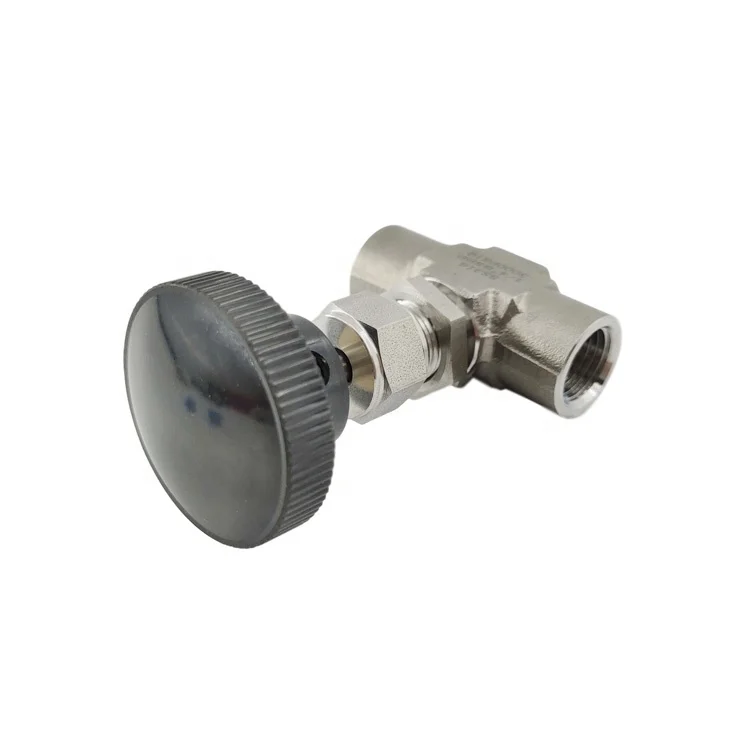

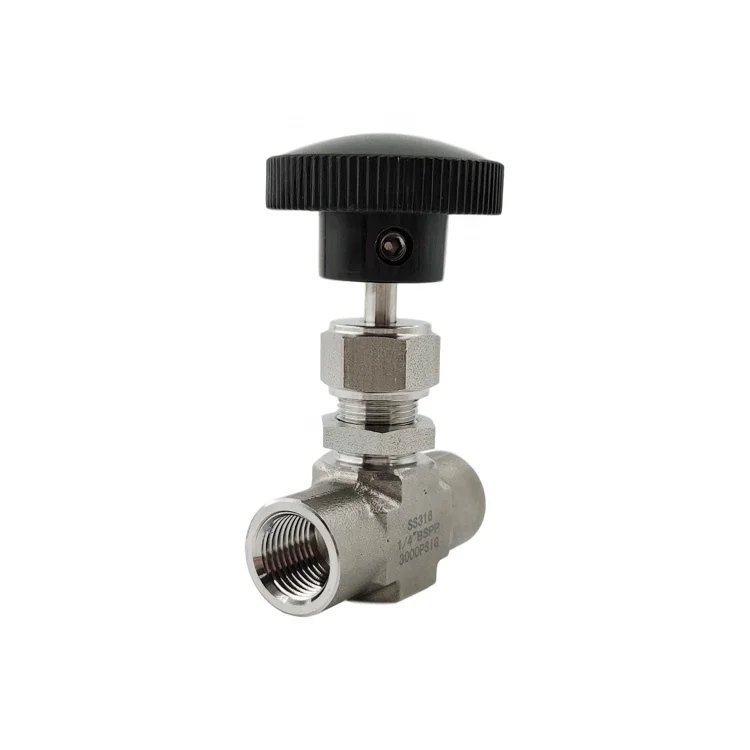

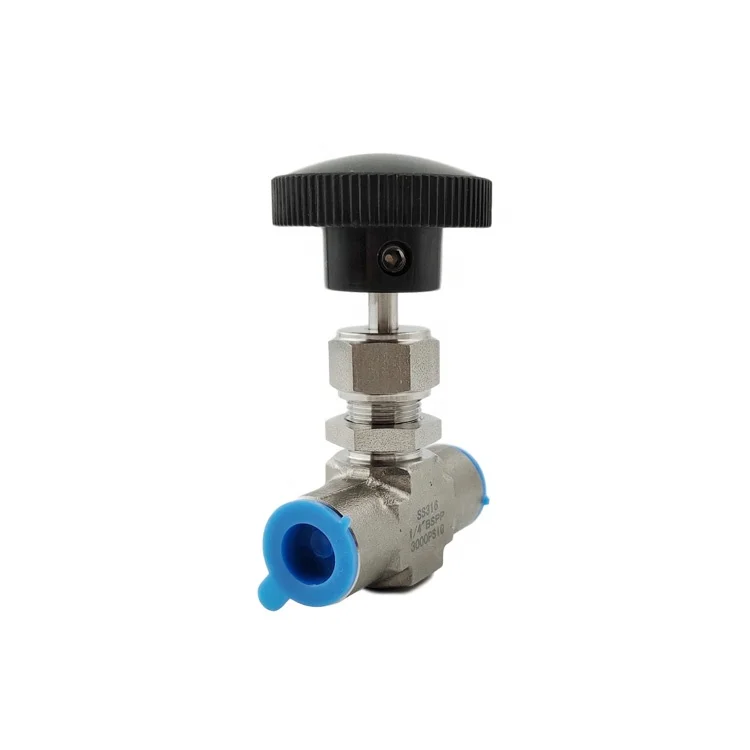

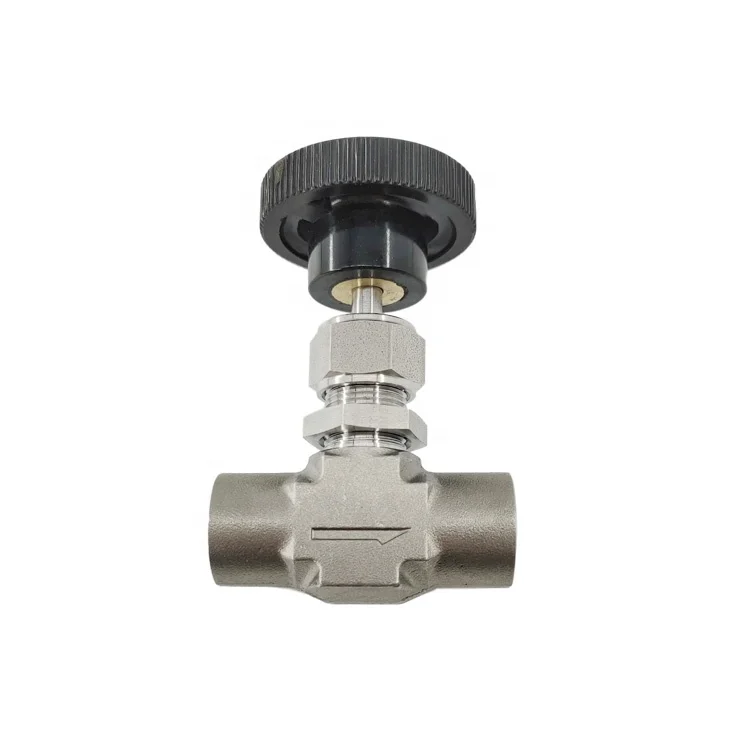

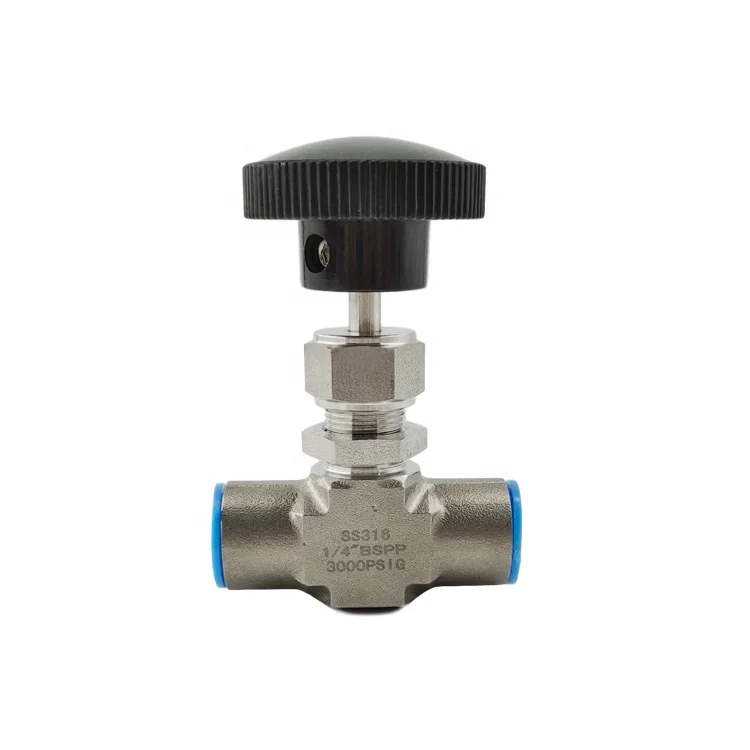

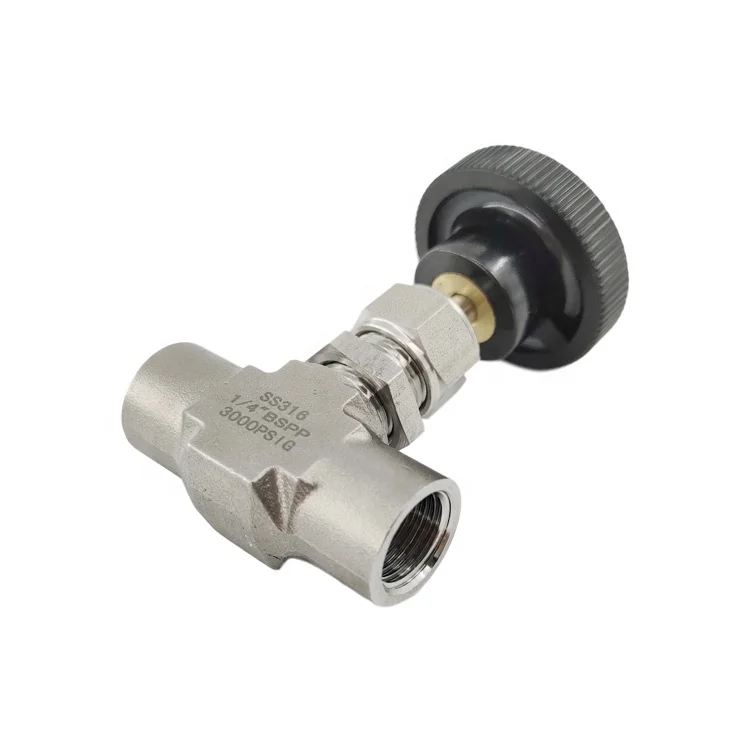

1/4 inch BSPP F x F Stainless Steel Integral Bonnet Needle Valve
Features
■ Live-loaded packing system
■ Compact design (Cast and forging body)
■ Usage: throttle,cut-off
Technical parameters
■ Connection type: Double ferrules,male and female thread
■ Flow Patterns
Straight, angle, and cross patterns
■ Stem Designs:Vee type, Soft-seat,regulation type
■ Material:CF3、CF8、304、316
■ Working pressures:3000 psig ; Vee stem shown;
■ Temperatures:600°F (315°C)
■ Live-loaded packing system
■ Compact design (Cast and forging body)
■ Usage: throttle,cut-off
Technical parameters
■ Connection type: Double ferrules,male and female thread
■ Flow Patterns
Straight, angle, and cross patterns
■ Stem Designs:Vee type, Soft-seat,regulation type
■ Material:CF3、CF8、304、316
■ Working pressures:3000 psig ; Vee stem shown;
■ Temperatures:600°F (315°C)
Each set of HI-TEK threaded Needle Valve has been tested in the factory with nitrogen at 1000Psig (69bar), and the maximum allowable leakage rate of the valve is 0.1 standard cm³/m in. The shell test is based on the use of leak detection fluid, and there is no detectable leak.
Note:
Adjuster packing may be required during the life of the valve
Valves that have not been opened for a period of time will have a higher initial force torque
Adjuster packing may be required during the life of the valve
Valves that have not been opened for a period of time will have a higher initial force torque
Technical Data Sheet
item | value |
Media | Water Oil Gas |
Structure | Needle |
Product name | 1/4 inch BSPP F x F Stainless Steel Integral Bonnet Needle Valve |
Body material | SS 316 |
Connection | Double ferrules,male and female thread |
Size | 1/4" to 1/2" |
Thread | NPT BSPP BSPT |
Working pressure | 3000 PSI |
Working Temperature | 600°F (315°C) |
