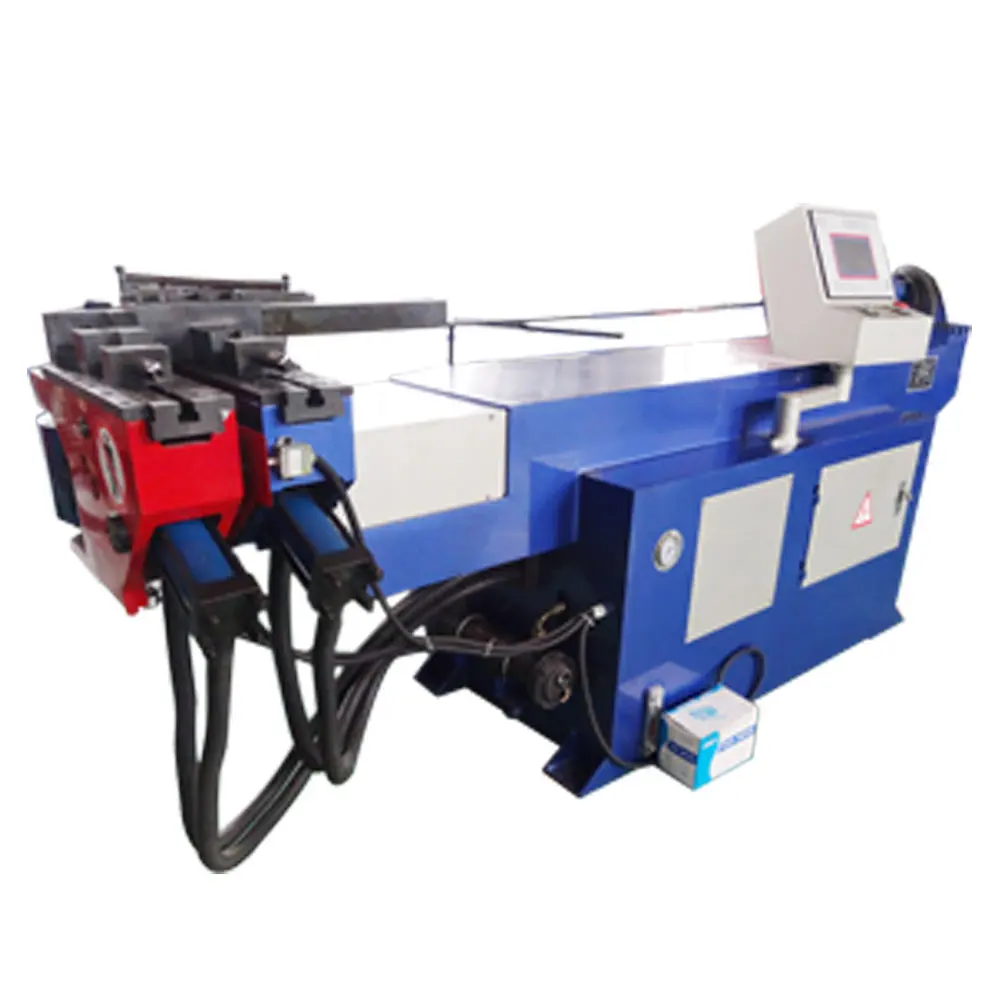

DW50NC Гидравлический полуавтоматический трубогиб трубогибочный станок для

Цена:*

Количество:

Product Description

Features of Hydraulic Bender machine NC 50 2 INCH

1. Controlled by microcomputer, driven hydraulically

2.Touch screen offers easy access to auto and manual operating modes

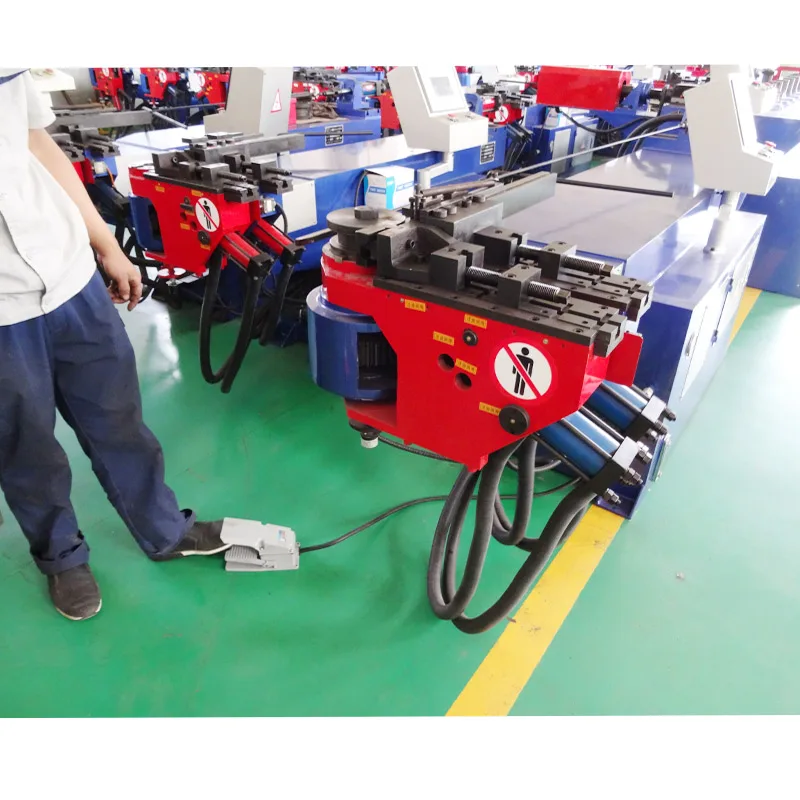

3. Foot switches with functions of automatic start, emergency stop and resuming

4 .Cooling system control working temperature effectively

5 .Change mould simply and quickly

6. 100 sets of program storage, 32 bends for each program

7 .Electric: As required (3 phase 220V or 380V or 415V...)

8. Mandrel Rod devices

We provide Customized Service for Everyone's needs,tell us what your requirement on pipe processing,bending,punching, cutting, chamfering and so on,

Adapted material	steel pipe, stainless steel, copper pipe, aluminum pipe,wire,metal bar, profile,metal strips and multiple-unit tube
Shapes	Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc

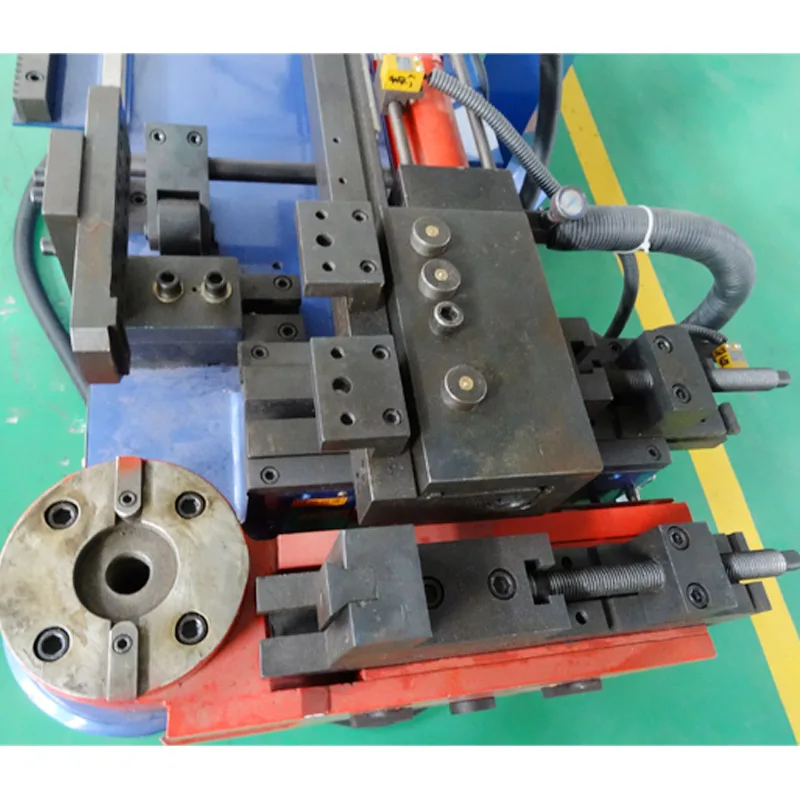

Standard accessories	One pair of standard mould (wheel mould, clamping mould and sliding plate mould) , One set of common tools
Application industry	automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares

Model		50 NC
Max. Bending Capacity	round	MS:50×3mm;SS: 42×3mm 2 inch
	Square	40×40×2.5mm
	angle steel	40 mm
	rectangle	30×40mm
	rod	35mm
	Square rod	30×30mm
Shapes		Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material		steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit tube
Operate mode		Manual, semi auto
Bending method		Hydraulic

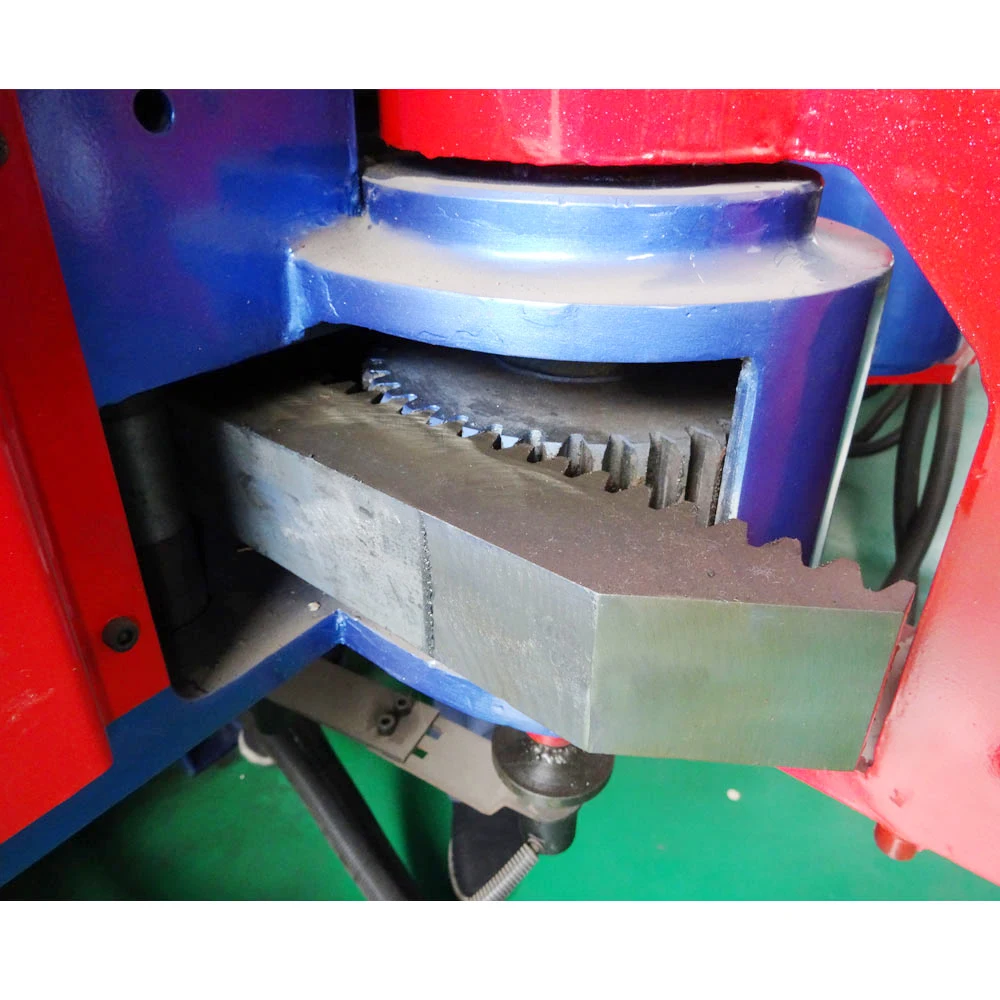

driving axle		rack
Max Length of bending pipe		Unlimited(without mandrel)
		2200mm(with mandrel)
		Length of machine body can be customized to meet different needs on pipe bending length
Feeding speed		1.1 m/sec
Feeding precession		±0.1
Range of radius		R35-R250mm
Max angle for bending		210°
Bending precession		±0.1°
Bending speed		60°/sec
Angle precision		±0.1°
Power for motor		5.5
Total power		5.5 Kw
Standard Oil pressure		21 MPA
Oil Tank Capacity		180 L
Max oil temperature		60°
cooling method		Air or water cold
operating mode		button and touch screen
Maximum number of stored bending programs		20 set
Max number of elbow pipe each program		20set
Overall size (L×W×H)		3.05×1.05×1.35
Weight		1500 KG
