Характеристики

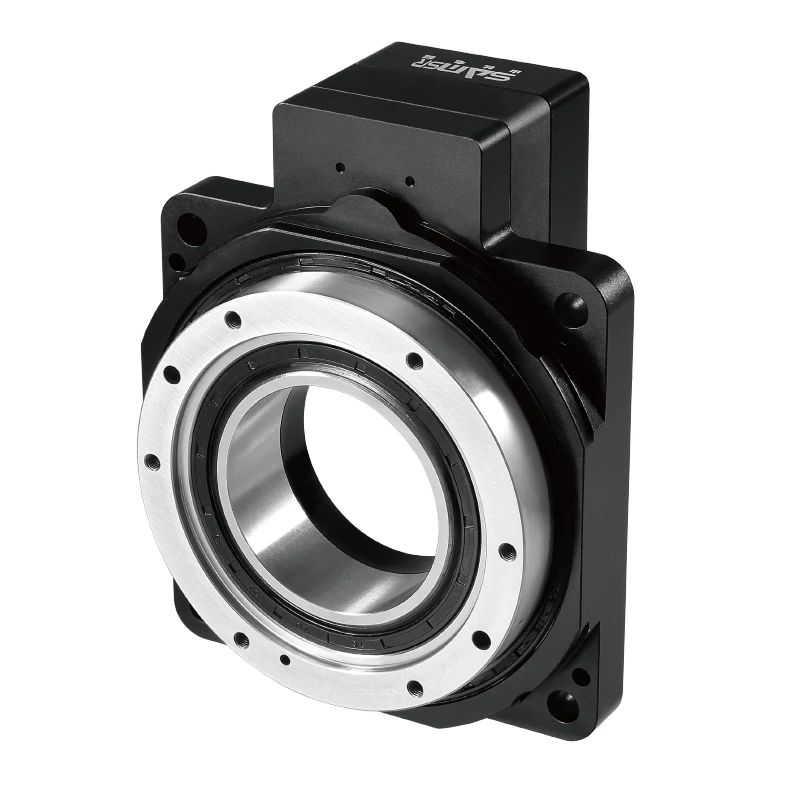

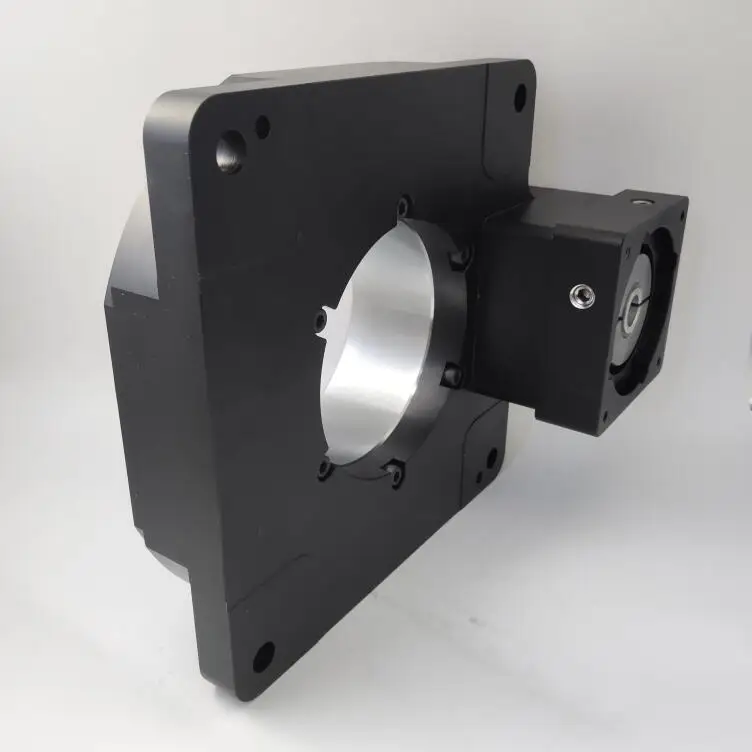

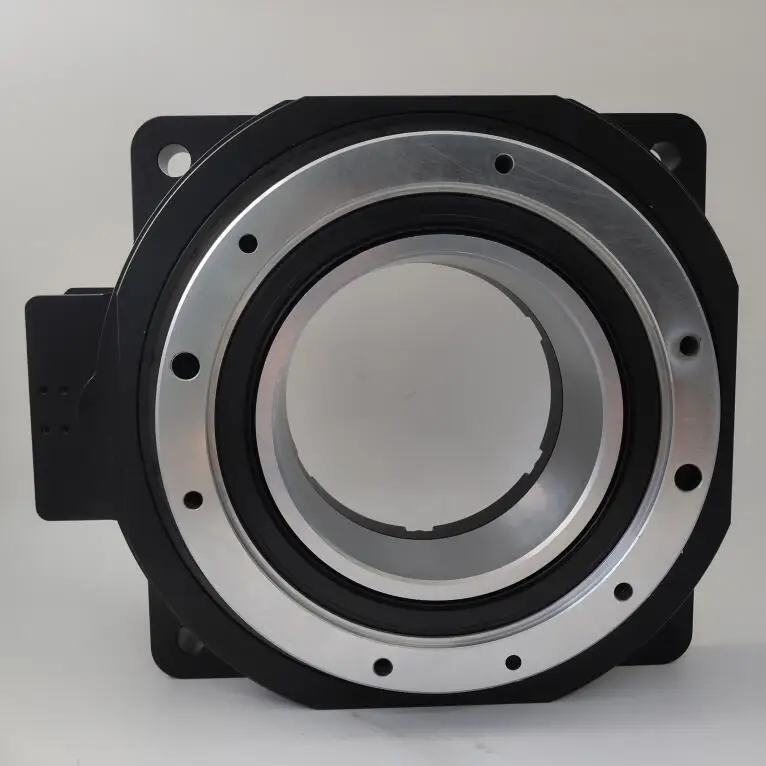

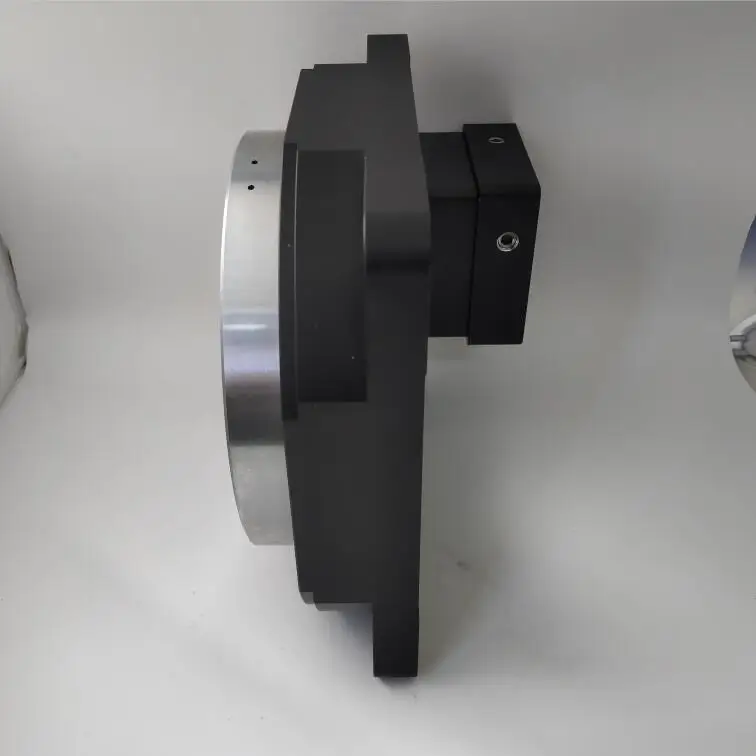

Samsr 200mm hollow rotary platform planetary gearbox with reducter ratio 10 for nema 34 86mm stepp motor
| Brand | Samsr |
| Model | SH200-10-N |
| Size | 200*200mm |
| Certification | ROHS |
Specifications:
Option motor: 86MM stepper motor /750W
Platform Supporting Bearing: Cross roller bearing
Direction of axis(Max): 12500N
Permissible torque: 115N.m
Permissible inertia torque: 230N.m
Totating inertia: 108150*10-6
Rated input speed: 2000rpm
Max output speed: 3000rpm
Retoting accuracy: ≤1± 0.5 arc-min
Using temperature: -25~+90C
Rotating platform radial shake: 0.005mm
Rotating platform face shake: 0.005mm
Protection class: IP50
Accuracy Service Life: 20000h
Weight: 9.1kgs
