ZLyj Малый экструдер коническая коробка передач машина для
- Категория: Speed Reducers >>>
- Поставщик: Changzhou,Guomao,Jiangtao,Reducer,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 714.54 $* | 750.7 $* |
| Aug-19-2025 | 708.98 $* | 743.22 $* |
| Jul-19-2025 | 594.68 $* | 624.75 $* |
| Jun-19-2025 | 696.97 $* | 731.70 $* |
| May-19-2025 | 606.81 $* | 636.91 $* |
| Apr-19-2025 | 684.64 $* | 718.42 $* |
| Mar-19-2025 | 678.95 $* | 712.10 $* |
| Feb-19-2025 | 672.30 $* | 706.1 $* |
| Jan-19-2025 | 666.35 $* | 699.72 $* |
Характеристики

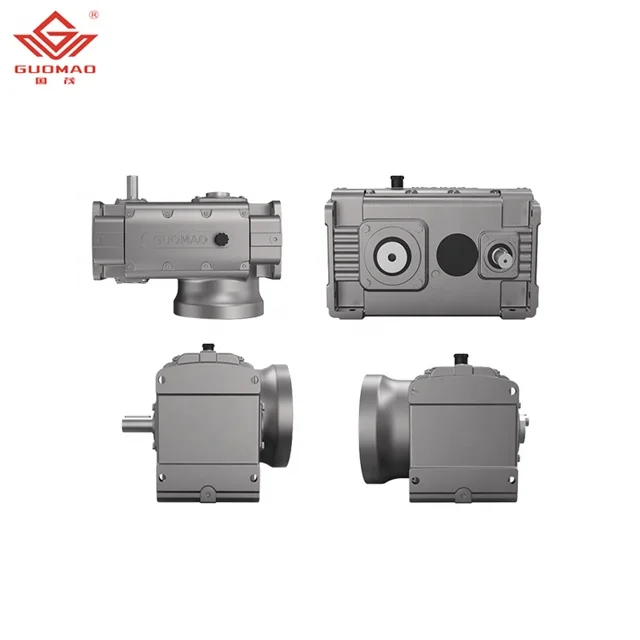

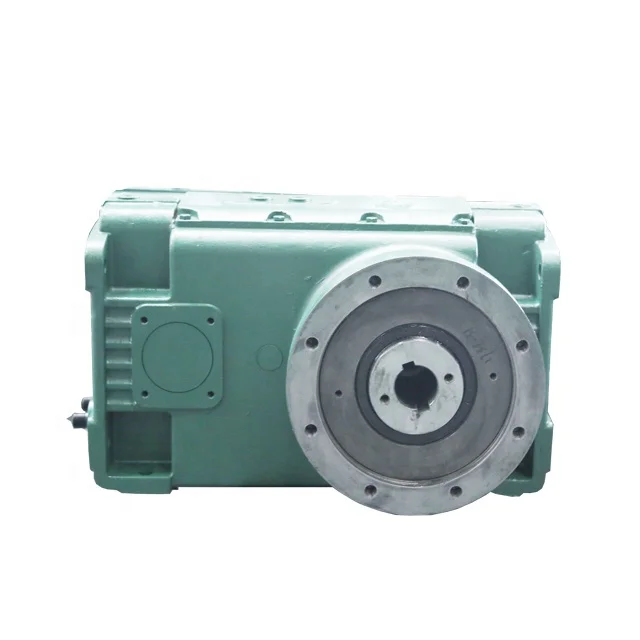

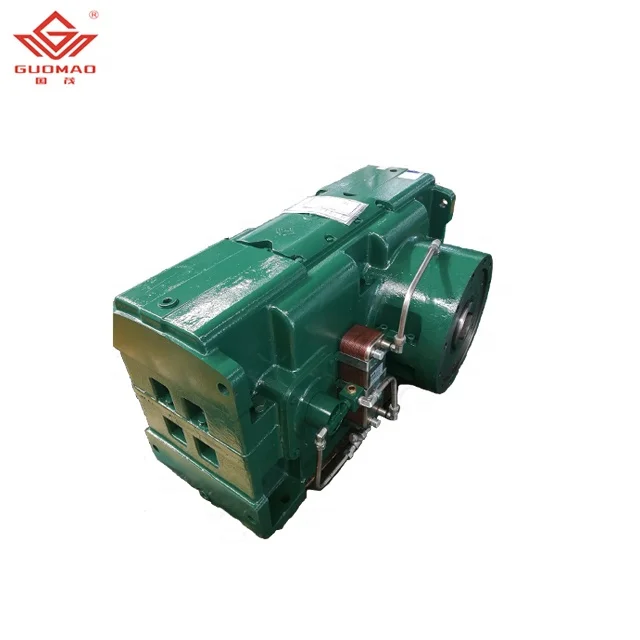

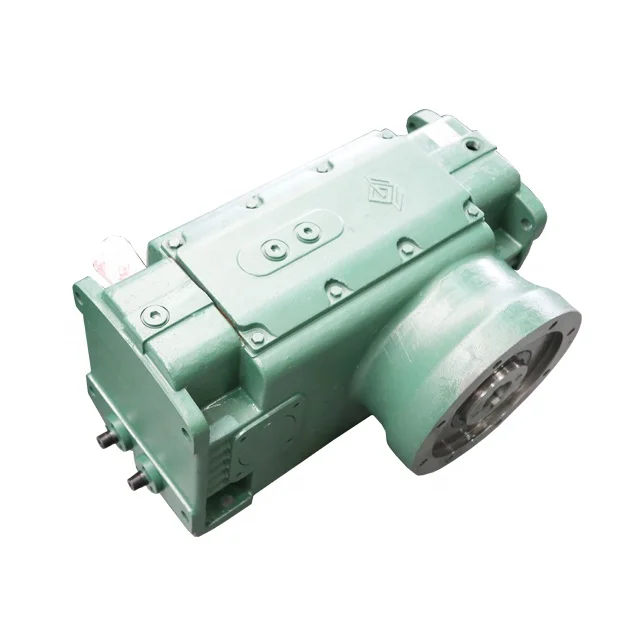

ZLyj small extruder bevel gearbox shoes machine making
Finished Product & Application:
This ZLYJ gearbox are mainly used in Plastic Extruding Machine, like EPS, PE....
ZLYJ gearbox series are transmission devices, which are specially designed for single-screw extruder with high precision, hard gear surface, accompany with thrust. Adopting the technical specifications stipulated in JB/T9050. 1-1999, all ZLYJ gearboxes are designed accordingly.
Product Description
zlyj plastic extruder gearbox speed increaser reducer in china | |
Type | ZLYJ |
Power | 5.5-540KW |
Output Speed | 8-20RPM |
Output Torque | 800-100000NM |
Standard voltage and frequency | 380V&50HZ |
Production time | 25-30DAYS |
Advantages | 1.Compact structure, light weight, large torque and excellent performance. 2. Stable in running, low in noise, large in load, low in consumption, efficient in transmission, low in temperature and long in service life. |
Service | 1 .Rich export experience more than 14 years 2 .Devote to transmission systematize solution more than 21 years experience 3. we passed CE &ISO9001&ISO14001 certified 4. 100% Payment protection 5. 100% Product quality protection 6.Provide consultation and after-sale,experienced engineers |
The Scope of Application:
1. The rotary speed of high-speed shaft is no more than 1500 r / min.
2. The circumferential velocity of transmission gears is no greater than 20 m / sec.
3. The working ambient temperature is -40°C ~ 45°C, if less than 0°C, the oil lubrication should be heated above 0
degree before starting.
4. The reducer can be used to run both positive and negative direction, but high-speed shaft of some models is
equipped with one-way oil pump, so its default direction: When face output shaft, the output shaft clockwise rotate. If
the rotary direction is changed, please state when ordering
Spec. | Ratio Range | Axial Thrust | Screw Diameter | Net Weight |
(KN) | (mm) | (KG) | ||
112 | 8/10/12.5 | 41 | Φ35 | 95 |
133 | 8/10/12.5/14/16/18/20 | 54 | Φ50 | 144 |
146 | 8/10/12.5/14/16/18/20 | 60 | Φ55 | 205 |
173 | 8/10/12.5/14/16/18/20 | 153 | Φ65 | 256 |
200 | 8/10/12.5/14/16/18/20 | 187 | Φ75 | 500 |
225 | 8/10/12.5/14/16/18/20 | 250 | Φ90 | 650 |
250 | 8/10/12.5/14/16/18/20 | 268 | Φ100 | 815 |
280 | 8/10/12.5/14/16/18/20 | 356 | Φ105,110 | 1020 |
315 | 8/10/12.5/14/16/18/20 | 403 | Φ120 | 1410 |
330 | 8/10/12.5/14/16/18/20 | 448 | Φ130,150 | 1520 |
375 | 8/10/12.5/14/16/18/20 | 495 | Φ150,160 | 1800 |
420 | 8/10/12.5/14/16/18/20 | 545 | Φ165 | 2750 |
450 | 8/10/12.5/14/16/18/20 | 590 | Φ165 | 3560 |
FAQ
Q1. Can I have a sample order for gearbox and motor?
A: We couldn't provide sample. We could give you some discount in larde order.
Q2. What's your terms of payment?
A: 100% T/T in advance or 30% deposit, pay the balance before shipment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer12 month warranty to our products.
