Характеристики

Products Description

Dinstar IP PBX / Unified Gateway UC1500 is a core voice gateway of your unified communications (UC) solution. Based on X86 platform, it
allows users to install third- party PBX software with simple installation. Equipped with modular & hot swappable interface boards
of FXS/FXO/E1/T1 and an open API, users can flexibly connect with SIP trunks, PSTN, legacy PBX, analog phones, fax machines and IP
phones according to their needs.
UC1500 is a high reliability gateway with redundant power supplies and hot swappable interface boards. For vertical users who are
seeking to make use of their own secure PBX software and to leverage unified communications technology to enhance communication
and improve efficiency, while high reliability and availability is also critical, UC1500 is an ideal choice.

Details Images

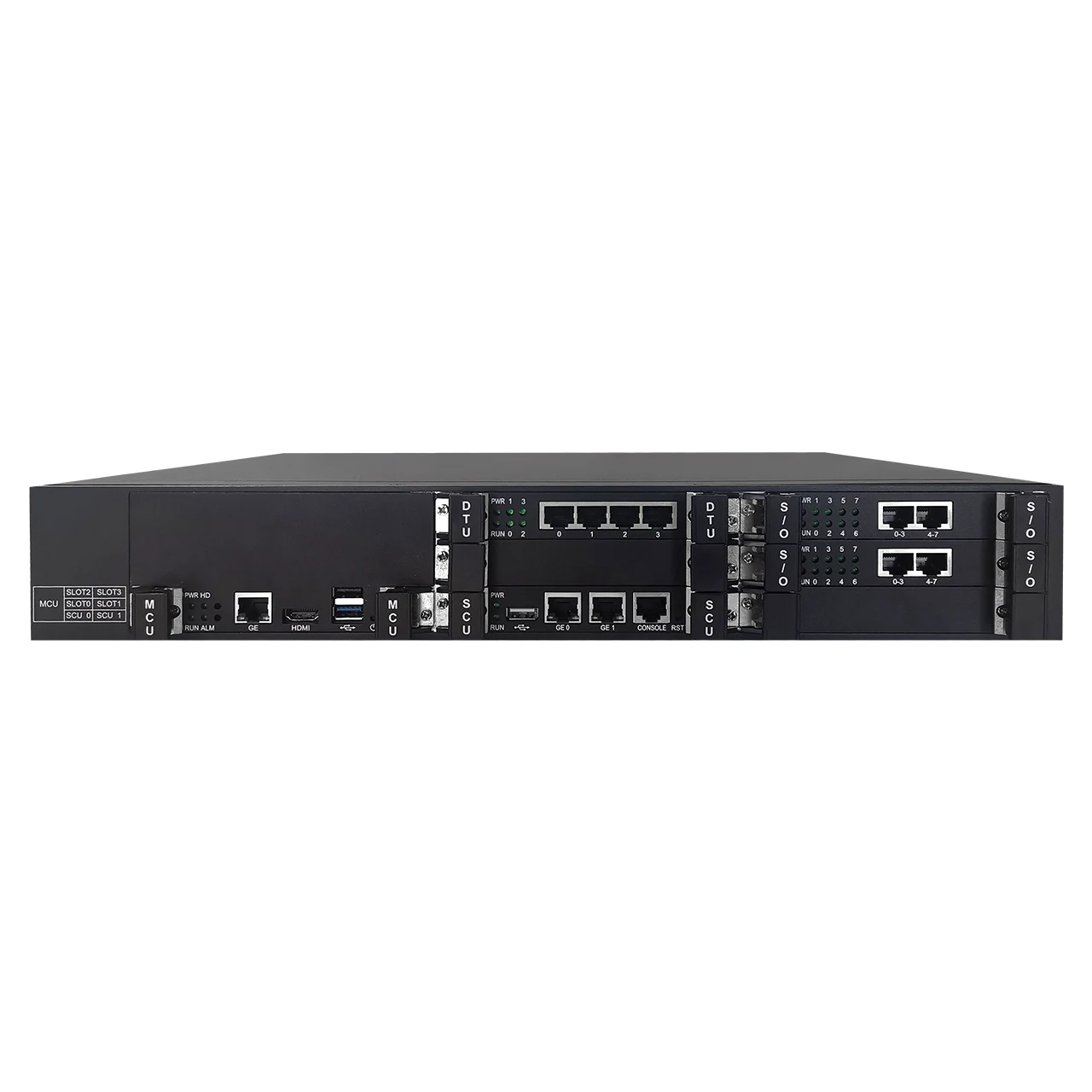

Front

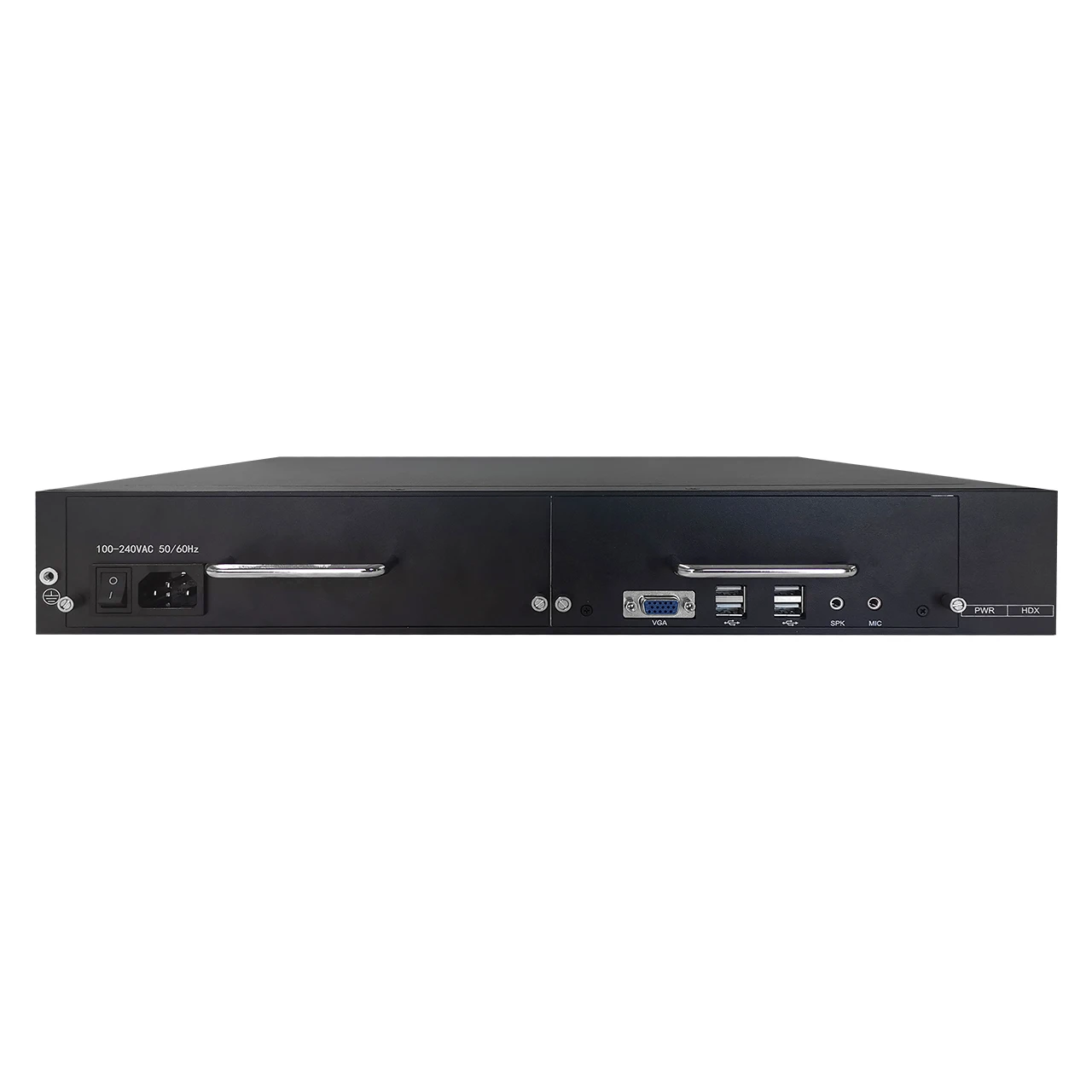

Back

\t\t\t\t\t\t\t\t\tkey features \t\t\t\t\t\t\t

* Key Component of IP Telephony & Unified Communications
* Open Hardware Platform based-on X86

* Easy to install 3rd party IP PBX such as Asterisk, Freeswitch, 3CX, Issabel, VitalPBX software

* Open API
* Perfect for Vertical markets

* Voice, Fax, Modem & POS
* Up to 4 interface boards, Hot swappable

* Up to 16 E1/T1 ports

* Up to 32 FXS/FXO ports
* Redundant Power Supplies

Project Scenario

Product Paramenters

Hardware Specification

MCU: 1* Main Control Unit, Hot plug
HDX: 1* Ext. Hard Disk Unit, Hot plug

SCU: 2* Switch Control Unit, active/standby

DTU: 4* E1/T1 ports, up to 4 boards
FXS: 8* FXS ports, up to 4 boards
FXO: 8* FXO ports, up to 4 boards
4S4O: 4*FXS+4*FXO, up to 4 boards

PWR: 1* 110~220VAC power modular

FAN: 1* FAN cooling modular

MCU(Main Control Unit)

X86 structure control unit with two hardware configuration options:
1) Standard:
CPU: Intel J1900 2.0GHz, 4 cores
Intel E3845 1.9GHz, 4 cores
RAM: DDR3L 1600MHz 8GB
2) Advanced:
CPU: Intel i5-6300U 2.4GHz, dual cores

RAM: DDR4 2133MHZ 32GB
Network: 10/100/1000Mbps Gigabit LAN

1* HDMI video connector
1* USB 2.0
1* USB 3.0
128GB SSD hard disk, extendable by HDX

HDU( Ext. Hard Disk Unit) :

Extend hard disk storage of MCU board
1* SSD/HDD hard disk space

1* VGA video connector
4* USB 2.0
Mic and Speaker

SCU(Switch Control Unit)

CPU: 1.8GHz, 8 cores

RAM: DDR3 512MB

Flash: 32MB
EMMC: 8GB
Network: 2* 10/100/1000Mbps

Console: 1* 115200bps, RJ45

USB 2.0: 1

Media Processing

Codecs: G.711A/U,G.723.1, G.729AB, iLBC, AMR
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD) Echo Cancellation
Dynamic Jitter Buffer Programable Gain Value T.38 and Pass-through FAX
Modem and POS terminal DTMF: RFC2833/SIP Info/Inband VLAN 802.1p/q
Lay3 QoS and DiffServ

FXS

Connector: RJ11
Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF
Answer and Disconnect Signaling:

Answer, Disconnect,

Busy Tone

Polarity Reversal
Hook Flash

FXO

Connector: RJ11

Caller ID: FSK, DTMF

Polarity Reversal

Answer Delay
Busy Tone Detection

No Current Detection

FXS/FXO Features

Port Group/Hunting Group

Digitmap
Flexible Call Routing Rules

Caller/Called Number Manipulation Rules

VoIP Protocol

SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311
RTP/RTCP, RFC2198, 1889 SIP-T,RFC3372, RFC3204, RFC3398 RFC4028 Session Timer
SIP TLS
RFC2806 TEL URI
RFC3581 NAT, rport
NAT Traversal: dynamic NAT, STUN

DTU

Connector: RJ48C
4* Port E1/T1 per board
Support ISDN PRI and SS7 signaling ISDN PRI:
23B+D(T1), 30B+D(E1), ITU-T Q.921, ITU-T Q.931, Q.Sig
SS7:
ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP33, TUP/ISUP
E1 Frame : DF, CRC4, CRC_ITU
T1 Frame: 4-Frame Multi-
frame (F4,FT),2-Frame Multi-
frame (F12, D3/4),Extended Super- frame (F24, ESF) ,Remote Switch Mode
(F72, SLC96) Local/Remote Clock Source

GSM/LTE

4* GSM/LTE channels per board
Antenna Connector: SMA
SMS/USSD/PIN
Provides GSM and LTE boards depends on network frequency of users:

GSM: 850/900/1800/1900MHz

LTE frequency band options:

Type A:
FDD: B2/B4/B12
Type E:
FDD:B1/B3/B5/B7/B8/B20 TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM:900/1800MHz
Type V: FDD:B4/B13
Type J: FDD:B1/B3/B8/B18/B19/B26 TDD:B41 WCDMA:B1/B6/B8/B19 Type AU: FDD:B1/B2/B3/B4/B5/B7/B8/B28 TDD:B40 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900

DTU Features

Local/Remote Ringback tone

Overlap Dialing
Dial plan up to 2000
E1 Group/ Timeslot Group

SIP Trunk/SIP Trunk Group

Codecs Group
Caller/Called Blacklist

Caller/Called Whitelist Access

Rule List

Capabilities:

Extensions: 3000 Concurrent

Calls: 100~300

Call Per Second: 100/s

Call Feature

Flexible Route Methods PSTN-PSTN, PSTN-IP, IP-PSTN
Intelligent Routing Rules
Call Routing base on Time
Call Routing base on Caller/Called Prefixes
256 Route Rules for each Direction

Caller and Called Number Manipulation

Maintenance

Web GUI configuration and maintenance

Configuration backup and restore
PSTN call and release cause statistics

SIP call and release cause statistics

HTTP firmware upgrade
Network capture
Syslog: Debug, Info, Error, Warning, Notice
Call history record

NTP

Environmental

1+1 Power Supply, hotplug
Input: 100-240VAC, 50-60 Hz
Power Consumption:100W

Operating Temperature:0 °C ~ 45 °C

Storage Temperature: -20 °C ~80 °C

Humidity:10%-90% Non-Condensing
Dimensions(W/D/H): 437*345*66mm
