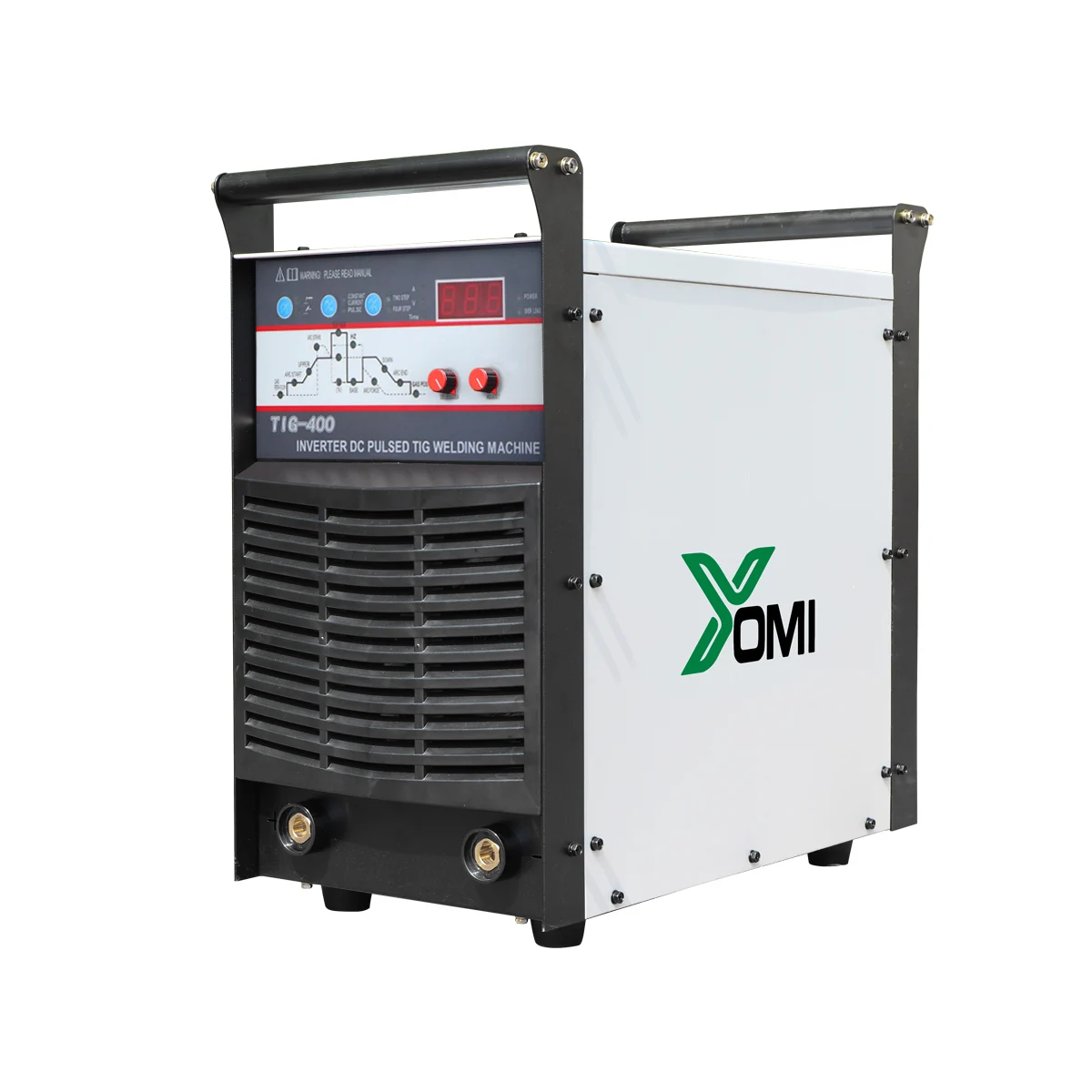

Инвертор постоянного тока дуговой сварки машина TIG-400 сварочный
- Категория: Other Arc Welders >>>
- Поставщик: Shandong,Yomi,Intelligent,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 309.25 $* | 324.48 $* |
| Aug-20-2025 | 307.3 $* | 322.81 $* |
| Jul-20-2025 | 257.3 $* | 270.97 $* |
| Jun-20-2025 | 302.53 $* | 317.61 $* |
| May-20-2025 | 263.3 $* | 276.17 $* |
| Apr-20-2025 | 296.12 $* | 311.58 $* |
| Mar-20-2025 | 294.8 $* | 309.36 $* |
| Feb-20-2025 | 291.74 $* | 306.36 $* |
| Jan-20-2025 | 289.80 $* | 303.31 $* |
Характеристики
DC Inverter TIG Pulse Welding Machine TIG-400 Welding Machine
DC Inverter TIG Pulse Welding Machine TIG-400 Welding Machine
Product Description
DC Inverter TIG Pulse Welding Machine TIG-400 Welding MachineDC Inverter Arc Welding Machine MMA-400 Three Phase Arc Welding Machine
1.Machine is with the most advanced soft switch inverter technology.
2.The main electronic elements of machine are import IGBT and microcrystalline magnetic core.
3.Machine is adjustable for the hot 3.start and arc force. *Machine is with high duty cycle, it is equipped with arc current and current thrust adjustment function.
4.With the automatic compensation function of voltage fluctuiation ,arc steady,less splash,and weld forming beautiful .
5.the circuit board adopts the imported insulating grease QC glue ,vacuum sealing and filling to prevent dust.
6.Cooling fan is with isolated structure to prevent rainwater froming entering.
DC Inverter Arc Welding Machine MMA-400 Three Phase Arc Welding Machine

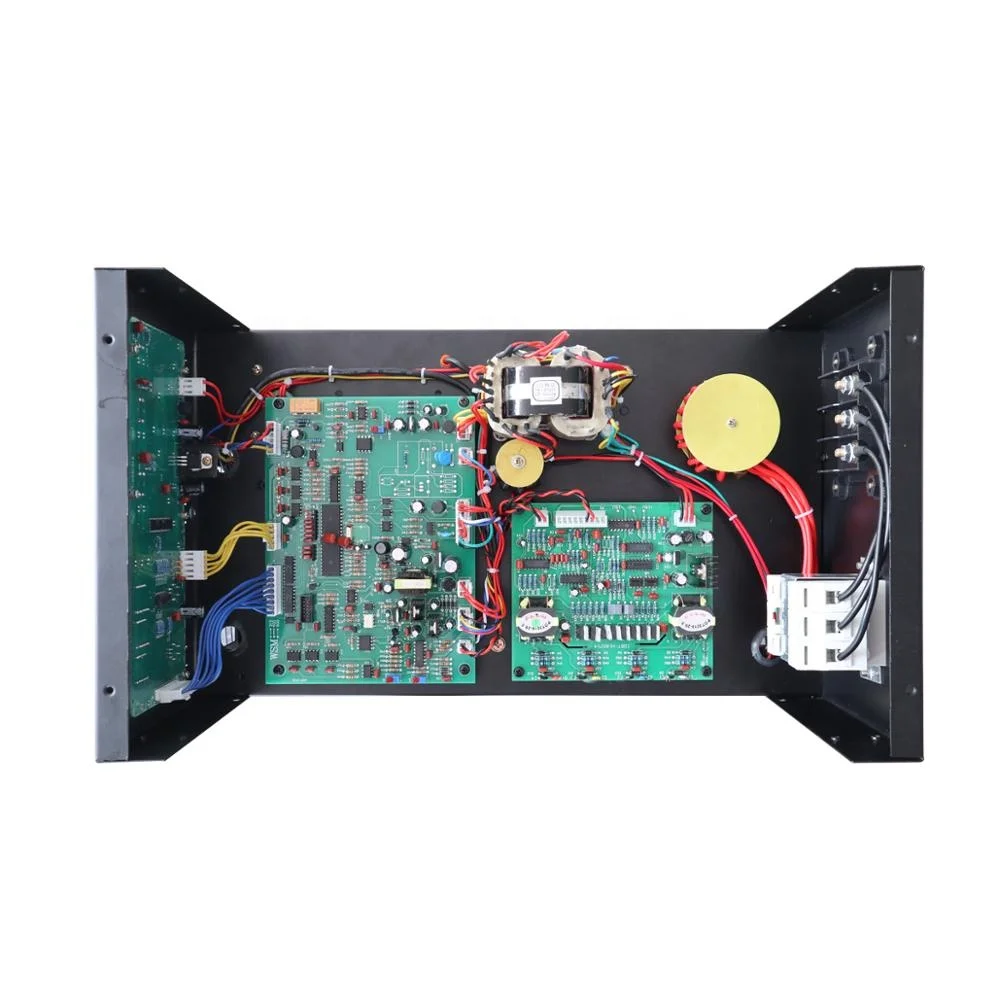

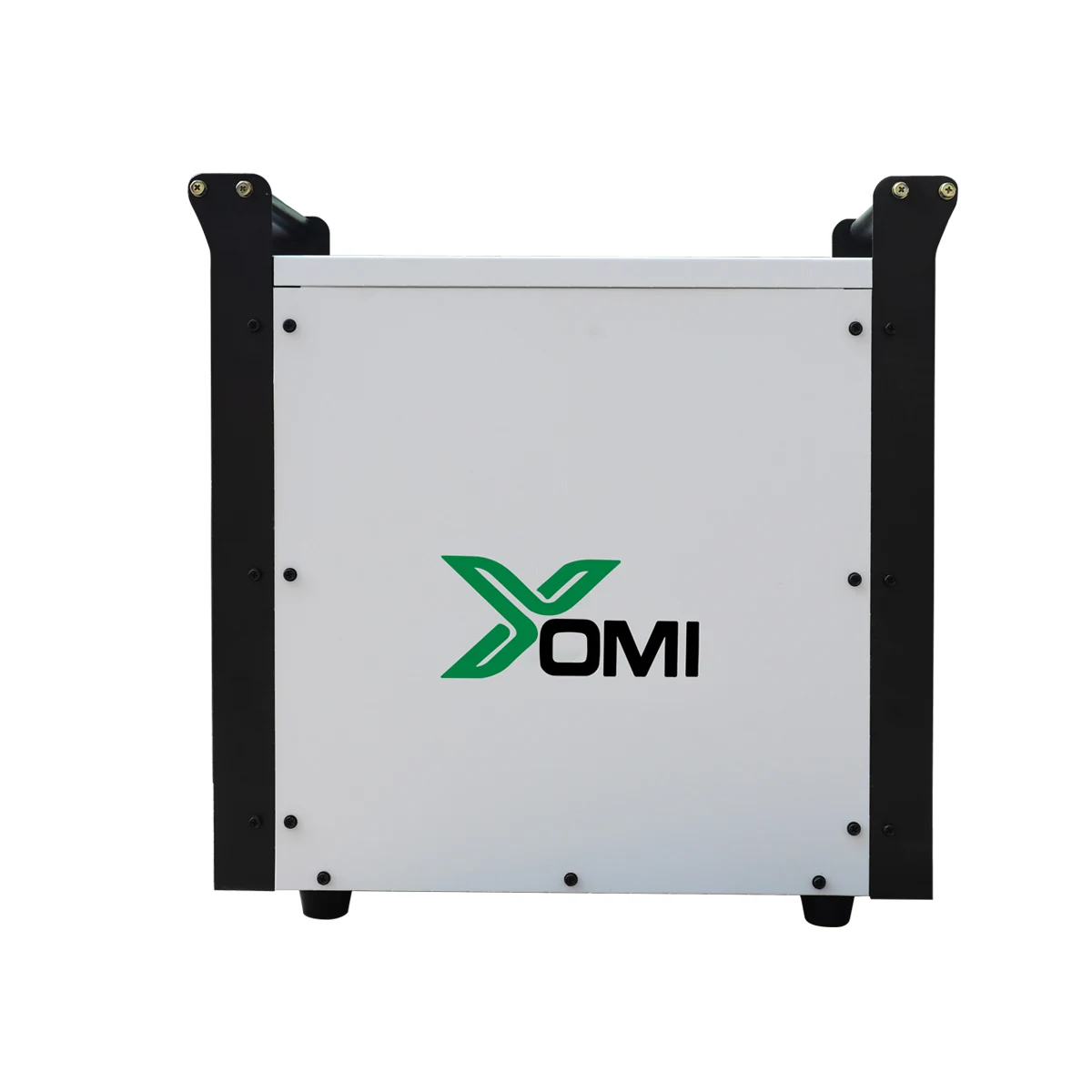

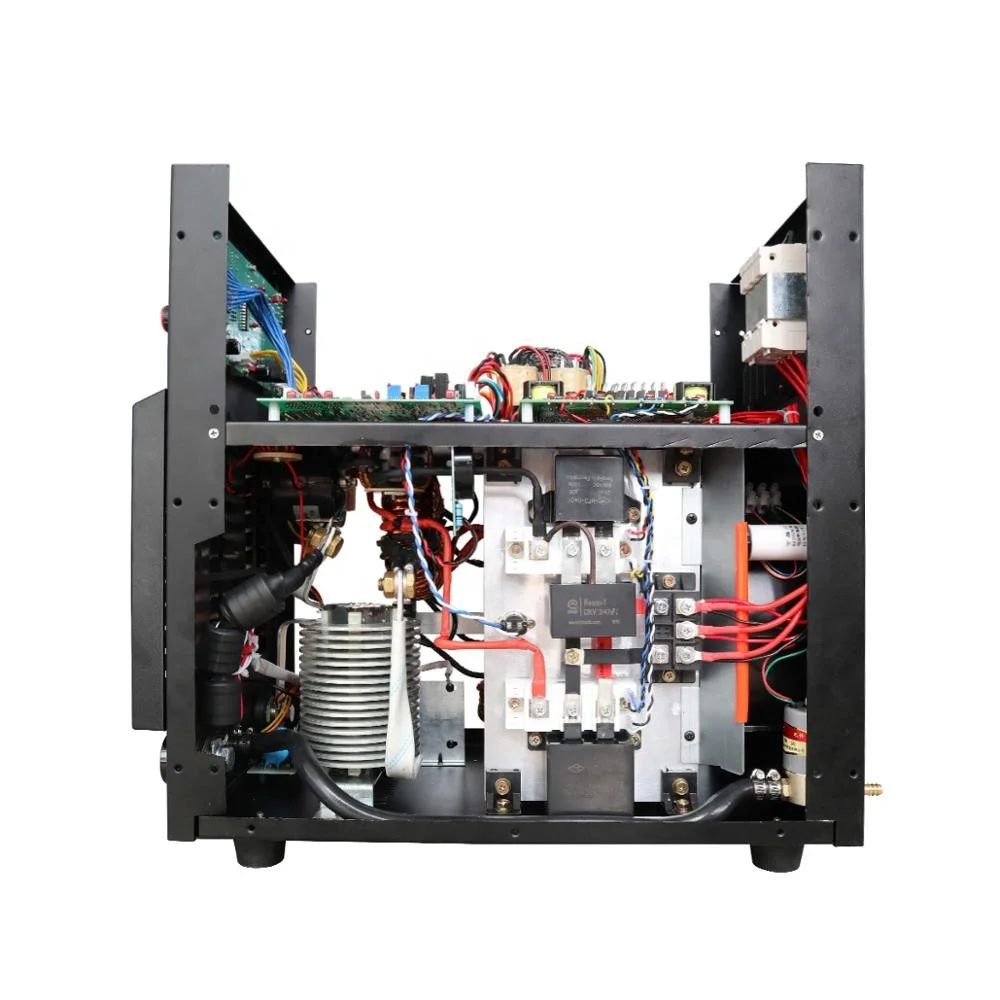

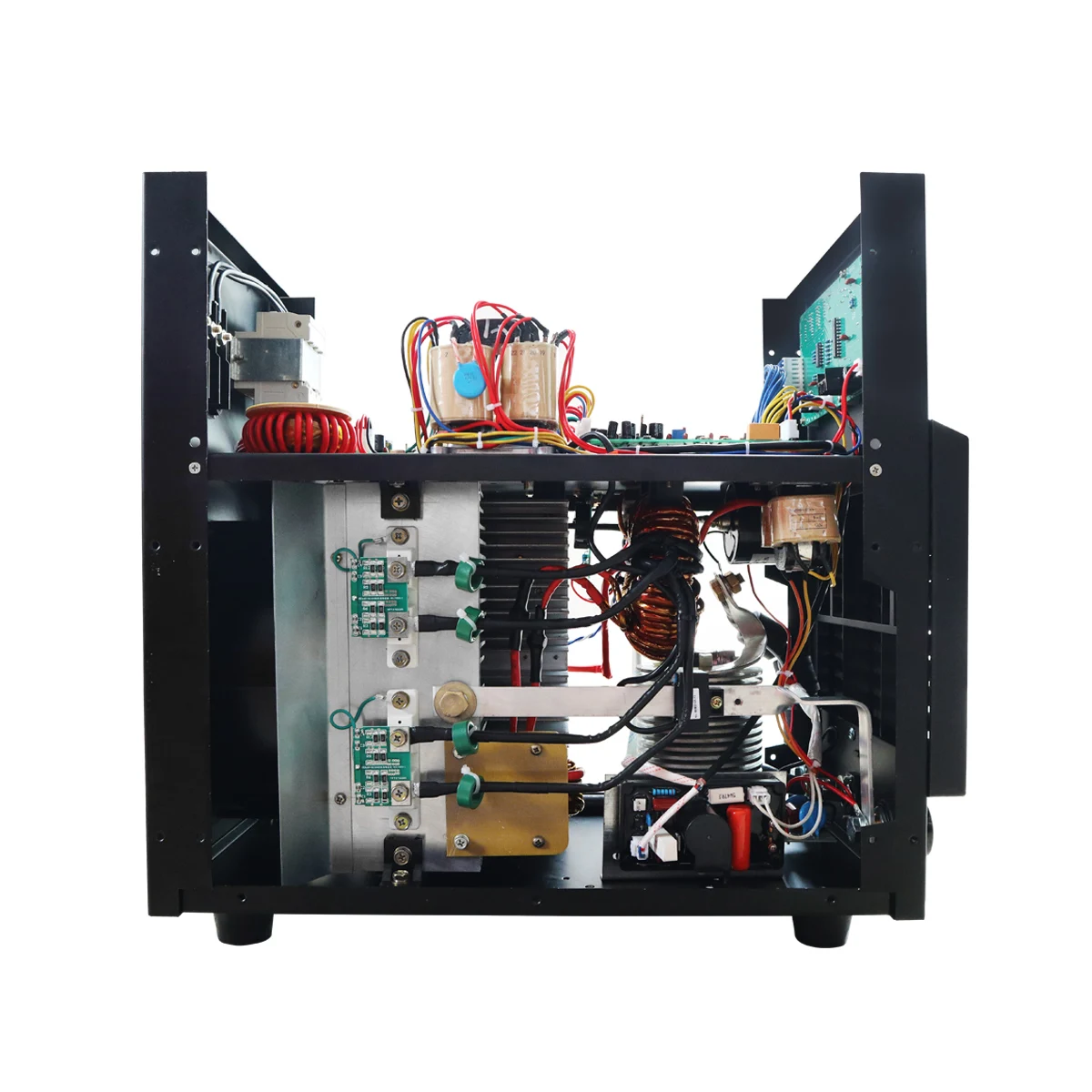

Detailed Images
Manual Metal Double IGBT Inverter DC Arc Welding Machine MMA-400 Welder

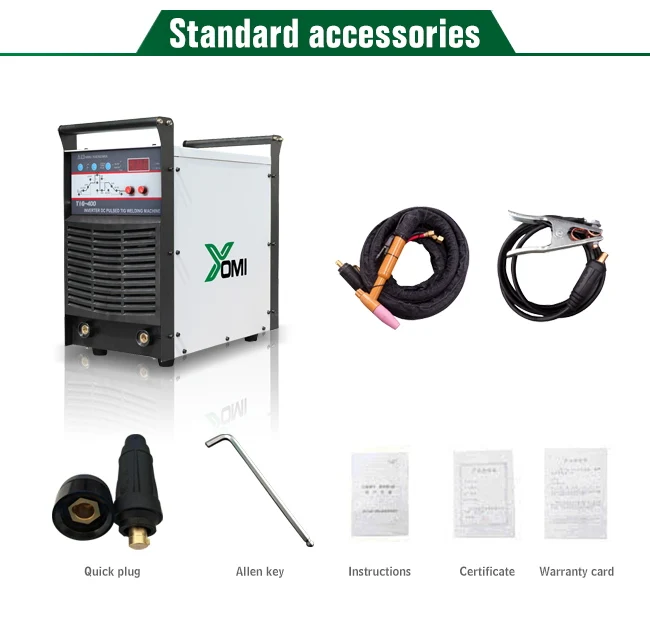

Accessories
Manual Metal Double IGBT Inverter DC Arc Welding Machine MMA-400 Welder
Technical Parameters
DC Inverter TIG Pulse Welding Machine TIG-400 Welding Machine
Model | MMA-500 | MMA-630 | MMA-1000 | MMA-1250 |
Voltage range(V) | Three phase 380±15% 50/60Hz | |||
Rated input power (KVA) | 24.5 | 31.5 | 58 | 60 |
Rated input current(A) | 38 | 47 | 90 | 94 |
No load voltage(V) | 75 | 75 | ||
Working current range(A) | 20-500 | 20-630 | 60-1000 | 60-1250 |
Thrust current adjustment range(A) | 10-280 | 10-330 | 60-250 | 60-320 |
Arc start current adjustment range(A) | 20-100 | 20-100 | ||
Welding rod (mm) | 2.0-6.0 | 2.0-6.0 | ||
Rated duty cycle(%) | 60 | 100 | ||
weight(kg) | 38 | 40 | 102 | 108 |
Size (mm) | 617*316*660 | 657*316*660 | 860*370*880 | |
erter DC Arc Welding Machine MMA-400 Welder Factory
Customer Feedback
Manual Metal Double IGBT Inverter DC Arc Welding Machine MMA-400 Welder
Company Information
YOMI focus on whole range of welding machines development and manufacturing. It is established in 2006. Now it has growed up to Leading company in welding machine field and also supply OEM for some famous brand in the world.
Our factory has the most advanced workmancraft and processing machine ,such as YAMAHA SMT ,Automaticg glue sprayer, Large wire terminal machine, Computer double wave soldering and insertion wave soldering machine and also some testing machines, which greatly ensure the high automation and quality of our welding machines.
Our welding machines include MMA, MIG/MAG,TIG, CUT, SAW, RSR,RSN,Spot Weld and Stud Welding Machines. We are customer-leading company. We are sincerely invite all partners from worldwide to join us and develop the market together!
Manual Metal Double IGBT Inverter DC Arc Welding Machine MMA-400 Welder
FAQ
1. What kinds of after-sales service can your company supply?
One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can supply life long service.
2. What is the electrode diamter can be used?
2.0-6.0mm
3. What is input voltage for welding machinescan you supply?
Three Phase :220V,380V,400V,415V,440V,525V,660V,1140V; we can also customize input voltage as customers' request.
4. Can you supply OEM Service?
Yes, we can supply OEM service.
5.What is the available shipping way?
Small quantity will choose DHL, Fedex, UPS,TNT, and EMS etc.
Bulk order will choose sea or air shipping.
6. What is deliver time?
If there are welding machines at stock, we will delivery the goods within 3-7 work days after received payment.
7. What is your payment term?
We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
