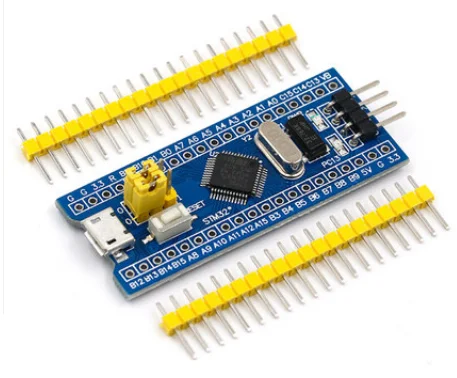

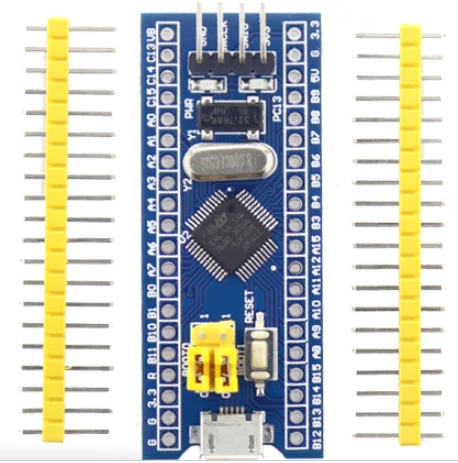

Системная плата STM32F103C8T6 модуль оригинальная STM32 MCU core
- Категория: Микроконтроллеры, стандартные и специальные >>>
- Поставщик: Shenzhen,Jowin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6.66 $* | 6.89 $* |
| Jul-19-2025 | 5.43 $* | 5.71 $* |
| Jun-19-2025 | 6.43 $* | 6.80 $* |
| May-19-2025 | 6.21 $* | 6.49 $* |
| Apr-19-2025 | 5.58 $* | 5.33 $* |
| Mar-19-2025 | 6.66 $* | 6.88 $* |
| Feb-19-2025 | 6.7 $* | 6.33 $* |
| Jan-19-2025 | 6.69 $* | 6.42 $* |
Характеристики
Product Description
Any questions or components required, please feel free contact us directly.
Interface introduction:
1, SWD interface: support simulation, download and debug.
2, Mirco USB interface: power supply and USB communication function, does not support download.
3, USART1 interface: can be used for USART1 to download programs, or use USART1 for communication.
4, MCU serial interface: Take out all I / O port sockets, easy to connect with peripherals.
5, 5V and 3.3V power input and output interface: often used for external power supply, or co-processing with other modules
features are as follows:

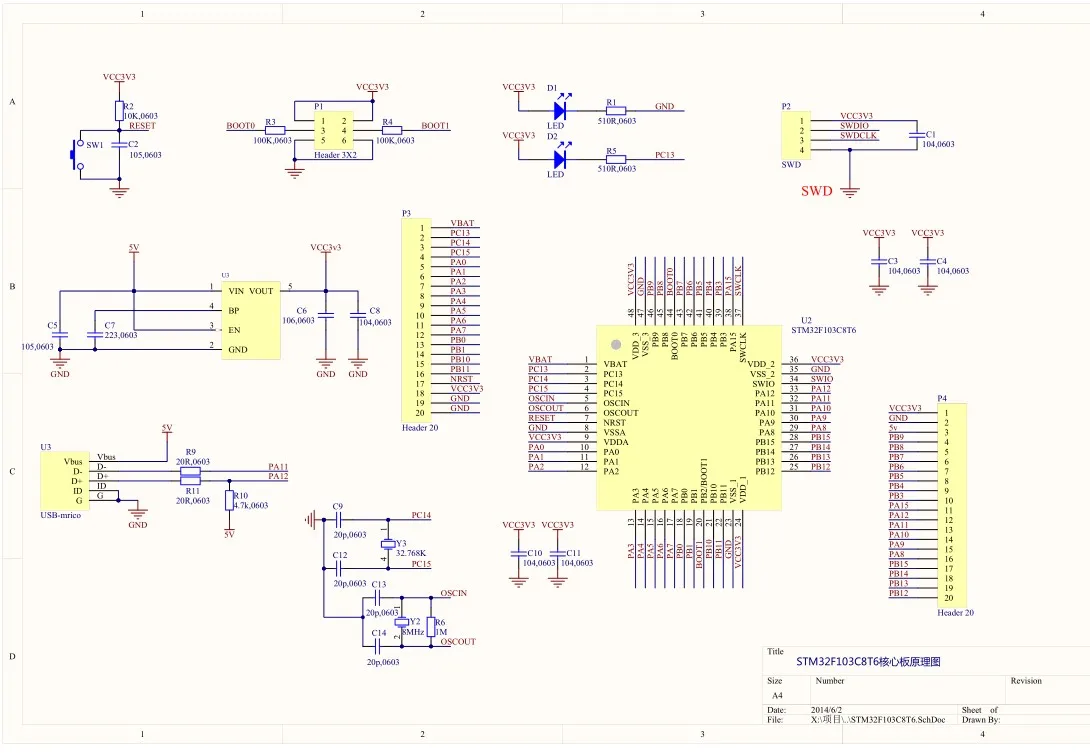

1, the board based on the most basic MCU circuit, 8M and 32768 crystal circuit, USB power supply circuit.

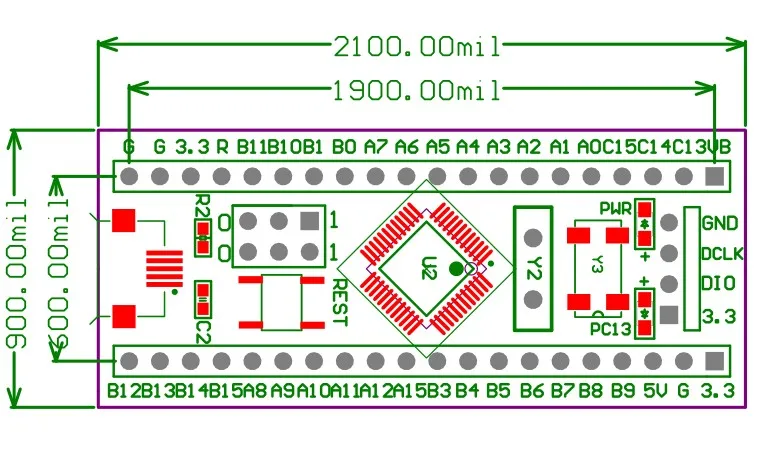

2, the core board is divided into two rows leads to all the I / O port.
3, with SWD simulation debug download interface, simple and convenient, debugging speed.
4, the use of the Mirco USB interface, you can do USB communication and power supply, USB interface, compatible with the ordinary
1, SWD interface: support simulation, download and debug.
2, Mirco USB interface: power supply and USB communication function, does not support download.
3, USART1 interface: can be used for USART1 to download programs, or use USART1 for communication.
4, MCU serial interface: Take out all I / O port sockets, easy to connect with peripherals.
5, 5V and 3.3V power input and output interface: often used for external power supply, or co-processing with other modules
features are as follows:
1, the board based on the most basic MCU circuit, 8M and 32768 crystal circuit, USB power supply circuit.
2, the core board is divided into two rows leads to all the I / O port.
3, with SWD simulation debug download interface, simple and convenient, debugging speed.
4, the use of the Mirco USB interface, you can do USB communication and power supply, USB interface, compatible with the ordinary
5, Andrews mobile phone charger interface.
6, RTC crystal Epson brand, easy to start, more stable.
7, with double pin, but the pin does not default welding, the user according to their own application scenarios to choose their own welding direction. If welding is required, please tell the owner.
Keil can be used to compile, IAR compiler, can be downloaded through the J-Link or USART1 procedures, the procedures are the owner and debugging procedures, there are problems can consult the owner.
6, RTC crystal Epson brand, easy to start, more stable.
7, with double pin, but the pin does not default welding, the user according to their own application scenarios to choose their own welding direction. If welding is required, please tell the owner.
Keil can be used to compile, IAR compiler, can be downloaded through the J-Link or USART1 procedures, the procedures are the owner and debugging procedures, there are problems can consult the owner.
