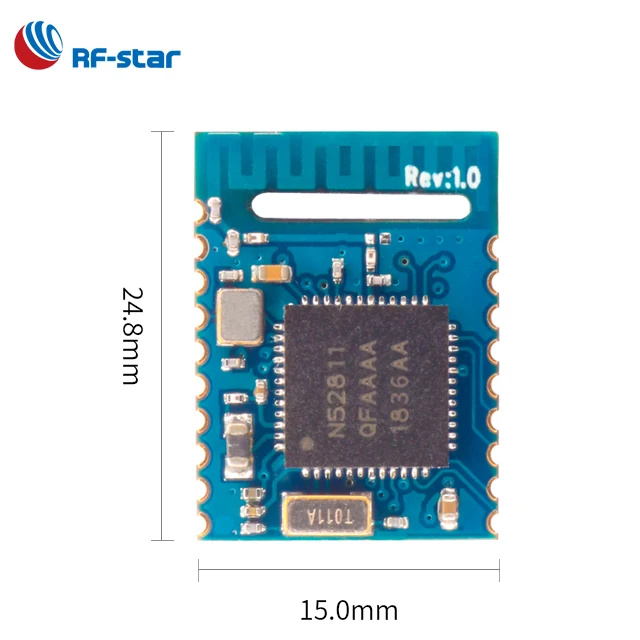

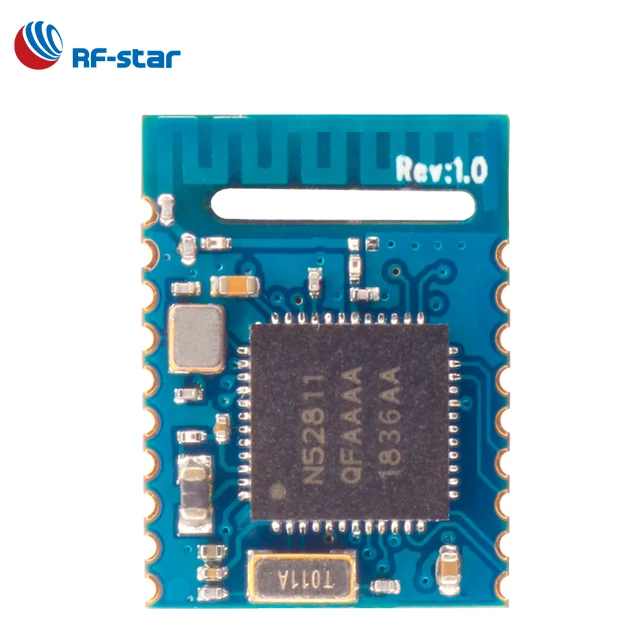

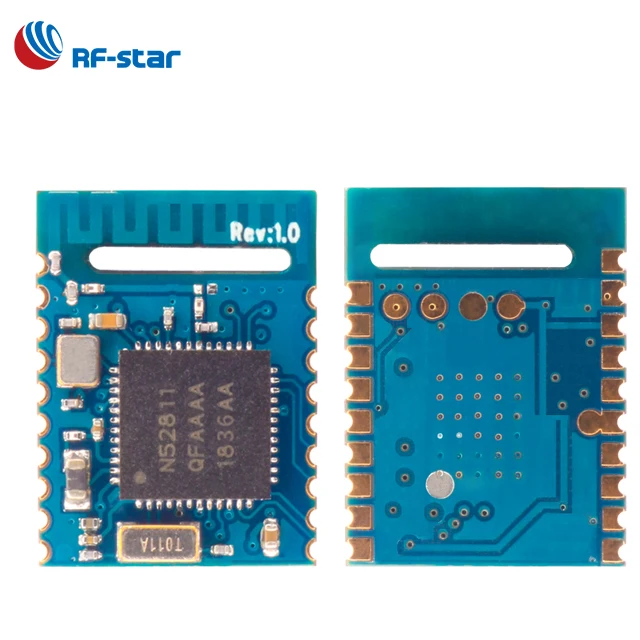

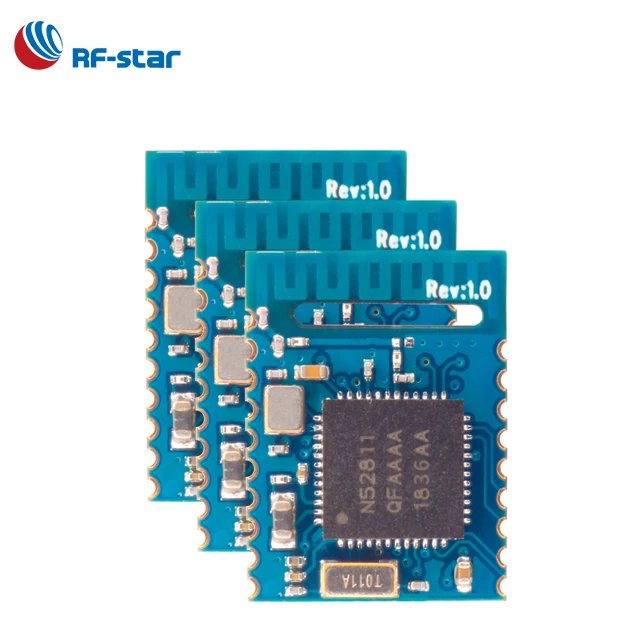

RF-BM-ND08A is an RF module based on Nordic BLE SoC nRF52811QFAA with ARM^®Cortex^®-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line inverted-F PCB antenna. It features low power consumption, robust connection distance, and rigid reliability. It supports BLE5.2,  Direction Finding and Thread, and can be preprogrammed with a serial interface communication protocol for simple programming. It includes a range of analog and digital interfaces such as ADC, PDM, PWM, UART, SPI and I²C. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design. RF-BM-ND08A is pin-to-pin compatible with RF-BM-ND08.





Parameters of RF-BM-ND08A

Chipset	nRF52811QFAA
Supply Power Voltage	1.7 V ~ 3.6 V, recommended to 3.3 V
Frequency	2402 MHz ~ 2480 MHz
Transmit Power	-20.0 dBm ~ +4.0 dBm (Typical: 0 dBm)
Receiving Sensitivity	-97 dBm sensitivity in 1 Mbps BLE® low energy mode -104 dBm sensitivity in 125 kbps BLE® low energy mode (long range)
Power Consumption	4.6 mA peak current in TX (@ 0 dBm) 4.6 mA peak current in RX
Data Rate	Bluetooth® 5.2: 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps IEEE 802.15.4-2006: 250 kbps Propriety 2.4 GHz: 2 Mbps, 1 Mbps
Interface	ADC, PDM, PWM, UART, SPI and I2C
GPIO	29
Crystal	32 MHz, 32.768 kHz
RAM	24 KB
Flash	192 KB
Package	SMT Packaging
Frequency Error	±20 kHz
Dimension	15.2 mm x 11.2 mm x (1.7 ± 0.1) mm
Type of Antenna	PCB antenna, half-hole interface
Operating Temperature	-40 ℃ ~ +85 ℃
Storage Temperature	-40 ℃ ~ +125 ℃
