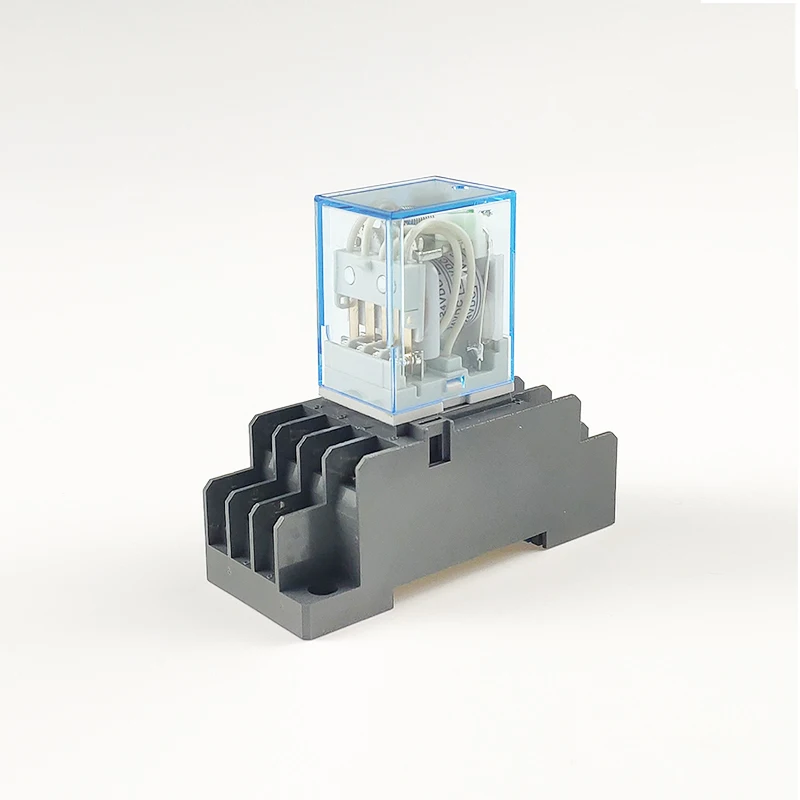

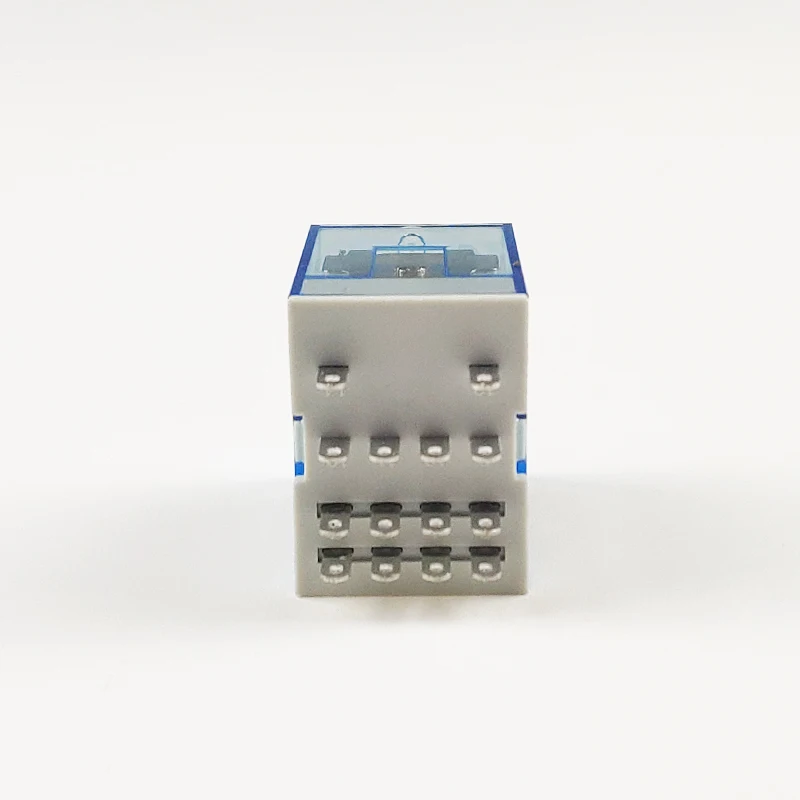

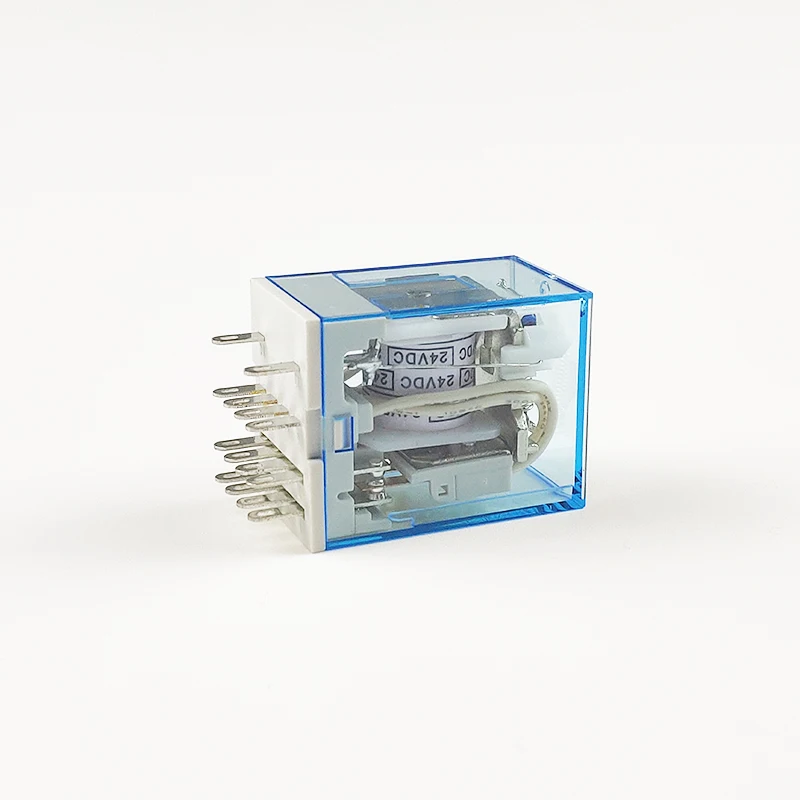

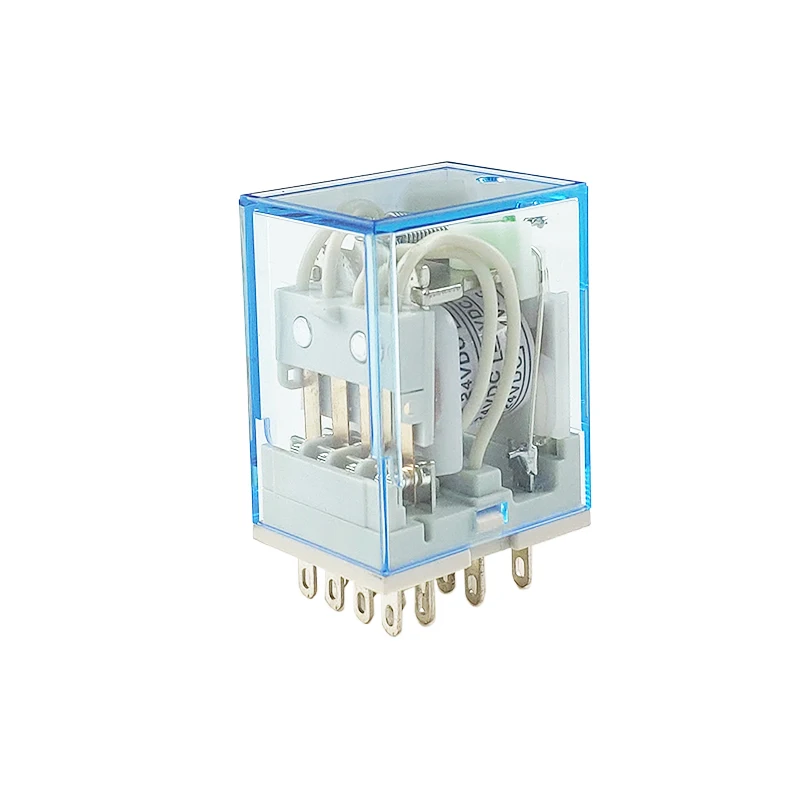

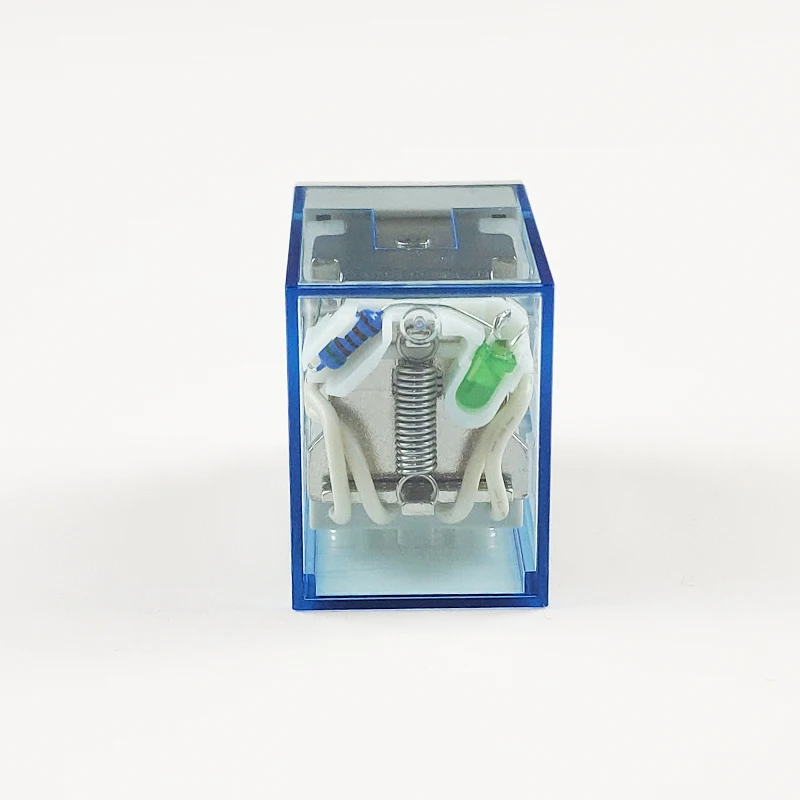

MY4/HH54P 14Pin 24VDC мини электромагнитное реле со светодиодным
- Категория: Реле >>>
- Поставщик: Yueqing,Cleanlysis,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.97 $* | 0.83 $* |
| Aug-16-2025 | 0.53 $* | 0.7 $* |
| Jul-16-2025 | 0.37 $* | 0.91 $* |
| Jun-16-2025 | 0.52 $* | 0.35 $* |
| May-16-2025 | 0.4 $* | 0.83 $* |
| Apr-16-2025 | 0.35 $* | 0.48 $* |
| Mar-16-2025 | 0.22 $* | 0.82 $* |
| Feb-16-2025 | 0.30 $* | 0.22 $* |
| Jan-16-2025 | 0.77 $* | 0.84 $* |
Характеристики
Application
Specifications
| Model | M Series | |
| Dimension(mm) | 27.4*21.0*35.4 | |
| Contact Form | 2C, 3C, 4C | |
| Contact Material | Silver Alloy | |
| Resistance Performance Of Contactor Capacity | 2C: 10A/28VDC, 240VAC 3C: 7A/28VDC, 240VAC 4C: 5A/28VDC, 240VAC | |
| Contact Resistance(mΩ) | ≤50mΩ | |
| Coil Power | AC(VA) | 1.2 |
| DC(W) | 0.9 | |
| Coil Voltage | AC(V) | 6~380V |
| DC(V) | 6~220V | |
| Operate time | ≤20ms | |
| Release time | ≤20ms | |
| Pick-up Voltage | DC:≤75%,AC:≤80% | |
| Drop-out Voltage | DC:≥10%,AC:≥30% | |
| Max Voltage | 110% | |
| Dielectric Strength | 1000VAC/1min(Leakage Current 1mA) | |
| Contacs Pieces | 1200VAC/1min(Leakage Current 1mA) | |
| Between Coil&Contacts | 1500VAC/1min(Leakage Current 1mA) | |
| Insulation Resistance(MΩ) | ≥500MΩ(500VDC) | |
| Service Life(Electrical) | ≥100,000 Times(1800 Ops/h) | |
| Service Life(Mechanical) | ≥10,000,000 Times(18000 Ops/h) | |
| Ambient Temperature(℃) | -25~+55℃ | |
| Humidity | 35%~85%RH | |
| Atmospheric Pressure | 86~106KPa | |
| Shock resistance | 10G(11ms) | |
| Vibration resistance | 10~55Hz (1.0mm) | |
| Terminal Type | Insert Type | |
| Protection Type | Close Type | |
| Suitable Socket | PYF Series | |
| Product Weight | 35~40g | |
Installation Dimensions And Connecting Diagram
Company
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
