Характеристики
Product Overview
Product parameters:
1. Measuring range: 40m;
2. Signal output:4~20mA;
3. No corrosion;
4. Don't pressure; Note: extra charge for meeting
5. Corrosion protection probe: 6m other special needs(Corrosion resistance, pressure resistance, caliber, installation, etc)

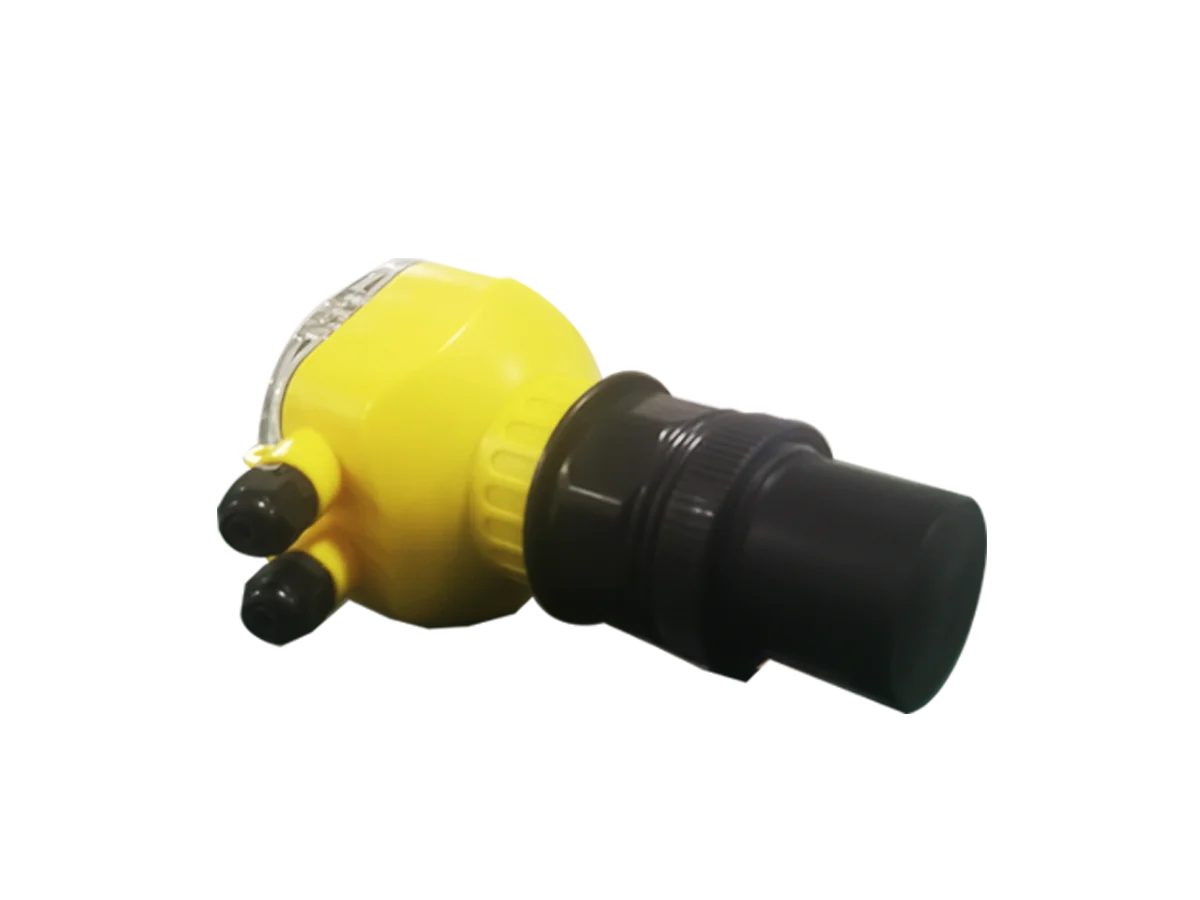

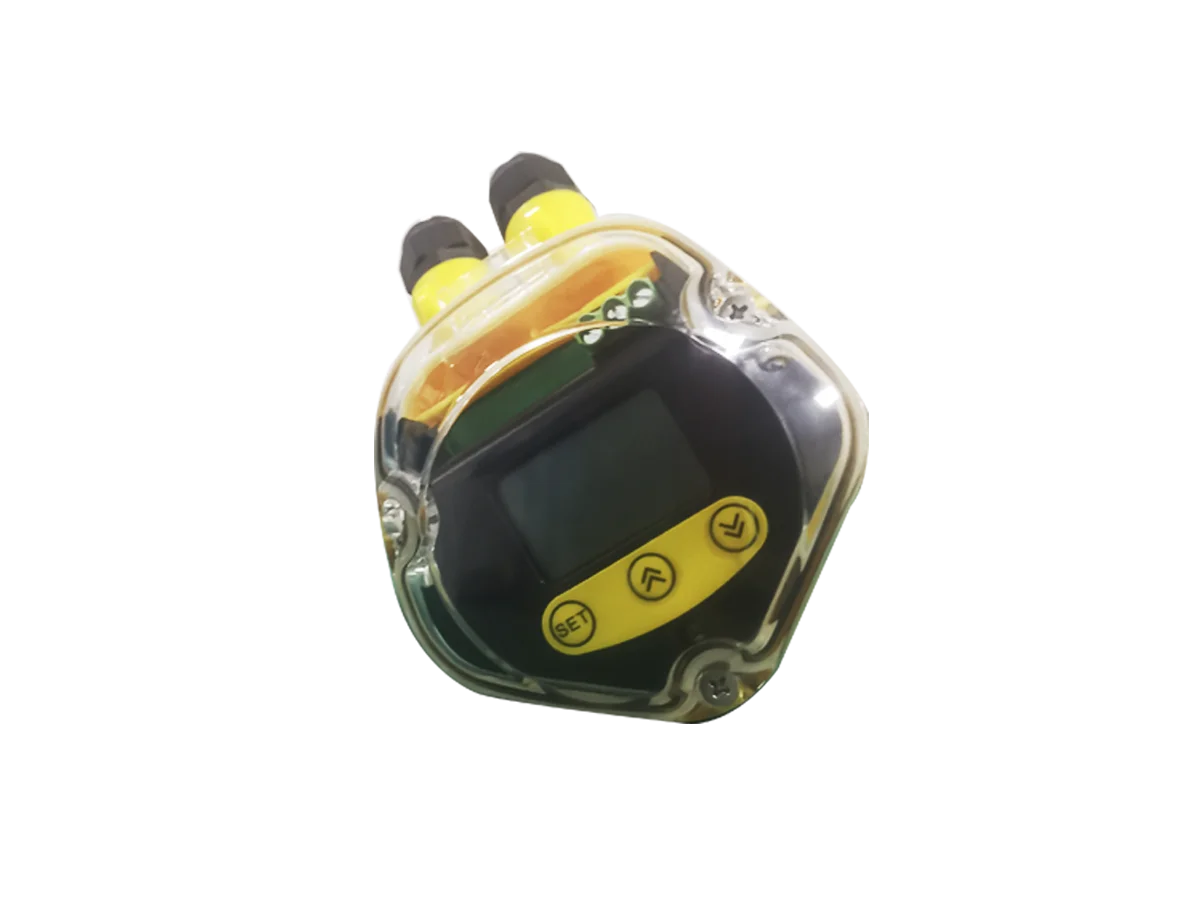

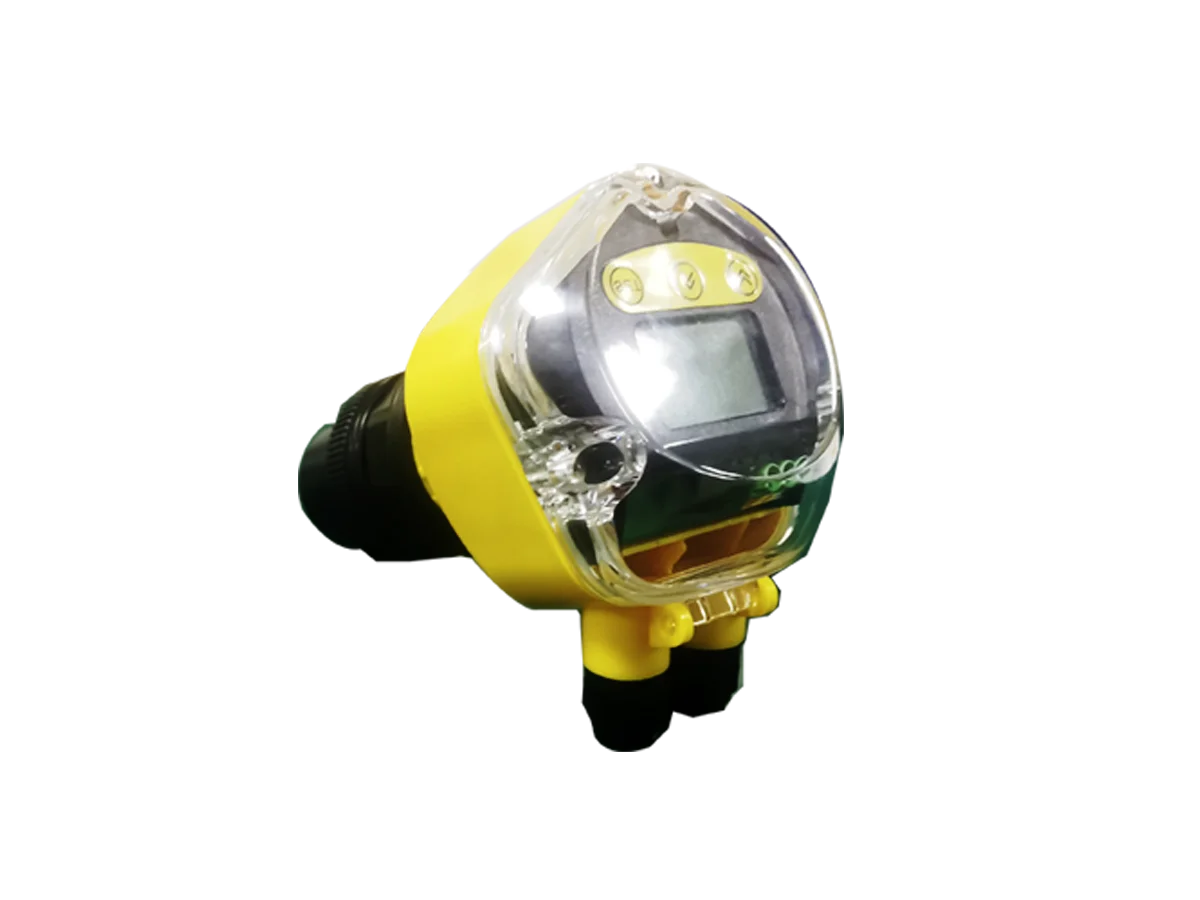

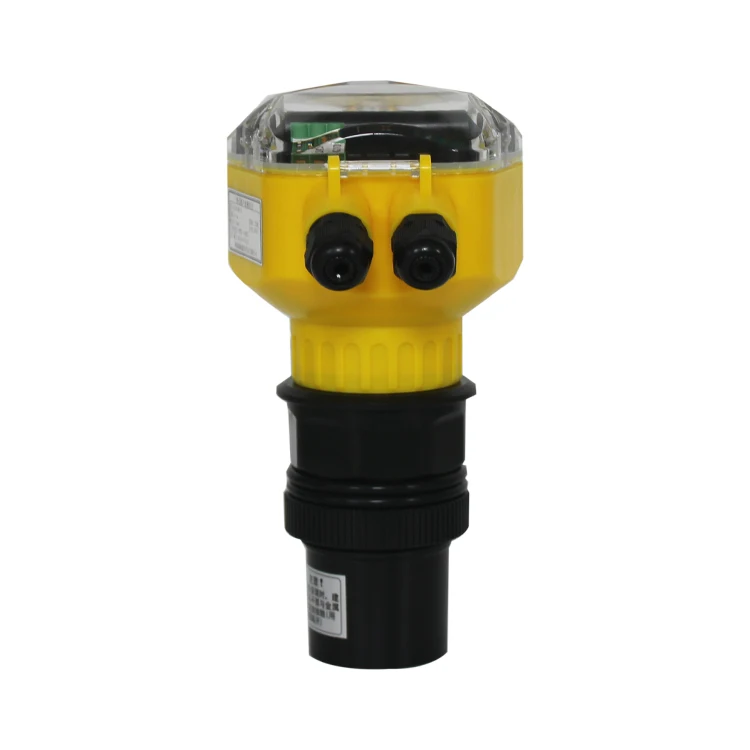

Ultrasonic level sensor is a non-contact measurement, high reliability, cost-effective, easy to install and maintain level measurement instrument.
1. Measuring range: 40m;
2. Signal output:4~20mA;
3. No corrosion;
4. Don't pressure; Note: extra charge for meeting
5. Corrosion protection probe: 6m other special needs(Corrosion resistance, pressure resistance, caliber, installation, etc)
Ultrasonic level sensor is a non-contact measurement, high reliability, cost-effective, easy to install and maintain level measurement instrument.
1. It is a low-cost measuring device reducing maintenance.
2.4~20mA analog output, optional alarm control, RS485/R232 communication mode.
3. For measuring liquids, solid particles, slurries powders etc.
4. Used in water treatment, municipal, chemical, metallurgical and mechanical manufacturing industries.
2.4~20mA analog output, optional alarm control, RS485/R232 communication mode.
3. For measuring liquids, solid particles, slurries powders etc.
4. Used in water treatment, municipal, chemical, metallurgical and mechanical manufacturing industries.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Range | liquid:0.4-30m |
2 | Process Connection | M66"2/Flange |
3 | Energy Transducer Material | PTFE, PU/PC |
4 | Temperature | -40~70 Deg C |
5 | Process Pressure | -0.02~0. 1mpa |
6 | Precision | +/-0.5% (of Full Scale/Range) |
7 | Power Supply | 24VDC (two-wire); 24VDC/220VAC (four-wire) |
8 | Signal output | 4-20mA/HART |
