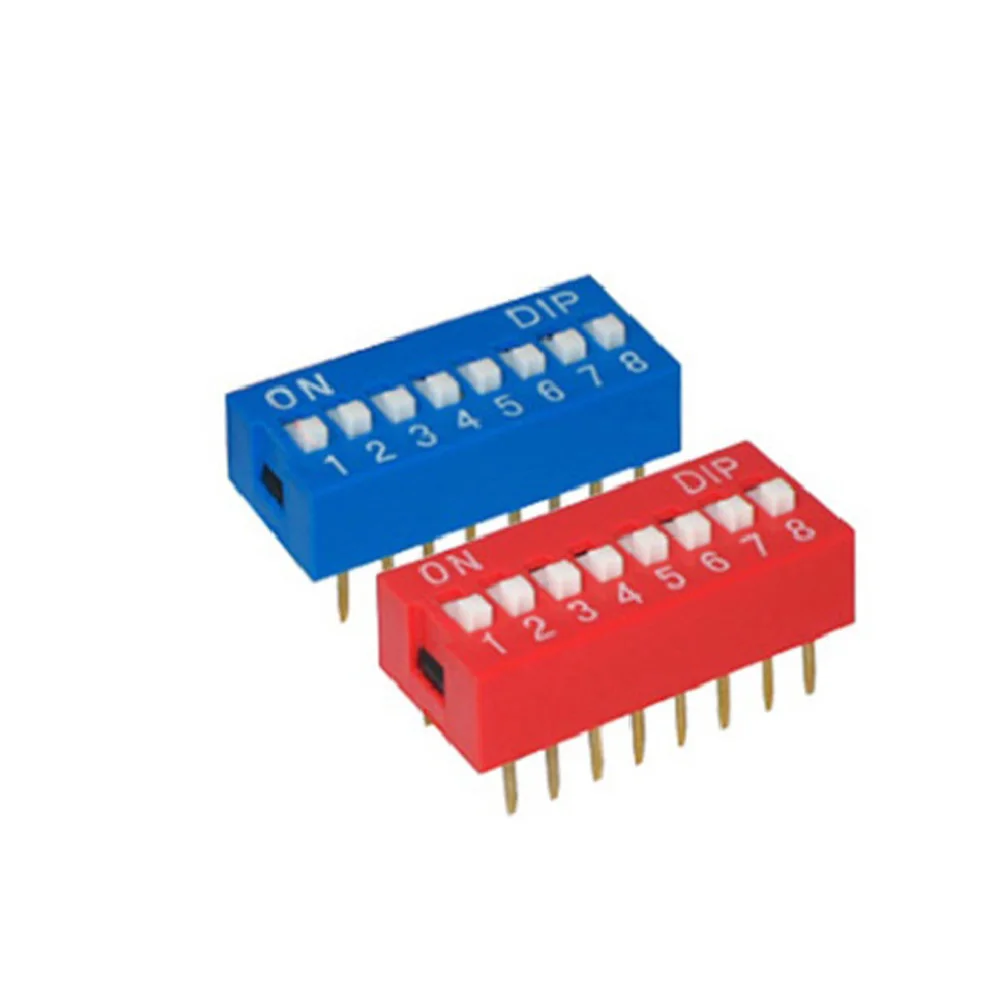

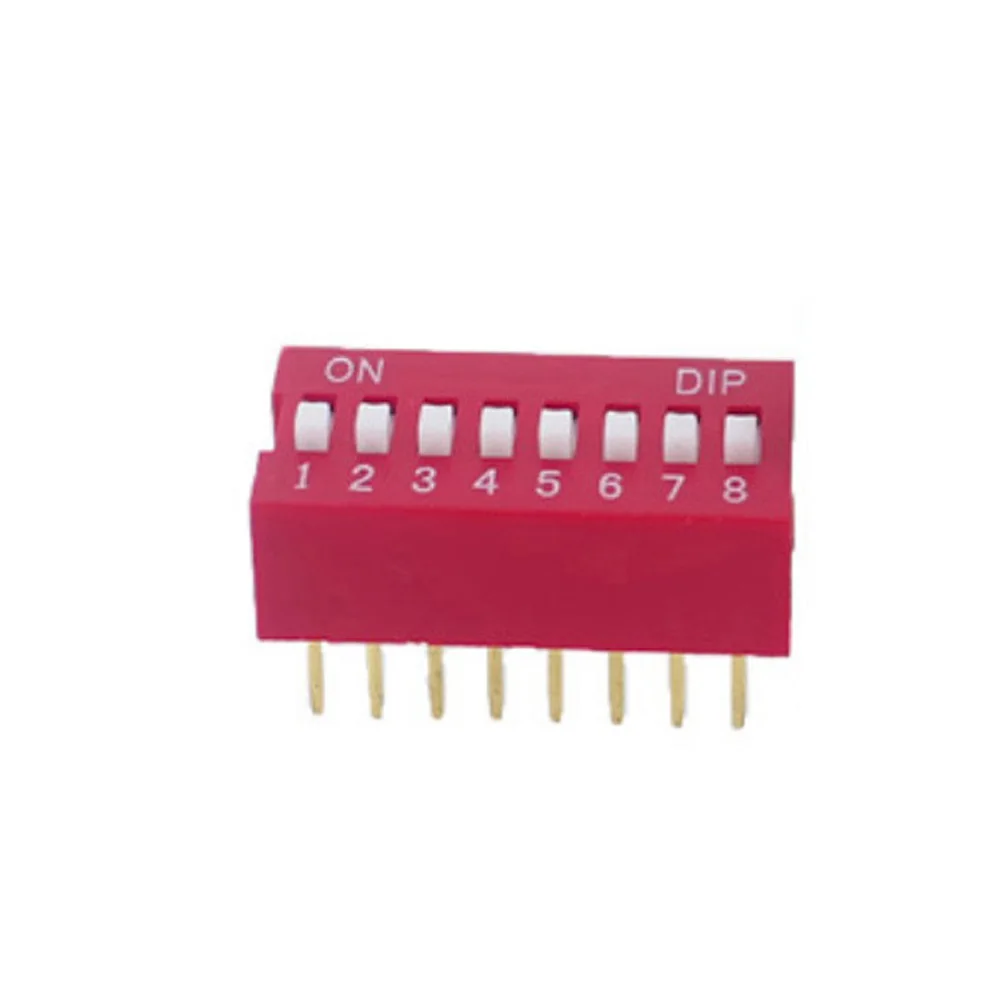

Slide Type Thru-hole Terminal 8 Position 8 Pin Dip Switch



1. Slide Type Thru-hole Terminal 8 Position 8 Pin Dip Switch
MECHANICAL
1).Operation Force	800gf max
2).Stroke	2.00mm
3).Operation Temp	-20deg C to 70deg C
4).Storage Temp	-40deg C to 85deg C
5).Positions	1.2.3.4.5.6.7.8.9.10.12
ELECTRICAL
1).Electrical Life	2000 operations cycles
2).Non-Switching Rating	100mA , 50V DC
3).Switching Rating	25mA, 24VDC
4).Contact Resistance	50mOhms max. at initial;100mOhms max.after life test
5).Insulation Resistance	100MOhms,500VDC
6).Dielectric Strength	500VAC/1 minute
7).Circuit	SPST
2. Slide Type Thru-hole Terminal 8 Position 8 Pin Dip Switch
MATERIALS
1).Base	Engineering Plastics, Black
2).Cover	Engineering Plastics, Red or Blue
3).Actuator	Engineering Plastics.White
4).Terminal	Alloy Copper, Gold Plating
5).Tape Sealed	Polyester Film
PACKAGE
DS01[157pcs]; DS02[86pcs]; DS03[62pcs]; DS04[49pcs]; DS05[40pcs];
DS06[34pcs]; DS07[30pcs]; DS08[26pcs]; DS09[23pcs]; DS10[21pcs]; DS12[18pcs].
RoHS Compliant slide type dip switch with high quality



Features/Benefits

• Traditional full profile DIP switch


• Extended actuator for easy actuation


• Open bottom construction allows for solder washing without the need for tape seal


• RoHS compliant



Typical Applications

• Address switch for industrial controls


• Logic switching for computers and peripherals


• Function controlling for numerous applications
