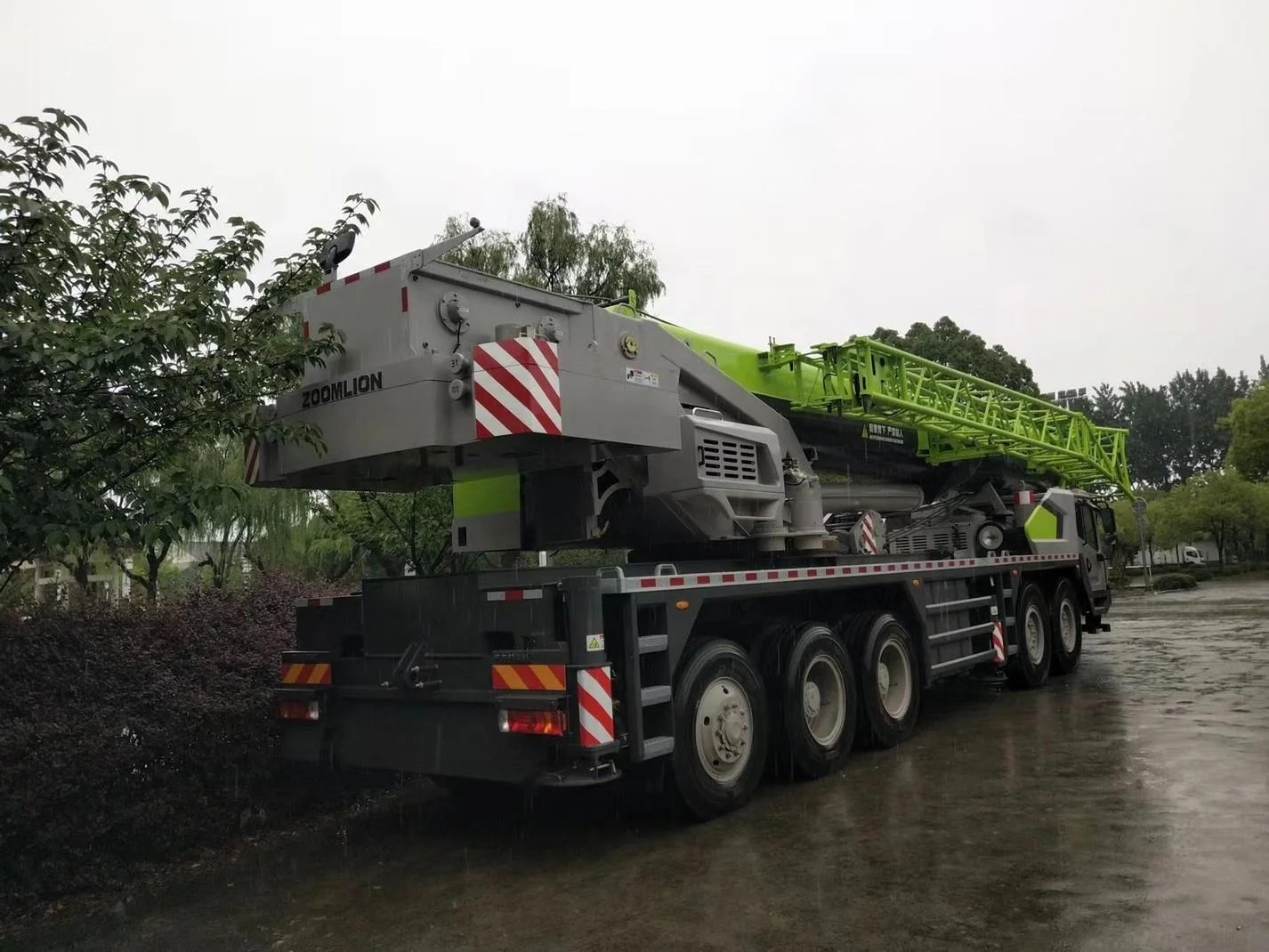

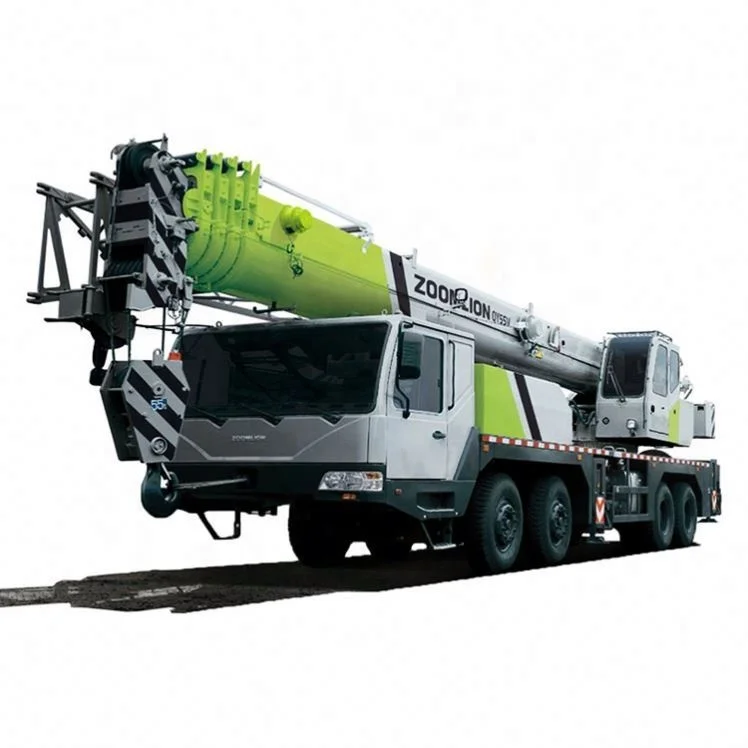

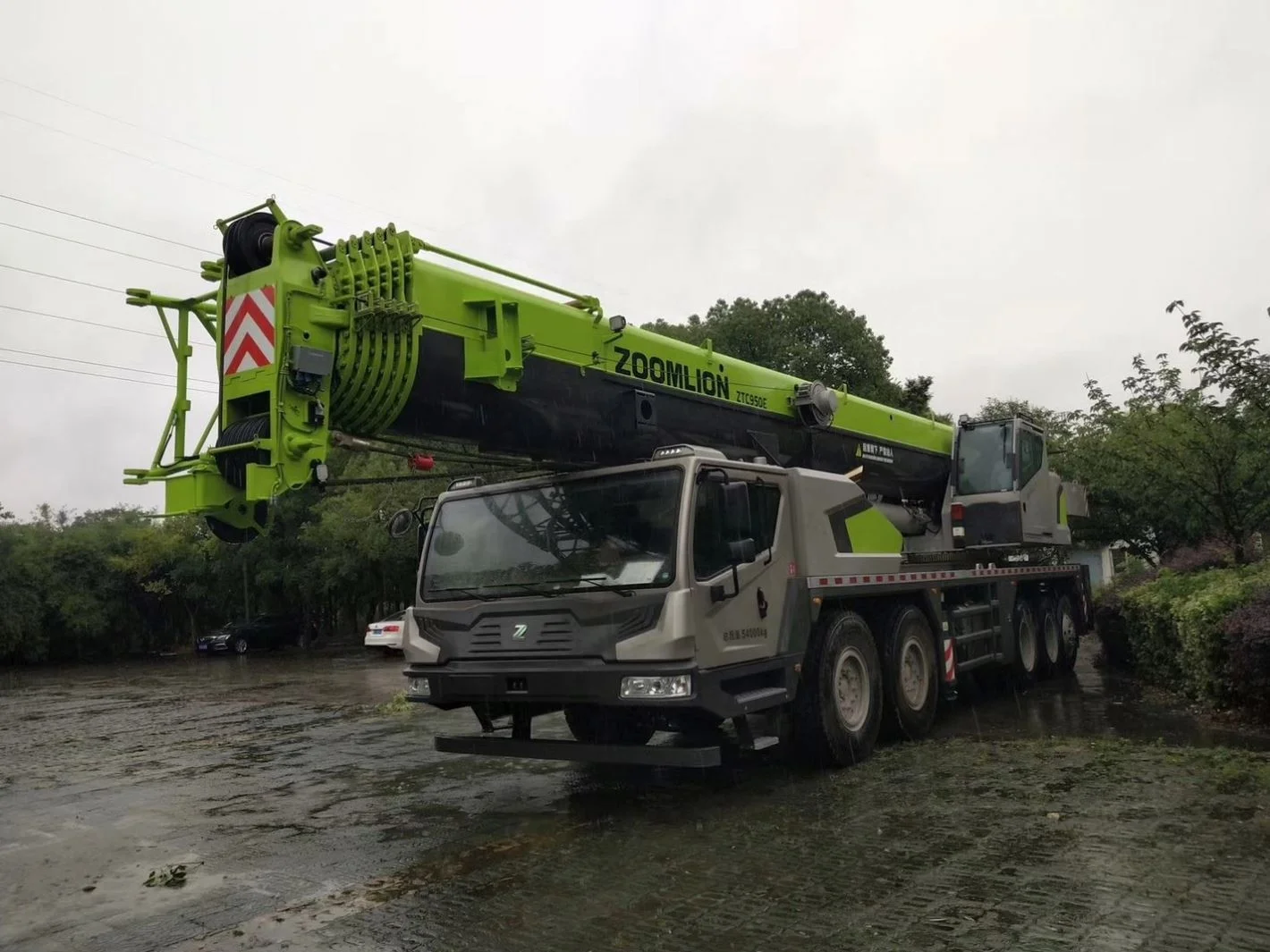

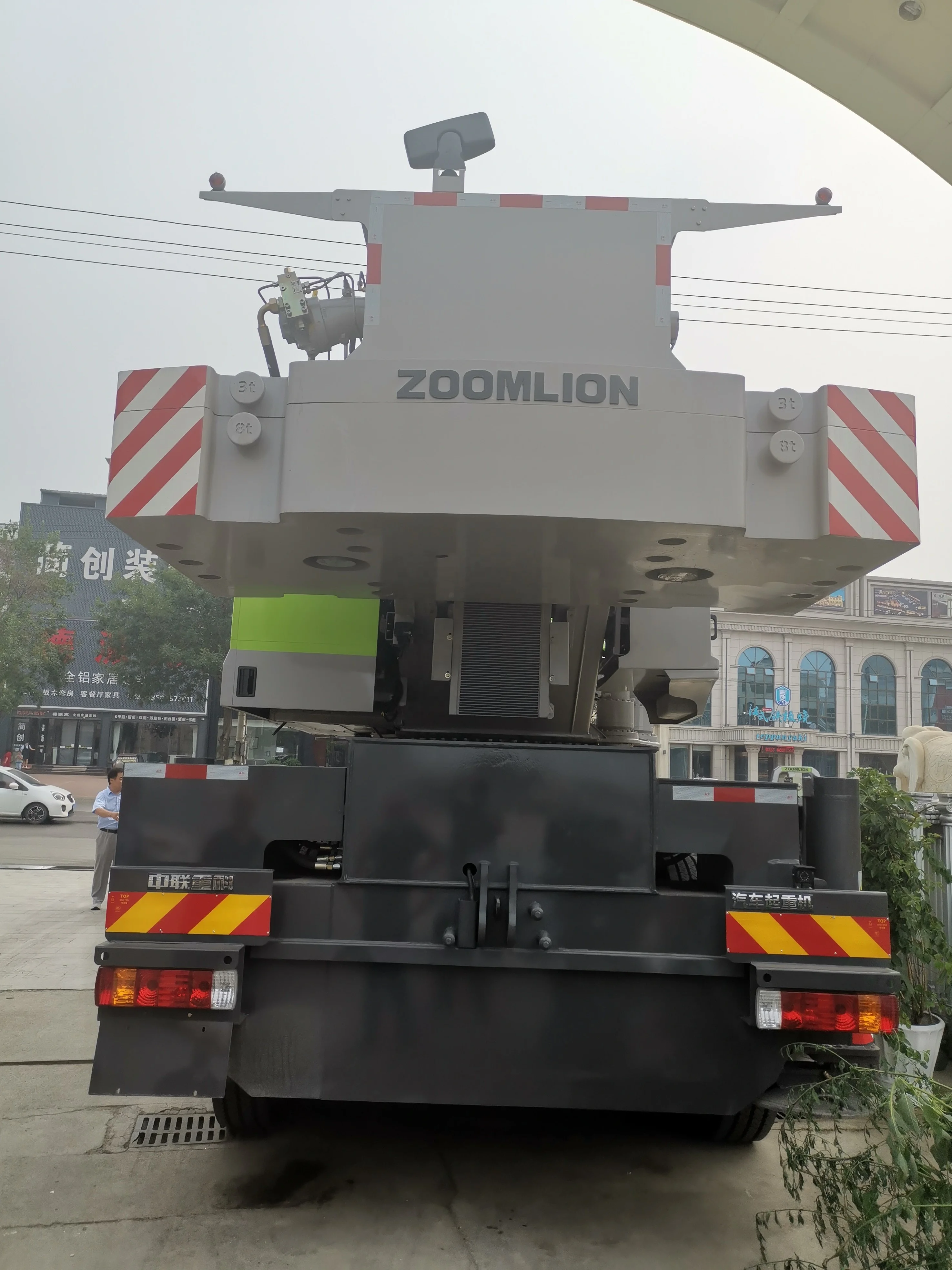

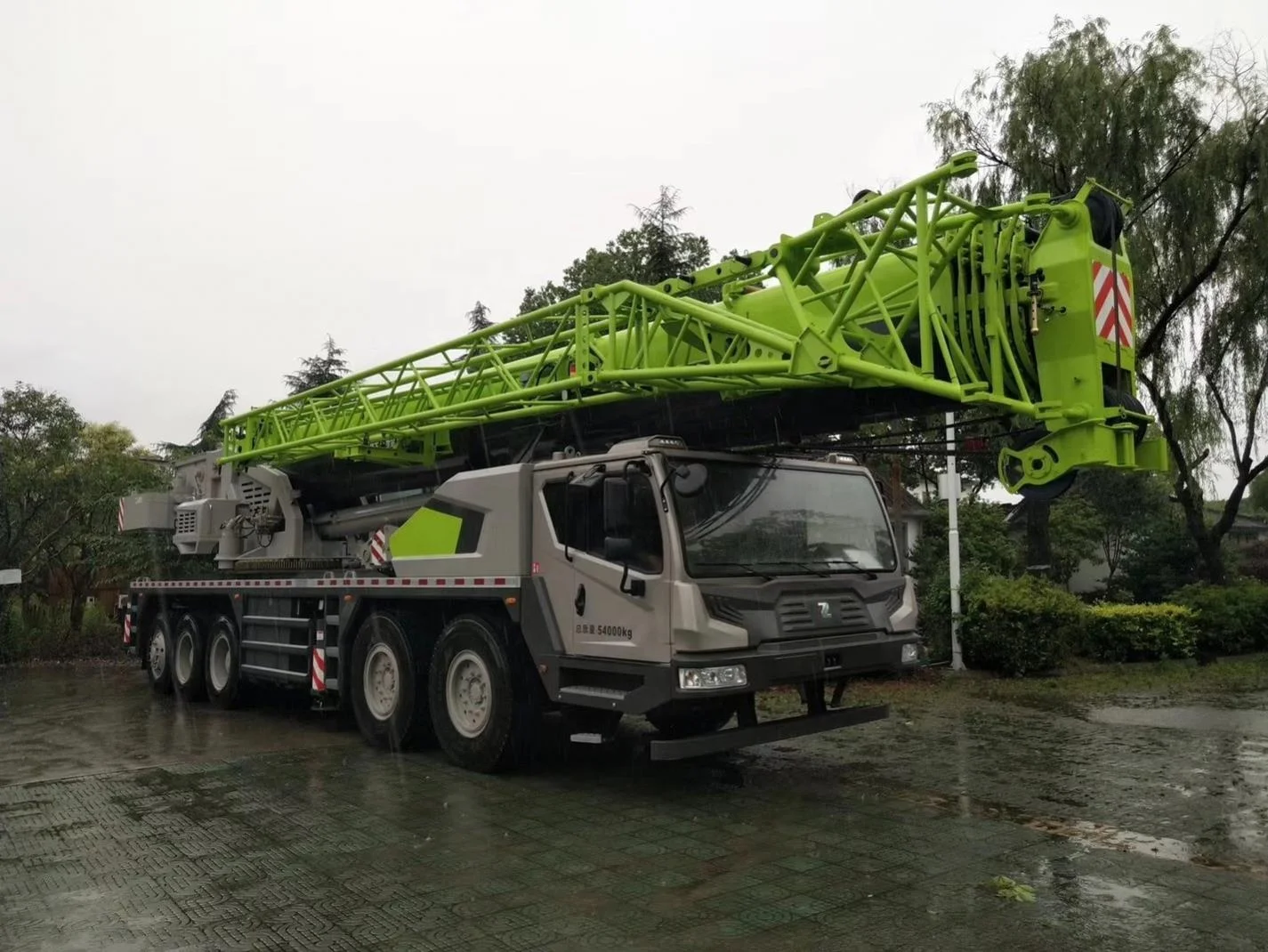

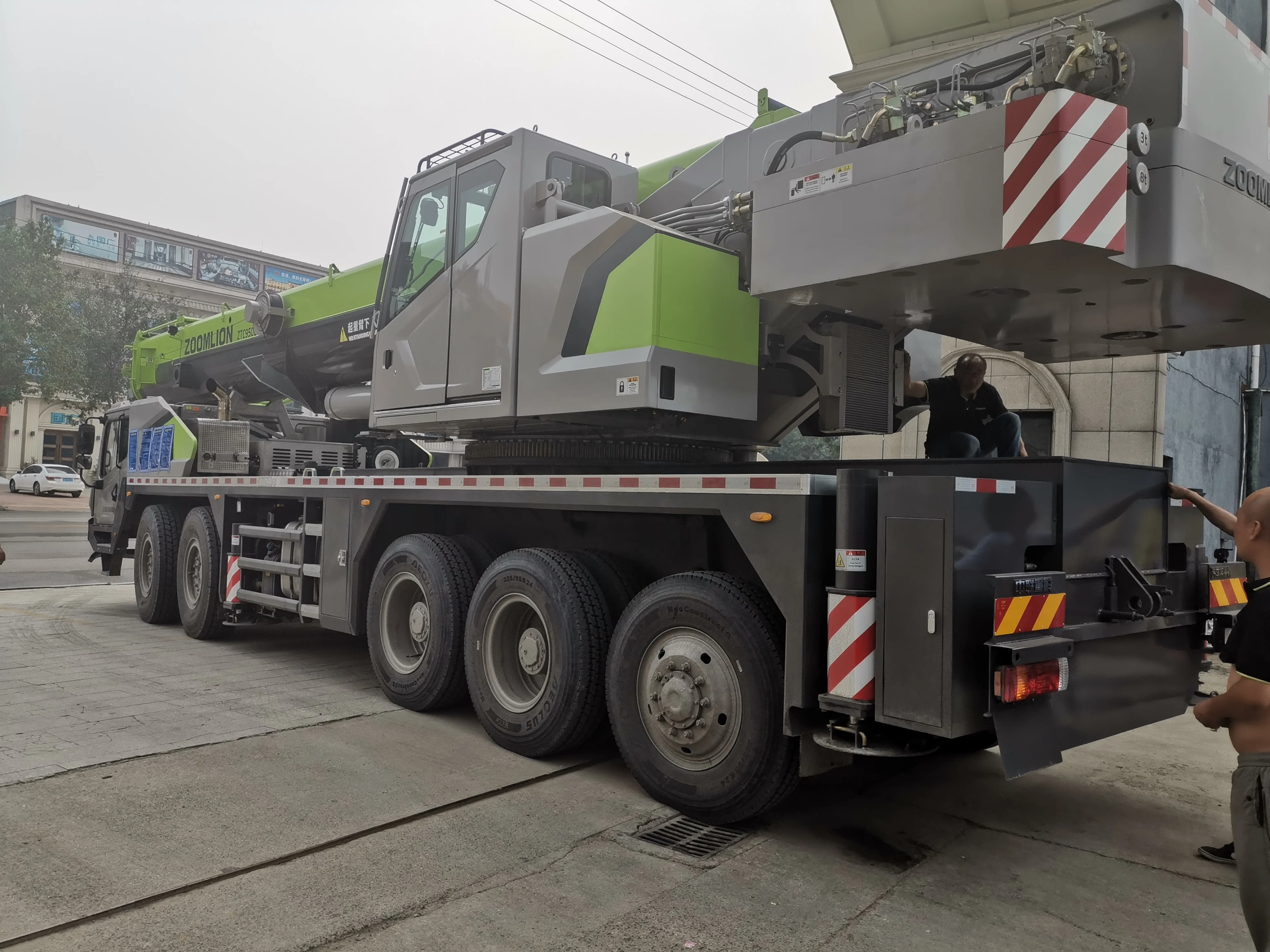

ZOOMLION Mobile 95Ton All Terrian Crane Truck Crane ZTC950E753



Contact Person: Ms. Phyllis

whatsApp/Tel/wechat:+86 15737137170

skype: wang.phyllis01

QQ:530090438



Features

Zoomlion ZTC950E753 crane



Five bridge 95 tons, 7 arms, heavy load Travel King



Chassis: five axle innovative large bearing chassis platform,
Driving normally at 50km / h with 23t counterweight
Boom: fully extended main boom 70m, maximum lifting load 7T
Main boom + 4 jibs, working height up to 97.8m
The maximum lifting load is 1.5T, and the 9.5m extended boom can be driven with the vehicle
Counterweight: the total counterweight is 34T, and the maximum operating range of main boom is 60m
Fast changing rate operation headrope + high strength anti twisting rope,
More efficient and safer operation





Parameters



Model	ZTC950E753
Max lifting weight	95 ton
Max. lifting height	87.5 m
Lifting moment	4000 kN.m
Six-section boom	63 m
Two-section lattice boom	17.5 m
Swing speed	1.5 r/min
Max. travel speed	75 km/h
Min. turning diameter	23 m
Min. ground clearance	300 mm
Max. grade ability	40%
Dead weight in driving	55 ton
