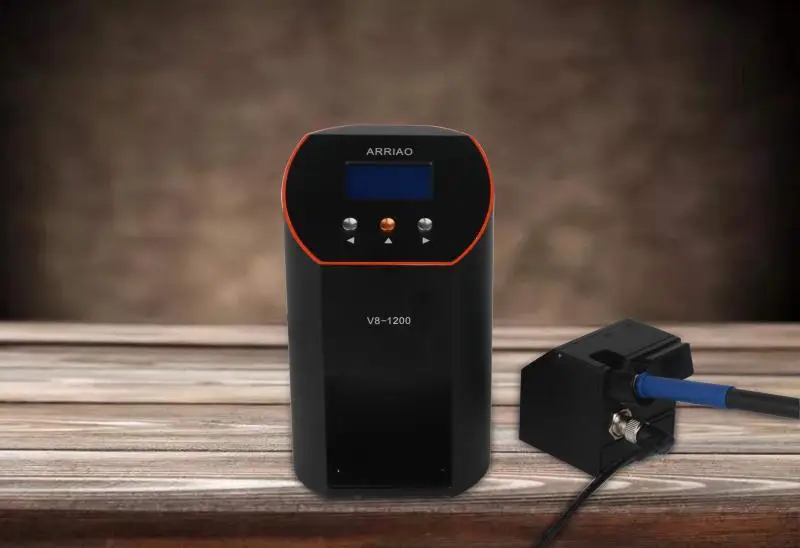

Arriao V8-1200 неэтилированный промышленного класса интеллигентая (ый) Точность паяльная

1. Functional Description:

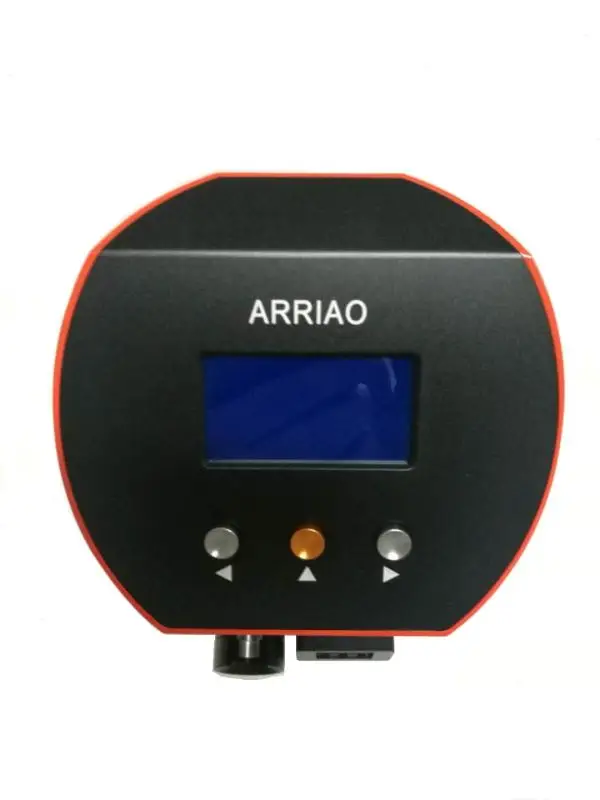

1. Support Chinese and English bilingual menu

2. Support Fahrenheit °F / Celsius °C switch

3. Support direct temperature adjustment

4. Support temperature group (fixed 4 channels): can be turned on and off; after opening, the working interface is divided into four preset temperature groups, press left and right button to switch group; and group can be customized, open grouping function in the working interface ( Pick up the handle) Press and hold the setting button to modify the selected group temperature. A total of 4 groups can be customized. The default is: 250°C, 300°C, 350°C, 400°C.

5. Support sleep, shutdown: sleep detection time can be set, 0-60 minutes can be adjusted, the default 0 minutes (put on the sleep shelf to sleep); can be turned off, will not sleep after shutdown. Sleep temperature setting: 90°C-200°C (194°F-392°F) can be adjustable, default 200°C.

6. Support hibernation (soft shutdown): hibernation time can be set, 0-60 minutes, default 10 minutes; can be closed, will not hibernate after closing.

7. Support temperature calibration (3-point curve calibration)

8. Support buzzer tone: can be turned on or off; default on; the temperature will reach the set target, menu selection and sleep prompts.

9. Support step setting : 1-50 ° C (1-50 ° F) can be set, the default 5 (Press the button when adjusting the temperature, the number of temperature changes is 5).

10. Support for power-on status presets: work, sleep, hibernate, default work;

11. Support V8-100 and V8-200 handles

2. Parameter introduction:

Temperature control range: 90~450°C/194-842°F

Working environment temperature: 10-40 ° C / 50-104 ° F

Temperature difference range: ±1 °C

Heating time: 1~2 seconds

Power: 100W

Voltage: 230V and 115V are optional

Tip and ground voltage: <2mV RMS

Tip and ground resistance: <2 ohms

Input fuse: T1A (220V - 230V), T2A (110V - 120V)

Output peak power: with V8-100 (100W/23.5V); with V8-200 (45W/23.5V)

 Size and weight: Product size: φ115*188 (mm); Product weight: 3KG

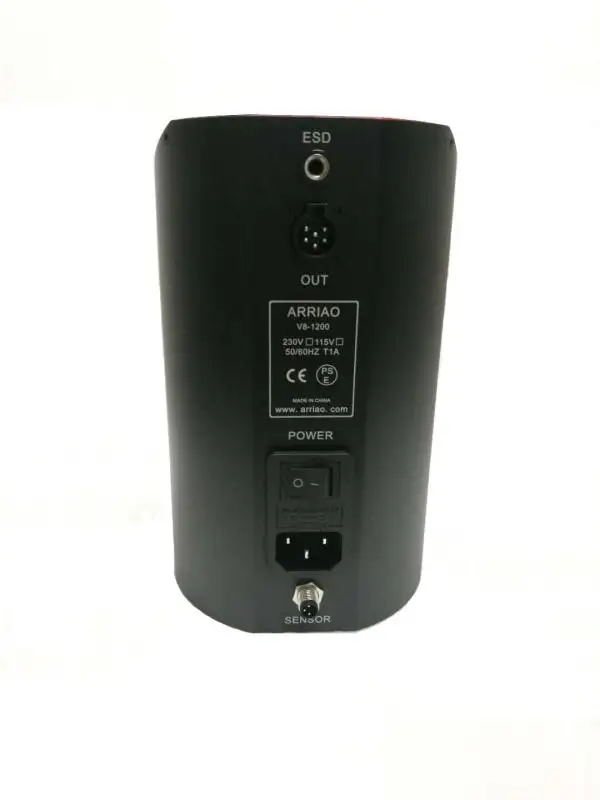

 It conforms to CE standards and has anti-static function. ESD jacks can be grounded.

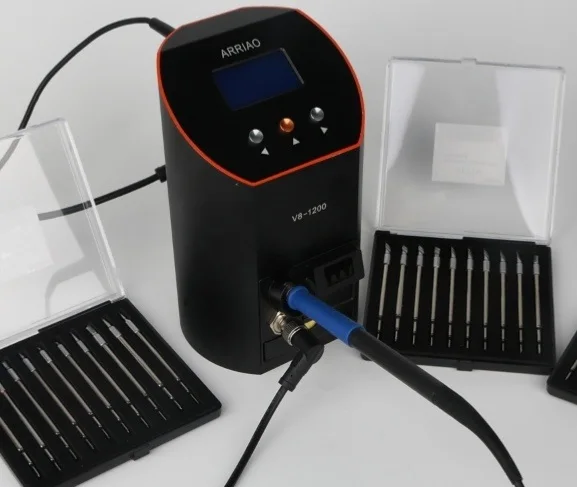

3. Product Package

 1. V8-1200 tool control unit

 2. V8-100 and V8-200 precision handles

 3. Cleaning components: copper wire ball and wood pulp sponge

 4. Sensing cable

 5. Power cable

4. Product Advantages

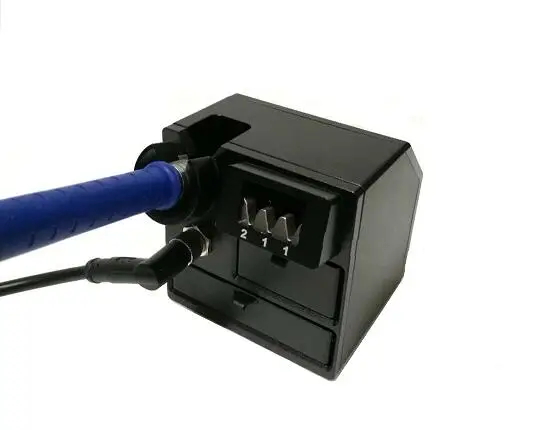

1. The soldering iron frame can be combined with the soldering station or can be separately, saving space.

2. It can quickly change the tip and has intelligent detection and protection functions.

3. With perfect protection mechanism and fault self-checking function, when the soldering iron tip is damaged or faulty, it can make a prompt to help the user make a judgment.

4. The temperature increase temperature is faster 1S, the temperature difference is smaller ±1 °C.

5. There is temperature calibration function, when the soldering iron tip is used for a long time or when there is error in replacing different types of soldering iron tips, the user can use this function to correct the error.

6. Support V8-100 and V8-200 handles, the system can automatically identify and provide corresponding power support when inserting different handles.

7. When the handle is inserted into the handle frame, the temperature control system can automatically sense sleep to prevent the damage of the soldering iron tip; when inserting the socket of the replacement soldering iron tip, the system can also automatically sense and enter the soft shutdown state to prevent short circuit during the replacement process.

8. PID temperature control, the soldering station automatically adjusts the output power according to the size of the solder joint to obtain the best soldering effect, the light load power is small, and the heavy load power is large. It is better than the fixed power of the traditional soldering station, and it also saves unnecessary power consumption.
