solid tire for skid steer forklift boomlift Scissors lift loader
- Категория: Material Handling Equipment Parts >>>
- Поставщик: Shuanglun,Tires,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.94 $* | 0.56 $* |
| Aug-17-2025 | 0.62 $* | 0.97 $* |
| Jul-17-2025 | 0.17 $* | 0.67 $* |
| Jun-17-2025 | 0.69 $* | 0.94 $* |
| May-17-2025 | 0.67 $* | 0.29 $* |
| Apr-17-2025 | 0.15 $* | 0.26 $* |
| Mar-17-2025 | 0.20 $* | 0.31 $* |
| Feb-17-2025 | 0.73 $* | 0.55 $* |
| Jan-17-2025 | 0.61 $* | 0.72 $* |
Характеристики
Solid Tires for different Applications
Product Description
Solid Skid Steer tire
Characteristic:
1. Deep tread lugs to give good traction in mud and loose soil
2. Extra wide profile lugs for maximum stability
3. Tread compound optimised to give superior wear
4. Stepped tread design to assist self cleaning
5. Convex sidewall design for increased wheel protection
Specification:
| Tire Size | Type | Alternative Tire Size | OD(mm) | SW(mm) | Weight/Set (Tire+wheel) (KGS) |
| 30x10-16 | Rim type | 10-16.5 | 756 | 236 | 91 |
| 31X6X10 | Non-detachable type | 10-16.5 | 756 | 236 | 110.7 |
| 31X6X11 | Non-detachable Type | 12-16.5 | 840 | 280 | 133.5 |
| 31X10-16 | Rim type | 10-16.5 | 800 | 236 | 102.8 |
| 33X12-20 | Rim type | 12-16.5 | 840 | 280 | 136.2 |
Solid forklift tires
1. Three-story structure is adopted.
2. Wear-resistant and tearing tread adhesive---tear resistance, abrasion resistance,low heat generation, suitable for long-term use.
3. High elastic intermediate adhesive--reduce internal heat, strong shock absorption, high elasticity, good buffer effect, comfortable driving, extend service life.
4. High rigid base rubbe-high strength steel wire ring, improve the best fit between tire and rim, prevent idling slip.
| No | Tyre Size | Rim | Pattern | Dimension | Load (KG) 10km.h | ||
| OD (mm) | SW (mm) | Load wheel | Rotation wheel | ||||
| 1 | 3.50-5 | 3.00D | SM-2/S502/S306A | 297 | 100 | 555 | 420 |
| 2 | 4.00-8 | 2.75 | S325 | 423 | 121 | 1000 | 770 |
| 3 | 4.00-8 | 3.00D | SM-1/SM-2/S301/S325/S502 | 423 | 121 | 1090 | 840 |
| 4 | 4.00-8 | 3.75 | S325 | 423 | 125 | 1175 | 905 |
| 5 | 5.00-15 | 4.5 | S502 | 677 | 146 | 2000 | 1500 |
| 6 | 6.00-9 | 4 | SM-1/SM-2/S301 | 545 | 160 | 1975 | 1520 |
| 7 | 6.50-10 | 5 | SM-1/SM-2/S301/S304 | 597 | 178 | 2715 | 2090 |
| 8 | 6.50-16 | 5.5 | S502 | 749 | 187 | 3545 | 2725 |
| 9 | 7.00-9 | 5 | S301 | 578 | 186 | 2670 | 2055 |
| 10 | 7.00-12 | 5 | SM-1/SM-2/S301 | 683 | 192 | 3105 | 2390 |
| 11 | 7.00-15 | 5.5 | S301 | 759 | 204 | 3700 | 2845 |
| 12 | 7.00-15 | 6 | S502 | 774 | 215 | 4145 | 3190 |
| 13 | 7.00-15 | 6.5 | S502 | 774 | 215 | 4490 | 3455 |
| 14 | 7.50-16 | 5.5 | S502 | 820 | 220 | 4035 | 3150 |
| 15 | 7.50-16 | 6 | S502 | 820 | 230 | 4400 | 3385 |
| 16 | 7.50-16 | 6.5 | S502 | 820 | 230 | 4770 | 3670 |
| 17 | 8.25-12 | 5 | S301 | 735 | 236 | 3425 | 2635 |
| 18 | 8.25-15 | 6.5 | SM-1/SM-2/S301 | 847 | 236 | 5085 | 3910 |
| 19 | 8.25-20 | 6.5 | SM-2 | 992 | 236 | 5165 | 4305 |
| 20 | 9.00-20 | 6.5 | S301 | 1038 | 259 | 6160 | 5135 |
| 21 | 10.00-20 | 8 | S301 | 1073 | 278 | 7300 | 6085 |
| 22 | 11.00-20 | 8 | S301 | 1095 | 300 | 7715 | 6430 |
| 23 | 12.00-20 | 8.5 | S301 | 1180 | 310 | 8920 | 7435 |
| 24 | 14.00-24 | 10 | S301 | 1368 | 375 | 12165 | 10135 |
| 25 | 16*5-9 | 3.5 | S325 | 406 | 125 | 1100 | 960 |
| 26 | 28*9-15 | 7 | SM-1/SM-2/S301/S304/S502 | 706 | 225 | 4060 | 3215 |
| 27 | 28*12.5-15 | 9.75 | SM-1 | 730 | 317 | 6200 | 4770 |
| 28 | 250-15 | 7 | SM-1/SM-2 | 735 | 250 | 5220 | 4015 |
| 29 | 300-15 | 8 | SM-1/SM-2/S301 | 838 | 300 | 6895 | 5305 |
| 30 | 355/65-15 | 9.75 | S301 | 826 | 372 | 7800 | 6000 |
| 31 | 355/50-20 | 10 | S301 | 847 | 367 | 8970 | 6900 |
| 32 | 5.00-8 | 3 | SM-1/SM-2/S301 | 469 | 146 | 1255 | 965 |
| 33 | 15*4 1/2-8 | 3 | SM-1/SM-2/S301 | 380 | 114 | 1005 | 775 |
| 34 | 16*6-8 | 4.33 | SM-1/SM-2/S301 | 418 | 162 | 1545 | 1190 |
| 35 | 18*7-8 | 4.33 | SM-1/SM-2/S301 | 457 | 170 | 2430 | 1870 |
| 36 | 21*8-9 | 6 | SM-1/SM-2/S301 | 535 | 207 | 2890 | 2225 |
| 37 | 23*9-10 | 6.5 | SM-1/SM-2 | 595 | 225 | 3730 | 2870 |
| 38 | 23*10-12 | 8 | SM-1/SM-2 | 595 | 261 | 4450 | 3425 |
| 39 | 27*10-12 | 8 | SM-1/SM-2 | 683 | 261 | 4450 | 35353 |
| 40 | 140/55-9 | 4 | SM-1 | 375 | 147 | 1380 | 1060 |
| 41 | 200/50-10 | 6.5 | SM-1/SM-2/S301 | 460 | 221 | 2910 | 2240 |

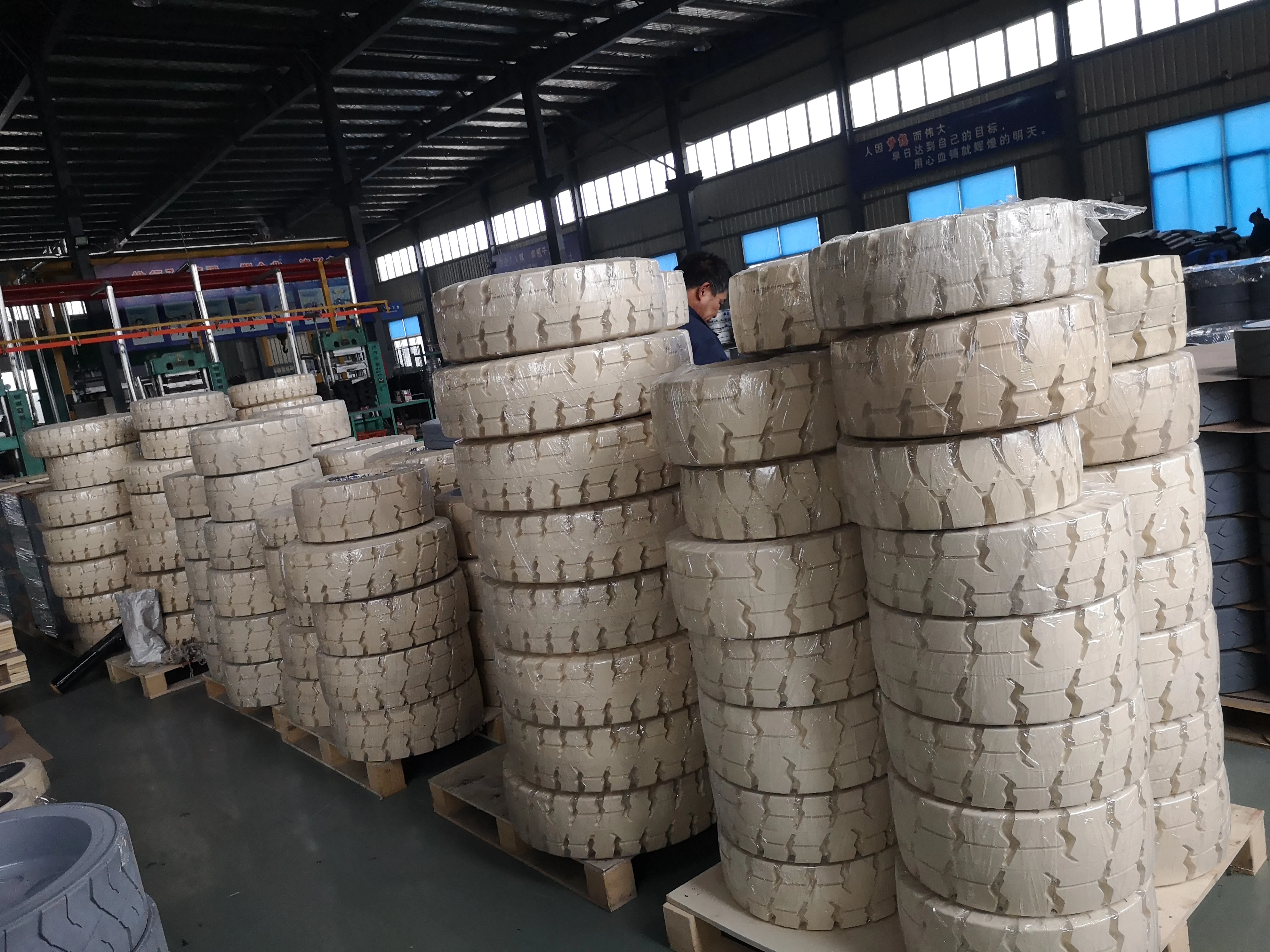

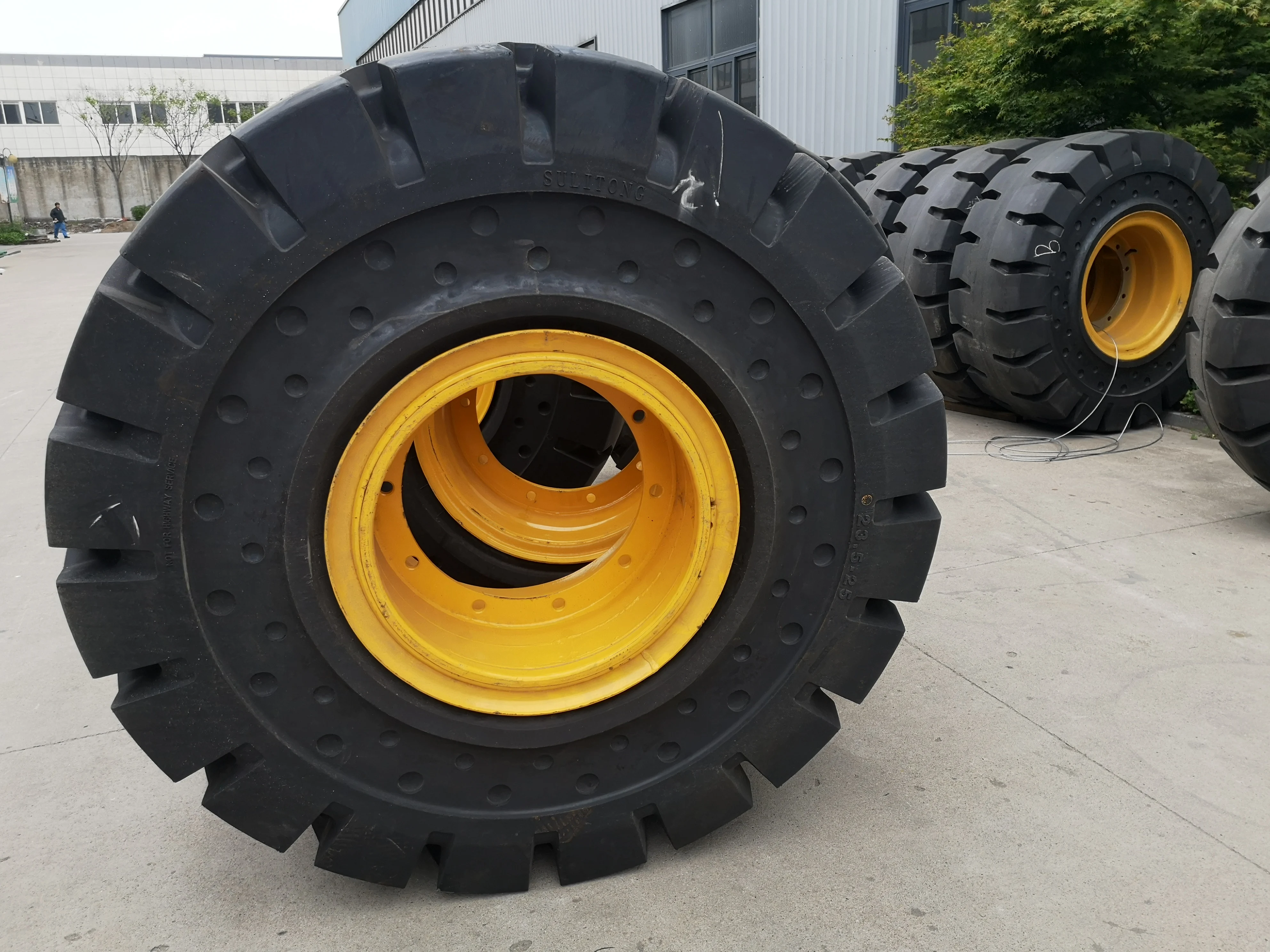

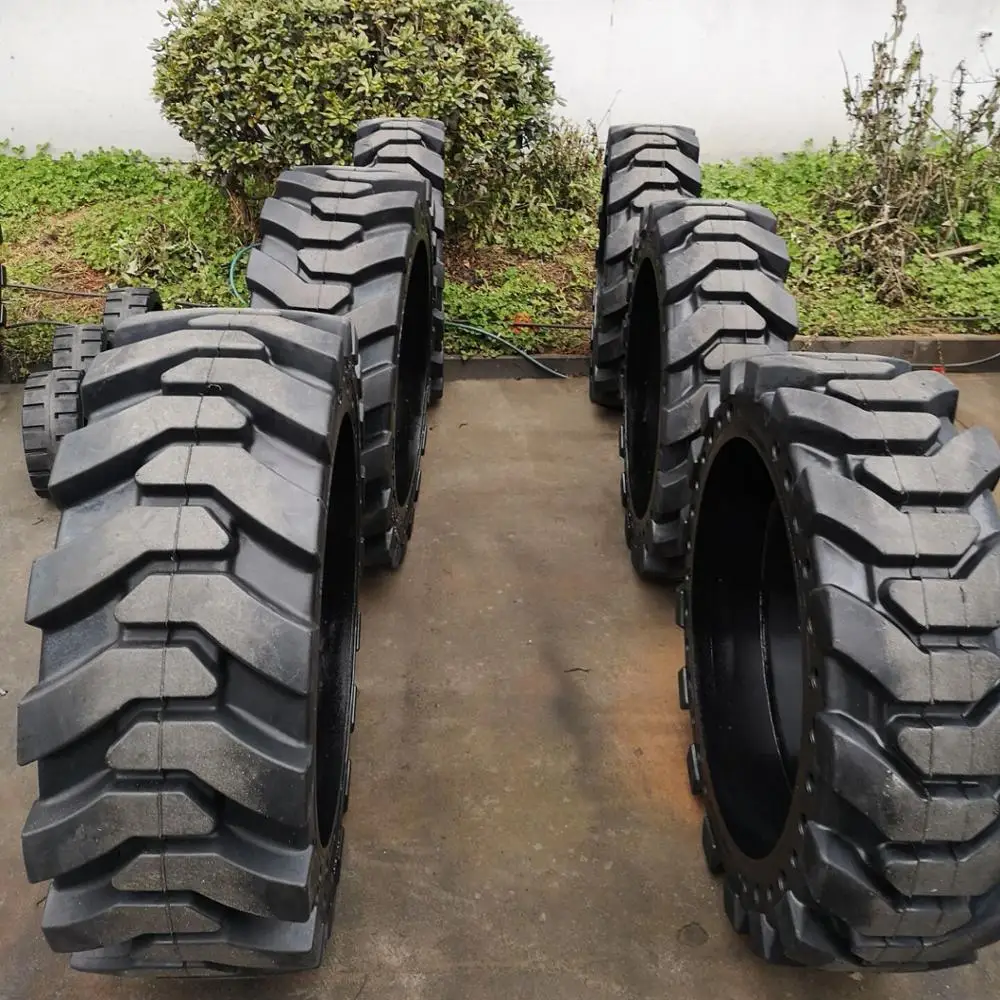

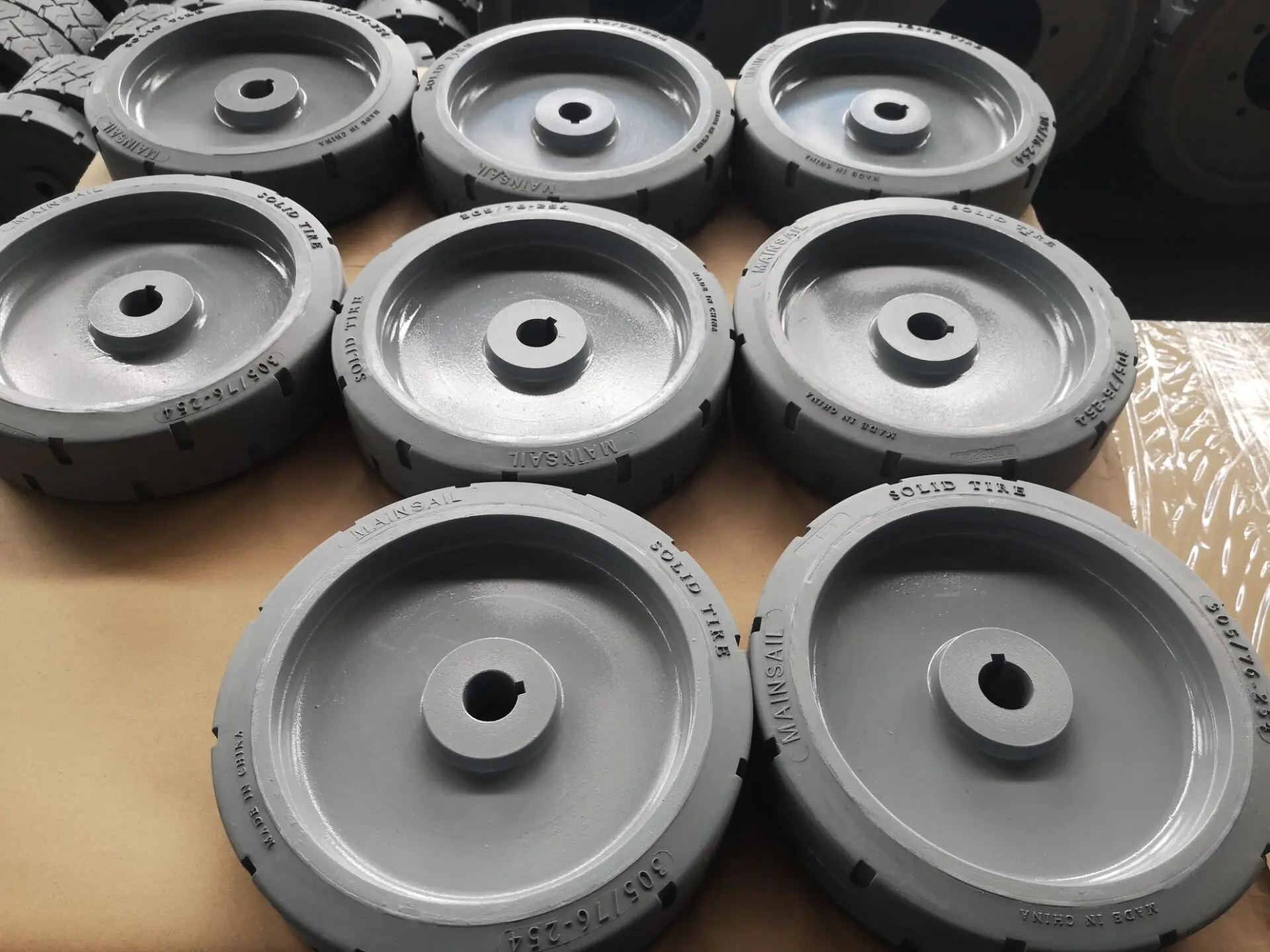

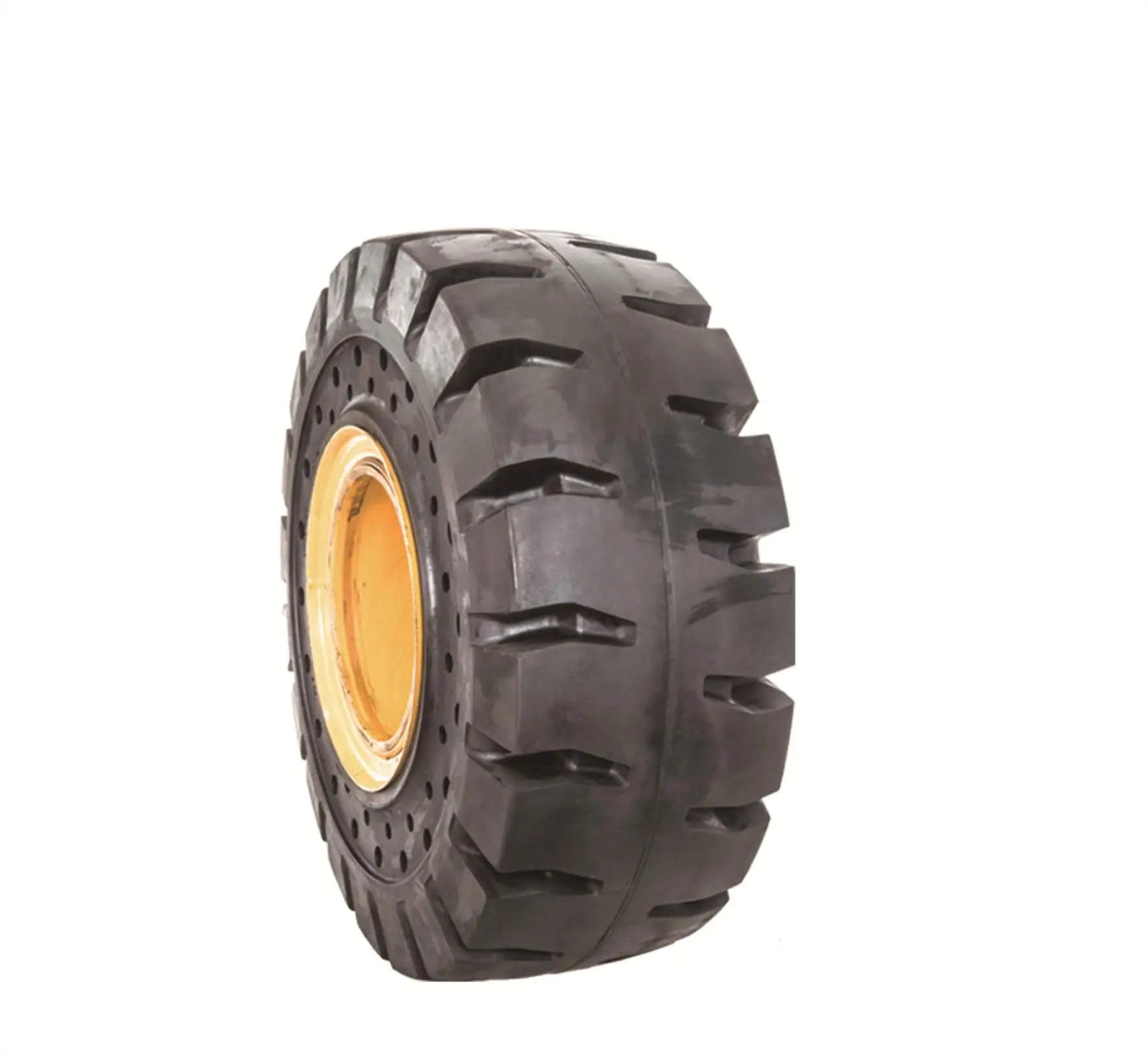

Real Pictures

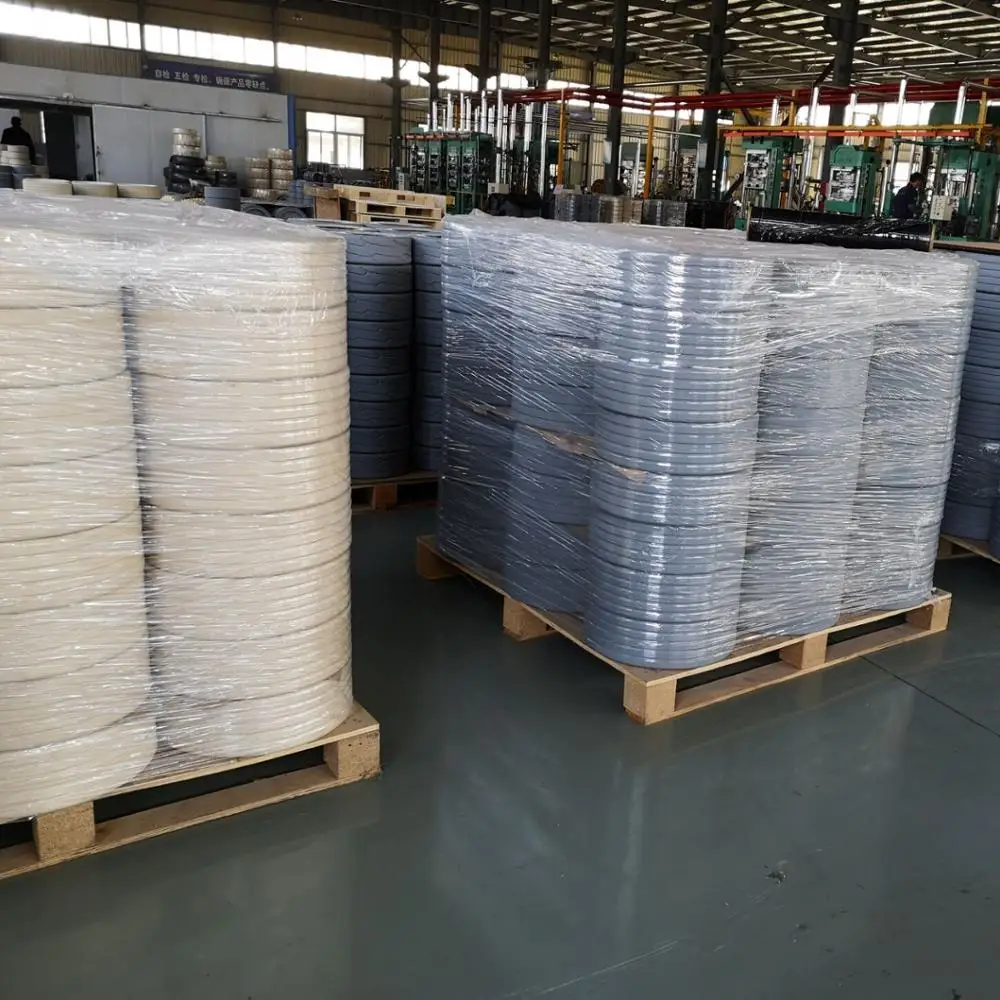

Packing & Shipping
1, Packing:
Our package is different according to clients' different requirements for Solid tyre.
2, Delivery time:
Shipment to be made within 30 days upon receipt of deposit.
Company Information
We TNR International Company Limited is dedicated to providing quality products,
competitive price and the better customer service for OFF-THE-ROAD TIRES to be used on:
- Construction Machinery (Loader, ADT, Skid-Steer, Grader)
- Heavy Equipment
- Mining Equipment
- Harbour Equipment
- Transportation (Truck, Bus, Car,Trailer)
- Agricultural/Irrigation Equipment (Tractor, Combine Harvester, Trailer)
- Forestry Machine (Harvester, Forwarder, Skidder)
- Material Handling (Reach stacker, Forklift)
FAQ
1. How to gurantee the tires quality?
We have different warranty for different tyres. We Shuanglun tires warrants that every new purchased from Shuanglun , is free from any manufacturing defects for a period of 1 year minimum(consult our sales representatives for other situations) , from the date of shipment from Shuanglun tires.
2. What is the payment?
T/T: the most effective payment which can insure the delivery time of your tires.
L/C: L/C at sight from good credit bank is acceptable.
3. What is the delivery time?
within 30days upon receipt of your deposit.
For tyres with enough stock, we can delivery them immediately upon receipt of your deposit.
We are ready to answer your questions 24/7.
If need more information, please contact us freely.
Contact us
Lily Shen
Wechat: +86-183 2183 0307
Cell Phone(Whats App): +86-150 0060 3979
Skype: Slily32861
Tel: (+86)(21) 6117 8252
Warranty
