SY1000 вибро сита для муки соли грибного


Поделиться:


Цена:2 620,00 $ - 2 720,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 3118.51 $* 3274.87 $*
Aug-18-2025 3092.63 $* 3247.73 $*
Jul-18-2025 2594.4 $* 2724.42 $*
Jun-18-2025 3039.36 $* 3191.45 $*
May-18-2025 2646.25 $* 2778.80 $*
Apr-18-2025 2987.61 $* 3136.10 $*
Mar-18-2025 2961.12 $* 3109.80 $*
Feb-18-2025 2934.46 $* 3081.89 $*
Jan-18-2025 2908.82 $* 3053.66 $*

Характеристики


SY1000 vibro sieves for flour , salt ,mushroom powder



Product Description


The Application Area of vibrating screen separation machine
1.Grading: separation of particles into groups of comparable size from the materials.
2.Filtering: removal of solids from liquids and slurries.
3.Reclamation: removal of the solids from waste product or clarification of waste liquor for further use.
4.Screening: separation of a few oversize particles from a quantity of materials.
5.Liquid cleaning: cleaning of wastewater or removing the solids from recirculation liquid.


15
Food industry: flour, milk powder, starch, fish meal, rice flour, quinoa, vitamin, spices, dextrin, drinks, juice, sugar, soy sauce, pineapple juice, yeast, the mother liquor etc
Chemical industry: Paint, tree cosmetics, PVC tree of cosmetics, citric acid, PE powder, washing powder, etc
Pharmaceutical industry: Pharmaceutical intermediates, medical auxiliary materials, this solution, west powder, and west solution, etc
Ceramic abrasive metallurgy industry: bentonite, attapulgite clay, aluminum silver pulp, mud, kaolin, quartz sand, alumina, artificial black aluminum, graphite, silicon carbide, spray soil grain, emery, iron powder, titanium dioxide, electrolytic copper powder, etc.


sieving machine 6





Structure


vibrating screener 6





Technical Parameters


 Technical parameters of rotary vibrating screen





































































































































ModelScreen DeckScreen DiameterMotor PowerDimensions(mm)Weight
SY-4001400mm0.25KW580×580×56055kg
2400mm580×580×67065kg
3400mm580×580×78075kg
SY-6001600mm0.55KW800×800×75098kg
2600mm4575×1546×890118kg
3600mm4854×1549×1030138kg
SY-8001800mm0.75KW900×900×750158kg
2800mm4765×2159×890196kg
3800mm4765×2159×1030238kg
SY-100011000mm1.47KW1160×1160×810245kg
21000mm1160×1160×950305kg
31000mm1160×1160×1090365kg
SY-120011200mm1.84KW1360×1360×885330kg
21200mm1360×1360×1050408kg
31200mm1360×1360×1275488kg
SY-150011500mm2.2KW1850×1850×990478kg
21500mm1850×1850×1185578kg
31500mm1850×1850×1380678kg

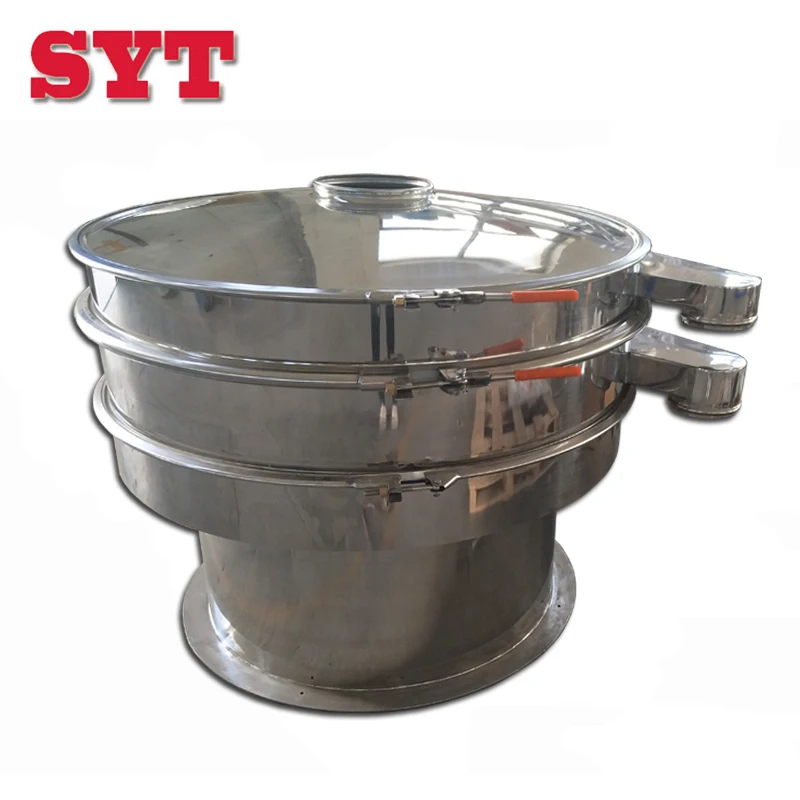

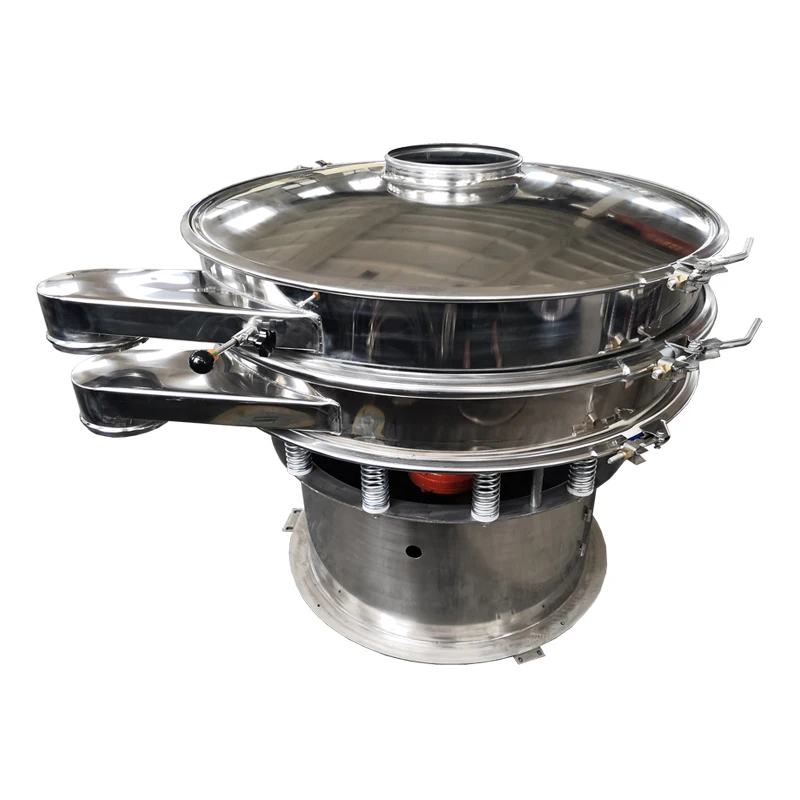

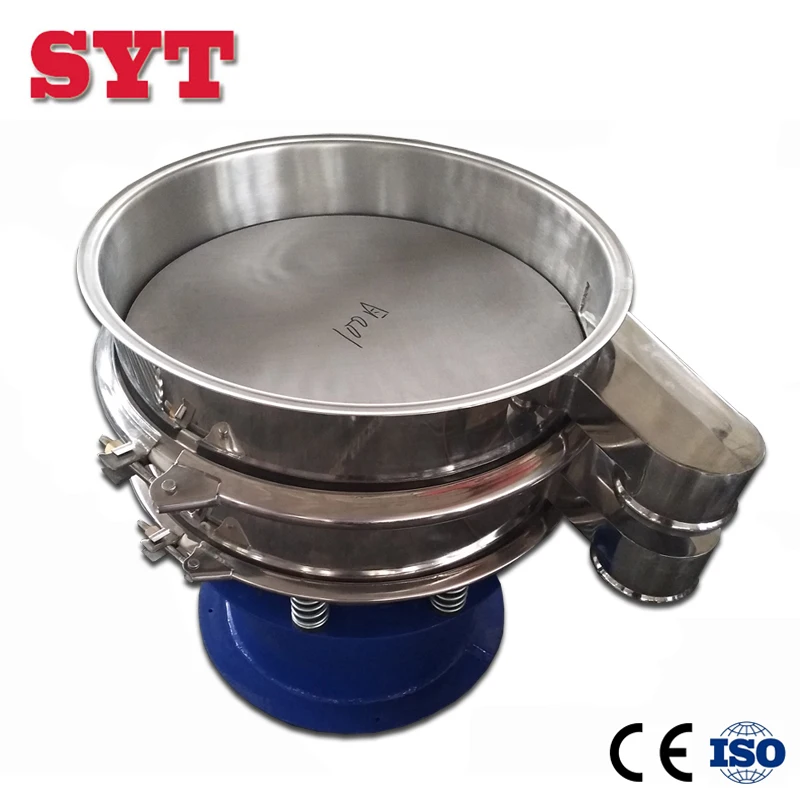

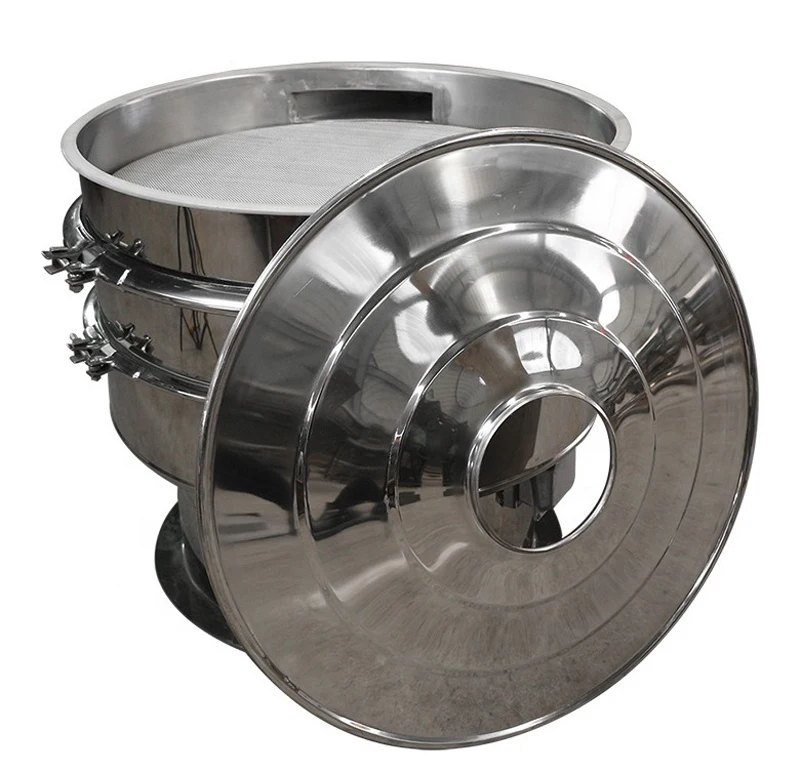

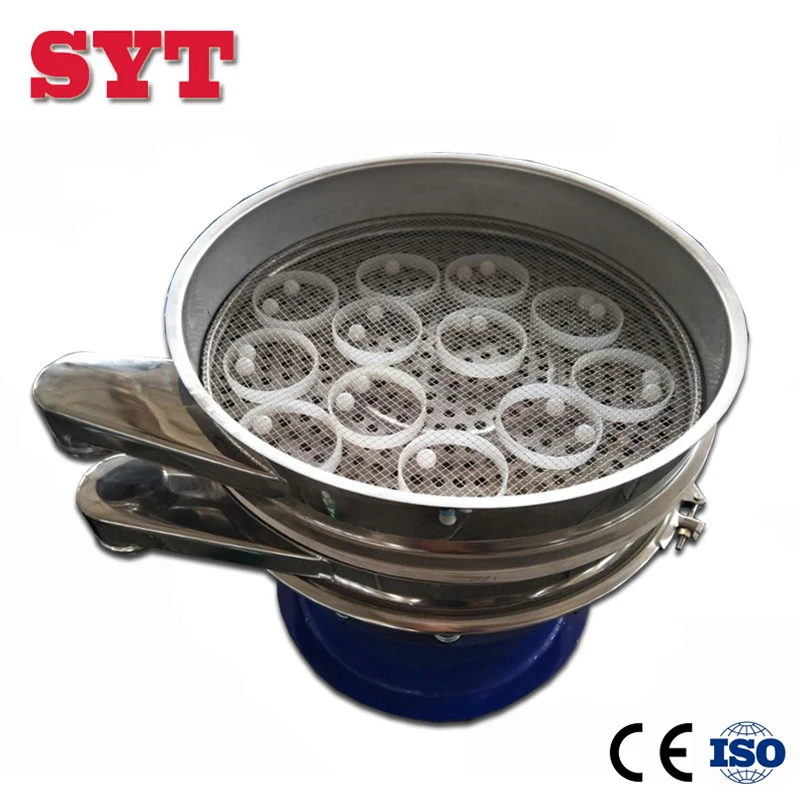

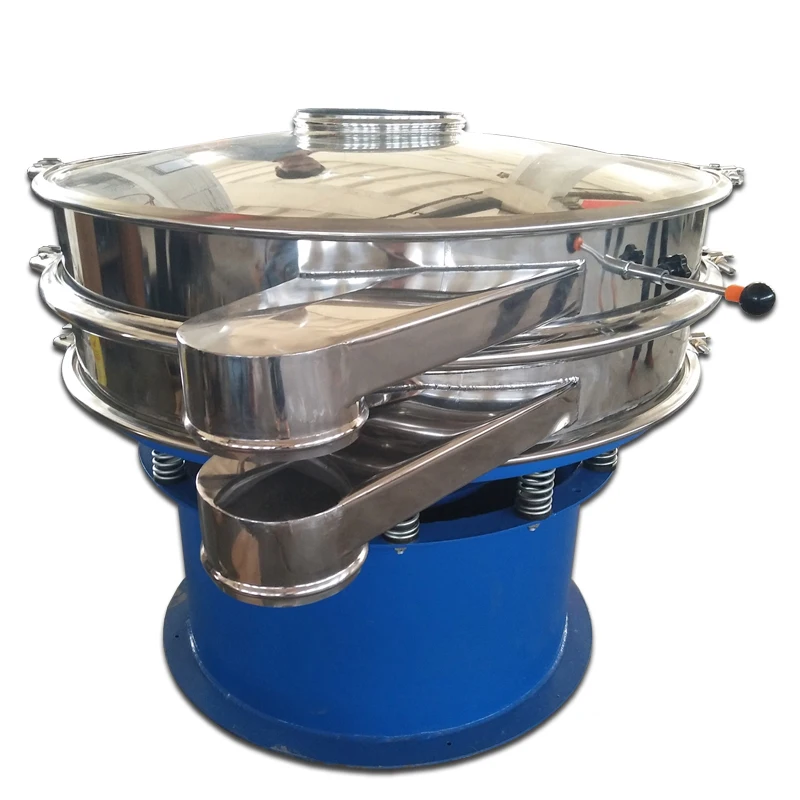

Photos


vibrating screen 5





vibrating sieve





vibro screen





vibrating screen machines





details .jpg


We can produce according to client's requirments.


Non-standard





4





Company Information


      Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise,    specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.


 CE and ISO certification.The quality and technology of our products have reached the international advanced standard.


    At present, the main range of products include kinds of series of Vibrating screens, Vibrating separator,Vibration filter,  Ultrasonic vibrating screen, Sifting machines, Filtering machines, Linear vibrating screens, Testing sieve shaker, Vibrating conveyers, Screw conveyor,Bucket elevator etc.


exhibbition,client










FAQ



If you have ever used the screen machine, kindly pls tell us its Diameter, Layers, Mesh sizes, Materials.








If never use the machine until now, pls offer us the info about material as below:


































The proper selection of the vibrating screen depends on the material, mesh size, output required, method of input etc:


1. Name of material: _____


2. Moisture:_____%


3. Specific gravity:_____kg/m3 or ____g/cm3


4. Capacity:________kg/ hour


5. Screen layer:_______


6. Screen mesh size:______ mesh . ______ mesh. ______ mesh


7. Voltage:______V, Frequency:______HZ, 3 phase


8. SS304/316L stainless steel or Q235A carbon steel?







Get a offer
