DUKE 100% девственные Misubishi MMA 6 мм 8 pmma
- Категория: Пластиковые листы >>>
- Поставщик: Chengdu,Cast,Acrylic,Panel,Industry,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2.90 $* | 2.26 $* |
| Aug-19-2025 | 2.3 $* | 2.66 $* |
| Jul-19-2025 | 2.43 $* | 2.27 $* |
| Jun-19-2025 | 2.48 $* | 2.56 $* |
| May-19-2025 | 2.36 $* | 2.56 $* |
| Apr-19-2025 | 2.30 $* | 2.40 $* |
| Mar-19-2025 | 2.14 $* | 2.34 $* |
| Feb-19-2025 | 2.4 $* | 2.41 $* |
| Jan-19-2025 | 2.14 $* | 2.7 $* |
Характеристики
DUKE 100% Virgin Misubishi MMA 6mm 8mm pmma lgp
Product Description
1).Duke Acrylic Sheet Series
| 1 | Name | DUKE clear acrylic 8mm light guide plate |
| 2 | Material | 100% Virgin Misubishi MMA,Imported Color Pasted,PILKINGTON Mould |
| 3 | Process | Cast |
| 4 | Density | 1.2g/cm3 |
| 5 | Light Transmittance | 93%(Transparent/clear acrylic) |
| 6 | Type | Light Guide Acrylic Sheet(Clear/Transparent) |
| 7 | Size | 1040*2040;1230*2450;1320*2590;1450*2160; 1730*2530;2030*3030;2120*3120; |
| 8 | Thickness | 2-40mm(We could provide) |
| 9 | Color | Customized(Like Clear,White,Black,Red,Orange,Yellow,Blue,Green,Purple and so on) |
| 10 | Packing | Craft Paper Or PE Film |
| 11 | Certification | ISO,CE,,UL94,UL746 |
| 12 | Application | Advertising/Decoration/Furniture/Display Stand/Acrylic Crafts and so on |

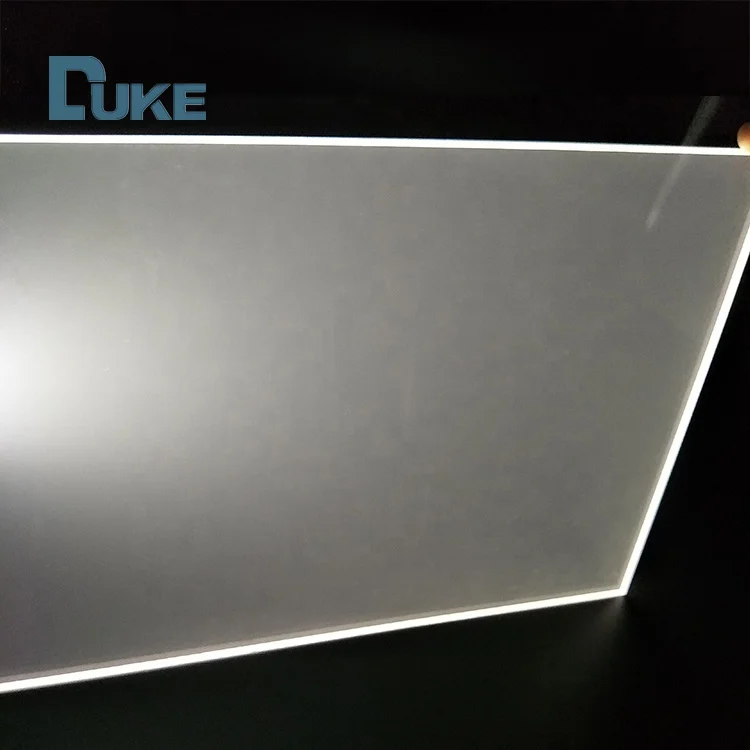

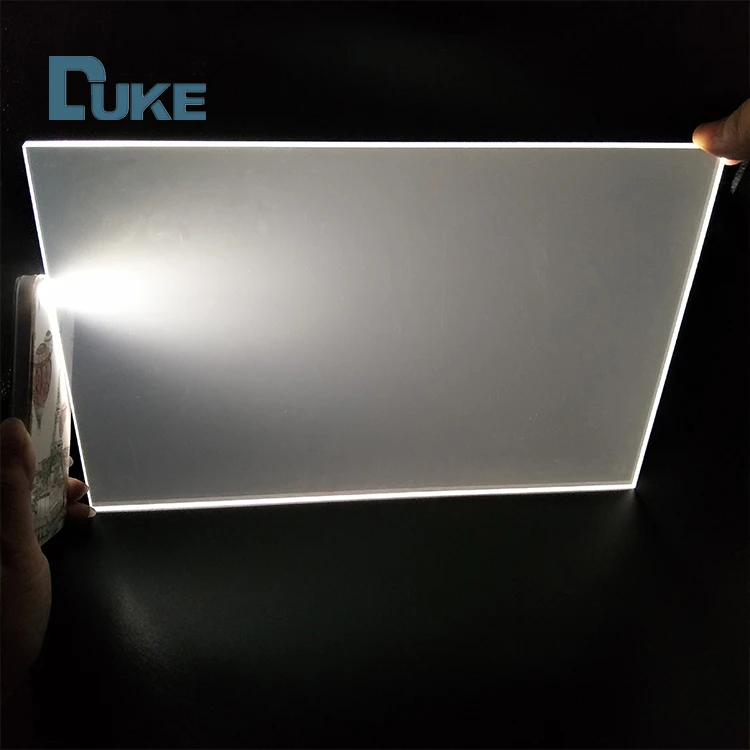

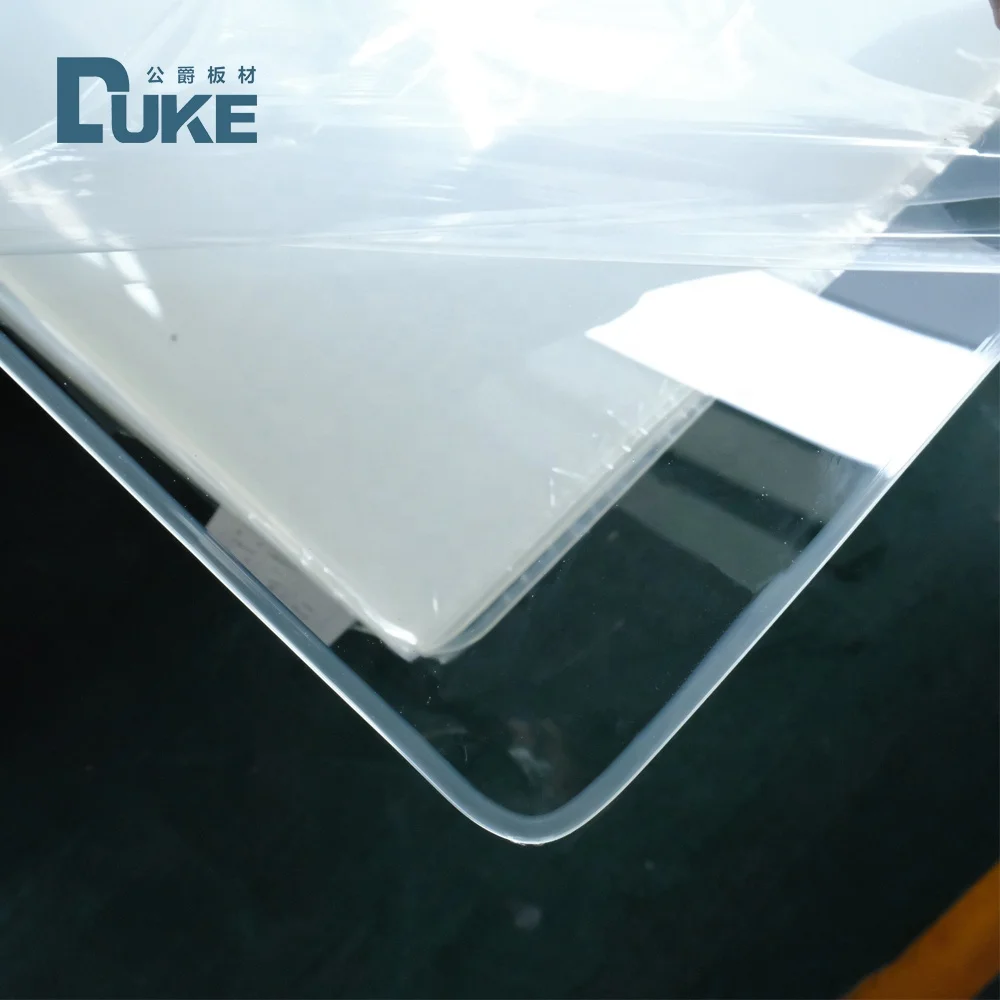

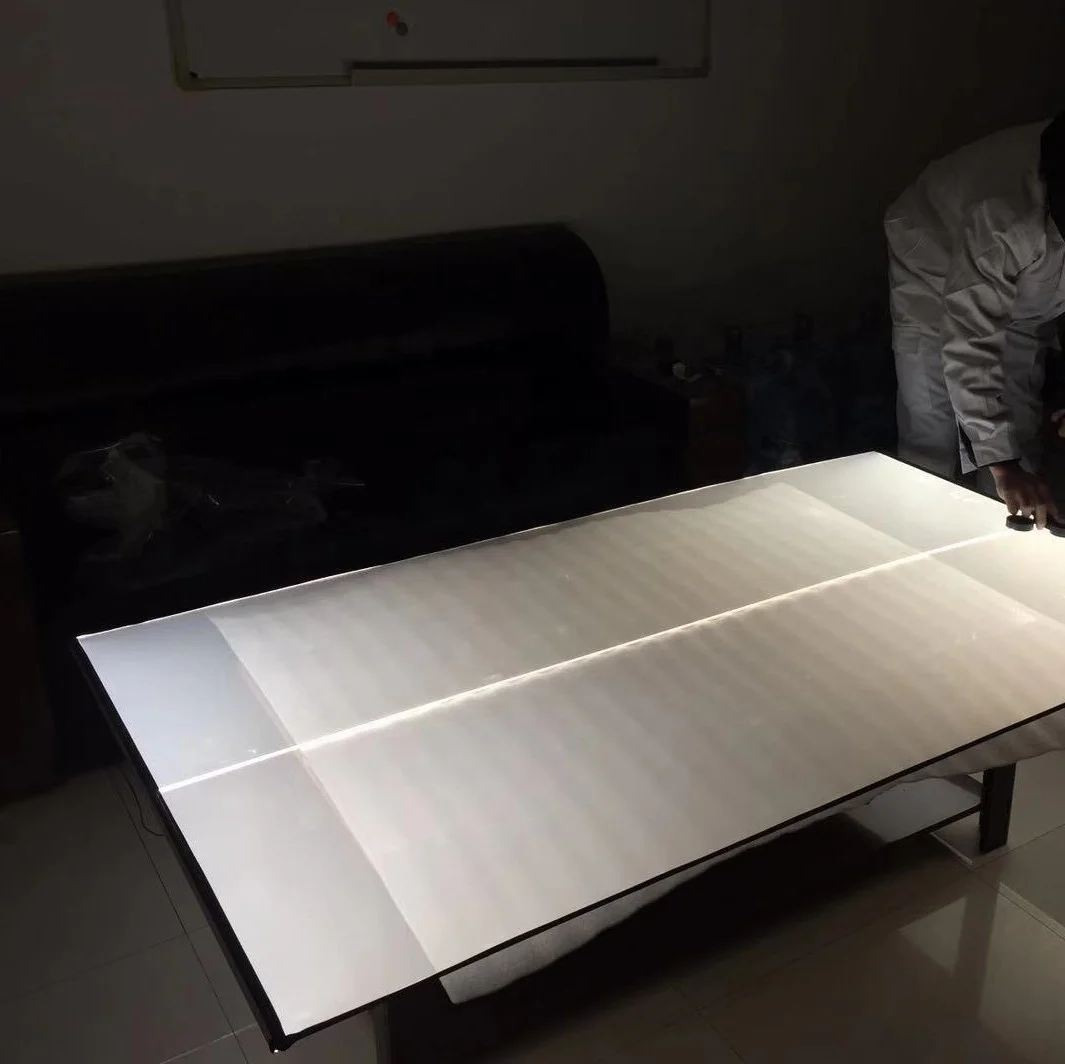

2).Acrylic Sheet For Edge Led Light Details Photos:
3).Duke Acrylic Sheet Physical Properties
| Properties | GB | Unit | Duke Acrylic |
| Specific Gravity | GB/T1033.1 | 1.19 | |
| Refractive Index | ISO489:1999 | 1.49 | |
| Transmittance | GB/T2410 | % | 92 |
| Haze | GB/T2410 | % | 1 |
| Tensile Strength | GB/T1040.1 | MPa | ≥70 |
| Modulus of Elasticity | GB/T1041 | MPa | ≥3100 |
| Bending Strength | GB/T9341 | MPa | ≥98 |
| Compressive Strength | GB/T1041 | MPa | ≥130 |
| Elongation at Break | GB/T1040.1 | % | ≥4 |
| Shock Ressistance Strength | GB/T14153 | 30J+1J | |
Charpy Unnotched Impact Strength | GB/T1043.1 | kJ/ | ≥17 |
| Rockwell Hardness | GB/T3398.2 | 95 | |
| Barcol Hardness | GB/T3854 | 45-55 | |
Thermforming Tempreature | ℃ | 160-185 | |
Vicat Softening Tempreature | GB/T1633 | ℃ | ≥110 |
Coefficient of Thermal Expansion | GB/T1036 | % | ≤7 |
Maximum Recommended Continous Service Temperature | ℃ | 70 | |
Coefficient of Thermal Conductive | W/m.k | 0.18 | |
Specific Heat | 0.35 | ||
Water Absorption | GB/T1034 | % | 0.3 |
Fire Ressistance | GB8624 | ≥E | |
Prevent Scuffing | GB/T6739 | H | ≥5 |
5).Duke Acrylic Packing Ways
A.PE Film Packing(Easy To Tear Off)
B.Kraft Paper Packing(Easy To Laser Cutting)
Hot
Company Information
Certificate
Packing & Shipping
1).One sheet packed with both sides PE film or kraft paper
2).150 sheets in one pallet
3).Sheets corner protected with paper corner protection
4).One pallet covered with plastic protection film
5).Plywood pallet or fumigation pallet
2).150 sheets in one pallet
3).Sheets corner protected with paper corner protection
4).One pallet covered with plastic protection film
5).Plywood pallet or fumigation pallet
6).One 20ft container load 18000-22000KG
Shipping Ways
1).Sea Shipping
2).Express Shipping
3).Railway Transportation
FAQ
Q1: Whether the raw material is brand new
A1: Because we have been a partner of Mitsubishi Rayon for many years, we have promised to use only 100% pure new Mitsubishi MMA
Q2: Product tolerance
A2: The product adopts the world-class casting process, and we control the tolerance within 0.2mm (sanitary board and advertising board ±0.2mm, noise barrier board -0.2mm)
Q3: Product impurities
A3: The whole workshop of the company has strict environmental hygiene standards, multilayer special filter to eliminate the possible incorporation of impurities . we will carry out strict inspection for each batch of products, to ensure that the quality of each batch is the same
Q4: Product color
A4: We have 60 colors to choose from. If you need to customize, please specify in advance
Q5: MOQ
A5: MOQ: 2000 kg
