Спиральная стиральная машина для пескопромывки высокой емкости электрополюсной
- Категория: >>>
- Поставщик: Jiaozuo,City,Xinhai,Mine,Machinery,Equipment,Plant(General,Partnership)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.57 $* | 0.17 $* |
| Aug-18-2025 | 0.32 $* | 0.46 $* |
| Jul-18-2025 | 0.64 $* | 0.43 $* |
| Jun-18-2025 | 0.43 $* | 0.60 $* |
| May-18-2025 | 0.91 $* | 0.48 $* |
| Apr-18-2025 | 0.77 $* | 0.13 $* |
| Mar-18-2025 | 0.73 $* | 0.0 $* |
| Feb-18-2025 | 0.73 $* | 0.27 $* |
| Jan-18-2025 | 0.16 $* | 0.73 $* |
Характеристики

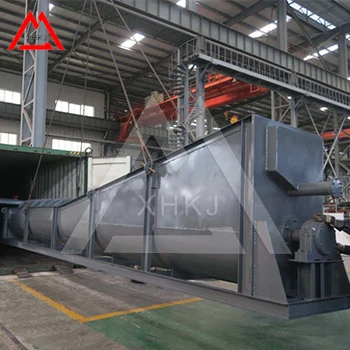

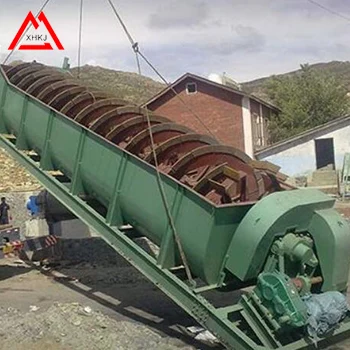

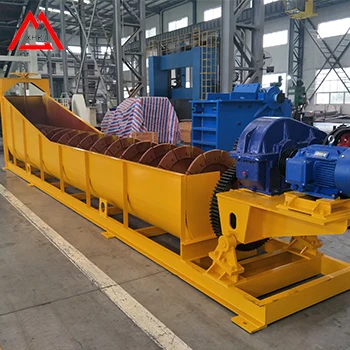

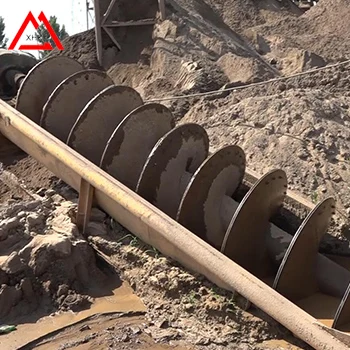

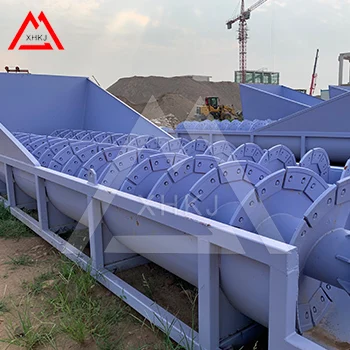

XL series spiral sand washer for washing ore limestone
Spiral sand washer introduction
XL Series Sand Washer can wash and separate the silt other things mixed in the sand. It has novel seal structure, adjustable overflow weir plate and reliable drive unit, which guarantee the effect of washing and dewatering. XL Series Sand Washer is widely applied for many industries like roadway, hydroelectric and construction..
Advantages of Spiral Sand Washer
1.novel structure
2.Adjustable overflow dam baffle
3.Reliable arrangement
4.Well performance of the wash
5.New seal structure
6.Reliable drive unit
7.Adjustable overflow weir plate
Spiral sand washer specifications
Model | XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
Screw Diameter (mm) | 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
Length of Trough (mm) | 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
Max Feed Size (mm) | <=10 | <=10 | <=10 | <=10 | <=10 | <=10 | <=10 |
Capacity (t/h) | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
Speed of Screw (r/min) | 38 | 32 | 26 | 21 | 21 | 17 | 17 |
Motor Power (kw) | 5.5 | 7.5 | 11 | 11 | 2*11 | 15 | 2*15 |
Water Consumption(t/h) | 6~60 | 6~63 | 9~63 | 10~80 | 20~160 | 20~150 | 40~300 |
Overall Dimensions(mm) | 8000* 2343* 1430 | 8000* 2050* 1400 | 8545* 2650* 3862 | 8500* 2810* 3600 | 8420* 3765* 3960 | 10970* 3945* 4720 | 10970* 5250* 4720 |
Weight (t) | 2.67 | 3.80 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
