Набор для пивоварения ручной работы емкость пива brite 10bbl созревания
- Категория: Other Beverage & Wine Machines >>>
- Поставщик: Jinan,Rainbow,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 63070.66 $* | 66224.58 $* |
| Aug-18-2025 | 62540.18 $* | 65667.58 $* |
| Jul-18-2025 | 52470.82 $* | 55094.31 $* |
| Jun-18-2025 | 61480.1 $* | 64554.20 $* |
| May-18-2025 | 53530.84 $* | 56207.62 $* |
| Apr-18-2025 | 60420.9 $* | 63441.13 $* |
| Mar-18-2025 | 59890.44 $* | 62885.95 $* |
| Feb-18-2025 | 59360.38 $* | 62328.18 $* |
| Jan-18-2025 | 58830.4 $* | 61772.91 $* |
Характеристики

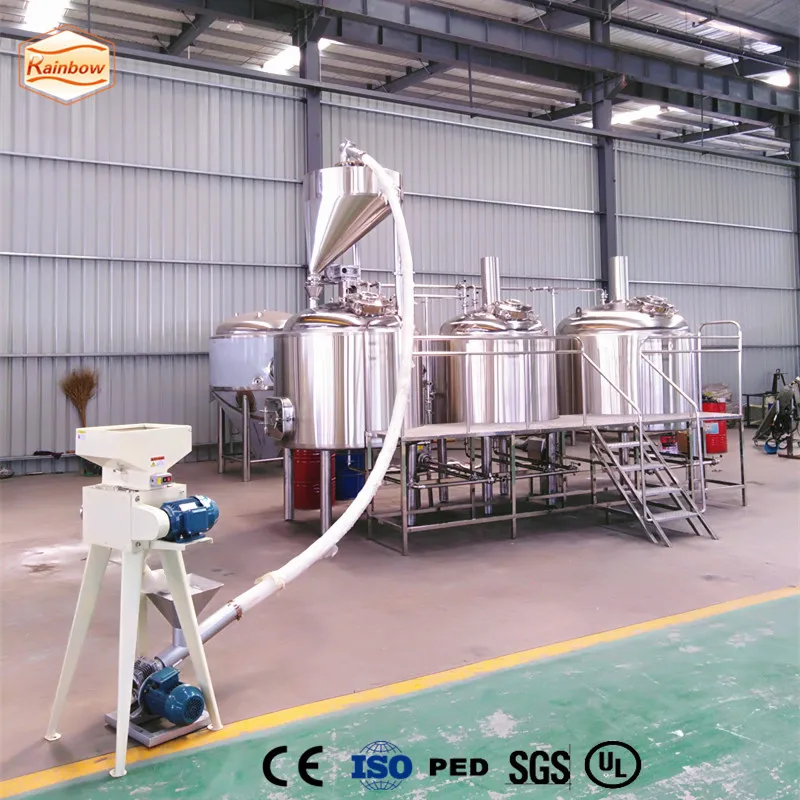

craft beer brewing set 10bbl beer brite tank 10bbl beer maturation tank for sale
Mainly including following parts
Malt Miller
Brewhouse System
Fermentation System
Cooling System
CIP Cart
Controller
Beer Brewery System 10bbL | ||||||
System | Equipments | Specifications | Quantity | |||
Miller | Stainless Steel Malt Miller | 300Kg/H | 1 | |||
Brewhouse | Mash/Lauter Tun | 10bbL | 1 | |||
Brew kettle & whirlpool | 10bbL | 1 | ||||
Hot Liquid Tank | 10bbL/20bbL | 1 | ||||
Plate Heat Exchanger | 12M2 | 1 | ||||
Wort Pump | 3T/H | 1 | ||||
HLT Pump | 3T/H | 1 | ||||
Brewhouse Pipeline and Valves | 1 | |||||
Work Platform | 1 | |||||
Fermentation | Fermenters | 10bbL/20bbL | 6 | |||
Brite Tanks | 10bbL/20bbL | |||||
Yeast Tank | 30L | 1 | ||||
Wort oxygenator | 1 | |||||
Cooling | Glycol Water Tank | 2000L | 1 | |||
Chiller | 5Hp | 2 | ||||
Glycol Water Pump | 3T/H | 1 | ||||
CIP | Alkali tank | 100L | 1 | |||
Sterilization tank | 100L | 1 | ||||
CIP Pump | 3T/H | 1 | ||||
Controller | Control box | 1 | ||||
Spare parts | Including pipes, valves, gauges…. | |||||

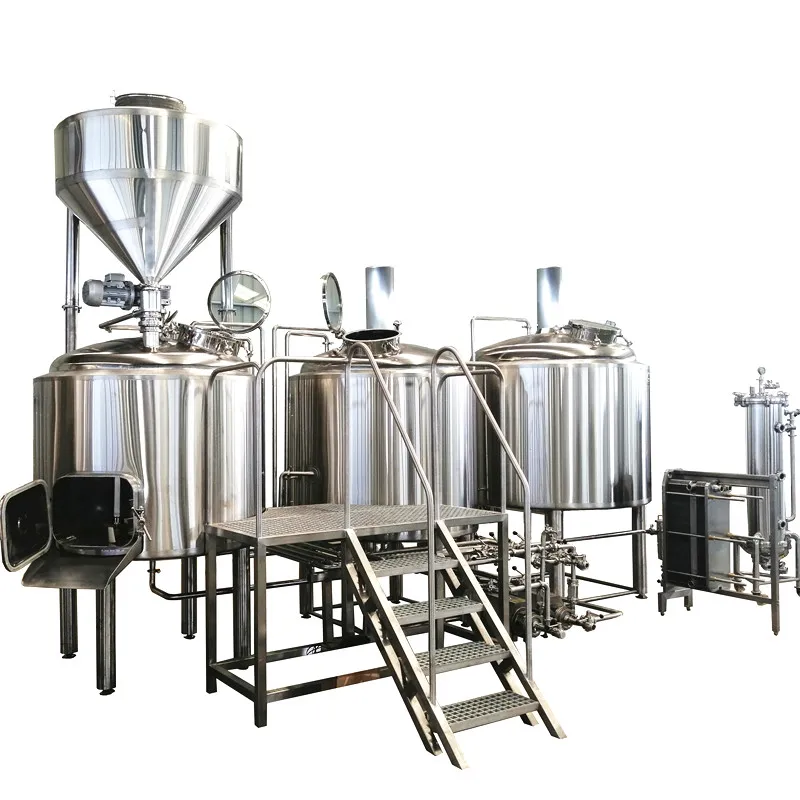

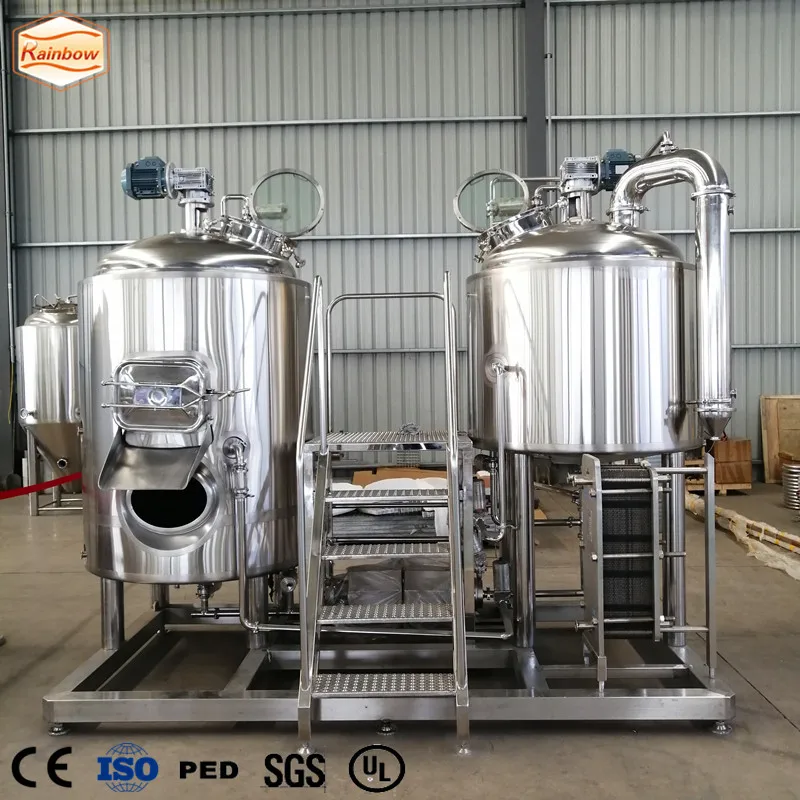

Brewhouse
Malt Miller
* -Type: double roller, alloy rollers
* -Rollers distance adjustable
* -Stainless Steel Frame
* -Motor: CE/UL Listed
* Optional:
* Conveyor
* Vessels:* -Type: double roller, alloy rollers
* -Rollers distance adjustable
* -Stainless Steel Frame
* -Motor: CE/UL Listed
* Optional:
* Conveyor
* Regular: MLT+BKW+HLT.
* Mash/Brew Kettle +Lauter & Whirlpool Tank.
* Others: Mash, Lauter, Brew, Whirlpool, HLT, CLT.
* Heating Method:
* Steam Heating/Electric Heating/ Direct fire/Baine Marie/RIMS/HERMS
* Specifications:
* -With 30% Total Volume
* -Dome top and cone bottom; bottom cone 160 degree
* -Interior Shell: SUS304, T 3.0mm
* -Exterior Shell: SUS304, T 2.0mm
* -Insulation: PU/Rockwool T 100mm
* -100% TIG welding with pure argon gas shield
* -Interior Finish: 0.4~0.6μm/ Mirror Polishing
* -Top mounted manhole
* -360° CIP spraying ball
* -Thermowell with high accuracy temperature sensor: PT100
* -MLT with agitator with motor reducer, CE/UL Listed
* -MLT with side manhole for spent grains
* -MLT with easy-clean and detachable sparging arm
* -MLT with easy-clean and detachable false bottom
* -BKW with tangential inlet for whirlpool function
* Plate Heat Exchanger (China Top Brand)
* -2 stages for Glycol water and City water
* -SUS 304 Plates and frame
* Wort and HLT Pumps:-CE/UL Listed
* Oxygenator
* Brewhouse pipelines and Valves
* SUS 304 Working Platform
* Optional:
* -Grist Case
* -Wort Buffer Tank
* -Platform with Sink
* -Flow meter
* -Pneumatic Valves
* -Others

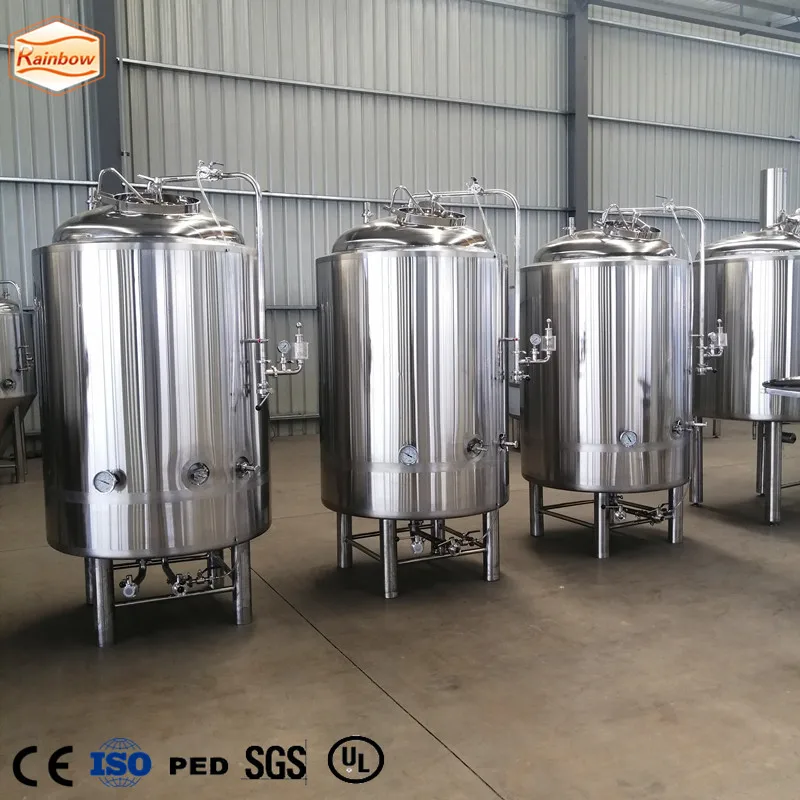

Beer Fermentation and Maturation Tank
* -Total capacity: with 25% headspace
* -Dome top and cone bottom, bottom cone, (60 degree for BFV)
* -Interior Shell: SUS304, T 3.0mm;
* -Exterior Shell: SUS304, T 2.0mm;
* -Insulation: PU, T 100mm
* -100% TIG welding with pure argon gas shield
* -Interior Finish: to 0.4~0.6μm/ Mirror polishing
* -Cooling Jacket: both on cone and cylinder parts, T 1.5mm
* -Top mounted manhole/Side manhole
* -Relief/vacuum valve
* -Dry hop port
* -Thermometer
* -Sample valve
* -Bung apparatus with pressure gauge
* -Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.
* -Rotating racking arm on cone with butterfly valve
* -Drainage with butterfly valve
* -CIP arm with 360° spraying ball
* -Thermowell with high accuracy temperature sensor: PT100
* Optional:
* Level Tube
* CO2 Carbonation Stone
* Copper Shell
* Pressurized Hop drop feeder
* Other requirements
* Dimension design
* -Dome top and cone bottom, bottom cone, (60 degree for BFV)
* -Interior Shell: SUS304, T 3.0mm;
* -Exterior Shell: SUS304, T 2.0mm;
* -Insulation: PU, T 100mm
* -100% TIG welding with pure argon gas shield
* -Interior Finish: to 0.4~0.6μm/ Mirror polishing
* -Cooling Jacket: both on cone and cylinder parts, T 1.5mm
* -Top mounted manhole/Side manhole
* -Relief/vacuum valve
* -Dry hop port
* -Thermometer
* -Sample valve
* -Bung apparatus with pressure gauge
* -Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.
* -Rotating racking arm on cone with butterfly valve
* -Drainage with butterfly valve
* -CIP arm with 360° spraying ball
* -Thermowell with high accuracy temperature sensor: PT100
* Optional:
* Level Tube
* CO2 Carbonation Stone
* Copper Shell
* Pressurized Hop drop feeder
* Other requirements
* Dimension design
Cooling System
* Glycol water tank
-Interior Shell: SUS304, T3.0mm;
-Exterior Shell: SUS304, T 2.0mm;
-Insulation: PU, T 100mm
-100% TIG welding with argon gas shield
-Thermowell with high sensor: PT100
Glycol Chiller (China Top Brand)
-Condenser type: Efficient inner fin coil type
-Noise level:＜61db
Glycol Water Pump: CE/UL Listed
-Interior Shell: SUS304, T3.0mm;
-Exterior Shell: SUS304, T 2.0mm;
-Insulation: PU, T 100mm
-100% TIG welding with argon gas shield
-Thermowell with high sensor: PT100
Glycol Chiller (China Top Brand)
-Condenser type: Efficient inner fin coil type
-Noise level:＜61db
Glycol Water Pump: CE/UL Listed
CIP Cart
-Alkali tank
-Sterilization tank
-Shell: SUS304; T 2mm
-Interior Finish: 0.4~0.6μm/Mirror Polishing
-Pipelines and valves
-CIP Pump: CE/UL Listed
-CIP reinforced hose
Optional
Heating Elements
Controller
Tank added
-Sterilization tank
-Shell: SUS304; T 2mm
-Interior Finish: 0.4~0.6μm/Mirror Polishing
-Pipelines and valves
-CIP Pump: CE/UL Listed
-CIP reinforced hose
Optional
Heating Elements
Controller
Tank added
Control System
PID Control / PLC Control
* -Mashing temperature setting
* -Boiling temperature setting
* -Lautering temperature
* -pumps speed controlling by VFD, DANFOSS
* -Mash agitator speed controlling by VFD, DANFOSS
* -HLT pump controlling
* -Fermentation temperature setting
* -Cooling system Controlling
* -Mashing temperature setting
* -Boiling temperature setting
* -Lautering temperature
* -pumps speed controlling by VFD, DANFOSS
* -Mash agitator speed controlling by VFD, DANFOSS
* -HLT pump controlling
* -Fermentation temperature setting
* -Cooling system Controlling
Established in 2011,Jinan Rainbow Machinery Co., Ltd, is a professional manufacturer and leading exporter of craft beer brewery equipment, Beer brewing machine, beer brewhouse, Beer fermenting vessel, beer unitanks, Beer tanks.
Rainbow Machinery is exporting brewing tanks to many countries like France, Norway, Czech Republic, Switzerland, USA, Canada, Australia, Singapore, Rwanda and Malawi...etc.
Rainbow Machinery is running with ISO9001 standard and CE certificate. It focus on using good quality material SUS304/316, using 100% TIG welding and doing fine polishing so as to get superior quality brewery tanks.
Rainbow Machinery provides turn-key project solution from design and produce to installation and services.
Rainbow Machinery is exporting brewing tanks to many countries like France, Norway, Czech Republic, Switzerland, USA, Canada, Australia, Singapore, Rwanda and Malawi...etc.
Rainbow Machinery is running with ISO9001 standard and CE certificate. It focus on using good quality material SUS304/316, using 100% TIG welding and doing fine polishing so as to get superior quality brewery tanks.
Rainbow Machinery provides turn-key project solution from design and produce to installation and services.
Other Tanks For Your Reference | |
1 | |
2 | |
3 | |
4 | |
5 | |
6 | |
7 | |
8 |
Other Auxiliary Equipment
* Water treatment RO System
* Steam boiler: Electric/ Gas/oil
* Hop filter tank/Hop tank
* Kegs
* Beer keg washing machine
* Beer keg filling machine
* Beer bottle filling and capping machine
* Beer bottling system
* Beer filter machine
FAQ
* What capacity do you need to brew?
* What kind of heating method do you prefer?
* What’s the voltage in your site?
* Water treatment RO System
* Steam boiler: Electric/ Gas/oil
* Hop filter tank/Hop tank
* Kegs
* Beer keg washing machine
* Beer keg filling machine
* Beer bottle filling and capping machine
* Beer bottling system
* Beer filter machine
FAQ
* What capacity do you need to brew?
* What kind of heating method do you prefer?
* What’s the voltage in your site?
