Соединитель провода для быстрой лампы зажим электрического кабеля Штекерный штекер шаг 923 Клеммная колодка с
- Категория: Connectors >>>
- Поставщик: Yueqing,Liteam,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.33 $* | 0.44 $* |
| Aug-17-2025 | 0.38 $* | 0.77 $* |
| Jul-17-2025 | 0.67 $* | 0.26 $* |
| Jun-17-2025 | 0.49 $* | 0.86 $* |
| May-17-2025 | 0.12 $* | 0.65 $* |
| Apr-17-2025 | 0.89 $* | 0.8 $* |
| Mar-17-2025 | 0.38 $* | 0.1 $* |
| Feb-17-2025 | 0.82 $* | 0.49 $* |
| Jan-17-2025 | 0.20 $* | 0.53 $* |
Характеристики
Product Description

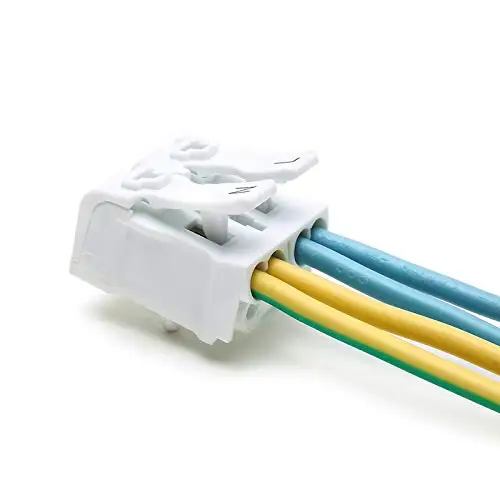

Spring Terminal Block Quick Lamp Wire Connector Electrical Cable Clamp Free Screw Plug-Out Type Pitch 923 P02 22-14 AWG
Suitable for the motor, electrical control, power, household appliances, lighting, machinery and wire joints.
Pressed steel frame material is rolled steel, good elastic, product performance in line.
The wire connecting without screws, accelerate the speed of assembly, but also saves labor wages and costs.
Three steps to finish wire connecting with no screws and soldering. Press the spring clip, Insert wires please correctly connect for + and -, Release the press clip.
Material
Housing: PA66, UL94V-0
Wire guard: Stainless steel
Contact: Copper
The electrical parameters
Rated voltage: 450V
Rated current: 10 A
Contact resistance: 20 mΩ
Insulation resistance:5000MΩ/DC1000V
Withstanding voltage : AC2500V/1 min
Wire range: 22-14 AWG, 0.75-2.5mm².
Ambient temperature : -40°C~+105°C
Strip length : 7-7.5 mm
Pitch :10.0mm
Poles:2P
![923.jpg]()
![923 connector.jpg]()
![ia_100000002465.jpg]()
![ia_100000002466.jpg]()
![ia_100000002443.jpg]()
![923 (4).jpg]()
Pressed steel frame material is rolled steel, good elastic, product performance in line.
The wire connecting without screws, accelerate the speed of assembly, but also saves labor wages and costs.
Three steps to finish wire connecting with no screws and soldering. Press the spring clip, Insert wires please correctly connect for + and -, Release the press clip.
Material
Housing: PA66, UL94V-0
Wire guard: Stainless steel
Contact: Copper
The electrical parameters
Rated voltage: 450V
Rated current: 10 A
Contact resistance: 20 mΩ
Insulation resistance:5000MΩ/DC1000V
Withstanding voltage : AC2500V/1 min
Wire range: 22-14 AWG, 0.75-2.5mm².
Ambient temperature : -40°C~+105°C
Strip length : 7-7.5 mm
Pitch :10.0mm
Poles:2P
| Withstanding Voltage | AC2500V/1 min |
| Rated Voltage | 450V |
| Nominal Current | 10A |
| Stripping Length | 7-7.5 mm |
Features:
Model number: 923-2P
Color: White
Rated current: 10A
Application: Cable Connector
Type: Wire Connector
Poles: 2 Pin
Pitch: 10.0mm
Strip length: 7-7.5 mm
Feature: Spring Terminal Block
Contact material: Copper
Wire connector: 22-14 AWG
Packaging & Shipping

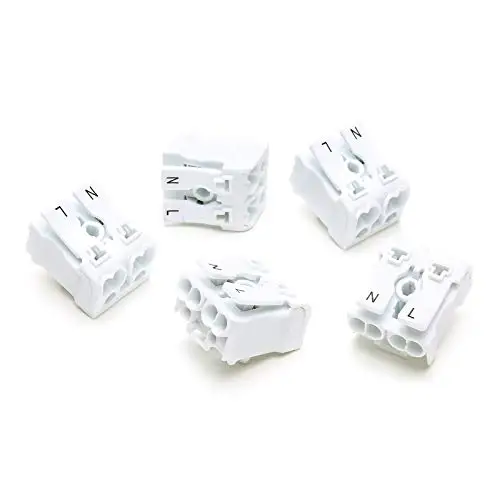

This product include 90pieces 923 p02 , 60 pieces 923 p03 ,30 pieces 923 p04 and 20 pieces 923 p05
Trust they can meet your different needs.
Our Services
We are highly confidennt with our products and believe that you will not regret to get it! If there are any issue, please feel free to contact me! I will solve it for you until your satisfaction!
