Автоматическая машина для влажных салфеток упаковочная может складываться с 4-сторонней
- Категория: Машины для производства влажных салфеток >>>
- Поставщик: Zhengzhou,Zhengyang,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.24 $* |
| Aug-15-2025 | 0.77 $* | 0.23 $* |
| Jul-15-2025 | 0.63 $* | 0.33 $* |
| Jun-15-2025 | 0.37 $* | 0.94 $* |
| May-15-2025 | 0.42 $* | 0.20 $* |
| Apr-15-2025 | 0.53 $* | 0.1 $* |
| Mar-15-2025 | 0.94 $* | 0.26 $* |
| Feb-15-2025 | 0.5 $* | 0.56 $* |
| Jan-15-2025 | 0.30 $* | 0.41 $* |
Характеристики
TECHNICAL PARAMETER
Model | SY-250R | SY-350R | SY-250W | |
Speed | 60-120 bags/min | 80-120 bags/min | ||
Bag size range | (L)40-125mm (W)40-100mm | (L)40-175mm (W)40-100mm | the size can adjust L: 40-140mm W: 40-110mm | |
material | 30-80g/m2 airlay paper,wet strength paper,spunlace nonwoven fabric | 30-80g/m2 air laid paper, nonwoven, spunlace nonwoven fabric etc | ||
Packing material | Lamination film,paper,aluminium | Lamination film,paper, aluminium | ||
Outer Dia. Of Tissue Roll | 1000mm | 1000mm | ||
Outer Dia. Of Packaging Film Roll | 350mm | 350mm | ||
Folding option | Max.10 folding vertical,4 folding horizontal | Max 10 folding vertical, and 4 folding horizontal | ||
Liquid range | 0-10ml | 0-5ml accuracy +0.01ml | ||
Air consumption | 300-500m/min, 0.6-1.0Mpa | 0.6-1.0Mpa | ||
Total Power | 2.8KW | 4. 8KW | ||
Power Supply | 220/380V 50/60HZ | 220/380V 50/60HZ | ||
Machine Weight | 1100kg | 1200kg | 1200Kg | |
Machine dimension | L3300xW2300xH1600mm | L3300xW2300xH1600mm | L3300*W2200*H1600mm | |
DESCRIPTION

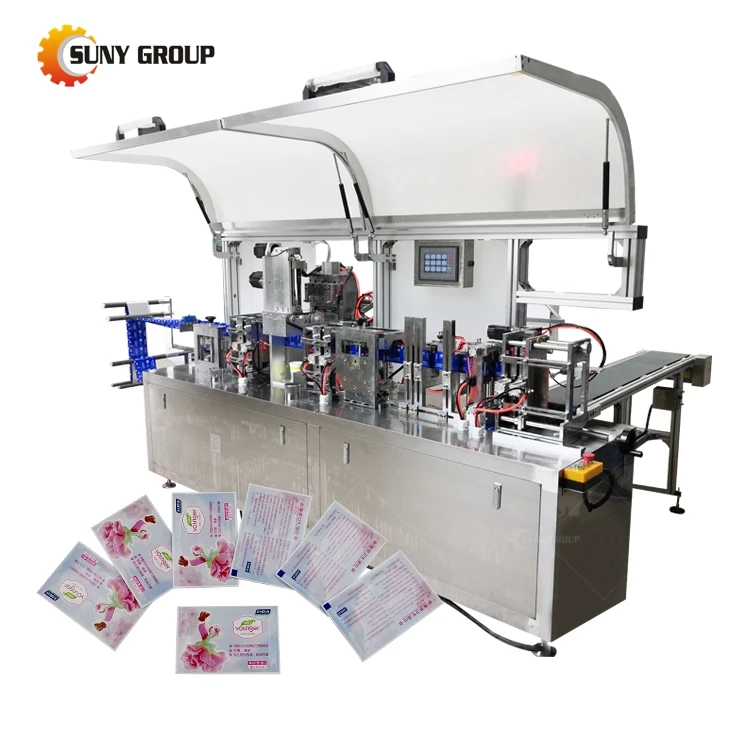

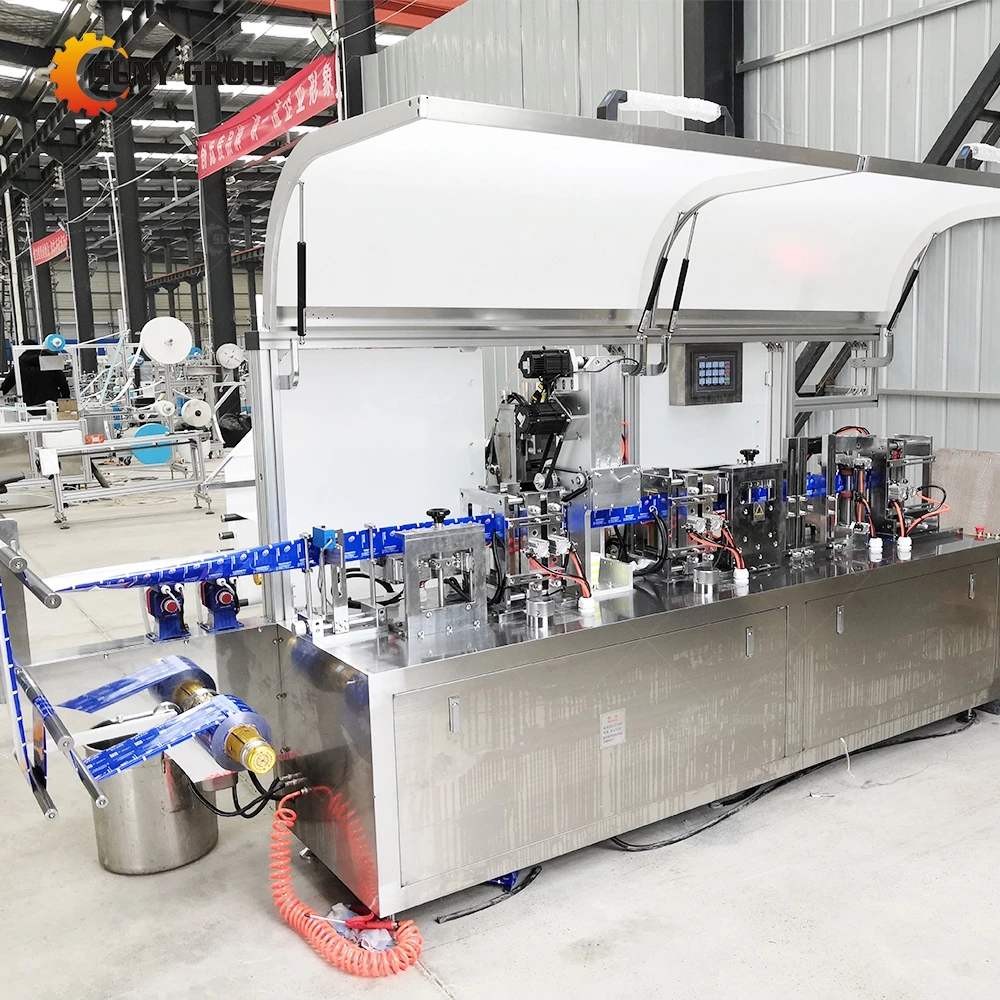

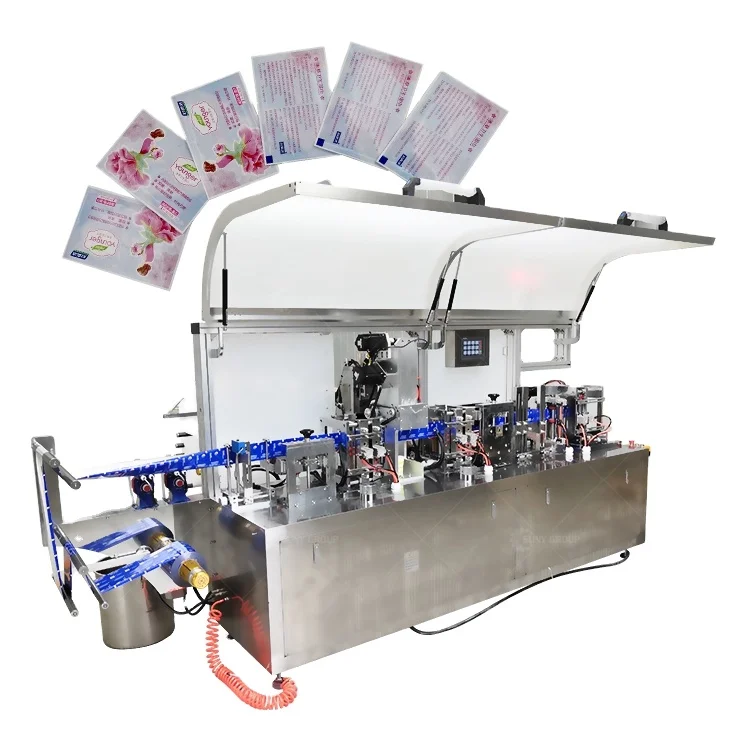

Four Sides Sealing Wet Wipe Packaging Machine is designed as automatic production solution for sanitary wet wipes and make-up removing wet wipe and personal care wet wipe. It can be adjustable to fit to various packaging sizes,a perfect choice for OEM and ODM factory who produce different sizes of wet wipe products on one machine.
FINISHED PRODUCT
Packaging speed is 60-120 pieces/minute, and packaging size can be adjusted, with length 40-175mm and width 40-110mm. Composite film and paper-aluminum film can be selected as packaging raw materials, with hot-melt edging around them, and the edging form can be "-"or "V".
EQUIPMENT STRUCTURE
Name : Fold and draw of film
Function: Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming
Name : Aluminium alloy Wet wipes folding shelf
Function : Fold non-woven fabric according to customer's requirements (Max 10 folding vertical,and 4 folding horizontal)
Name : Cutting non-woven fabric
Function : Cut according to the size required by the customer.
Name : Fold and fill
Function : Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel), Metering pump imported from Japan, accuracy +0.01ml
Name : adjustable mould, Sealing
Function : Bag mouth sealing (hot sealing),The user can change the steel letters to control the Date and codes print on the products the tear mouth have two types for select 'V' or "-“
Name : Conveyor belt,finished product output
Function : The finished product is discharged by manipulator, Count, place and transmit
Function : The finished product is discharged by manipulator, Count, place and transmit
Name: Touch screen
Function : The touch screen can be made in your local language(so you can your staff can operate it easily)
FEATURE

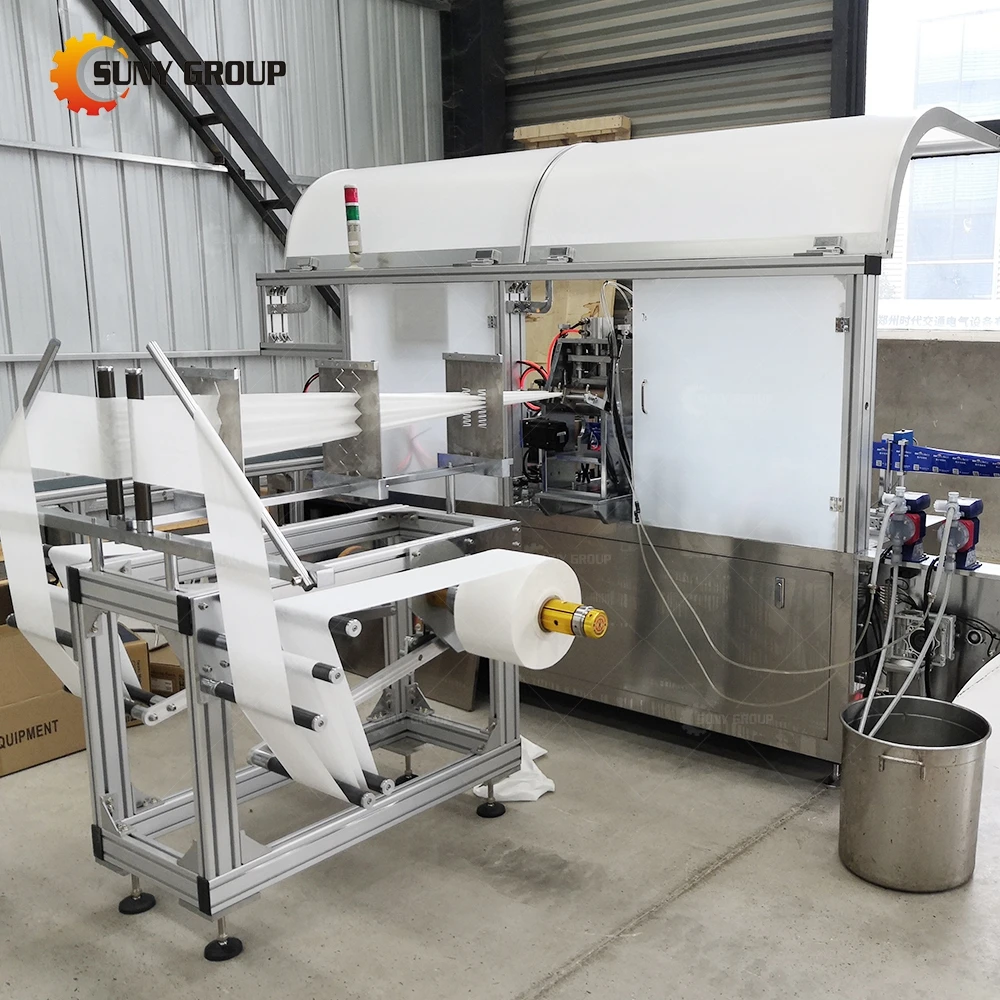

ALUMINIUM ALLOY WET WIPES FOLDING SHELF
Fold non-woven fabric according to
customer's requirements (Max 10 folding vertical, and 4 folding horizontal)
Fold non-woven fabric according to
customer's requirements (Max 10 folding vertical, and 4 folding horizontal)
FOLD AND DRAW OF FILM
Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming
Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming
PAPER FEEDING STATION
Fix the size of non-woven fabric after folding, servo control the paper feeding station. Cut according to the size required by the customer
Fix the size of non-woven fabric after folding, servo control the paper feeding station. Cut according to the size required by the customer

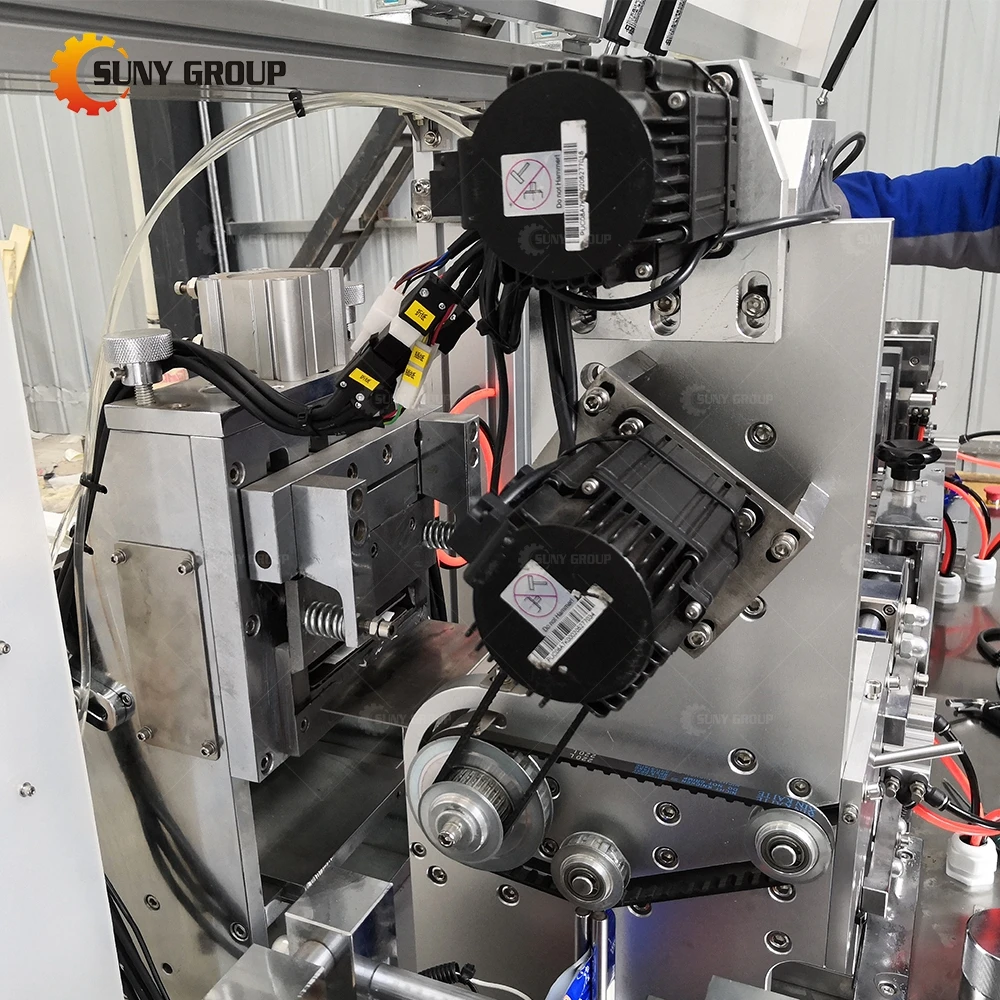

FOLD AND FILL
Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel). Metering
pump is imported from Japan, accuracy + 0.01ml.
Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel). Metering
pump is imported from Japan, accuracy + 0.01ml.

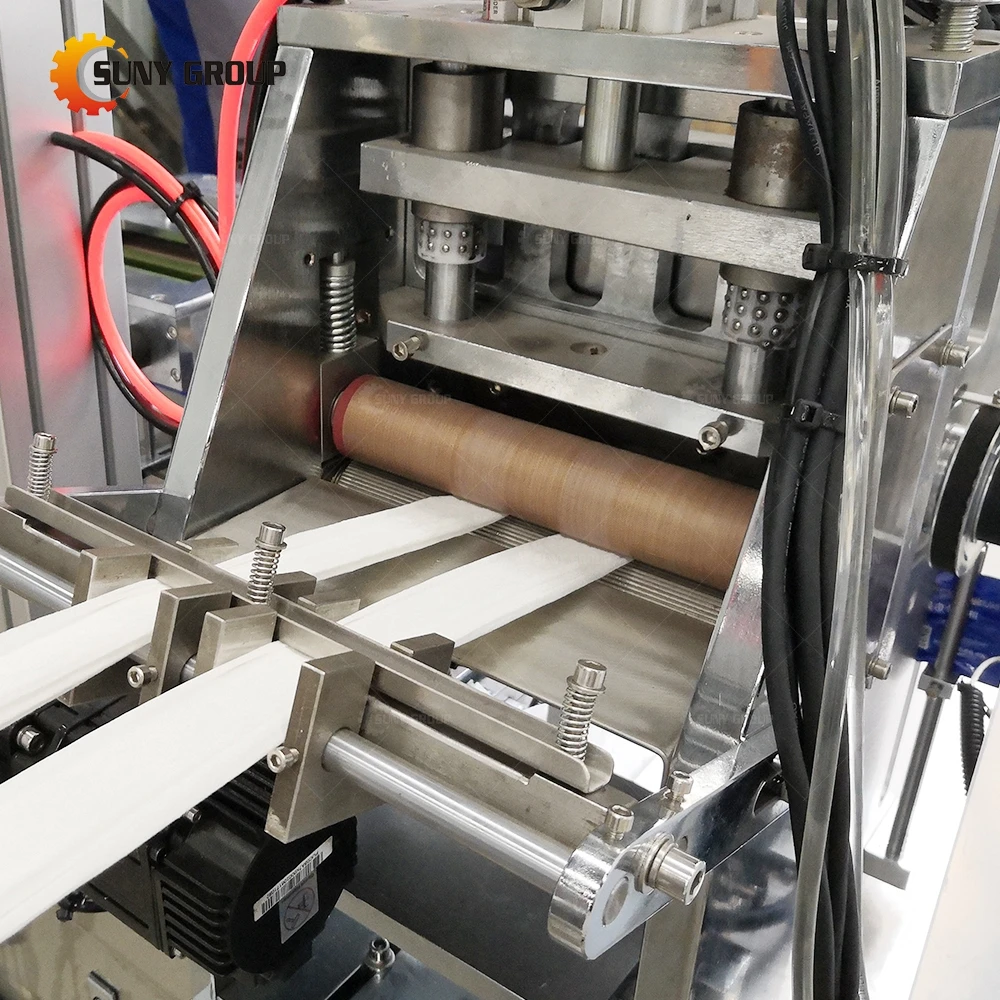

ADJUSTABLE MOULD,SEALING
Bag mouth sealing (hot sealing). The user can change the steel letters to control the Date and codes print on the products the
tear mouth have two types for select "V' or ''—",
Bag mouth sealing (hot sealing). The user can change the steel letters to control the Date and codes print on the products the
tear mouth have two types for select "V' or ''—",
FINISHED PRODUCT OUTPUT
The finished product is discharged by manipulator, Count, place and transmit.
The finished product is discharged by manipulator, Count, place and transmit.
TOUCH SCREEN
The PLC control touch screen can be made in your local language(so you can your staff can operate it easily).
The PLC control touch screen can be made in your local language(so you can your staff can operate it easily).
PACKING AND DELIVERY
