Характеристики
Product Description

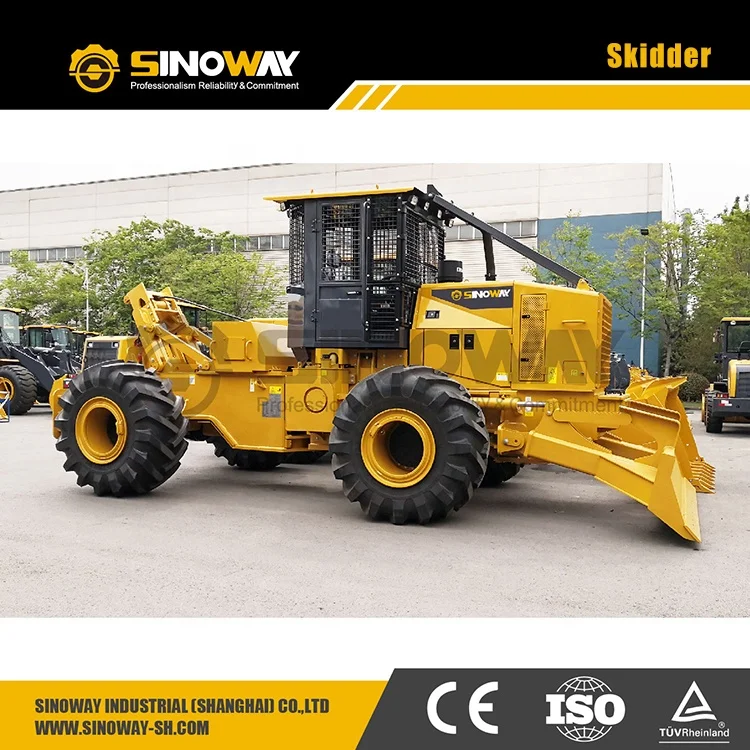

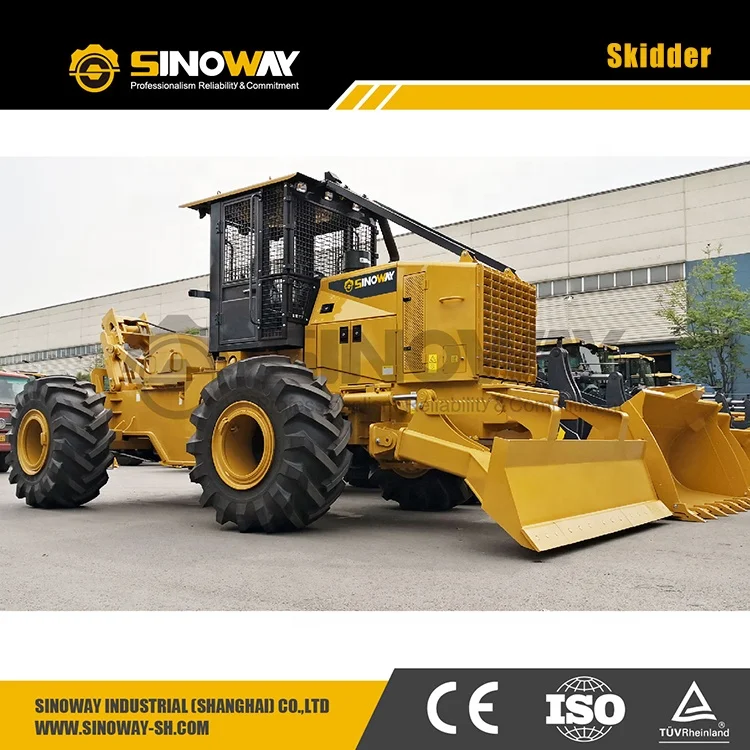

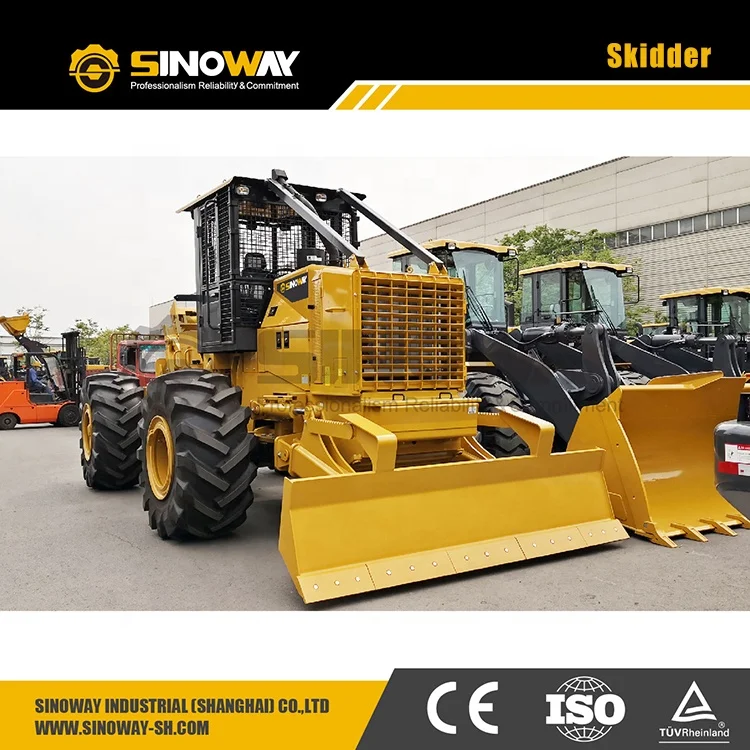

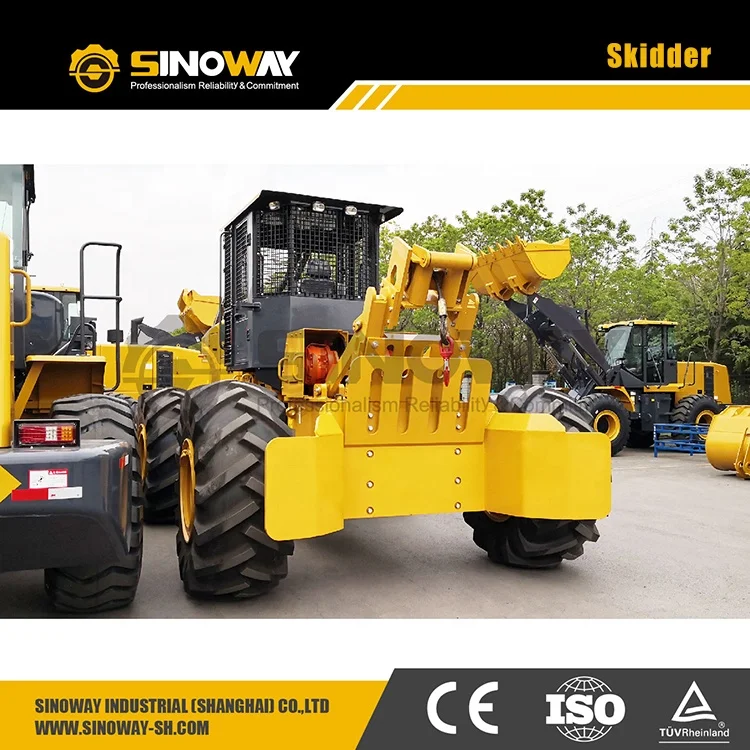

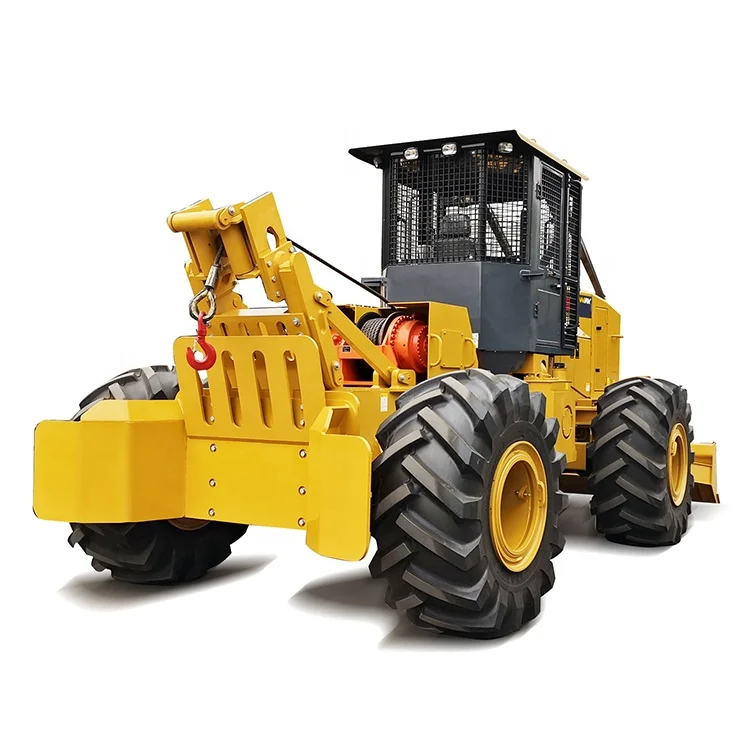

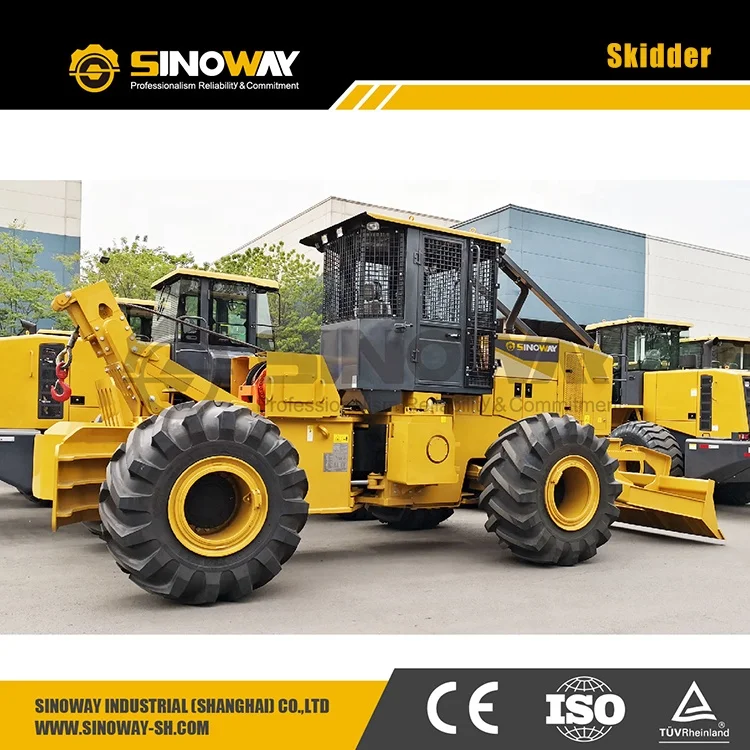

SINOWAY log skidder is a wheeled type skidding tractor, with four-wheel driven and hydraulic steering. The skidder possesses good flexibility, high running speed and good cross-country feature in the forest. The machine is equipped with a working device in multi-functions. So it is an ideal log skidder in wood transportation, stacking, rushing to deal with emergency, rescuing and many other additional operations.
Product Show
Specification
Item | Unit | Standard configuration | ||||
Purpose | Integral cab equipped with reinforced frame , safe and reliable. The rear axle is equipped with limited slip differential to avoid slipping of the tire. The new generation of SINOWAY skidder is widely used in the collection & transportation of various kinds of wood under the working condition of primitive forest. | |||||
Winch drive form | Driven by hydraulic motor | |||||
Operation form of rope laying | External control of the whole machine, manual control | Control in the cab, electrohydraulic control | ||||
Maximum traction force of wire rope | KN | 204 | 250 | |||
Maximum speed of wire rope | m/min | 10 | ||||
Drum capacity (diameter x length) | mm/mm | Ф 22 x 33 | Ф 28 x 30 | |||
Winch drum diameter (type of rope winding) | mm | 273 | 295 | |||
Winch drum width | mm | 230 | 245 | |||
Lifting height of push plate | mm | 1381 | ||||
Cutting depth of push plate | mm | 456 | ||||
Operating weight | Kg | 19700 | ||||
Engine power | Kw | 178 | ||||
Wheelbase | mm | 3680 | ||||
Tread | mm | 2622 | ||||
Speed | F1 / R1 | Km/h | 6/6 | |||
F2 / R2 | Km/h | 11/11 | ||||
F3 / R3 | Km/h | 22/22 | ||||
F4 / R4 | Km/h | 38/38 | ||||
Tire type and pattern | 23.5-25 Herringbone | |||||
Swing angle of front axle | ° | ±12 | ||||
Turning radius (outside of tire) | mm | 6370 | ||||
Overall dimension (length x width x height) | mm | 7700 x 3220 x 3550 | ||||
