GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Aircraft warning lights on towers low intensity obstruction
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Shaanxi,Qilin,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 176.88 $* | 185.62 $* |
| Aug-17-2025 | 175.30 $* | 184.87 $* |
| Jul-17-2025 | 147.15 $* | 154.3 $* |
| Jun-17-2025 | 172.52 $* | 181.93 $* |
| May-17-2025 | 149.94 $* | 156.17 $* |
| Apr-17-2025 | 169.60 $* | 177.25 $* |
| Mar-17-2025 | 167.33 $* | 175.56 $* |
| Feb-17-2025 | 166.90 $* | 174.72 $* |
| Jan-17-2025 | 164.24 $* | 172.12 $* |
Характеристики
Products Description
LED Double Obstruction Lights for Towers
Because of its self-contained, reliability and durability, OLS10 has become the most classical model for all kinds of warning applications it installs in minutes and requires no maintenance or servicing for up to five years. It complies with FAA&ICAO's requirements.
OL10/32 Series Double Light Double light is integrated by 2 single lights. For making sure there is always a light working at the top of the tower. Two optional working patterns can meet different area’s customers.
• “Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of “service light” failure
• “Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.
• “Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of “service light” failure
• “Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.

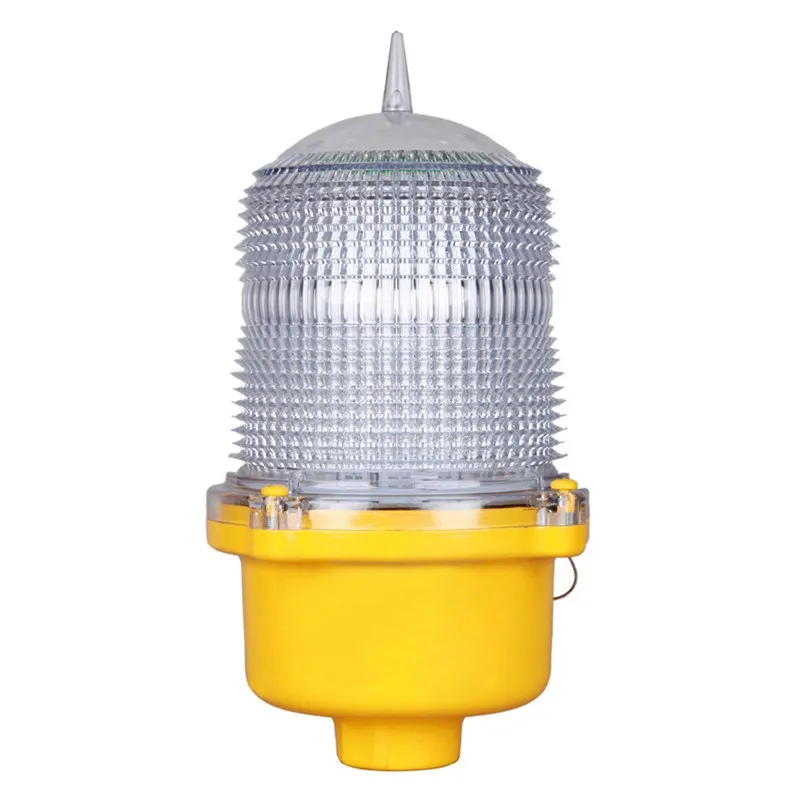

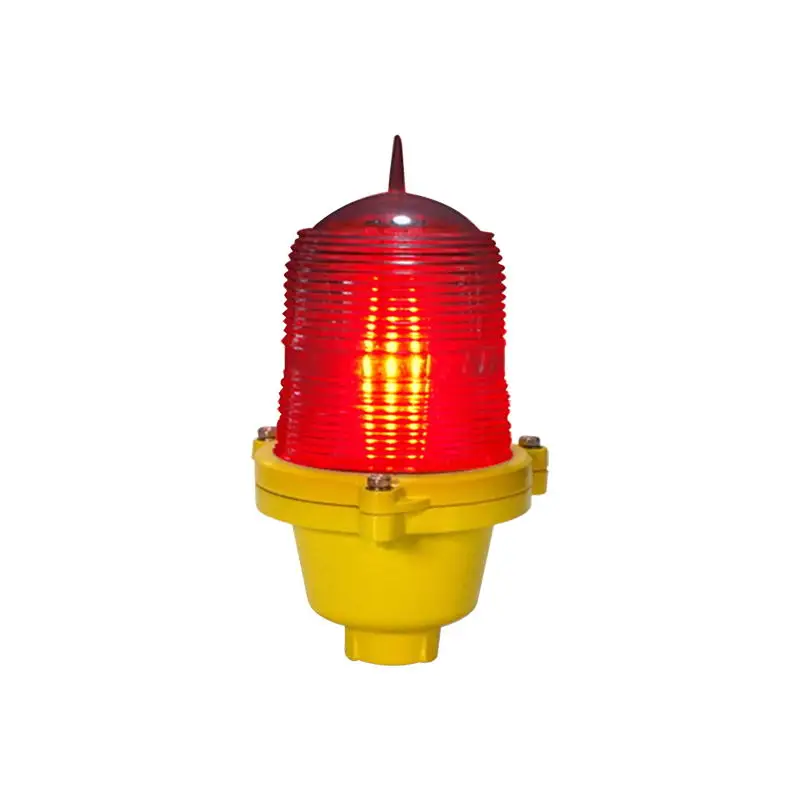

Single Light for aviation obstruction warning

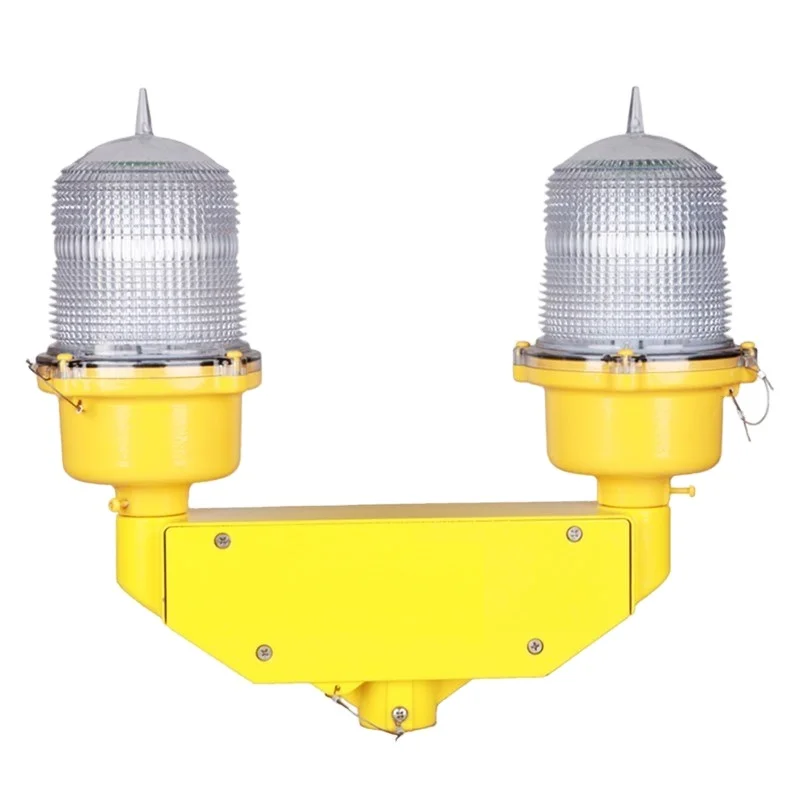

Double Lights for tower obstruction warning
Features
Lamp housing-Polycarbonate with UV and shock resistance
Voltage covers from DC12V to AC220V
5 colors for selection: Red, Green, White, Yellow, Blue
Easily customized including GPS synchronization and monitoring
Completely self-contained and waterproof IP68
Turns on at dark and off at dawn automatically
Details Images

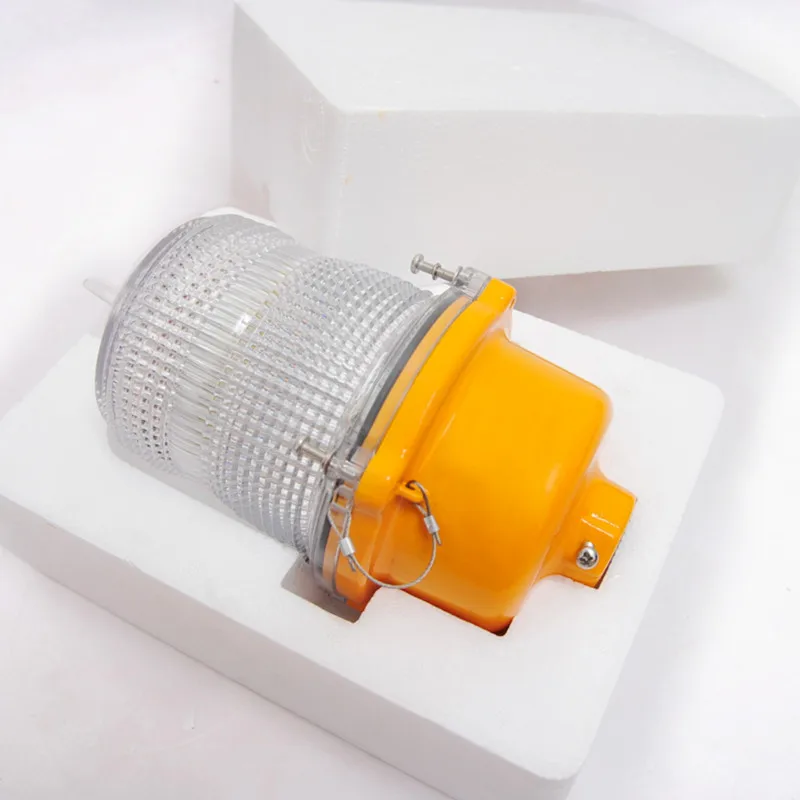

· Polycarbonate with UV and shock resistance
Lens material made by Bayer 2407
·
Completely self-contained and waterproof IP68

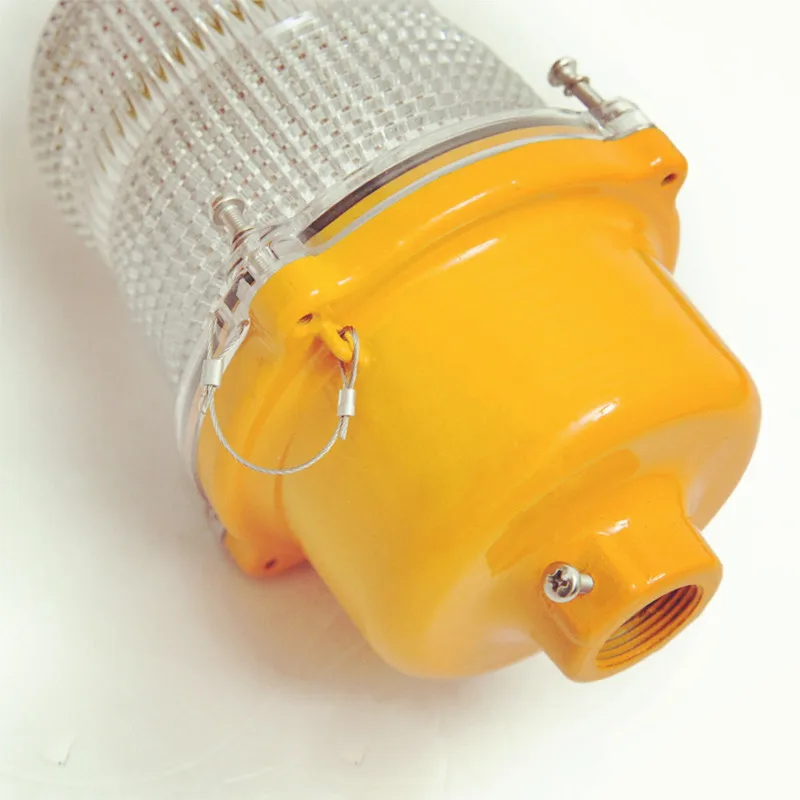

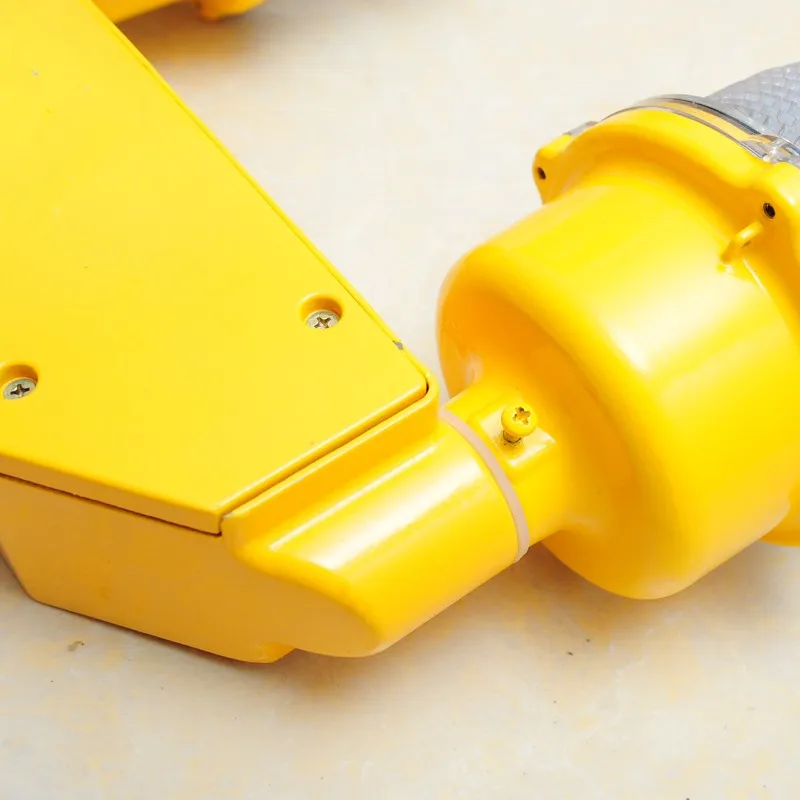

Die-casting Aluminum Installation Base
Anti-corrosion and shock resistance.
Double Lights working modes
• “Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of “service light” failure
• “Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.
Single Light Size （mm）
Double Lights Size (mm)
Main Specifications
LIGHT OUTPUT | AFS-OLS10 | AFS-OLS32 | |
Effective Intensity | 150cd | 300cd | |
Working mode | single light | Double Lights | |
Vertical Divergence | ±7.5° at 50% intensity | ||
Horizontal | 360 Degree | ||
LED color | RED | ||
Latitude Range | 55°S to 55°N | ||
LED lifespan | 100,000 Hours | ||
Body | Die-casting Aluminum | Flashing | |
Input Voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC | ||
Wind speed | Up to 150mph(240kph) | ||
Lens | Polycarbonate, anti-UV and shock resistance | ||
Water-proof | IP68 | ||
Temperature Range | -40C˚ ~ +80C˚ | ||
Weight | Single 0.9KG /dual 3.5KG | ||
Optional | Available in flashing pattern(40FPM) Available in GPS synchronization if flashing | ||
Application
Company Profile
WHY ESONSIGNAL?
Durable Technology
We select the highest-power LEDs, Lithium batteries premium mono panels and rugged polycarbonete/aluminum enclosures.
Intelligent Remote Monitoring
Highly improves security and offer great convenience for management and maintenance department.
Advantage of ESONSIGNAL Aviation Obstruction Lights
Energy Saving
Use solar energy
Easy installation
-No wiring or external components
-Installs quickly with minimal technical expertise
GIVE THE VALUE FOR OUR MONEY
Proven to perform maintenance-free for up to five years, with a service life of up to 12 years
Use solar energy
Easy installation
-No wiring or external components
-Installs quickly with minimal technical expertise
GIVE THE VALUE FOR OUR MONEY
Proven to perform maintenance-free for up to five years, with a service life of up to 12 years
Standards
We know it can be confusing figuring out what type of lighting you need. Please contact us.
Complete Obstruction Lighting Solutions for Towers
ESONSIGNAL simple and self-contained obstruction marking lights are perfect for marking towers and other obstructions for aerial and ground navigation, such as telecom towers, wind tower, airport aviation aids, equipment marking and more.AC Type Learn more...
