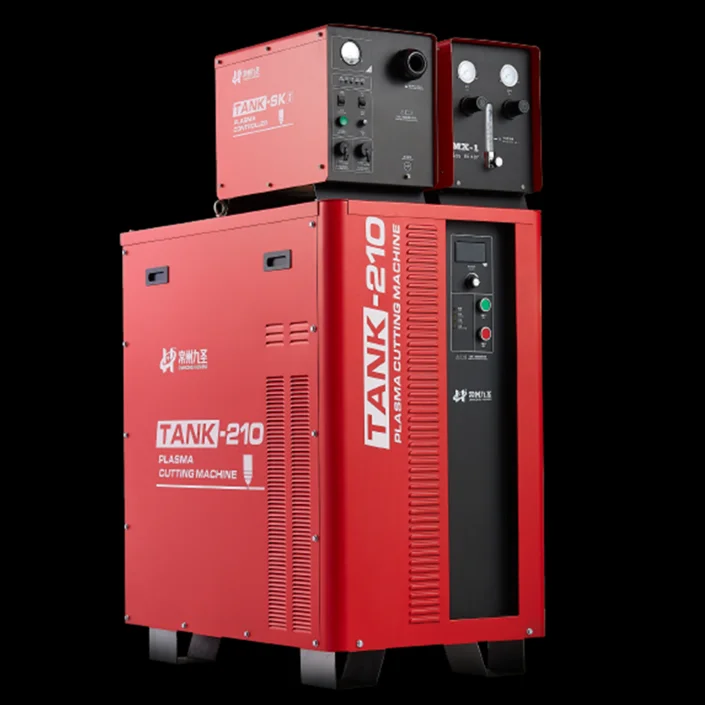

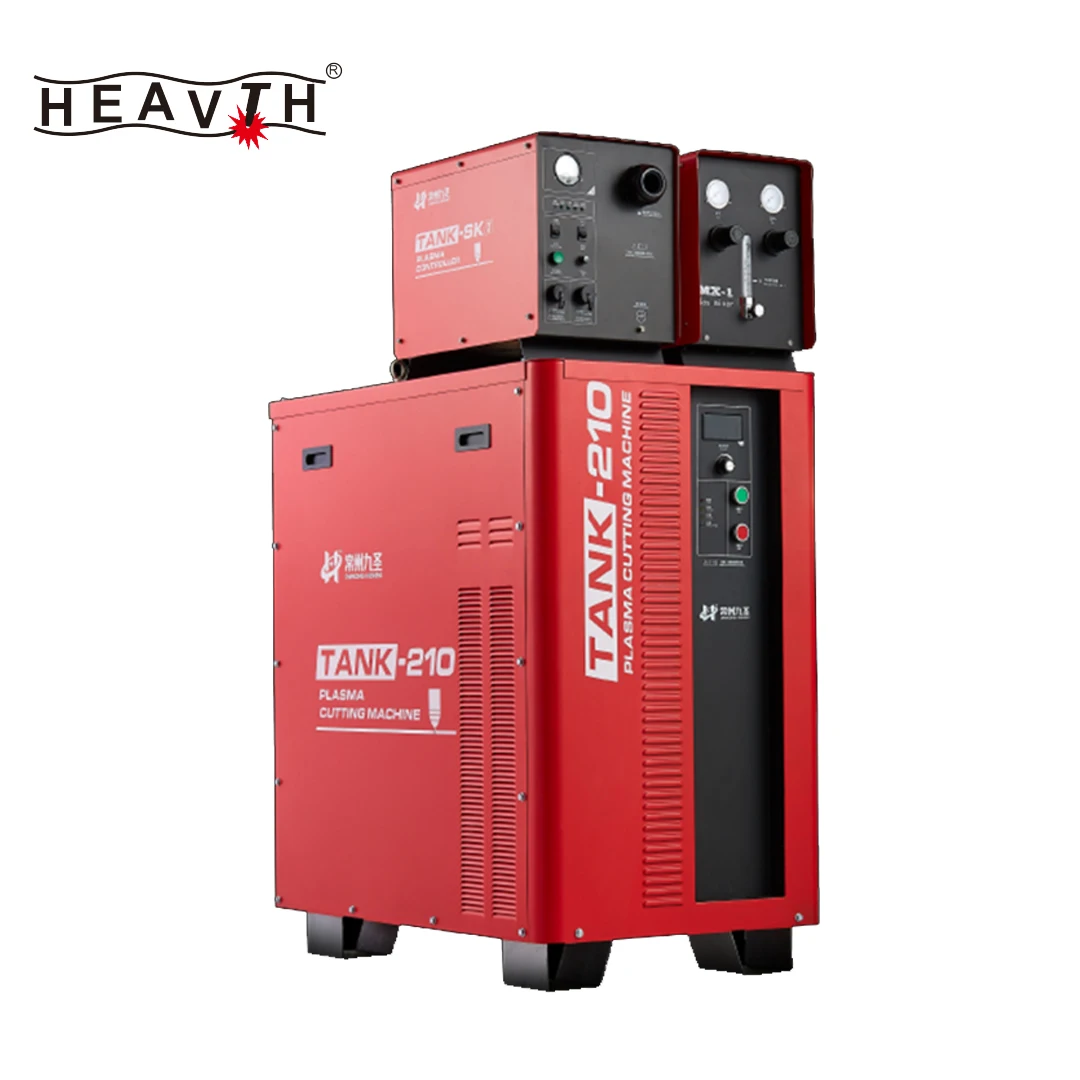

Резервуар 210 машина для плазменной резки источник плазменного источника
- Категория: Источник питания для плазмы >>>
- Поставщик: Changzhou,Heavth,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 10667.56 $* | 10880.66 $* |
| Jul-17-2025 | 8651.65 $* | 8824.7 $* |
| Jun-17-2025 | 10499.24 $* | 10709.52 $* |
| May-17-2025 | 10415.16 $* | 10623.33 $* |
| Apr-17-2025 | 8315.39 $* | 8481.98 $* |
| Mar-17-2025 | 10247.4 $* | 10452.48 $* |
| Feb-17-2025 | 10163.69 $* | 10366.68 $* |
| Jan-17-2025 | 10079.50 $* | 10281.7 $* |
Характеристики
Product Description
| No. | Cutting material | Material thickness (mm) | Pierce height (mm) | Cuttingheight (mm) |
(A) | Cutting speed(mm/min) | |
| 1 | Carbon steel | 3 | 4 | 3 | 60 | 3500 | |
| 2 | Carbon steel | 4 | 4 | 3 | 60 | 3000 | |
| 3 | Carbon steel | 5 | 4 | 4 | 60 | 1400 | |
| 4 | Carbon steel | 6 | 5 | 4 | 60 | 1000 | |
| 5 | Carbon steel | 5 | 4 | 4 | 90 | 3500 | |
| 6 | Carbon steel | 6 | 4 | 4 | 90 | 2800 | |
| 7 | Carbon steel | 8 | 5 | 4 | 90 | 2000 | |
| 8 | Carbon steel | 10 | 5 | 4 | 95 | 1500 | |
| 9 | Carbon steel | 12 | 6 | 4 | 100 | 1000 | |
| 10 | Carbon steel | 16 | 7 | 5 | 100 | 800 | |
| 11 | Carbon steel | 20 |
Onlyedge arc cutting | 5 | 100 | 500 | |
| 12 | Carbon steel | 25 | 5 | 100 | 300 | ||
| 13 | Carbon steel | 30 | 5 | 100 | 200 |
| No. | Cutting material | Material thickness(mm) | Pierce height(mm) | Cuttingheight(mm) | Cutting current (A) | Cutting speed(mm/min) |
| 1 | Stainless steel | 3 | 4 | 3 | 60 | 1900 |
| 2 | Stainless steel | 6 | 4 | 4 | 60 | 750 |
| 3 | Stainless steel | 5 | 4 | 4 | 90 | 2600 |
| 4 | Stainless steel | 6 | 4 | 4 | 90 | 1800 |
| 5 | Stainless steel | 10 | 5 | 4 | 90 | 1400 |
| 6 | Stainless steel | 12 | 5 | 4 | 100 | 890 |
| 7 | Stainless steel | 15 | 6 | 5 | 100 | 630 |
| 8 | Stainless steel | 20 | It does not allow perforation, Onlyedge arc cutting | 5 | 100 | 500 |
| 9 | Stainless steel | 25 | 5 | 100 | 250 | |
| 10 | Stainless steel | 30 | 5 | 100 | 180 | |
| 11 | Aluminum | 3 | 4 | 3 | 60 | 2500 |
| 12 | Aluminum | 5 | 4 | 4 | 60 | 1000 |
| 13 | Aluminum | 6 | 4 | 4 | 90 | 1600 |
| 14 | Aluminum | 8 | 5 | 4 | 90 | 1400 |
| 15 | Aluminum | 10 | 5 | 4 | 100 | 1300 |
| 16 | Aluminum | 12 | 5 | 4 | 100 | 1000 |
| 17 | Aluminum | 15 | 6 | 5 | 100 | 760 |
| 18 | Aluminum | 20 | It does not allow perforation, Onlyedge arc cutting | 5 | 100 | 600 |
| 19 | Aluminum | 25 | 5 | 100 | 400 |
| Processing methods | Cutting torch | Current specifications (A)
| Electrode Numbering
| Nozzle Numbering
| Protection cover Numbering
| Center tube Numbering
| Copper Jacket Numbering
|
| Vertical cutting | HC-1003 | 30—60 | 131010 | 132006 | / | 134010 | 135010 |
| 65—100 | 132010 | ||||||
| 30—60 | 132106 | 133110 | 135110 | ||||
| 65—100 | 132110 | ||||||
| Gouging | 65—80 | 132708 | / | 135710 |
CUT series plasma cutting machine adopts the most advanced power saving technology,IGBT Inverter, Precisionpresetcutting current,Cutting metal materials.
Note:
1,The maximum perforation thickness 20mm, 16mmthickness or less is recommended perforation
2, For inclined cut (to play bevel), the angle of the workpiece with the torch must be greater than 45 °
